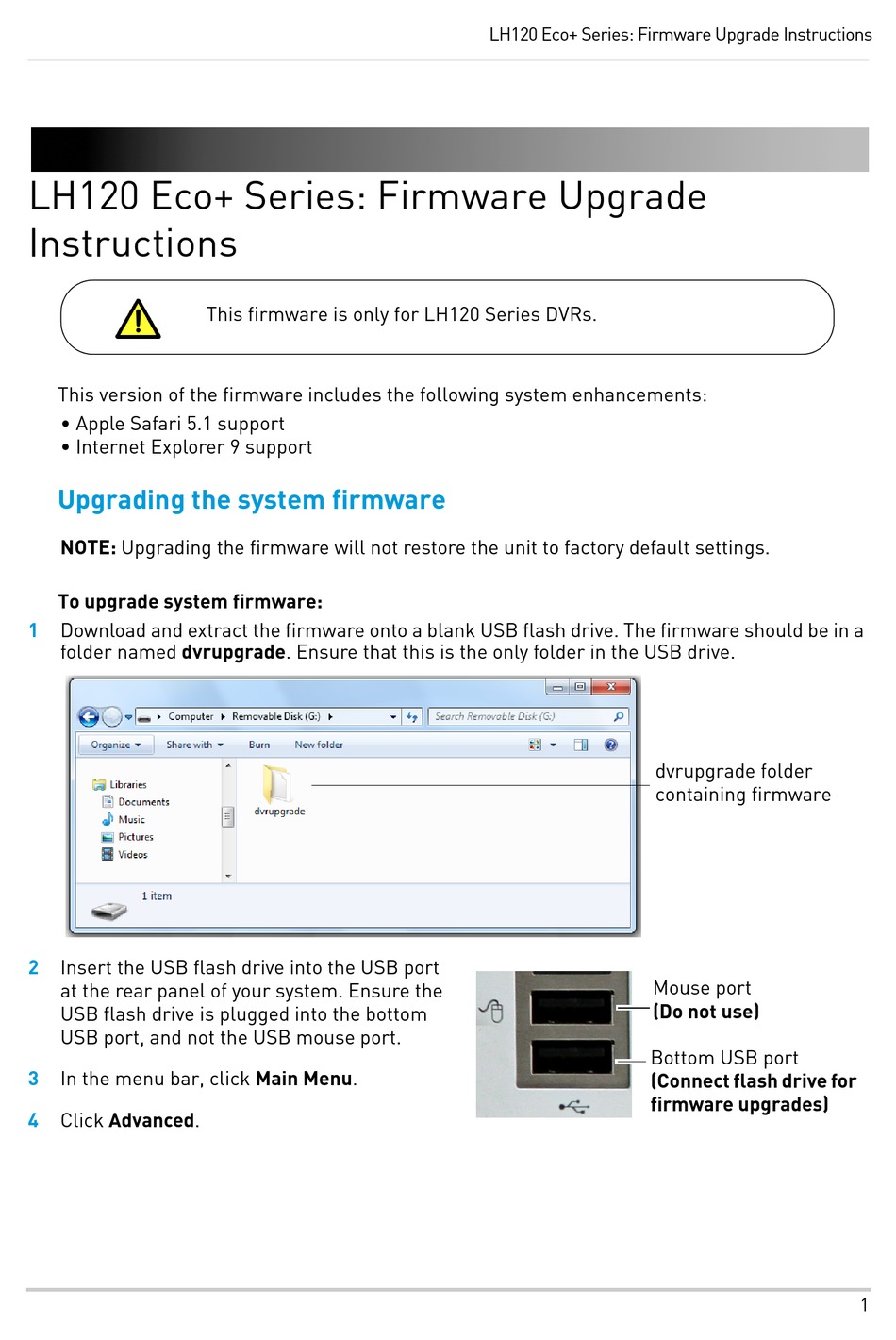

Lorex LH120 Eco+ Series Upgrade Instructions

LH120 Eco+ Series: Firmware Upgrade
Instructions
This version of the firmware includes the following system enhancements:
• Apple Safari 5.1 support
• Internet Explorer 9 support

Upgrading the system firmware

NOTE: Upgrading the firmware will not restore the unit to factory default settings.
To upgrade system firmware:
1 Download and extract the firmware onto a blank USB flash drive. The firmware should be in a
folder named dvrupgrade. Ensure that this is the only folder in the USB drive.
2 Insert the USB flash drive into the USB port
at the rear panel of your system. Ensure the
USB flash drive is plugged into the bottom
USB port, and not the USB mouse port.
3 In the menu bar, click Main Menu.
4 Click Advanced.
This firmware is only for LH120 Series DVRs.
LH120 Eco+ Series: Firmware Upgrade Instructions
dvrupgrade folder
containing firmware
Mouse port
(Do not use)
Bottom USB port
(Connect flash drive for
firmware upgrades)
1
