SERVO 550
FUSE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SERIAL
FUSE RATING
NUMBER
12A/250V (115V)
6A/250V (230V)
CAUTION
TO PREVENT SHOCK DO NOT OPEN. NO USER
SERVICABLE PARTS INSIDE. REFER SERVICING
HEATSINK MAY BE
TO QUALIFIED SERVICE PERSONNEL.
HOT! DO NOT BLOCK
TO PREVENT FIRE OR SHOCK HAZARD DO NOT
AIRFLOW OR OVER-
EXPOSE TO RAIN OR MOISTURE.
HEATING MAY OCCUR
USE CLASS 2 WIRING MAXIMUM LOAD IMPEDANCE 4
-
+
BRIDGED MONO
GROUND
+RIGHT
LEFT +
OUTPUT 275
W/4
RIGHT
LEFT
400W (115V)1050W (230V)
The Servo 550 excels in live performance use,
recording studios and permanent installations. Easy to
install, this 3-space rack-mount stereo power amplifier
(which can also be used in bridged mono mode) delivers
275 watts per channel into a 4 ohm load (in bridged
mono mode, 550 watts into 8 ohms), over a bandwidth
of 20 Hz to 50 kHz. It utilizes high-current output power
transistors and a unique bipolar circuit design that contin-
uously keeps DC output during idling at or near 0 volts.
The Servo 550 also features balanced 1/4" Tip-Ring-Sleeve
inputs and both 1/4 and binding post terminal outputs,
front-panel clip, idle and protection lights plus thermal
and overcurrent protection circuitry. The Servo 550 is con-
vection cooled for silent operation, eliminating fan noise
and the need for filter maintenance. Built rugged with a
solid steel chassis, the Servo 550 is designed for reliable per-
formance over the long haul.
Contact
:
Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 • Phone: (516) 364-2244 • Fax: (516) 364-3888 • www.samsontech.com
POWER
A M P L I F I E R
CLIP
SAMSON

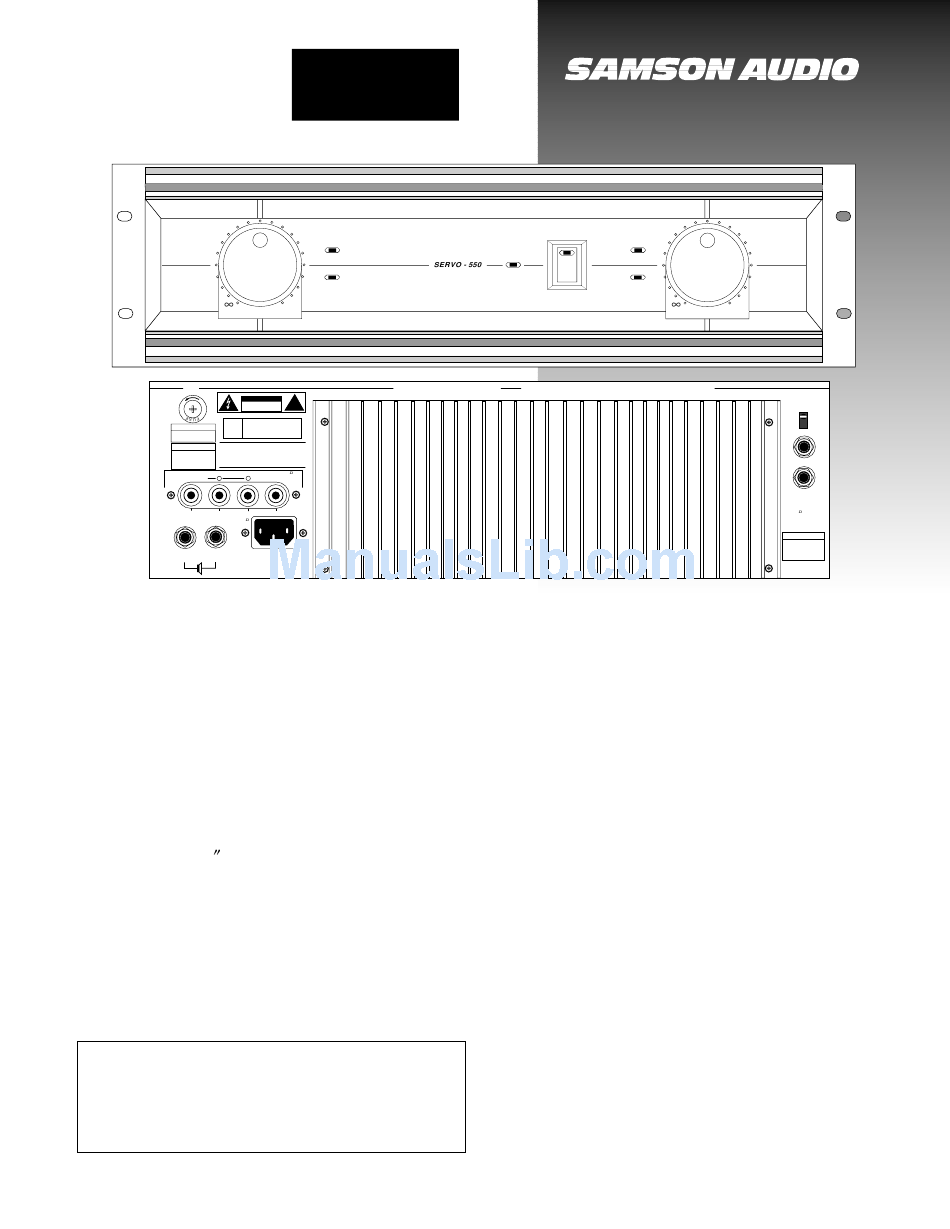

STUDIO AMPLIFIER 275 WATT STEREO
IDLE
MAX
SERVO 550 STUDIO AMPLIFIER
!
GROUND
~AC INPUT
115V/230V, 50/60HZ
CLIP
PROTECTION
IDLE
POWER
SAMSON TECHNOLOGIES CORP., SYOSSET, NEW YORK
• Rack-mount stereo power amplifier (3-space).
• 275 watts per channel into 4 ohms (stereo).
• 550 watts into 8 ohms (mono-bridged).
• 20 Hz to 50 kHz frequency response.
• Electronically balanced 1/4" TRS inputs.
• 1/4" and binding post outputs.
• Turn-on muting to prevent speaker "thumps. "
• Servo protection circuitry continuously keeps DC
output during idling at or near 0 volts (thus keeping idle
speakers at their 0 point).
• Protection circuitry against overheating and overcurrent.
• High-current output power transistors.
• Unique bipolar circuit design.
• Front-panel clip, idle and protection lights.
• Independent left- and right-channel input controls with
41-position detents.
• Convection cooled (No Fan).
• All-steel chassis with new black matte titanium finish and
lightweight anodized aluminum heat sink.
MAX
STEREO
BRIDGED
MONO
LEFT
RIGHT
INPUTS
(BALANCED
10K /0dBm)
TIP RING SLEEVE
TIP
+
RING
-
SLEEVE GND
