Samson Power Amplifier Servo 120 Specification Sheet

SERVO 120
BRIDGE
OFF

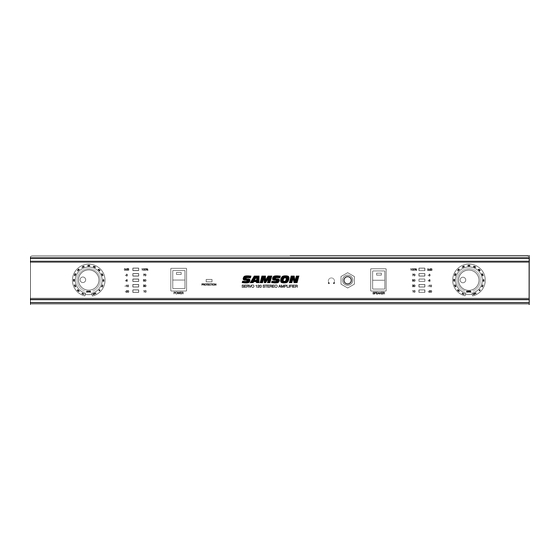

SERVO 120 STEREO AMPLIFIER
The Servo 120 power amplifier is intended for use
in all types of recording applications, live performance
and permanent installs. This easily-installed 1-space rack-
mount stereo power amplifier (which can also be used in
mono bridge mode) delivers 60 watts per channel into a 4
ohm load (in mono bridge mode, 120 W into 8 ohms),
over a bandwidth of 20 Hz to 50 kHz. It utilizes high-cur-
rent output power transistors and features an efficient
bipolar circuit design that continuously keeps DC output
during idling at or near 0 volts. The Servo 120 also has
balanced 1/4 and RCA inputs and push-spring terminal
outputs, a front-panel protection light, headphone jack,
speaker On/Off switch, 3 color LED meters and thermal
and overcurrent protection circuitry. The Servo 120 is con-
vection cooled for silent operation, eliminating fan noise
and the need for filter maintenance.
Contact:
Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 • Phone: (516) 364-2244 • Fax: (516) 364-3888 • www.samsontech.com
POWER
A M P L I F I E R
M0N0
BALANCE
BALANCE
ON
RIGHT LEFT
AC INPUT
USA & CANADA
2.5A/125V(115V) +RIGHT
USA & CANADA 115V~60HZ 200W EUROPE & UK -
EUROPE & UK 230V ~ 50HZ 300W 1.5A/250V (230V)
• Rack-mount stereo power amplifier (1-space).
• 60 watts per channel into 4 ohms (stereo).
• 120 watts into 8 ohms (mono bridge).
• 10 Hz to 100 kHz frequency response.
• Electronically balanced 1/4 and unbalanced RCA
inputs on gold-plated connectors.
• Push-spring terminal outputs.
• Smart Servo circuitry protection against overheating
and overcurrent.
• High-current output power transistors.
• Unique bipolar circuit design continuously keeps DC
output during idling at or near 0 V (thus keeping idle
speakers at their 0 point).
• Front-panel protection LED, headphone jack, speaker
on/off switch, 3 color LED meters.
• Independent left- and right-channel input controls
with 41-position detent.
• Convection-cooled (No Fan).
• Solid steel chassis with lightweight anodized alu-
minum heat sink.
• Toroidal transformer power supply.
• Front-panel headphone jack with speaker disable
switch.
• 3 Year warranty.
SAMSON
CAUTION
!
RISK OF ELECTRIC SHOCK
GROUND LEFT+
DO NOT OPEN
+
MONO (8 )
