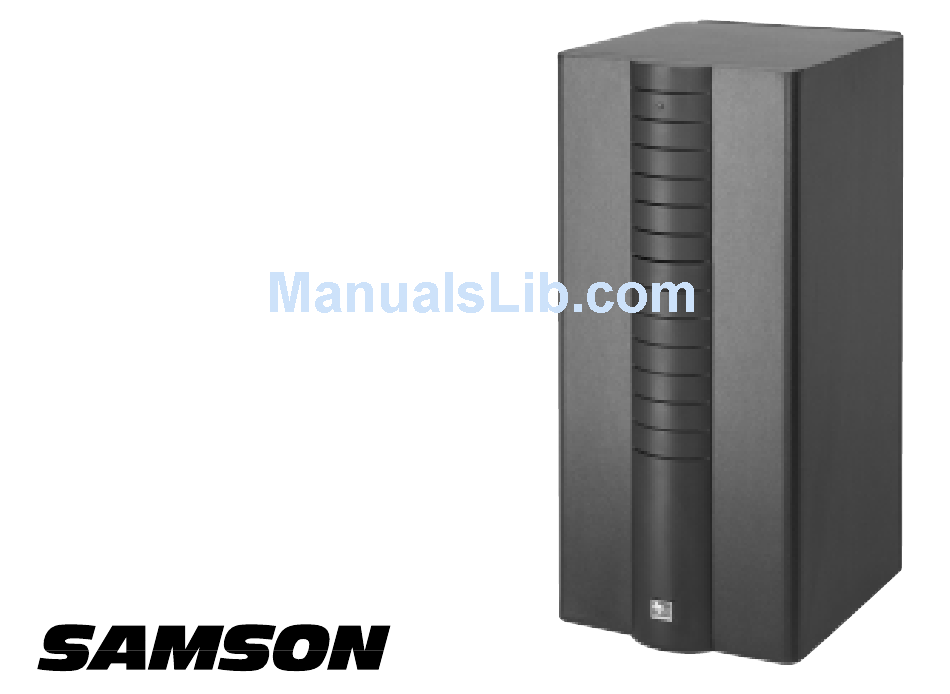

S40
POWERED SUBWOOFER
OWNERS MANUAL
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samson S40

Summary of Contents for Samson S40

  • Page 1 POWERED SUBWOOFER OWNERS MANUAL ®...

  • Page 2: Table Of Contents

    INTRODUCTION FEATURES OPERATING NOTES CONTROLS AND FUNCTION INSTALLATION SPECIFICATIONS C O N T E N T S...

  • Page 3: Introduction

    To get more details for setting up and operating the S40, please refer to this manual thoroughly. In this manual, you’ll find a more detailed description of the features of your S40 Powered Subwoofer, as well as setting up and operating instructions and com- plete specifications.
  • Page 4 Please call Samson at 1-800-3SAMSON (1-800-372- 6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing material and, if possible, return the S40 in its original carton and packing materials.

  • Page 5: Features

    Features: • Heavy duty 6.5 bass driver • 50 watt bass power amplifier • Sensitivity and on/off controls • Gold-plated RCA line in • Filtered stereo line in • Ported tuned cabinet • Integrated power supply • DMS80 compatible • Compatible with any sound system with a stereo line out or a non-amplified sub-output F E A T U R E S...

  • Page 6: Operating Notes

    Do not connect speakers and turn on power until you have read this manual thoroughly. • Do not expose the S40 to dust or moisture and be sure to wipe it clean of any dust regularly. • Do not connect an amplifier to the S40 subwoofer speaker or the warranty will be void.

  • Page 7: Power Switch

    115vac 230vac 1. AC INLET Connects to the supplied 3-pin IEC power cord. 2. POWER SWITCH Turns the S40 on or off. A N D POWERED SUBWOOFER 50 WATTS RMS POWER SENSITIVITY F U N C T I O N S...

  • Page 8: Mono Input

    4. MONO INPUT Accepts line level output specified for a powered subwoofer only. The SUB MONO OUT from th Samson DMS80 would connect to the MONO INPUT. 5. STEREO INPUT FILTER (LEFT) Accepts line level out from the left channel of a stereo source. The built-in low pass filter cuts frequencies from 100 Hz up, therefore making it possible to use the S40 with any stereo line source.

  • Page 9: Installation

    (ported side) facing a corner or wall, or under a work station or desk. 3. Either connect a line level (non amplified) sub mono out to the MONO INPUT of the S40, or connect line level left and right outputs to the left and right STEREO INPUT FILTERED respectfully.

  • Page 10: Specifications

    Power Frequency Response Inputs Mono Input Stereo Inputs Controls Power Requirements Dimensions Weight S P E C I F I C A T I O N S Line level filtered (low pass @ 100 Hz) 479mm (h) x 221mm (w) x 278mm (d) 50W (rms) 20–100 Hz Line level...
  • Page 11 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com ©1999 Samson Technologies Corp.
