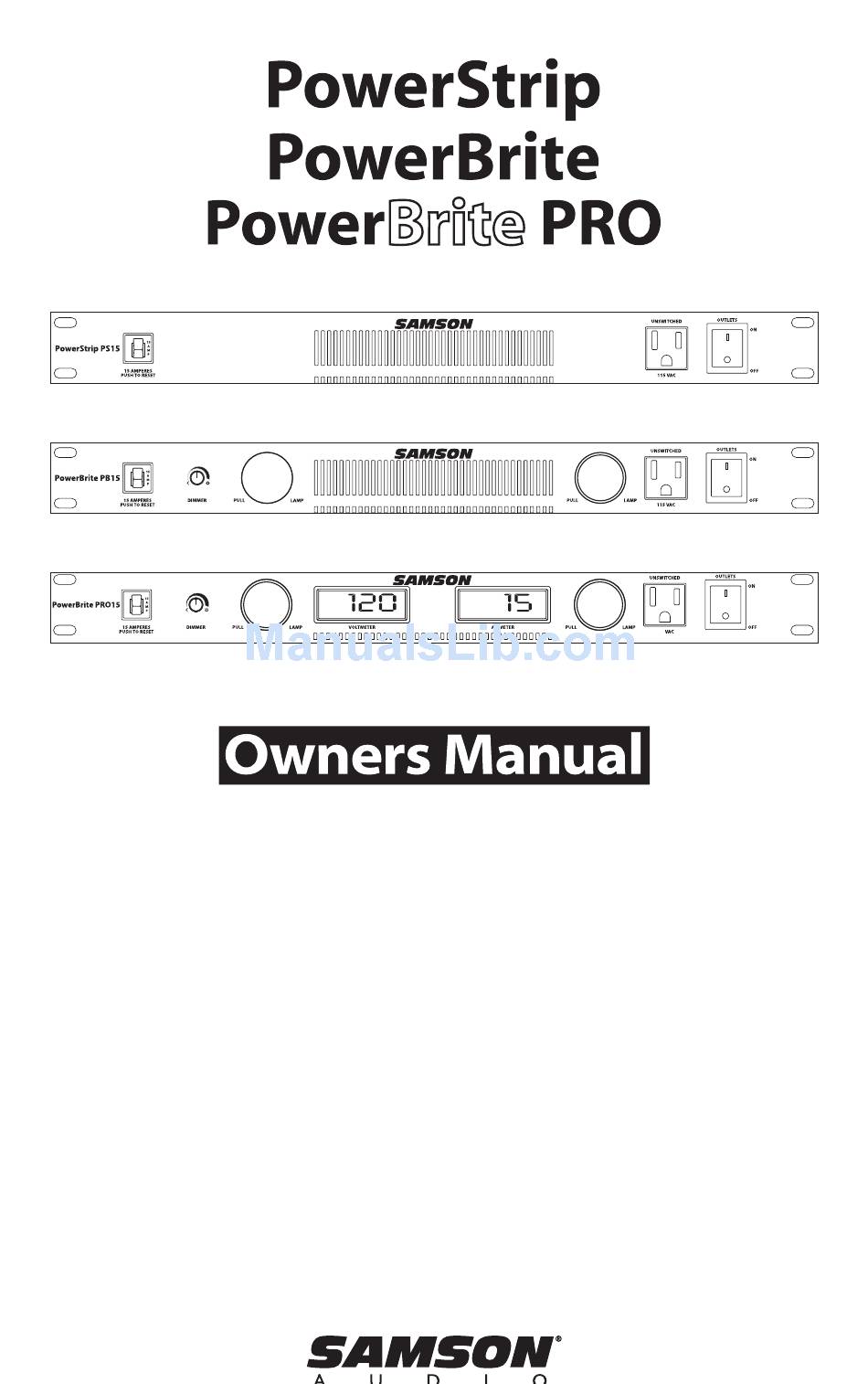

  • Page 1 PS15 PB15 PB15PRO RACK-MOUNT POWER DISTRIBUTION...
  • Page 2 Refer all servicing to qualified personnel. Servicing is required when the unit has been damaged in any way, such as power supply cord or plug damage, or if liquid has been spilled or objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate normally, or has been...

  • Page 3: Table Of Contents

    Specifications ............12 Copyright 2007, Samson Technologies Corp.

  • Page 4: Introduction

    This will enable you to receive online technical support and will allow us to send you updated information about other Samson products in the future. Also, be sure to check out our website (www.samsontech.com) for complete information about our full product line.

  • Page 5: Powerbrite Features

    The Samson PowerStrip PS15, PowerBrite PB15, and PowerBrite PB15Pro all utilize state-of-the-art technology in power distribution and are engineered to the finest detail. Here are some of their main features: • Eight switched, rear panel, AC outlets that allow you to power an entire rack’s worth of gear from one source.

  • Page 6: Ps15 Guided Tour - Front Panel

    PS15 Guided Tour - Front Panel PowerStrip PS15 Front Panel 1: Circuit breaker- This circuit breaker will trip whenever the total load on the PS15 (all rear panel switched outlets plus the front panel unswitched convenience outlet) exceeds 15 amps. To reset it, unplug one or more devices so as to reduce the load and gently press the circuit breaker in until you hear it click.

  • Page 7: Ps15 Guided Tour - Rear Panel

    PowerStrip PS15 Rear Panel 1. Power cord - Heavy Duty, 14 gauge mains power cord. 2: Switched AC outlets (horizontal mount)- Connect external equipment to these standard 3-pin AC outlets, which are turned on and off from the front panel Outlets switch (see #2 on the previous page).

  • Page 8: Pb15 Guided Tour - Front Panel

    PB15 Guided Tour - Front Panel PowerBrite PB15 Front Panel 1: Circuit breaker- This circuit breaker will trip whenever the total load on the PB15 (all rear panel switched outlets plus the front panel unswitched convenience outlet) exceeds 15 amps. To reset it, unplug one or more devices so as to reduce the load and gently press the circuit breaker in until you hear it click.

  • Page 9: Pb15 Guided Tour - Rear Panel

    PowerBrite PB15 Rear Panel 1: Power Cord - Heavy Duty, 14 gauge mains power cord. 2: USB Socket - USB type socket for connecting the included USB gooseneck LED lamp. 3: Switched AC outlets (horizontal mount)- Connect external equipment to these standard 3-pin AC outlets, which are turned on and off from the front panel Outlets switch (see #6 on the previous page).

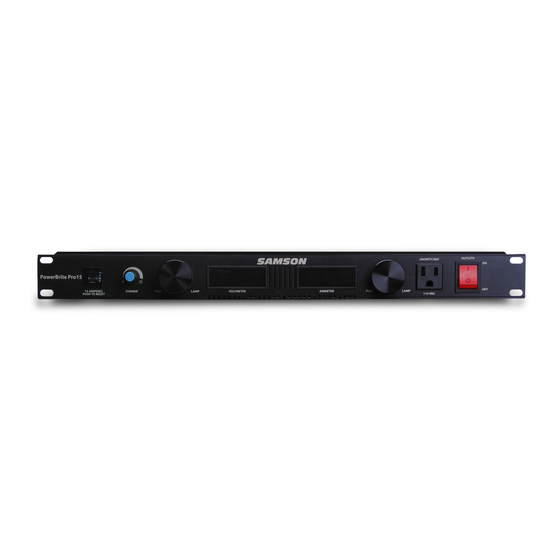

  • Page 10: Pb15Pro Guided Tour - Front Panel

    PB15PRO Guided Tour - Front Panel PowerBrite PB15Pro Front Panel 1: Circuit breaker- This circuit breaker will trip whenever the total load on the PB15Pro (all rear panel switched outlets plus the front-panel unswitched convenience outlet) exceeds 15 amps. To reset it, unplug one or more devices so as to reduce the load and gently press the circuit breaker in until you hear it click.

  • Page 11: Pb15Pro Guided Tour - Rear Panel

    PB15PRO Guided Tour - Rear Panel PowerBrite PB15Pro Rear Panel 1: Power Cord - Heavy Duty, 14 gauge mains power cord. 2: USB Socket - USB type socket for connecting the included USB gooseneck LED lamp. 3: Switched AC outlets (horizontal mount)- Connect external equipment to these standard 3-pin AC outlets, which are turned on and off from the front panel Outlets switch (see #8 on the previous page).

  • Page 12: Setting Up And Using Your Powerstrip Or Powerbrite

    Setting Up and Using Your PowerStrip or PowerBrite Setting up your PS15, PB15, or PB15Pro is a simple procedure which takes only a few minutes: Remove all packing materials (save them in case of need for future service) and install the unit in a standard 19” rack. We recommend that the PB15 and PB15Pro be placed in the top slot so that its slide-out LED lamps can be used to illuminate the entire rack of equipment below.

  • Page 13: Appendix A: Led Or Incandescent

    There are numerous advantages to using the kind of LED (light emitting diode) lighting provided by the PowerBrite PB15 and PowerBrite PB15Pro over the incandescent lighting provided by competing rack light products. Here are the main points to consider when making your purchase: •...

  • Page 14: Specifications

    Specifications Electrical: Number of Outlets PS15, PB15, PB15Pro Max. Current Input Voltage (RMS) Spike Protection Mode Max. Clamping Voltage (@ 50 A) Response Time Max. Surge Current Max. Spike Energy Noise Attenuation Power Cord LED Light Life (Typical) General: Dimensions Weight PS15 PB15...
  • Page 16 Samson Technologies Corp. 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
