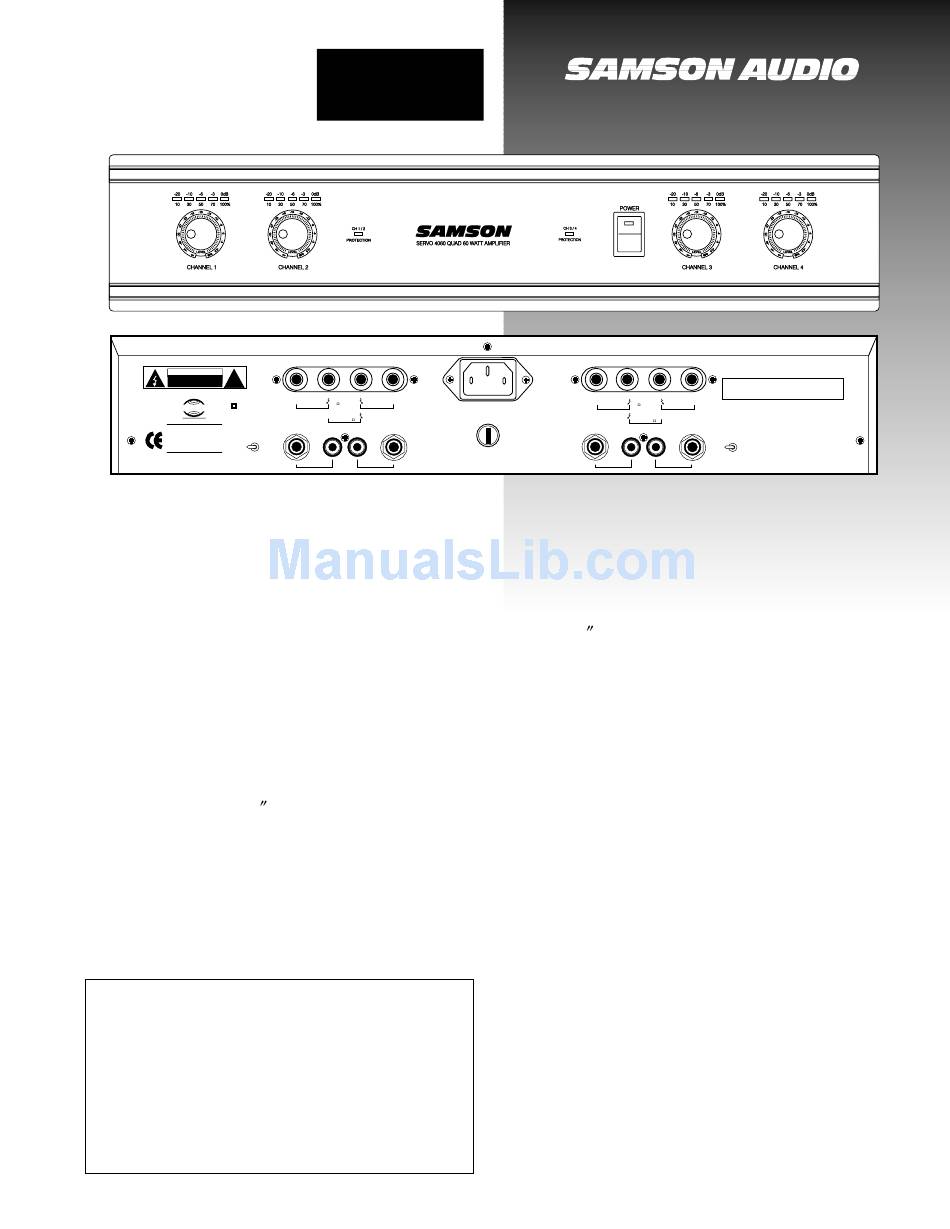

Samson Power Amplifier Servo 4060 Specification Sheet

SERVO 4060
CAUTION
!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
USE CLASS 2 WIRING
emc
EUR . USA . JPN
AVIS;
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
BRIDGE
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
OFF ON
The Servo 4060 power amplifier is designed for
recording, live performance, distributed sound and other
permanent A/V contracting applications. This easily
installed 2-space rack-mount quad power amplifier deliv-
ers 60 watts per channel into a 4 ohm load (in stereo
bridge mode, 120 watts into 8 ohms per pair), over a
bandwidth of less than 10 Hz to 85 kHz. The four 60
watt amplifiers can be bridged separately to provide two
120 watt amps or one 120 watt amp and two 60 watt
amps. The 4060 includes high-current output power tran-
sistors and an efficient bipolar circuit design that continu-
ously keeps DC output during idling at or near 0 volts. It
also features balanced 1/4 and RCA inputs and binding
post outputs on the rear panel. The front panel includes
two front-panel protection LEDs, four 3 color LED meters,
four independent volume controls and thermal and over-
current protection circuitry. The Servo 4060 is convection
cooled for silent operation.
Contact:
Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 • Phone: (516) 364-2244 • Fax: (516) 364-3888 • www.samsontech.com
POWER
A M P L I F I E R
- + + -
- + + -
4 120W AC
CH4 CH3
USA & CANADA 115V - 60Hz
MAX. LOAD
INLET
EUROPE & UK 230V - 50Hz
- +
MONO 8
CAUTION:
DISCONNECT SUPPLY CORD
BEFORE CHANGING FUSE.
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE OF FUSE. USA & CANADA
T 8A/125V (115V)
FUSE
EUROPE AND UK
CH4 R CH3 R
T 6.3A/250V (230V)
- +
- +
4 120W
CH2
MAX. LOAD
+
650W MAX.
MONO 8
ATTENTION:
DEBRANCHER AVANT DE
REMPLACER LE FUSIBLE.
UTILISERUN FUSIBLE DE
RECHANGE DE MEM TYPE.
CH2 L
• Rack-mount 4-channel power amplifier (2-space).
• 60 watts per channel into 4 ohms (quad).
• 120 watts into 8 ohms (stereo bridge mode).
• 20 Hz to 50 kHz frequency response.
• Balanced 1/4 and unbalanced RCA inputs.
• Binding post outputs.
• Turn-on muting to prevent speaker "thumps. "
• Servo circuitry protection against overheating and over-
current.
• High-current output power transistors.
• Efficient bipolar circuit design continuously keeps DC
output during idling at or near 0 V (thus maintaining idle
speakers at their 0 point).
• 2 Front-panel protection LEDs, four 3-color LED meters,
four separate volume controls.
• Four independent left- and right-channel input controls
with 41-position detents.
• Convection cooled (No Fan).
• All-steel chassis with lightweight anodized aluminum heat
sink.
• 3 Year warranty.
SERVO 4060
+ -
QUAD AMPLIFIER
SERIAL NUMBER
+ -
CH1
SAMSON
-
SAMSON TECHNOLOGIES CORP., U.S.A.
BRIDGE
OFF ON
CH1 L
