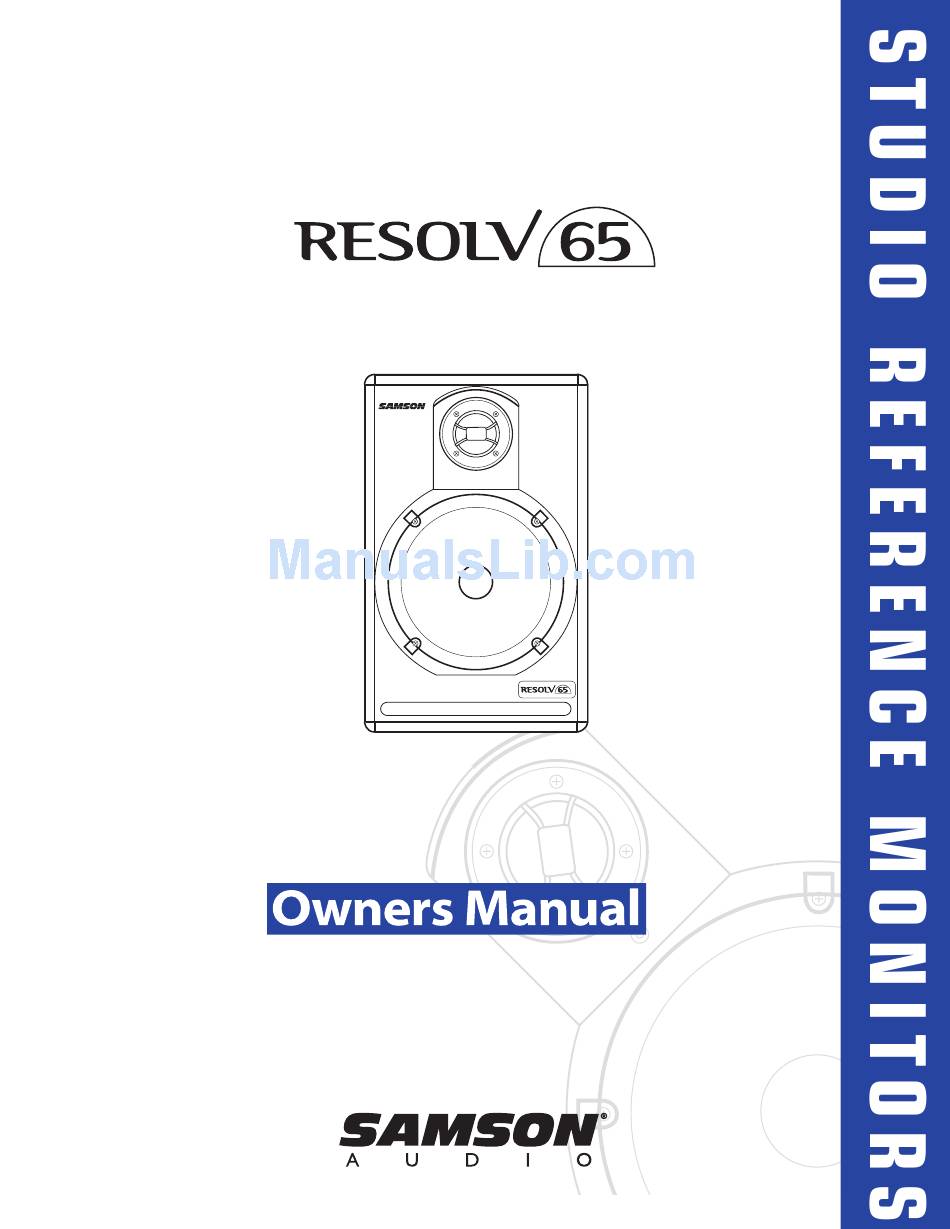

  • Page 1 ® Two-way Studio Reference Monitor...

  • Page 2: Safety Instructions

    Safety Instructions Caution: To reduce the hazard of electrical shock, do not remove cover or back. No user serviceable parts inside. Please refer all servicing to qualified personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 3: Table Of Contents

    Background on the Resolv65 Studio Reference Monitor Positioning the Resolv 65 Connecting the RESOLV 65 Powering the Resolv 65 Connecting the RESOLV 65 to the Resolv 120a Sub Woofer Specifications Copyright 2002 - 2007, Samson Technologies Corp. Printed February, 2007 v1.1 Samson Technologies Corp.

  • Page 4: Introduction

    65’s have been magnetically shielded to meet the needs of today’s multimedia studio. With its extended low end and linear frequency response, the RESOLV 65 is an ideal near field monitor system for recording studios, video post-production suites, fixed installations or where accurate monitoring is required.

  • Page 5: Resolv 65 Features

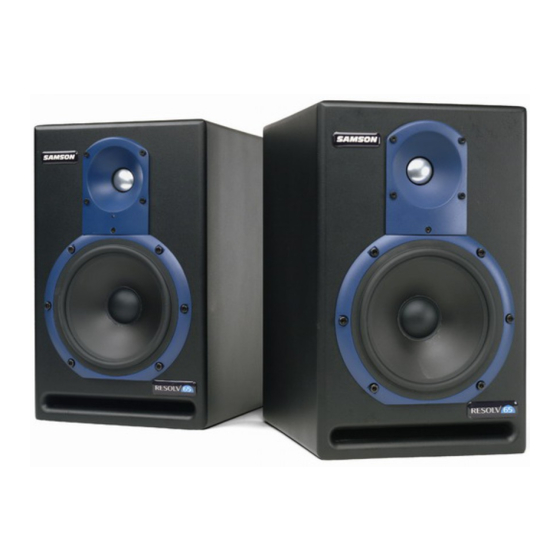

    The Samson RESOLV 65 two-way studio reference monitor provides accurate a enjoyable listening even during long, demanding sessions. Here are some of its main features: • Extremely accurate reference monitoring • 6.5" Co-polymer low frequency transducer • 1" Titanium dome tweeter with Neodymium and Ferro-fluid cooling •...

  • Page 6: Resolv 65 Layout

    RESOLV 65 Layout Front View Layout ® Rear View Layout 100 Watts 1 1 " TiTanium Dome TweeTer - Neodymium Magnet and Ferro-Fluid Cooling on waveguide. 2 P hase Plug - Insures even disper- sion of the high frequencies and improves off axis listening.

  • Page 7: Setting Up & Operating The Resolv 65

    Background on the Resolv65 Studio Reference Monitor The Resolv 65 is a near field reference monitor featuring a custom designed 6.5” co-polymer low frequency driver and a 1” titanium tweeter employing a Ferro fluid cooled, neodymium magnet. The monitor’s crossover has been carefully designed with high quality components insuring a linear frequency and phase response.

  • Page 8: Connecting The Resolv 65

    When powering down, turn your power amp off first and then your mixer and outboard gear. The Resolv 65 connections are made via the rear panel 5-way binding posts. You can use banana plugs, spade lugs or tinned and stripped wire. Standard strained speaker wire of 12-14 gauge is recommended and you should use the shortest possible wire length (equal on both sides) on both the left and right monitor.

  • Page 9: Powering The Resolv 65

    In order to ensure that your monitor system is in phase, be careful to pay close attention to the positive and nega- tive marking on the amplifier, wires and Resolv 65 monitors. Make sure that the + terminal of the speaker is con- nected to the + terminal of the power amplifier and that the - terminal of the speaker is connected to the - terminal of the power amplifier.

  • Page 10: Connecting The Resolv 65 To The Resolv 120A Sub Woofer

    For extended low end, the RESOLV 65’s can used with the Resolv 120a active subwoofer using line level inputs and outputs. Below is a typical system set up using the RESOLV 65’s with a mixer, stereo power amplifier and the Resolv 120a active subwoofer.

  • Page 11: Specifications

    Enclosure: Construction: 5/8” MDF (Medium Density Fiberboard Finish: Black textures, anti-scuff paint Feet: Large rubber anti-skid Dimensions: 8.5″ x 10 x 13.625 216mm x 254 x 346 Weight: 13.4 lbs 6.1 kg SPL vs Freq RESOLV 65 Frequency Chart Specifications...

  • Page 12: Phone: 1-800-3-Samson

    Samson Technologies Corp. 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
