FBs-CMZBR ZigBee Communication Modules
FBs-CMZBR is a radio device that wirelessly bridges various devices. It converts
serial data from wired interface (RS485/RS232) into RF packets and vice versa.
With robust RF protocol, the FBs-CMZBR can be used to form a wireless network
with star or peer-to-peer structure.
1. Introduction

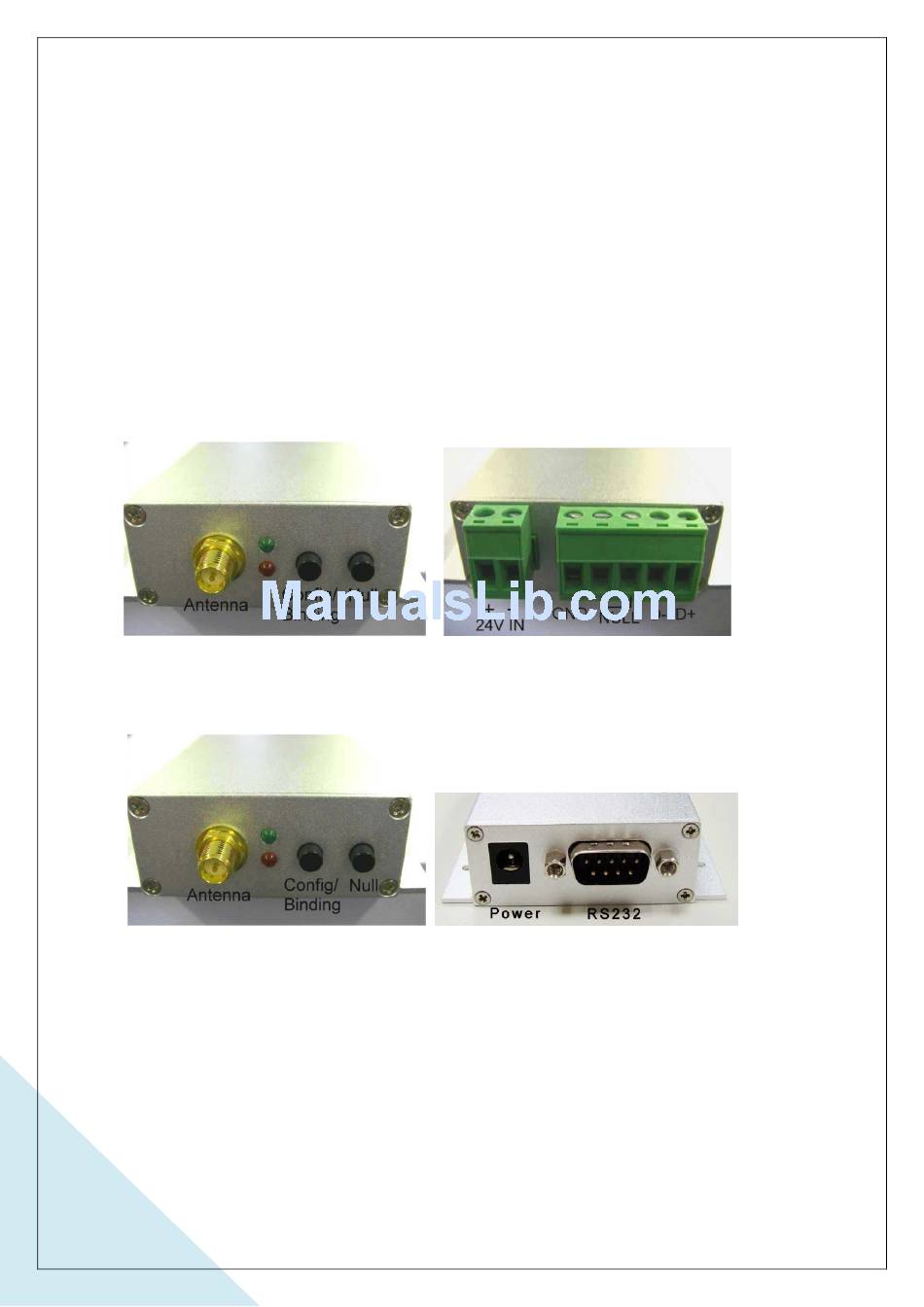

a. Button & connector:
i. RS485 Type
ii. RS232 Type
b. Default value:
Com port setting: 9600, 7, E, 1
PAN ID: 0x1234(2 Byte)
Channel: 26
Device Model: Master (Broadcast Transmit)
1
FATEK Automation Corp.
www.fatek.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FATEK FBs-CMZBR
Summary of Contents for FATEK FBs-CMZBR
- Page 1 FBs-CMZBR is a radio device that wirelessly bridges various devices. It converts serial data from wired interface (RS485/RS232) into RF packets and vice versa. With robust RF protocol, the FBs-CMZBR can be used to form a wireless network with star or peer-to-peer structure.
- Page 2 When a Master mode FBs-CMZBR sends RF packets, it broadcasts the packet to all the devices with the same PAN ID. On the other hand, when a FBs-CMZBR, as a Slave, sends data wirelessly, it only sends the data to the Master with a same PAN ID.
- Page 3 Red light blinking: Indicating the device is receiving wireless Data. 2. Power on When a FBs-CMZBR is powered, it enters Working mode in which it will wirelessly transparently transmit the data received from wired interface. In contrast to the Working mode, there is a Configuration mode which will be detailed further in later section.
- Page 4 When FBs-CMZBR is powered up, it is in the Working mode. Users can change the device’s parameter by entering Configuration mode. A window-based utility program, Quan Configuration Utility (QCU), can be used to facilitate the configuration process. 3. Pairing process If the user desires to construct a star network, he may need to employ one Master device and several Slave devices.
- Page 5 In QCU, choose the correct COM PORT number and press “Open Port” button. Then the QCU is able to talk with the connected FBs-CMZBR. b. Enter Configuration mode Press “Enter Configuration (1B 1B)” button and the target device will enter into Configuration mode.
- Page 6 Enter four hexadecimal digits into the text box and press the “Set PANID” button. l. Destination Address The destination address of data transmitted wirelessly. It is set by system automatically. m. Verbose Check/uncheck to decide whether to show system information or not. n. Manually input command FATEK Automation Corp. www.fatek.com...
- Page 7 This information appears only in the FBs-CMZBR boot. 6. Trouble shooting In case the FBs-CMZBR fails to transmit data smoothly, check LED light for the hint of resolutions. LED light Possible Problems...
- Page 8 1. Wrong Baud rate/ Check Baud rate, Data Bit and on but Red Data Bit/Parity setting Parity setting. light The setting for FBs-CMZBR must blinking be consistent with the device (eg. PLC or computer) connected via wire interface (RS232/RS485). 2. Loose connector...
