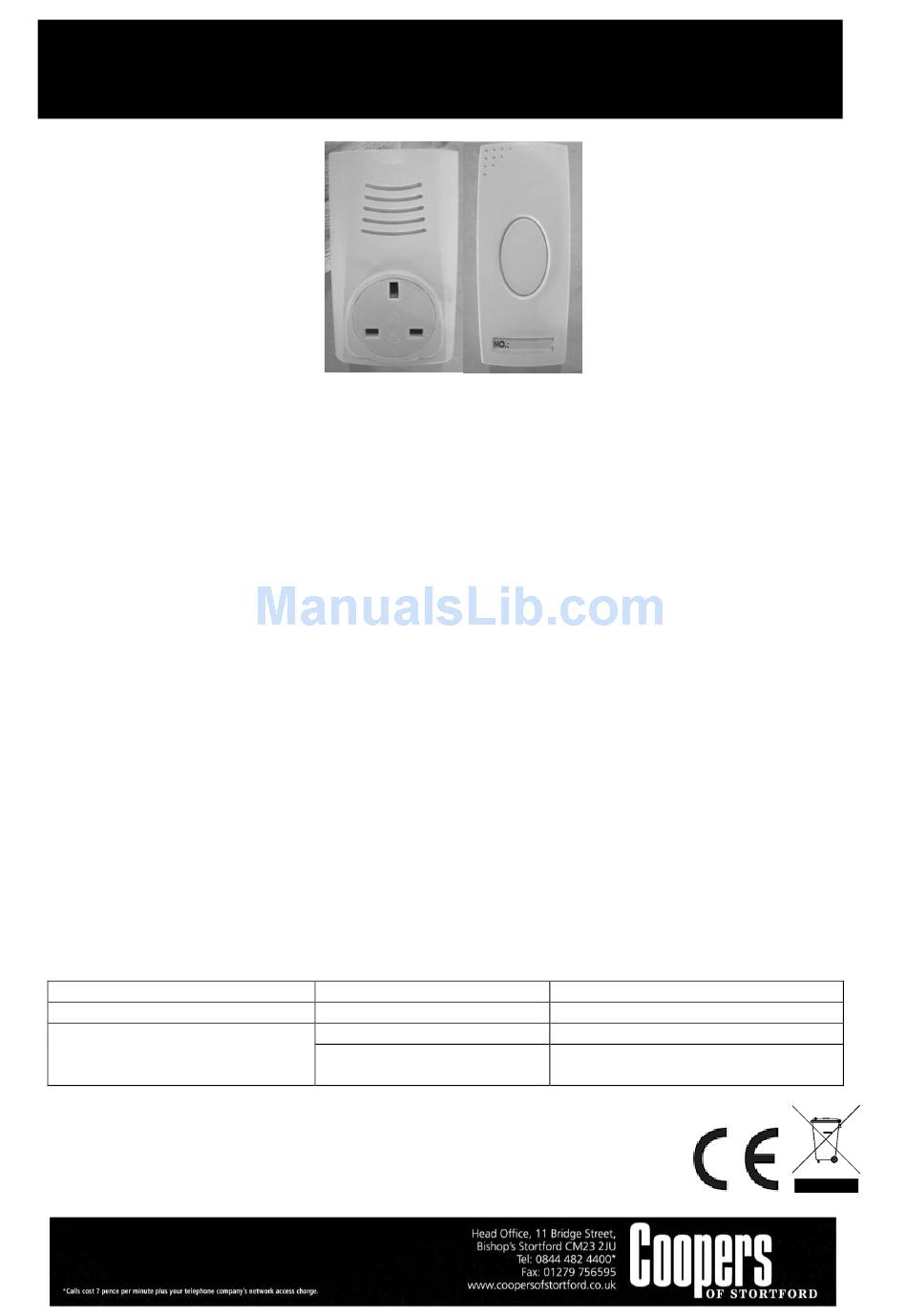

Coopers 9268 Instructions For Use

Plug-in Door Chime with Socket
Please read and retain these instructions for future reference

PARTS


1x Bell push

1x Plug In Receiver

1x Fixings pack (2 x screws, 2 x wall plugs and
adhesive pads)

1x 12V battery (23A)

TECHNICAL INFORMATION


Receiver: 230V, 50Hz

Bell push: 12V battery (23A)

Frequency: 433 MHz

INSTALLATION

Bell Push

Remove the back cover from the bell push.

Insert the battery according to the correct polarity
as shown in the battery compartment.

Take care to avoid damaging the other components
when inserting the battery.
To fix onto wooden doorframes or brick surfaces, insert
the screws (using wall plugs provided if required)
through the back cover, screw into place and then attach
the bell push. To fix, onto UPVC frames or plastic
surfaces, attach the back cover and then secure using
adhesive pads.

TROUBLESHOOTING

Problem
The door chime sounds continuously
The door chime doesn't sound when
the bell push button is pressed.

PACKAGING


Dispose of packaging, paper and cartons separately from plastic bags at your local

recycling centre.

Dispose of item at the end of its lifespan at your local authorised household WEEE
waste recycling centre.
9268
Receiver
Plug in the receiver and turn on at the mains.
Test the door chime by pressing the button on the
bell push.

CHIME SELECTION

Select the desired chime by pressing the button on
the side of the receiver. There are 16 chimes to
choose from.

WARNING







Potential cause
The bell push button is jammed
The receiver is out of range
The battery in the bell push
needs to be replaced/recharged
Instructions for Use
Maximum range: 75m
Do NOT fix the bell push on or near metal
surfaces as this can affect the transmission to
the receiver and reduce the operational range.
The building construction, walls, & doors can
also reduce the range of the door chime
depending on their material, thickness, etc.
Do NOT plug any appliances that use more
than 13A into the socket on the door chime.
It is advisable to test the door chime in the
desired location to check it operates correctly
before final installation.
No user serviceable parts. All repairs must be
undertaken by a qualified electrician.
This is NOT a toy. Keep away from children.
Potential solution
Check button and release
Move to a different location and re-test
Replace or recharge with 1x 12V 23A
battery
v002: 24/04/17
