Sagem MyDu@l Raadio 700 User Manual

Sagem radio user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide

Advertisement

Table of Contents
loading

Related Manuals for Sagem MyDu@l Raadio 700

Summary of Contents for Sagem MyDu@l Raadio 700

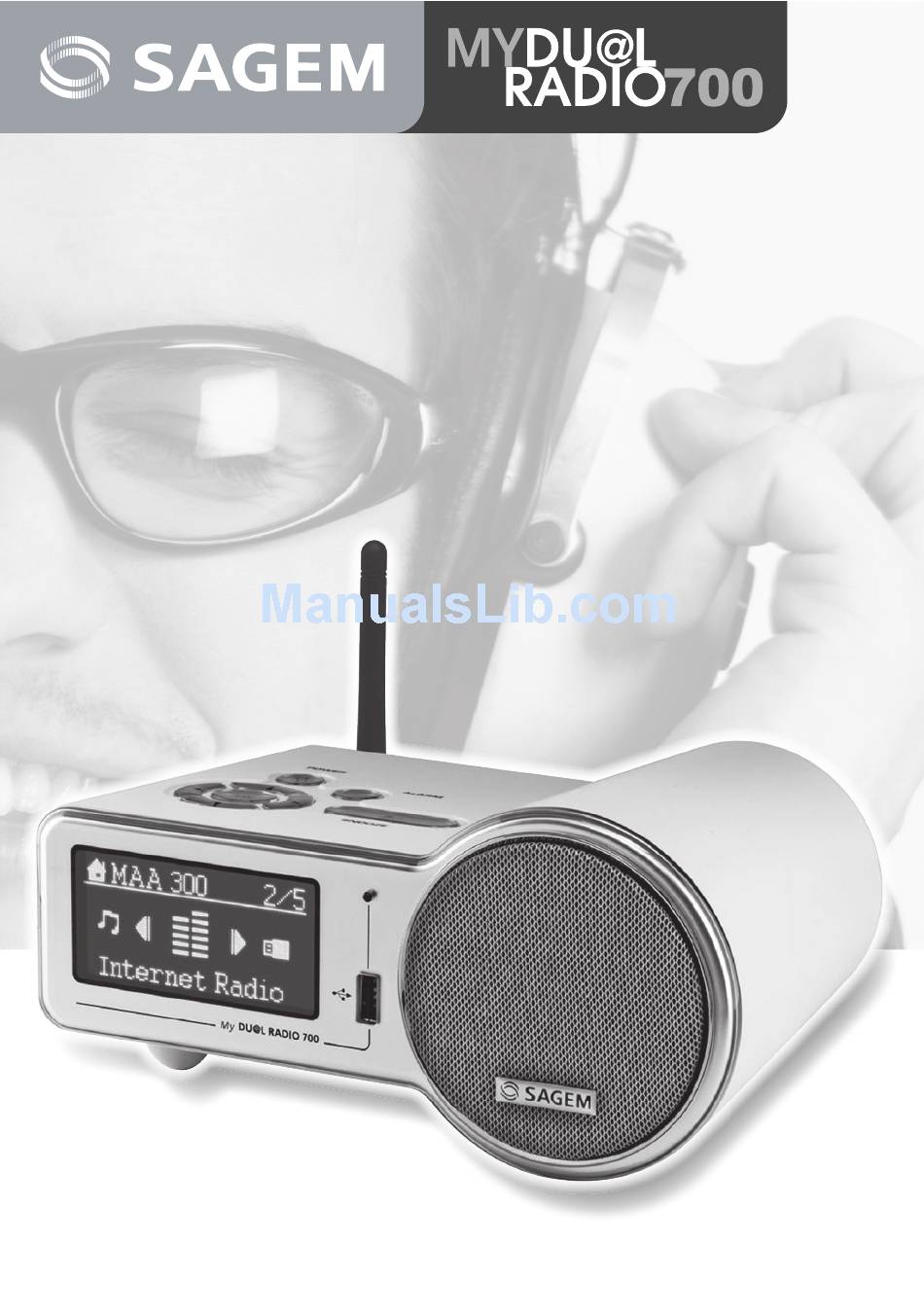

  • Page 1 User Guide...
  • Page 2 NTRODUCTION Dear customer: Thank you for purchasing a SAGEM Wi-Fi IP Radio; we appreciate your trust in us. This product was manufactured with the upmost care, should you encounter any difficulties during its use, we recommend that you refer to this user guide. You can also find information on the following site:...

  • Page 3: Table Of Contents

    ONTENTS Your Wi-Fi IP Radio Main Features Unpacking Front Panel Keypad Area Rear Panel Keypad Functions Installing the batteries Wi-Fi IP Radio set-up Menu structure Installation Network Setup Basic Requirements Configuration as a Wireless Client Configuration as a Wired Client...
  • Page 4 ONTENTS Appendix Care and Maintenance Problems Specifications Environment Packaging Batteries The product Guarantee terms and conditions...

  • Page 5: Your Wi-Fi Ip Radio

    1. Your Wi-Fi IP Radio This product is a wifi IP radio which may also be used as an alarm clock. This product is a Wi- Fi IP Radio. Connected to an Internet residential gateway, it enables users to browse/play/ store worldwide IP radio stations via the V-Tuner web server.

  • Page 6: Front Panel

    IP R 1.3. RONT ANEL Display screen USB port 1.4. EYPAD STOP Power 4-direction control OK button SNOOZE ADIO INTERNET RADIO IrDA receiver Speaker cover...

  • Page 7: Rear Panel

    IP R 1.5. ANEL ADIO Power switch DC power jack Reset button WiFi antenna connector RJ45 port Status LED RCA jack for line out 3.5mm headphone jack 2.5mm FM antenna jack...

  • Page 8: Keypad Functions

    Go to the top of list Move to the next ADIO Put the device in Standby mode. Alphanumeric Keypad To launch time to stop current music source Direct access to FM Radio menu Direct access Player menu Increase the volume Forward Next...

  • Page 9: Installing The Batteries

    IP R 1.6.1. Installing the batteries Take the remote control and turn it around so that the battery compartment is accessible. Insert the batteries one after the other in compliance with the battery polarity, as shown on the battery slot. Refit the battery compartment cover, first by the bottom, then lowering the top until full closure.

  • Page 10: Wi-Fi Ip Radio Set-Up

    To operate the device, you can use either the remote controller supplied, or the keypad buttons. You need to set up the network and your PC server before being able to use the radio and music playback functions on the device.
  • Page 11 1. Volume down. 2. After 2s goes back to playback screen. Goes back to radio list. If radio FM (direct access) : Goes back to the menu list. Otherwise: Goes back to radio list. Goes back to the song list.
  • Page 12 Volume up (after 2s Identical. goes back to playback screen). Goes back to radio list. If radio FM (direct access) : Goes back to the menu list. Otherwise: Goes back to radio list. Goes back to the song list. Goes back to song list.
  • Page 13 Identical. goes back to playback Screen). First press: Identical. Goes back to Station radio screen. Second press: Goes back to radio list. First press: Goes Goes back to Station radio list. radio screen. Second press: • If radio FM (direct access) : Goes back to the menu list.

  • Page 14: Menu Structure

    ENU STRUCTURE Internet Radio FM Radio Media Server MP3 Player Alarm Setup Locations Station List Genres New Stations Popular Stations Favorite Stations Genre Location Station List Favorite Stations Update List Direct Access Alarm 1 Alarm 2 Current time Clock Set Manually...

  • Page 15: Installation

    IP address to your computer or another network device. If you already have a router device in your home, it will be easy to setup the IP Radio device with your existing network environment. If you don't know what you have on your home network, the following FAQ will help you to troubleshoot before operating your IP Radio device.

  • Page 16: Configuration As A Wireless Client

    3. No extra dial-up program is executed in my computer, and I set the dynamic IP address in my computer. There is a wireless router device in your home, the IP Radio device will be able to operate with your home network.
  • Page 17 "OK" button "OK" button Comment Initial screen Device run as a Wireless Client. Select language. Select the Internet radio menu language. Scanning for available APs. button Select the AP that you can connect to your router device. Enter the...
  • Page 18 NSTALLATION Using the device for the first time, without an Ethernet cable connection (continued) "OK" button Confirm the settings above. Apply new settings. The device is now in wireless client mode. device already connected to your network.
  • Page 19 NSTALLATION (B) Manually set to the Wireless Client Mode: Screen on the right " " button (4 times) " " button (Once) " " button (Once) Numeric Screen shot Next screen "OK" button " " or "OK" button " " or "OK"...

  • Page 20: Configuration As A Wired Client

    If there is no 802.11b/g wireless network in your home, and only a wired 802.3 network is available, the IP Radio device can connect to the wired network via an Ethernet cable. In this case, before powering the device, you need to plug the Ethernet cable into the RJ45 connector.
  • Page 21 " " or "OK" button " " or "OK" button Comment Initial screen Device run as a Wired Client. button Select language. button Select the Internet radio menu language. The device is now wired client mode. already connected to your network.
  • Page 22 NSTALLATION (B) Manually set to the Wired Client Mode: Screen on the right " " button (4 times) " " button (Once) " " button (Once) " " button (Once) Screen shot Next screen "OK" button " " or "OK" button "...

  • Page 23: Configuration As A Wireless Access Point (Ap)

    AP. With this feature, you can easily extend your wireless coverage without having to purchase another AP. To configure the IP Radio device as an AP, you need to setup the device manually via the MMI menu "Setup/Advanced Setup/Configure Network/AP mode". You then need to enter the IP address, the SSID, the channel number and the AP encryption.
  • Page 24 NSTALLATION Manually set to the Wireless AP Mode (continued) " " button (Once) " " button (2 times) " " button (Once) Numeric Numeric " " button (Once) Numeric " " button or "OK" button " " button Manually select the or "OK"...

  • Page 25: Windows Media Player 11: Installation And Connection

    NSTALLATION Manually set to the Wireless AP Mode 2.1.5. Windows Media Player 11: Installation and connection Please follow the instructions below: Step 1: Download the WMP11. Download the Windows Media Player 11 (WMP11) installation file, e.g., wmp11- windowsxp-x86-enu.exe, from the Microsoft web site. Install the wmp11-windowsxp-x86-enu.exe without making any modifications.
  • Page 26 NSTALLATION Step 2: Activate the Media Player. Find the "Windows Media Player" icon in the Program list, and click on this program to activate it. Step 3: Switch from "Now Playing" to "Library" by clicking on the Library Tab to manage the content and share your media.
  • Page 27 NSTALLATION Step 4: Add your Media content to the WMP11 media library. Click on the "Library" tab again to access the pull-down menu. To add your media files to the WMP11 media library, click on "Add to Library…" The following screen will be displayed: Click on the Add button , select the media folder in your computer, and then click on the OK button.
  • Page 28 NSTALLATION You can put all of the music files in the D:\Music directory to be able to add the folder to the share list. You will see that the specified folder will have been added to the WMP11 monitor folder list. Click on the OK button. A pop-up window will be displayed, showing you that the WMP11 is searching for the media files.
  • Page 29 NSTALLATION You can now browse and manage your media content using the WMP11 Library manager. Step 5: Share the WMP11 media library. As in to Step 4, click on "Media Sharing" to activate the media sharing function.
  • Page 30 NSTALLATION The following dialog windows will be displayed. Select the "Share my media" box and click on the "OK" button. The WMP11 will detect the available network devices in your LAN. The following window shows that no devices have been detected.
  • Page 31 If the IP Radio device is already connected to your home network, a screen similar to the following may be displayed, showing you that the WMP11has detected a network device named "My DU@L RADIO 700". Step 6: Manage the media sharing settings.
  • Page 32 NSTALLATION Step 7: Authorize access from your IP Radio device. The WMP11 access control settings are simple. When the WMP11 detects a new network device (as shown on the final screen in Step 5), you need to decide whether you want to allow or deny the requests from that device.
  • Page 33 Establish the connection between the IP Radio device and the WMP11 server. On the IP Radio device, select the "Media Server" function in the main menu (or press the "Media Player" hot key on the remote controller). The IP Radio device will then initiate the server detection process.

  • Page 34: Installation & Connection To Windows Media Connect V2.0

    NSTALLATION 2.1.6. Installation & Connection to Windows Media Connect V2.0 This software will allow you to broadcast musical files from your PC to the wifi network. Please follow the instructions below: Step 1: Download the WMC server. Download the Windows Media Connect (WMC) installation file, wmcsetup.exe, from the Microsoft web site.
  • Page 35 Establish the connection between the IP Radio and the WMC server. On the IP Radio device, select the "Media Server" function in the main menu (or press the "Media Player" hot key on the remote controller). The IP Radio device will initiate the server detection process.
  • Page 36 Select the device and then click on the 'Allow' button Then, press the 'Close' button to finish the authorization process. The IP Radio will then be able to retrieve the contents or service from the WMC server. You can browse the list and play the music of your choice. For further details,...

  • Page 37: Listening To Music

    You can use it to listen to Internet radios all over the world, local FM broadcasting services, music files in your computer, and even music files in portable MP3 players. The following part of this manual explains how to listen to the music using the IP Radio device. 3.1.
  • Page 38 ISTENING TO It takes few seconds to get the list from the Internet. The next screen is as follows. It means the IP Radio has successfully connected to the Internet server and has retrieved information from the server. However, if the following screen is displayed, it means that the device has encountered a problem in retrieving the list from the Internet server.
  • Page 39 Music playing… When the complete list available radios is selected , alphabetical research may be used by selecting remote control first letter of the radio to be choosen, and first radio starting with this letter then displayed.

  • Page 40: Listening To Fm Radio

    3.2. ISTENING TO To listen to music or programs on local FM radio stations, select the "FM Radio" function in the main menu and then press the "OK" button to activate the FM Radio function. The first screen of the FM Radio function displays a choice of 4 items: "Station List": Retrieves the tuned radio station lists stored in the device.
  • Page 41 ISTENING TO When using the FM Radio function for the first time, remember to plug the FM antenna plug into the FM antenna connector on the rear panel. Stretch out the antenna cable as far as you can. Once the antenna cable is properly connected, activate the "Update List" function to scan the available FM stations.

  • Page 42: Listening To The Music In Your Computer

    Media Server. Once you have installed and activated the media server, you can enjoy listening to the music via the IP Radio device. Command from the remote control: Fast forward/backward in the file (10 S step).
  • Page 43 ISTENING TO The following message will be displayed while the device is detecting all available media servers on your network. It takes a few seconds to complete. The screen will then list all of the available media servers that you are able to select. If you stay locked on one of the intermediates windows, you may have to activate the service "...
  • Page 44 ISTENING TO " " button (Once) " " button (6 times) " " button (4 times) USIC " " or "OK" button " " or "OK" button " " or "OK" button " " or "OK" button " " or "OK" button Wait until end or press for next song.

  • Page 45: Listening To The Music On Your Usb Drive

    To listen to the music on your USB drive or portable MP3 player, connect the USB drive to the USB connector on the IP Radio device. Next, select the "MP3 Player" function in the main menu and press the "OK" button to activate the MP3 player function.
  • Page 46 ISTENING TO Command from the remote control: Fast forward/backward in the file (10 S step). Previous/Next file. Pause / Play. Vol -, Decrease the volume. Vol +, Increase the volume. Add (or cancel) the song from (to the) list of favourites. Shuffle ON / OFF: Random research.

  • Page 47: The Playback Screen

    ISTENING TO Warning ! : The interface of MP3 reader must be USB2. USB1 is not guaranteed. Warning ! : Before disconnecting the MP3 player, go to the setup menu and choose "Remove MP3 player". Select "Yes" to confirm. 3.5. LAYBACK When the music starts, the screen will display playback information.

  • Page 48: Alarm

    4. A LARM In addition to the music playback function, the IP Radio Device also provides a simple alarm function. There are two different alarms, one to wake you up in the morning, and another used to remind you of important times of day, or dates.

  • Page 49: Setting The Clock Automatically

    To enable an alarm setting, you need to set the time and alarm music. The following table illustrates a typical alarm setting procedure. It sets Alarm 1 to generate an alarm (play music) at 7:00 AM, and to use the Internet radio station "4U Classical Rock" as the source of alarm music.
  • Page 50 "OK" button "OK" button " " or "OK" button "OK" button Comment Initial screen Enable alarm 1. directional buttons to set the time; button Set Internet radio as alarm source. Select the station from your Favorites. (Refer to Sec. 3.1)
  • Page 51 When it is time for the alarm, the device will activate the alarm and play back the specified music. As with traditional clock alarms, the IP Radio device also provides a SNOOZE function for you to stop the alarm, and request it to be activated 10 minutes later. You can press the "STOP"...

  • Page 52: Snooze

    This function is used to stop the radio after a preprogrammed time. This function is available from the following menus : Radio Internet, FM, media serve rand MP3 reader. You are listening to a radio station (IP radio / FM) or a file (on PC /MP3 reader): Screen on the right "...

  • Page 53: Miscellaneous Setup Functions

    You may also activate/deactivate the screen brightness by using the key control. 5.2. ANGUAGE V-Tuner is a base recording the radio stations on Internet. You may choose the IP radio and V-tuner languages. Choice of main language (IP radio): ETUP...

  • Page 54: Equalizer Settings

    You can adjust the equalization from Radio, media server and MP3 menus. Once on the selected station screen, or file , key OK. 5.4. ESET TO When you reset the device to its factory default settings, your Internet radio and FM radio favorites settings will be stored in the device. 5.5. LEAR AVORITES Caution! This is not recommended.

  • Page 55: Check Firmware Version

    (Note: DO NOT rename it!, Otherwise the IP Radio will not be able to find the new F/W) Step 2: Turn on the IP Radio and then plug the USB key into the front USB port of the IP Radio. Step 3: Operate the IP Radio to access the F/W upgrade menu ("Setup\Advanced...
  • Page 56 ISCELLANEOUS Step 4: You can check whether the IP Radio upgrade has been has been successful by checking the F/W version in the menu "Setup\Advanced Setup\Firmware Version". In this case, the version should be R1.02C7. If a different version number is shown, there may have been a problem during the upgrade.

  • Page 57: Appendix

    6.1. Care and Maintenance Switch off your Radio IP. Use a smooth and dry cloth to wipe it. Do not use a rough cloth, powerful liquid cleaners, thinner painting, alcohol nor other solvents to clean it. These products can damage your IP Radio.
  • Page 58 DNS no response. Please ping the IP address of the DNS to check if it is the case. • DNS doesn't have the record of the vTuner server or radio station that you are trying to connect. • Traffic jam for the internet access. Please try later.
  • Page 59 3. The network interface has trouble. 1. Can't access to the vTuner server. 2. The DNS lookup for the IP address of the radio station failed. 3. Can't access to the router or internet. 1. Can't access to the radio station.

  • Page 60: Specifications

    PECIFICATIONS 7. S PECIFICATIONS Hardware and Port Characteristic Memory Front Panel Display Front Panel Keypad Remote Control L/R Speaker Audio Port Ether Port Antenna USB Port LED Indicator Input Power Device Management Characteristic Management Method Upgrade Method Device Management Characteristic Management Method Upgrade Method Environment, Certification and Reliability...
  • Page 61 Support direct access and playback for the music stored in attached USB 2.0 compliant MP3 player or USB storage. 24 hours / Dual alarm, snooze Music source: USB, WiFi, Internet radio, FM Radio, Buzzer 1. Client mode (both wired and wireless, auto detection) 2. AP mode...

  • Page 62: Environment

    8. E NVIRONMENT Preservation of the environment is an essential concern of Sagem Communication. The desire of Sagem Communication is to operate systems observing the environment and consequently it has decided to integrate environmental performances in the life cycle of its products, from manufacturing to commissioning, use and elimination.

  • Page 63: Guarantee Terms And Conditions

    , subject to the terms and conditions below, any defects in the Sagem My du@l player 700 during a period of twelve (12) months from the date of purchase of the telephone, where those defects are a result of fautly workmanship. Proof of purchase will be required ;...
  • Page 64 User Manual Data subject to change without notice Sagem Communication Société anonyme au capital de 300 272 000 € - 480 108 158 RCS PARIS 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE www.sagem.com...
