Your new trimmer has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before
using this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE

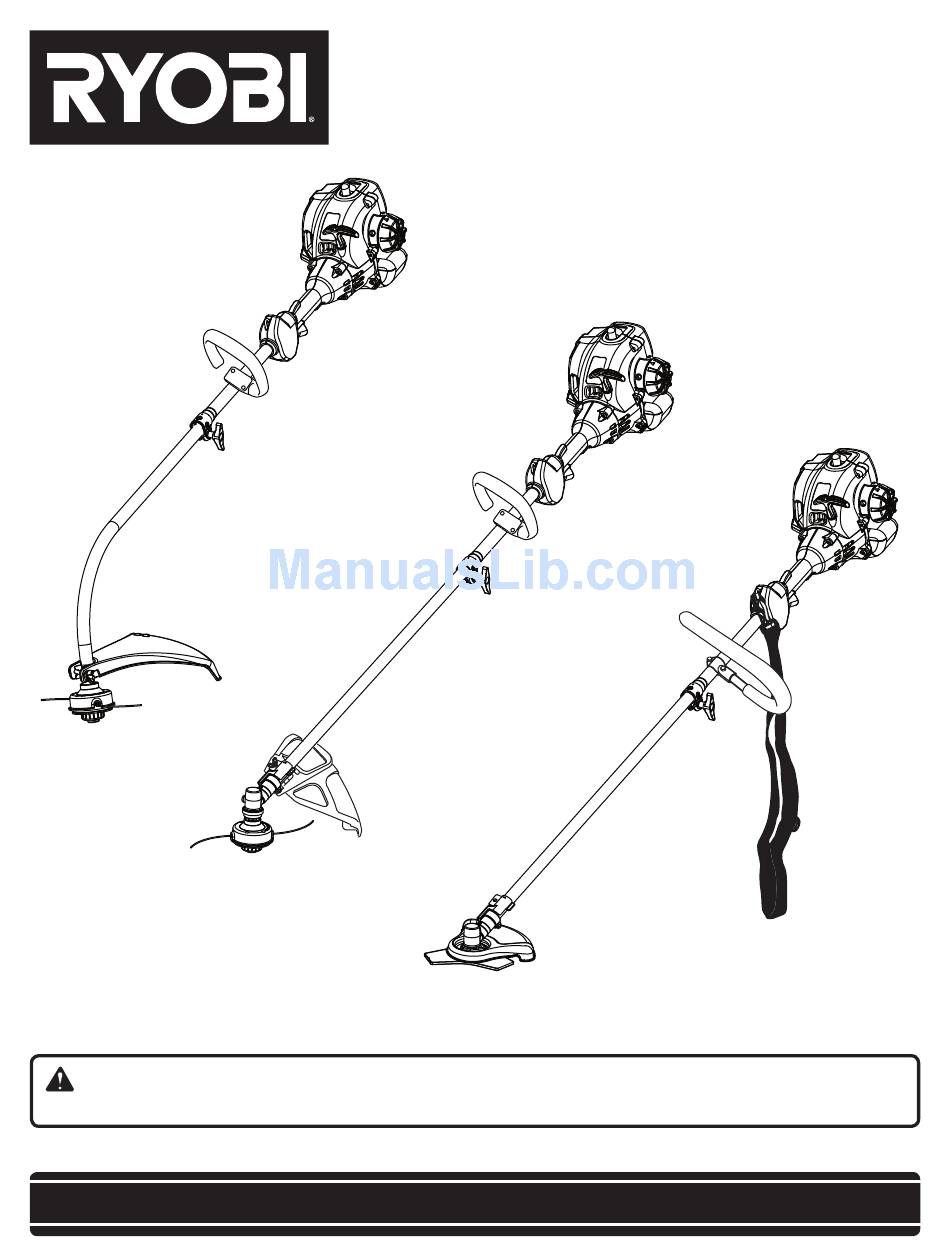

OPERATOR'S MANUAL
30cc String Trimmers and Brushcutter
CS30
RY30524
SS30
RY30544
BC30
RY30564
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Ryobi BC30 RY30564
Summary of Contents for Ryobi BC30 RY30564
- Page 1 Your new trimmer has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
-
Page 2: Table Of Contents
3 in. x 5 in. card or standard postcard: your name, mailing address, phone numbers, email address, Ryobi product(s) purchased with item number from package, and serial number for each product. Mail the card to: Techtronic Industries North America, Inc., Attn. Ryobi Registration, 1428 Pearman Dairy Road, Anderson, SC 29625.To receive information on our company and products, please include the following statement on your... -
Page 3: General Safety Rules
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. READ ALL INSTRUCTIONS For safe operation, read and understand all instructions before using this product. Follow all safety instructions. Failure to follow all safety instructions listed below, can result in serious personal injury. -
Page 4: Specific Safety Rules
Do not use any other cutting attachment. To install any other brand of replacement string or cutting head to this string trimmer can result in serious personal injury. Never operate unit without the grass deflector in place and in good condition. -
Page 5: Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning for safe operation of this product. SYMBOL Safety Alert Read the Operator’s Manual Wear Eye and Hearing Protection Keep Bystanders Away Ricochet No Blade Blade Thrust Gasoline and Oil... -
Page 6: Symbols
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand com- pletely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call Ryobi customer service for assistance. -
Page 7: Features
PRODUCT SPECIFICATIONS Weight - (without fuel) CS30 ...10.7 lbs. SS30 ...12.1 lbs. BC30 ...12.9 lbs. String cutting width CS30 ...17 in. SS30 ...18 in. BC30 ...18 in. Blade cutting width BC30 ...8 in. Engine displacement ...30cc String diameter CS30 ..080 in. SS30 ... - Page 8 FEATURES SS30 STARTER GRIP PRIMER AND ROPE BULB REAR HANDLE FRONT HANDLE COUPLER THROTTLE TRIGGER DRIVE SHAFT HOUSING KNOB STRING HEAD STRAIGHT SHAFT GRASS DEFLECTOR Fig. 1b BC30 PRIMER STARTER GRIP BULB AND ROPE REAR HANDLE “J” HANDLE COUPLER THROTTLE TRIGGER DRIVE SHAFT KNOB...
-
Page 9: Assembly
ERGONOMIC DESIGN The design of the trimmer provides for easy handling. It is designed for comfort and ease of grasp when operating in different positions and at different angles. -
Page 10: Assembly
Slightly rotate the cap from side to side until the button locks into place. The secondary hole in the attachment shaft can be used for hanging purposes as well. ASSEMBLY GUIDE RECESS BUTTON TRIMMER ATTACHMENT HOLE SECONDARY HOLE BUTTON POWER HEAD SHAFT COUPLER... - Page 11 ATTACHING THE FRONT HANDLE - CS30 AND SS30 See Figure 4. Remove 2 wing nuts, 2 bolts, and clamp from the front handle. Install the front handle onto the top side of the drive shaft housing and move it to a comfortable position. ...
- Page 12 See Figure 8. The guard is shipped installed on these brushcutter models. Instructions have been included for reference when changing from string trimmer operation back to brushcutter operation. With the string head removed, place the brushcutter guard on the gear head as shown.
- Page 13 Adjust the strap to a comfortable position. CONVERTING FROM BRUSHCUTTER TO STRING TRIMMER - BC30 To convert from the brushcutter to the string trimmer, remove the blade and brushcutter guard, attach the straight shaft grass deflector and install the string head.
-
Page 14: Operation
REMOVING THE STRAIGHT SHAFT GRASS DEFLECTOR AND STRING HEAD See Figures 10 - 13. Align the slot in the flanged washer with the slot in the gear head. Place the gear head locking tool through the slot in the flanged washer and gear head. -
Page 15: Operating The Trimmer
To avoid burns from hot surfaces, never operate unit with the bottom of the engine above waist level. Hold the trimmer with your right hand on the rear handle and your left hand on the front handle. Keep a firm grip with both hands while in operation. -
Page 16: Cutting Tips
Avoid hot surfaces by always keeping the tool away from your body. (Proper operating position shown in figure 15.) Keep the trimmer tilted toward the area being cut; this is the best cutting area. The curved shaft trimmer cuts when passing the unit from right to left. -
Page 17: Operating The Brushcutter
OPERATING THE BRUSHCUTTER See Figures 19 - 20. Hold the brushcutter with your right hand on the rear handle and the your hand on the “J” Barrier Handle. Keep a firm grip with both hands while in operation. Brushcutter should be held at a comfortable position with the rear handle about hip height. - Page 18 STARTING AND STOPPING See Figures 21 - 22. Trimmer should be on a flat, bare surface for starting. The starting method differs depending on whether the engine is cold or warm. To start a cold engine: Slowly press the primer bulb seven (7) times.
-
Page 19: Maintenance
Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. You can often make adjustments and repairs described here. For other repairs, have the trimmer serviced by an authorized service dealer. SPOOL REPLACEMENT EZ WIND™ TAP ADVANCE SYSTEM NEW PREWOUND SPOOL See Figures 23 - 24. - Page 20 NOTE: Keep the spring attached to the spool. Remove any old string remaining on the spool. Cut one piece of trimmer line 18 ft. long. Find the middle of the string section. Loop the string around the hook in the center of the spool. Carefully wind the string in the direction indicated on the top of the spool.
- Page 21 CLEANING THE AIR FILTER SCREEN See Figures 28 - 29. For proper performance and long life, keep air filter screen clean. Remove the hex nut, wavy washer, flat washer, and choke dial cover. Brush the air filter screen lightly to clean. ...
-
Page 22: Troubleshooting
IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT YOUR AUTHORIZED SERVICE DEALER. PROBLEM POSSIBLE CAUSE Engine will not start 1. No spark. 2. No fuel. 3. Engine is flooded. 1. Incorrect oil/fuel mixture. Engine does not reach full speed and emits excessive 2. -
Page 23: Warranty
1. Clean threads and lubricate with grease - if no improvement, replace the spool retainer. 1. Cut tall grass from the top down to prevent wrapping. 2. Operate trimmer at full throttle. Clean Every Replace Every 25 Hours or Yearly... -
Page 24: Limited Warranty Statement
Blower Fans, Blower and Vacuum Tubes, Vacuum Bag and Straps, Guide Bars, Saw Chains Techtronic Industries North America, Inc., reserves the right to change or improve the design of any RYOBI outdoor product without assuming any obligation to modify any product previously manufactured. -
Page 25: Warranty
Where a warrantable condition exists, Techtronic Industries North America, Inc., will repair your non-road or small off-road engine at no cost to you, including diagno- sis, parts, and labor performed at an authorized service center for RYOBI outdoor products. MANUFACTURER’S WARRANTY COVERAGE: This product’s emissions control system is warranted for two years. - Page 26 1-800-860-4050. • HOW TO OBTAIN CUSTOMER OR TECHNICAL SUPPORT: To obtain Customer or Technical Support please contact us at 1-800-860-4050. Ryobi is a registered trademark of Ryobi Limited used under license. ® TECHTRONIC INDUSTRIES NORTH AMERICA, INC. 987000-116 2-5-07 (REV:00) OPERATOR’S MANUAL...
