Ryobi 765r Engine Parts Manual

3
36
4
5
3
8
9
10
1
2
Item Part No. Description
1 753-04105 Air Cleaner/Muffler Cover Assembly
(includes 2 & 36)
2 791-180350 Air Cleaner Filter
3 791-180351 Carburetor Mounting Screws
4 791-180226 Wavey Washer
5 791-182061 Choke Lever Assembly (includes 6)
6 791-182070 Choke Knob & Screw
7 791-182060 Choke Lever & Plate (includes 5 & 6)
8 753-04106 Carburetor Assembly (includes 9 & 20)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-683974 Primer and Hose Assembly
12 753-1196 Carburetor Mount Assembly
(includes 10, 13 & 14)
13 791-684451 Reed Assembly
14 753-1208 Carburetor Mount Gasket
15 753-04319 Crankcase Service Assembly
(includes 10 & 23)
16 791-612134 Rear Mounting Pad
17 791-181152 Fuel Tank Assembly
(includes 18-20)
18 791-182271 Fuel Cap Assembly
19 791-181168 Fuel Return Line
20 791-682039 Fuel Line Assembly
21 791-145308 Front Mounting Pad
22 791-153520 Shroud Assembly (includes 23)
23 791-181861 Shroud Screw
24 791-182064 Shroud Extension and Stand
25 791-182736 Flywheel Assembly
26 791-610303 Square Nut Drive
6
7
11
13
12
14
15
43
41
44
45
46
47
18
17
16
21
51
19
49
50
23
48
39
42
40
38
31
Item Part No.
27 753-04232
28 791-613102
29 791-611061
30 791-181889
31 791-182389
32 791-181079
33 791-613103
34 753-04231
35 791-181862
36 791-181345
37 791-153597
38 791-180036
39 753-04125
40 791-610311
41 753-04110
42 791-182065
43 791-147575
44 753-04312
45 753-04313
46 753-04314
47 753-04315
48 753-04111
49 753-1207
50 753-1197
51 791-182723
* 753-04183
* 791-180602
* 791-181069
* 753-1209
* 753-04146
* not shown

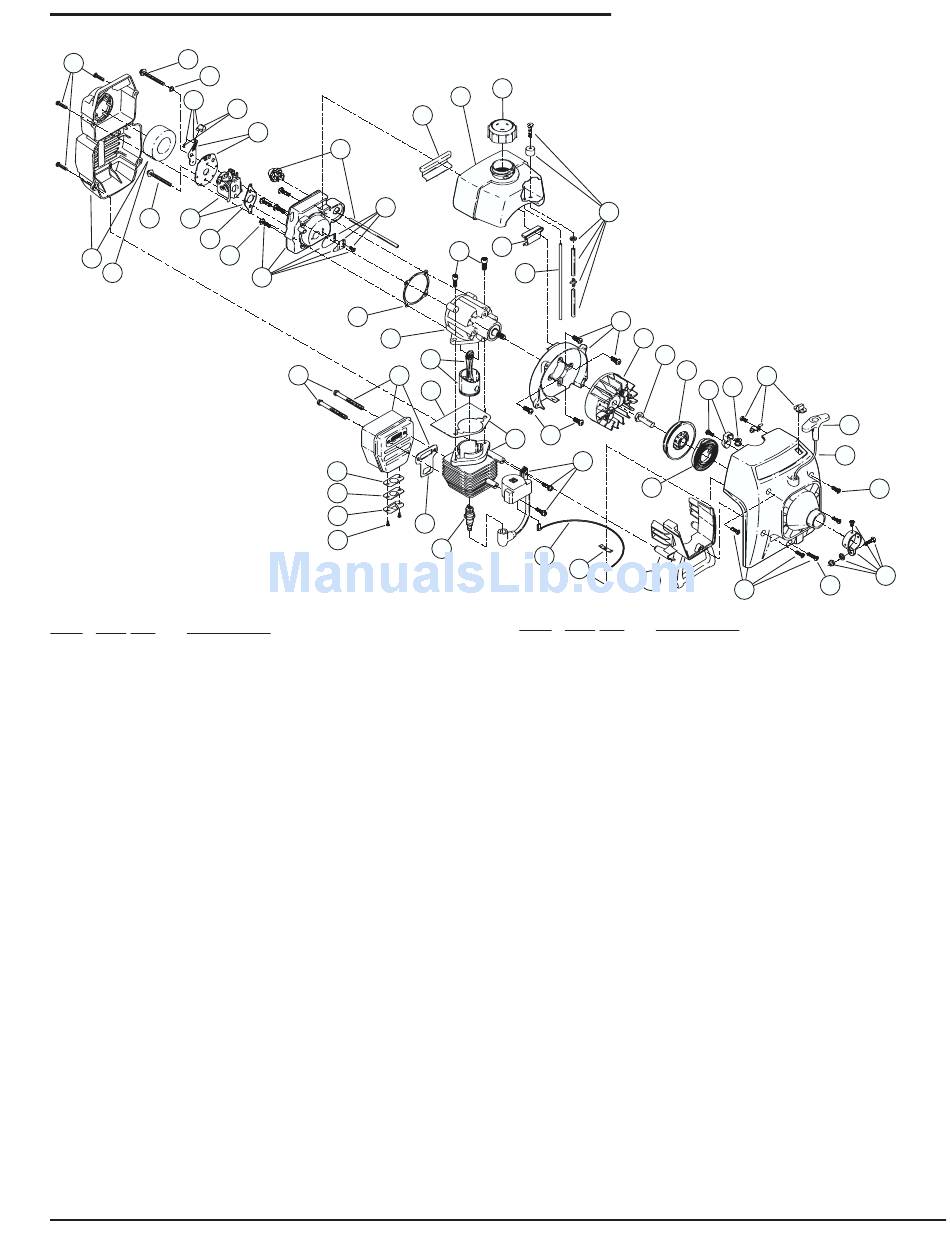

ENGINE PARTS - RYOBI 765r
2-CYCLE GAS TRIMMER
20
22
25
26
27
31
29
30
28
24
34
Description
Recoil Pulley
Recoil Spring
Rope Guide
Pulley Retainer Assembly
Switch Assembly (includes 38)
Pull Handle
Rope
Starter Housing Assembly
(includes 27-33, 35 & 36)
Housing Screw
Cover Screw
Upper Clamp Assembly
Wire Lead
Module Assembly
Spark Plug
Muffler Assembly (includes 42-47)
Exhaust Gasket
Muffler Mounting Bolt Assembly
Spark Arrestor
Spark Arrestor Plate
Spark Arrestor Hood
Spark Arrestor Screw
Cylinder Assembly (includes 50 & 51)
Piston and Rod Assembly
Cylinder Gasket
Cylinder Bolt
Engine Gasket Kit
O.E.M. Carburetor Repair Kit
Gasket-Diaphragm Repair Kit
Piston Ring
Short Block Assembly
(includes 41-47)
PPN 41ADL02G734
32
33
35
37
36
Issued 4/03
