Ryobi RY6200 Operator's Manual

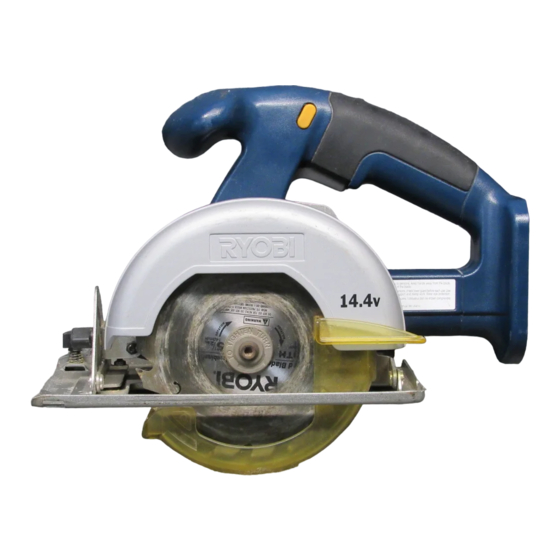

5-1/2 in. cordless circular saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Blade Diameter
Blade Arbor
Cutting Depth at 0
Cutting Depth at 45
No Load Speed
Motor
Charge Rate
Charger Rating
THANK YOU FOR BUYING A RYOBI CORDLESS CIRCULAR SAW.
Your new cordless circular saw has been engineered and manufactured to Ryobi's high standard for dependability, ease of
operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
CAUTION: Carefully read through this entire operator's manual before using your new cordless circular saw.
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions. If you use your cordless circular saw properly
and only for what it is intended, you will enjoy years of safe, reliable service.
Thank you again for buying Ryobi tools.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
5-1/2 in. CORDLESS CIRCULAR
SAW MODEL NO. RY6200

SPECIFICATIONS:

5-1/2 in. (140 mm)
3/8 in. (10 mm)
1-9/16 in. (40 mm)
1-1/8 in. (29 mm)
3,800 RPM
14.4 Volt DC
1 Hour
120 Volts, 60 Hz, AC
