Insignia NS-MPKIT50 Quick Setup Manual

LED VIDEO LIGHT
Extremely bright and vibrant light for videos and
photos, can be used with both front and rear
camera. Built-in battery won't drain your phone. 3
brightness settings for maximum versatility. Plugs
QUICK SETUP GUIDE
into standard headphone jack for convenience. No
Mobile
app required for use.
Photography Front:
Kit
NS-MPKIT50

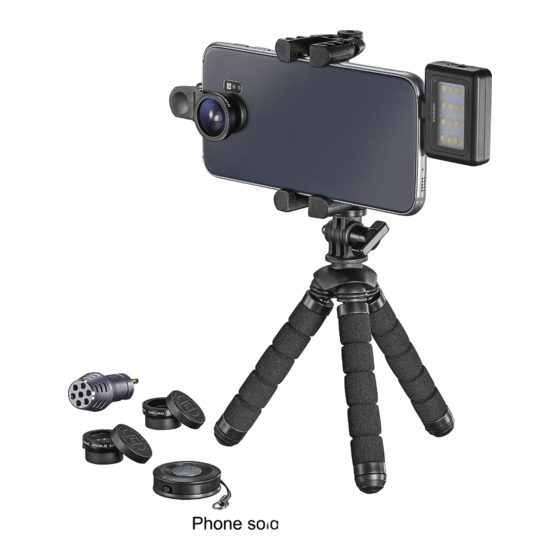

PACKAGE CONTENTS
Left side:
• LED video light
• USB charging cable
Brightness
• Directional microphone
switch
• Carrying pouch
• Flexible smartphone tripod
• Bluetooth® shutter remote (CR2032 battery
CHARGING THE BATTERY
included)
1 Slide the power switch OFF.
• 3 lenses (macro, wide-angle, and fisheye)
2 Connect the USB charging cable from your video
• Lens clip
light's micro USB port to a power source (such as
• 3 lens cap sets a computer or USB power adapter (not included)).
The charging LED is red while charging, then
• Soft storage pouch
turns off when finished (about 2 hours).
• Quick Setup Guide
Note: Each product has its own model number. The
model number of this entire kit is NS-MPKIT50.
Approximate Battery life (for each brightness setting)
Low 4 hours
Before using your new product,
please read these instructions to prevent any damage.
USING YOUR VIDEO LIGHT
(NS-M16LED10)
1 Connect the 3.5 mm connector to your mobile
device's audio jack.
Note: The 3.5 mm connector is only used to secure the
light to your phone. It does not interface with your
phone. You may hold the light in your hand if there is
glare or your phone doesn't have a headphone jack.
LED lights
2 Slide the power switch ON.
Charging LED
3 Direct the video light at your subject and slide the
3.5 mm connector
brightness switch to adjust the brightness, as
needed.
4 Use your mobile device to capture video or
Right side:
images.
MAINTENANCE
Power switch
• Do not squeeze or operate the video light with
excessive force.
Micro USB port
• Keep the video light in a dry and cool place.
• To maintain battery life, charge the video light at
least once every five months.
SPECIFICATIONS
Dimensions
(including 2 × 1.9 × 0.5 in.
3.5mm plug)
51 × 46.8 × 12.5 mm
Net weight 17g (0.6 oz.)
Battery Built-in lithium battery
3.7 V 200 mAh
Approximate Low: 4 hours
battery life (for each Medium: 2 hours
brightness setting)
High: 1 hour
Charge time
Approximately 2 hours (from
empty battery)
SAFETY INFORMATION
• Keep the power switch in the OFF position when the light is not in use.
Medium 2 hours High 1 hour
• Do not store or transport when the LED light is illuminated.
• There are no serviceable parts inside. Do not disassemble.
DIRECTIONAL MICROPHONE TROUBLESHOOTING
(NS-MDMIC20) Too much ambient noise is picked up
Plug in and point the microphone at the sound you
• Move the microphone closer to the subject. A
want to record. Background sound is rejected, and
certain amount of ambient noise is unavoidable
you hear only what you want in breathtaking clarity.
in loud environments.
Works with existing recording apps on your phone,
• Make sure that the microphone is tilted towards
no separate download needed.
the subject.
Microphone does not record audio
3.5 mm connector
• Make sure that the 3.5 mm connector is
connected to your recording device's INPUT jack.
Microphone
• Make sure that the 3.5 mm connector is fully
inserted into the audio jack. You may need to
COMPATIBILITY
remove your device's case.
Designed for mobile phones and tablets.
• Make sure that your device is recording audio.
Compatibility with other devices is not guaranteed.
• Move the microphone closer to the subject.
Note: Before using this microphone, record a short audio
segment to make sure that the microphone is working
SPECIFICATIONS
correctly.
USING YOUR MICROPHONE Polar pattern
1 Plug the 3.5 mm connector into your recording Frequency pattern
device's audio input jack.
Signal/Noise
Sensitivity
Connector
Weight
2 Tilt and turn the microphone towards the subject
you want to record.
NOTE: Sound is primarily picked up through the 7 round
holes on the front of the microphone.
3 Turn on your recording device, then record a short
audio segment to make sure that the microphone
is working correctly:
• If sound is too quiet, move the microphone
closer.
• If sound is distorted, the audio is too loud.
Move the microphone farther away.
4 Use your recording device to record the audio you
need.
TRIPOD AND REMOTE SHUTTER
(NS-MTRIBT10)
Use by itself or with the included tripod for group
shots or triggering your phone from a distance. No
app needed!
Mount your phone on the tripod for easy group
shots, blur-free night-time shots, or stable video.
Flexible legs allow tripod to be wrapped or hung for
placement anywhere. Works with phones with up to
a 5.5" screen.
Tripod Bluetooth
remote control
Clip top
Clip body
Lock screw
Omni-directional
35-18KHz (±3 dB)
Leg
76dB SPL
-30dB (±3dB)
3.5mm TRRS connection
Non-slip foot
0.6 oz. (18 g)
USING YOUR TRIPOD
1 Turn the lock screw counter-clockwise to loosen
the clip.
2 Push the folded clip into a horizontal position,
then tighten the lock screw.
LED
Shutter
Power
switch
