Your speed saw has been engineered and manufactured to Ryobi's high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for buying a Ryobi product.
SAVE THIS MANUAL FOR FUTURE REFERENCE

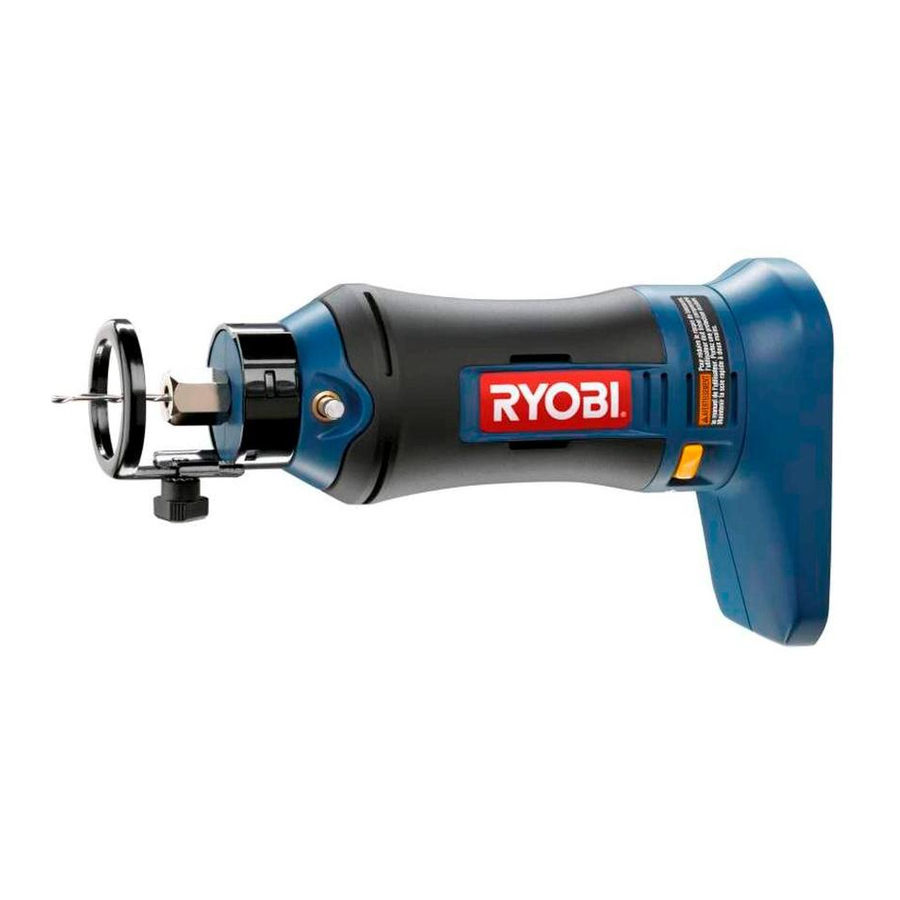

OPERATOR'S MANUAL
18 VOLT
SPEED SAW™
P530
BATTERIES AND CHARGERS
SOLD SEPARATELY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi P530

Summary of Contents for Ryobi P530

  • Page 1 Your speed saw has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS n Introduction ... 2 n General Safety Rules ... 3-4 n Specific Safety Rules... 4 n Safety Rules for Charger ... 5 n Symbols... 6-7 n Features... 8 n Assembly ... 9-10 n Operation... 10-13 n Adjustments... 14 n Maintenance ...

  • Page 3: Work Area

    Use battery only with charger listed. MODEL BATTERY PACK (P100) P530 130255004 n Do not abuse the cord. Never use the cord to carry the charger. Keep cord away from heat, oil, sharp edges, or moving parts.

  • Page 4: Specific Safety Rules

    SERVICE n Tool service must be performed only by qualified re- pair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury. n Hold tool by insulated gripping surfaces when per- forming an operation where the cutting tool may contact hidden wiring or its own cord.

  • Page 5: Safety Rules For Charger

    SAFETY RULES FOR CHARGER WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. n Before using battery charger, read all instructions and cautionary markings in this manual, on battery charger, battery, and product using battery to prevent misuse of the products and possible injury or damage.

  • Page 6: Symbols

    Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta- tion of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current Direct Current...

  • Page 7: Save These Instructions

    The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL DANGER: WARNING: CAUTION: CAUTION: SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair.

  • Page 8: Product Specifications

    A spindle lock secures the spindle and allows you to easily loosen the collet nut and change bits. NOTE: Do not run speed saw with spindle lock engaged. DEPTH ADJUSTMENT RING Your speed saw is equipped with a depth adjustment ring that allows you to adjust the depth of cut up to 1 in.

  • Page 9: Packing List

    ASSEMBLY REMOVING DEPTH ADJUSTMENT RING See Figure 2. n Remove battery pack from speed saw. n Place wrench in tab on depth adjustment ring. n Depress spring-loaded tab. n Lift depth adjustment ring off tool. ASSEMBLING CIRCLE CUTTER See Figure 3.

  • Page 10: Operation

    ATTACHING CIRCLE CUTTER See Figure 4. n Remove Battery Pack From speed saw. n Assemble circle cutter if necessary. Refer to “Assembling Circle Cutter.” n Remove bit if necessary. Refer to “Inserting/Removing Bits” in this manual. n Place adaptor under depth adjustment ring.

  • Page 11: Charging The Battery Pack

    LED on charger will come on. NOTE: If the charger does not charge the battery pack under normal circumstances, return both the battery pack and charger to your nearest Ryobi Authorized Service Center for electrical check. n Charge the battery pack only with a recommended charger.

  • Page 12: Installing Battery Pack

    INSTALLING BATTERY PACK See Figure 6. n Place battery pack on the speed saw. n Align raised rib on battery pack with groove in saw’s bat- tery port. n Make sure the latches on each side of the battery pack snap in place and that battery pack is secured on the tool before beginning operation.
  • Page 13 Cut a pilot hole in the center of the intended circle. n Line up pivot point knob with the lead hole. n Begin cut, applying moderate, steady pressure. n Hold the speed saw firmly with one hand and the handle with the other. CAUTION: Too much force causes heat build up, which can shorten the life of the bit.

  • Page 14: Adjusting Depth Of Cut

    INSERTING/REMOVING BITS See Figure 10. n Remove battery pack from speed saw. CAUTION: To prevent damage to the spindle or spindle lock, always allow motor to come to a complete stop before engaging spindle lock.

  • Page 15: General Maintenance

    Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at a Ryobi Authorized Service Center. BITS Get faster and more accurate cutting results by keeping bits clean.

  • Page 16: Parts Ordering / Service

    Ryobi Authorized Service Center. Be sure to provide all pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest Ryobi Authorized Service Center. You can also check our web site at www.ryobitools.com for a complete list of Authorized Service Centers.
