MODEL SA960
This new drill has been engineered and manufactured to our Ryobi's high standard for dependability, ease of operation,
and operator safety. When properly cared for, the drill will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a Ryobi product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL

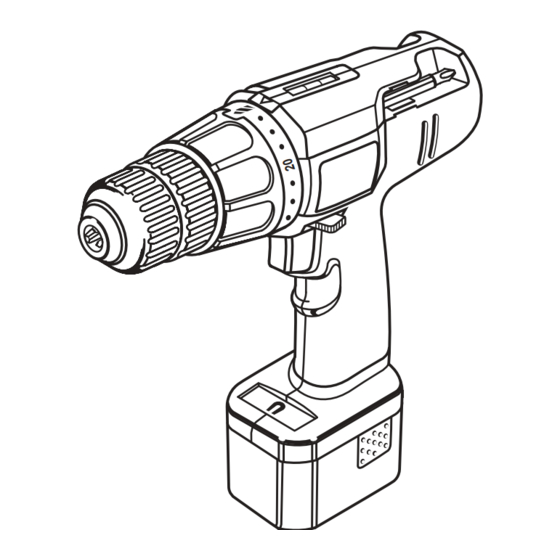

CORDLESS DRILL-DRIVER
MODEL NOS. SA960 / SA120
MODEL SA120
Advertisement
Table of Contents
Related Manuals for Ryobi SA120
Summary of Contents for Ryobi SA120
- Page 1 MODEL NOS. SA960 / SA120 MODEL SA960 This new drill has been engineered and manufactured to our Ryobi’s high standard for dependability, ease of operation, and operator safety. When properly cared for, the drill will give you years of rugged, trouble-free performance.
-
Page 2: Table Of Contents
Parts Ordering / Service ... 18 The Cordless Drill-Driver has many features for making the use of this product more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate. -
Page 3: General Safety Rules
Use battery only with charger listed. MODEL BATTERY PACK SA960 1311146 SA120 1311148 Do not abuse the cord. Never use the cord to carry the charger. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords im- mediately. -
Page 4: Specific Safety Rules
SERVICE Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury. Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. -
Page 5: Important Safety Instructions For Charger
IMPORTANT SAFETY INSTRUCTIONS FOR CHARGER WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in elec- tric shock, fire and/or serious personal injury. Never use a battery that has been dropped or received a sharp blow. A damaged battery is subject to explosion. -
Page 6: Symbols
Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Minutes Alternating Current Direct Current No Load Speed... -
Page 7: Specifications
Battery Pack 28 Piece Bit Kit Operator’s Manual Case You may use the two speed drill for the purposes listed below: Drilling in wood Drilling in ceramics, plastics, fiberglass, and laminates Drilling in both hard and soft metals Using driving accessories, such as driving screws with screwdriver bits... -
Page 8: Features
This new drill-driver is equipped with the following features. KEYLESS CHUCK The drill-driver has a keyless chuck that allows you to hand tighten or release drill bit in the chuck jaws. SWITCH The drill-driver has a conveniently located variable speed switch. - Page 9 FEATURES MODEL SA960 LEVEL TORQUE ADJUSTMENT RING SWITCH KEYLESS TRIGGER CHUCK MODEL SA120 LEVEL TORQUE ADJUSTMENT RING SWITCH TRIGGER KEYLESS CHUCK MAG TRAY™ DIRECTION OF ROTATION SELECTOR BATTERY PACK DIRECTION OF ROTATION SELECTOR BATTERY PACK Page 9 STORAGE AREA STORAGE AREA Fig.
-
Page 10: Adjustments
KEYLESS CHUCK See Figure 3. A keyless chuck has been provided with your drill to allow for easy installation and removal of bits. As the name implies, you can hand tighten or release drill bits in the chuck jaws. - Page 11 Open or close chuck jaws to a point where the opening is slightly larger than the bit size you intend to use. Also, raise the front of the drill slightly to keep the bit from falling out of the chuck jaws.
- Page 12 • 21 - 24 ( ) ... For heavy drilling. BIT STORAGE See Figure 7. When not in use, bits provided with your drill can be placed in the storage area located on the top of your drill. ADJUSTMENTS TO DECREASE...
-
Page 13: Operation
WARNING: Do not allow familiarity with the drill-driver to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury. CHARGING YOUR DRILL-DRIVER The battery pack for this tool has been shipped in a low charge condition to prevent possible problems. - Page 14 SWITCH See Figure 9. To turn your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. SWITCH LOCK See Figure 9. The switch trigger can be locked in the OFF position. This feature helps reduce the possibility of accidental starting when not in use.
- Page 15 If you are not prepared, this loss of control can result in possible serious injury. When drilling metals, use a light oil on the drill bit to keep it from overheating. The oil will prolong the life of the bit and increase the drilling action.
- Page 16 See Figure 12. A convenient new feature provided with your drill is a level. It is recessed in the motor housing on top of your drill. It can be used to keep drill bit level during drilling operations. MAG TRAY™ MODEL SA120 See Figure 13.
-
Page 17: Maintenance
WARNING: When servicing use only identical Ryobi replacement parts. Use of any other parts may create a hazard or cause product damage. Do not abuse power tools. Abusive practices can damage tool as well as workpiece. WARNING: Do not at any time let brake fluids, gasoline, petro- leum-based products, penetrating oils, etc. -
Page 18: Parts Ordering / Service
Open the chuck jaws and remove the hex key. Remove the chuck screw by turning it in a clockwise direction. See Figure 15. NOTE: The screw has left hand threads. Insert the hex key in the chuck and tighten chuck jaws securely. - Page 19 NOTES Page 19...
- Page 20 Ryobi Authorized Service Center. Be sure to provide all pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest Ryobi Authorized Service Center. You can also check our web site at www.ryobitools.com for a complete list of Authorized Service Centers.
