Ruud PowerVent AP14236 Use And Care Manual

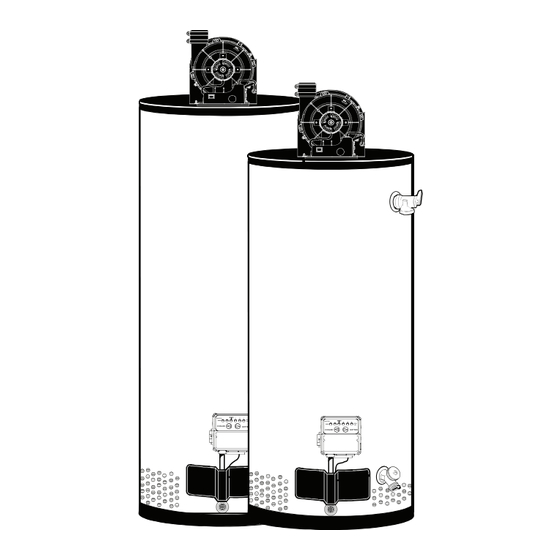

Gas residential water heater residential 40, 50, 60 gallon
Hide thumbs
Table of Contents

Advertisement

Quick Links

Warning:
This water heater is not
!
suitable for use in manufactured (mobile) homes!

Residential Gas

VACATION
A
B
C
VERY
WARM
HOT
VACATION
WARM
COOLER
HOTTER
COOLER
!
WARNING: If the information in these instructions is not followed exactly,
a fire or explosion may result causing property damage, personal injury or death.
FOR YOUR SAFETY!
!
— Do not store or use gasoline or other
flammable vapors or liquids or other
combustible materials in the vicinity of this or
any other appliance. To do so may result in an
explosion or fire.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
●
Do not touch any electrical switch; do not
●
use any phone in your building.
Immediately call your gas supplier from a
●
neighbor's phone. Follow the gas supplier's
instructions.
Printed in USA
The purpose of this manual is twofold: one, to provide the installer with the basic directions
and recommendations for the proper installation and adjustment of the water heater; and two,
for the owner–operator, to explain the features, operation, safety precautions, maintenance
and troubleshooting of the water heater. This manual also includes a parts list.
It is very important that all persons who are expected to install, operate or adjust this
water heater read the instructions carefully so they may understand how to perform
these operations. If you do not understand these instructions or any terms within it, seek
professional assistance.
Any questions regarding the operation, maintenance, service or warranty of this water heater
should be directed to the seller from whom it was purchased. If additional information is
required, refer to the section on "If you need service."
Do not destroy this manual. Please read carefully and keep in a safe place for future
reference.
A
B
C
VERY
HOT
!
HOTTER
Recognize this symbol as an indication of Important Safety Information!
!
California Proposition 65 Warning: This product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive harm.
Use & Care Manual
With Installation Instructions for the Installer
®
Residential 40, 50, 60 Gallon
If you cannot reach your gas supplier, call
●
the fire department.
Do not return to your home until authorized
●
by the gas supplier or fire department.
— Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, personal injury, or death. Refer to
this manual. Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
®

Water Heaters

AP14236 (05/07)
