Chore-Tronics
Mobile Server
®

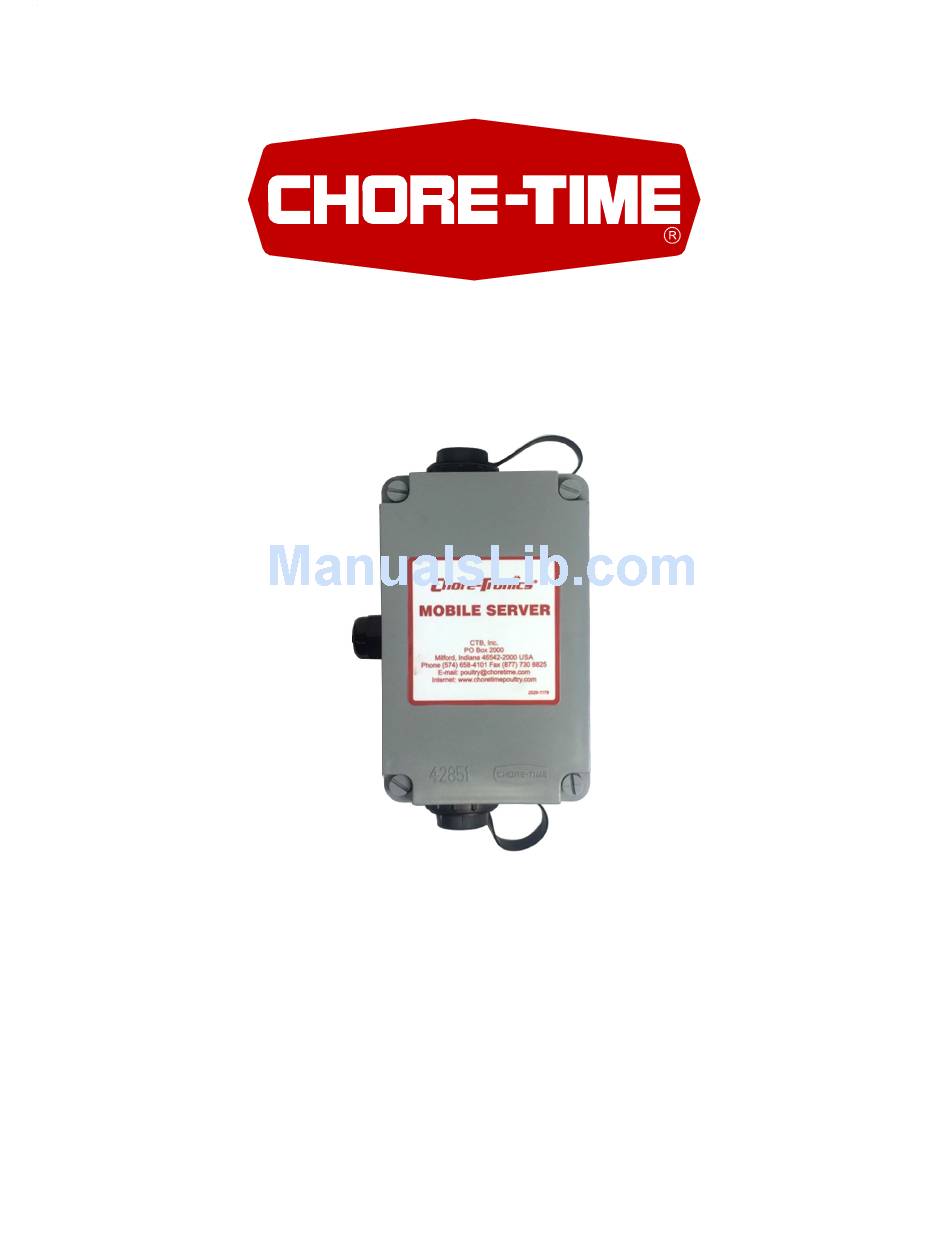

Installation & Operator's Instruction Manual
Contact your nearby Chore-Time distributor or representative for additional parts and information.
Chore-Time Group
A division of CTB, Inc.
PO Box 2000
Milford, Indiana 46542-2000 USA
Phone (574) 658-4101 Fax (877) 730-8825
E-mail: poultry@choretime.com
Internet: www.choretimepoultry.com
November 2017
MT2471A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chore-Tronics and is the answer not in the manual?

Questions and answers

Related Manuals for Chore-Time Chore-Tronics

Summary of Contents for Chore-Time Chore-Tronics

  • Page 1 Chore-Tronics Mobile Server ® Installation & Operator’s Instruction Manual Contact your nearby Chore-Time distributor or representative for additional parts and information. Chore-Time Group A division of CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 E-mail: poultry@choretime.com...
  • Page 2 Mobile Server manufactured by Chore-Time to be free from defects in material or workmanship under normal usage and conditions, for One (1) year from the date of installation by the original purchaser (“Warranty”). Chore-Time provides for an extension of the aforementioned Warranty period (“Extended Warranty Period”) with respect to certain Product parts.

  • Page 3: Table Of Contents

    Wiring ............... . 12 Wireless Radios (CT3 and other Chore-Tronics Controls) Wiring .......12 Ethernet Cat 5e-6 (CT3 and other Chore-Tronics Controls) Wiring .

  • Page 4: Safety And General Information

    Safety and General Information Chore-Tronics® Mobile Server Safety and General Information Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous situations. Care should be taken to keep this information intact and easy to read at all times. Replace missing or damaged safety decals immediately.

  • Page 5: General Information

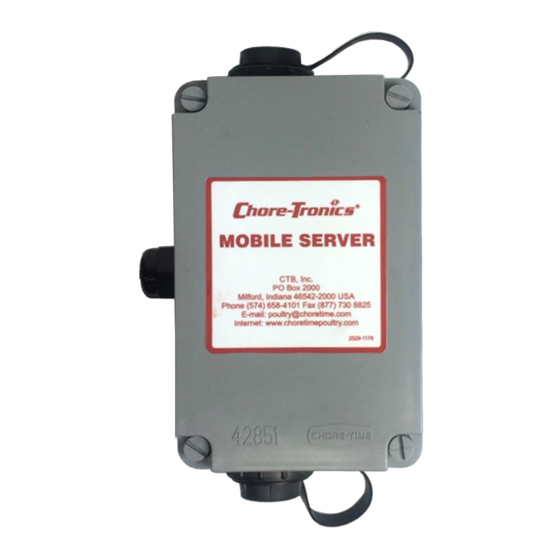

    ® The Chore-Time Chore-Tronics Mobile Server is designed to connect a mobile device to a Chore-Tronics Control to allow access to current conditions, and also allow changes to be made to control settings from a remote location. Using the equipment for purposes other than specified in this manual may cause personal injury and/or damage to the equipment.

  • Page 6: Setup

    Setup Chore-Tronics® Mobile Server Setup Registering a new Mobile Account Before starting, users should have an active email address, username, password, and desired name. Additionally, the user should have on hand the GUID associated with the mobile server. Refer to Figure 8. on page 8.

  • Page 7: Connecting To The Mobile Server Web Interface And How To Add Ct3 Controls

    Chore-Tronics® Mobile Server Setup 5.You will be redirected to the Manage your Account screen. Figure 4.Manage your Account Screen Connecting to the Mobile Server Web interface and how to add CT3 controls 1.Connect your PC or smart phone to the local router via Ethernet or WIFI.

  • Page 8: Testing The Connection To The Mobile App To The Server

    Setup Chore-Tronics® Mobile Server 4.Check to see if the Mobile Server is connected to the Internet. Figure 7.Check Connection Testing the connection to the Mobile App to the Server. 1.Open the Mobile App on a mobile device and enter your user name and password. Select Login.

  • Page 9: Registering The Mobile Server With A Smart Phone

    Chore-Tronics® Mobile Server Setup Registering the Mobile server with a Smart phone ® 1.All equipment in the network must be connected and the Chore-Tronic's Mobile app must be installed on your mobile device. Navigate to the Apple app store or Google play store to download the Chore-Tronic's Mobile app.

  • Page 10: Adding The Chore-Tronics® 3 (Ct3) Controls

    Setup Chore-Tronics® Mobile Server Adding the Chore-Tronics ® 3 (CT3) Controls 1.After the site opens select "Add House". Enter the IP of the first House you want listed. Continue to add your houses until all are added. This example shows 2 added houses. House 1 and House 2.

  • Page 11: Wiring

    Wiring Wireless Radios (CT3 and other Chore-Tronics Controls) Wiring Radio Internet Router CT3 Main Box Mobile Server Ethernet Cable Ethernet Cable Broadcaster Ethernet Cable Main Box Radio Ethernet Switch 8 dry Contact Inputs CT3 Main Box CT3 Controls send specific Alarms directly...

  • Page 12: Ethernet Cat 5E-6 (Ct3 And Other Chore-Tronics Controls) Wiring

    Ethernet Cat 5e-6 (CT3 and other Chore-Tronics Controls) Wiring Internet Router CT3 Main Box Ethernet Cable Ethernet Cable Broadcaster Ethernet Cable Main Box Ethernet Switch 8 dry Contact Inputs CT3 Main Box CT3 Controls send specific Alarms directly to the Broadcaster Main Box...

  • Page 13: Parts Listing

    1/2" Conduit Lock Nut 56074 Mobil Server Plate 54364 24" Ethernet Cable 13019 #8 x .375 Screw 56216 Chore-Tronics Mobile Server USB Cable 56073 Mobile Server Board 2529-1178 Mobile Server Decal 56243 .5" Lock in Place Standoff 51297 5V Power Supply...
  • Page 14 Revisions to this Manual Page No. Description of Change New Manual 33235 Contact your nearby Chore-Time distributor or representative for additional parts and information. CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 E-mail: poultry@choretime.com...
