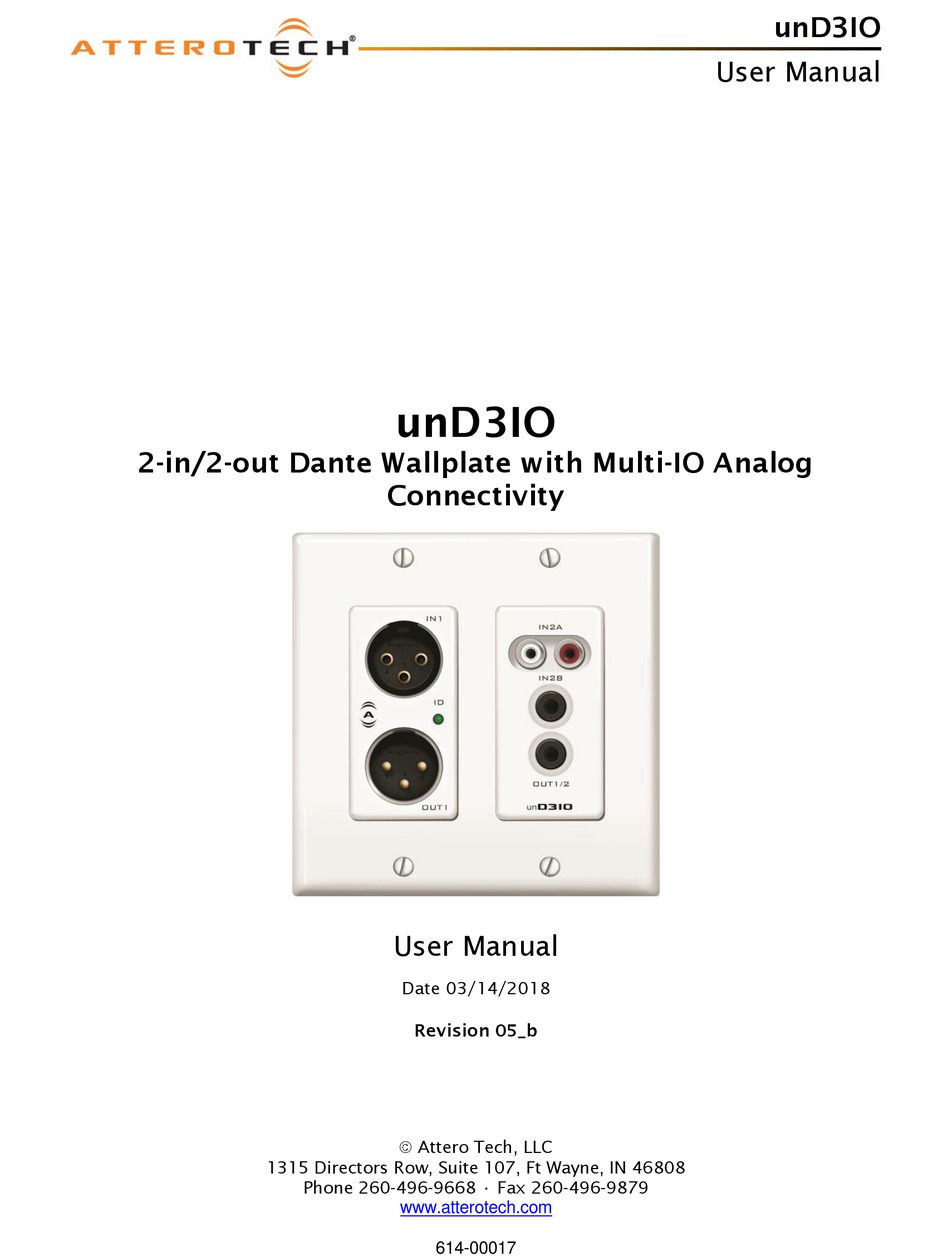

- Page 1 User Manual unD3IO 2-in/2-out Dante Wallplate with Multi-IO Analog Connectivity User Manual Date 03/14/2018 Revision 05_b Attero Tech, LLC 1315 Directors Row, Suite 107, Ft Wayne, IN 46808 Phone 260-496-9668 • Fax 260-496-9879 www.atterotech.com 614-00017...
- Page 2 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 3 LLC, shipping costs prepaid, within five years from the date of purchase. This Limited Warranty is governed by the laws of the State of Indiana. It states the entire liability of Attero Tech, LLC and the entire remedy of the purchaser for any breach of warranty as outlined above.
-
Page 4: Table Of Contents
4.1 – Command Interface Type ............................13 4.2 – Using the Command interface ..........................13 5 – ARCHITECTS & ENGINEERS SPECIFICATION ............................14 5.1 – Device Specifications .............................. 14 APPENDIX A – Reference Documents ................................A-1 Attero Tech LLC 2018 Page 3 614-00017 Rev 05_a... -
Page 5: Overview
The user can select which mix they require through the control software. The unD3IO has two output options. An XLR connector provides a balanced line output for analog output 1 only, and a 3.5mm stereo jack connector provides an unbalanced line level output for both analog output 1 and analog output 2. -
Page 6: Device Installation
Unbalanced stereo jack audio output (Output 1 & 2) *Note: The unD3IO has a label on the front of the metal housing at the top that shows the last 6 digits of the MAC address. This is important for initial device identification as these digits make up part of the devices default network name that is shown when the device is detected by Dante Controller. -
Page 7: Mounting
With the cable attached, carefully place the unD3IO into the wall box taking care to not trap the cabling. Once fully in place, secure with the screws provided. Once the unit is secured in the wall box, fit the Decora plate and secure it with the screws provided with it. -
Page 8: Balanced Source To Unbalanced Sink
Use the following if using a single core cable with shield to connect a balanced source to an RCA or stereo jack input on the unD3IO or to connect the XLR output from the unD3IO to an unbalanced input on another device. Connect the positive output of the balanced source to the positive input of the unbalanced sink. -
Page 9: Device Configuration
PC, communication can only occur if the PC and the device have compatible IP addresses. By default, unD3IO is set to get a dynamic IP address. As with all Dante devices, if the unD3IO device does not find a DHCP server to retrieve an IP address from, it will give itself an automatic private IP address (APIPA) instead. - Page 10 User Manual The software will install to a default location of c:\program Files (x86)\Attero Tech\unIFY Control Panel). Clicking the “Options” button allows the user to change the installation location if required though it’s not necessary to change it. To select a new installation location, either type in a new path in the edit box, or click on the “Browse” button to browse the folder tree for the desired installation location.
-
Page 11: Selecting A Network Adapter
User Manual Once the required software is installed, click on the unIFY Control Panel icon in the programs list under Attero Tech. This will start the application. Figure 8 - Device Configuration window 3.3 – Selecting a Network Adapter In order to connect to a device the application needs to know what network adapter it should use to contact devices. -
Page 12: Device Identification
Settings in a device can be saved to an internal preset which can then be recalled at a later date. There are 10 internal presets, one of which is the “Default” preset that is used to set device settings when the unD3IO is first powered on. -
Page 13: Preset Files
To save the current settings to a file, click the “Save to File” button and then enter an appropriate filename. To load settings from a file, click the “Load from File” button and select the appropriate file. Attero Tech LLC 2018 Page 12... -
Page 14: Rd Party Control
4.2 – Using the Command interface In order to make use of the command interface, regardless of type, the unD3IO simply needs to be configured with an IP address that is compatible with the device doing the controlling. The control devices should then be able to converse with the unD3IO without any further configuration necessary. -
Page 15: Architects & Engineers Specification
48kHz. The Dante interface unit shall receive power over the Ethernet cable from an 802.3af PoE compliant network switch. The Dante interface shall be wall mounted in a standard US dual gang junction box. The Dante interface shall be compatible with Attero Tech Unify software for flexible control and monitoring in system applications. -
Page 16: Appendix A - Reference Documents
The following table lists the relevant reference documents. Document Title Location unIFY 3 Party Software API Registered users area on website Dante Firmware Update Quick Start Registered users area on website Attero Tech LLC 2018 Page 614-00017 Rev 05_a... - Page 17 Added descriptions for the two different control interfaces 11/05/14 Release Version 04 04_a 11/14/14 Update device specs 11/14/14 Release Version 05 05_a 10/16/17 Bug #3475 – Update manual regarding UTP/STP cable 05_b 03/14/18 Warranty Updated Attero Tech LLC 2018 Page 614-00017 Rev 05_a...
