SPALDING M8809511 Owner's Manual

In-ground basketball system
Hide thumbs

Advertisement

Quick Links

Download this manual

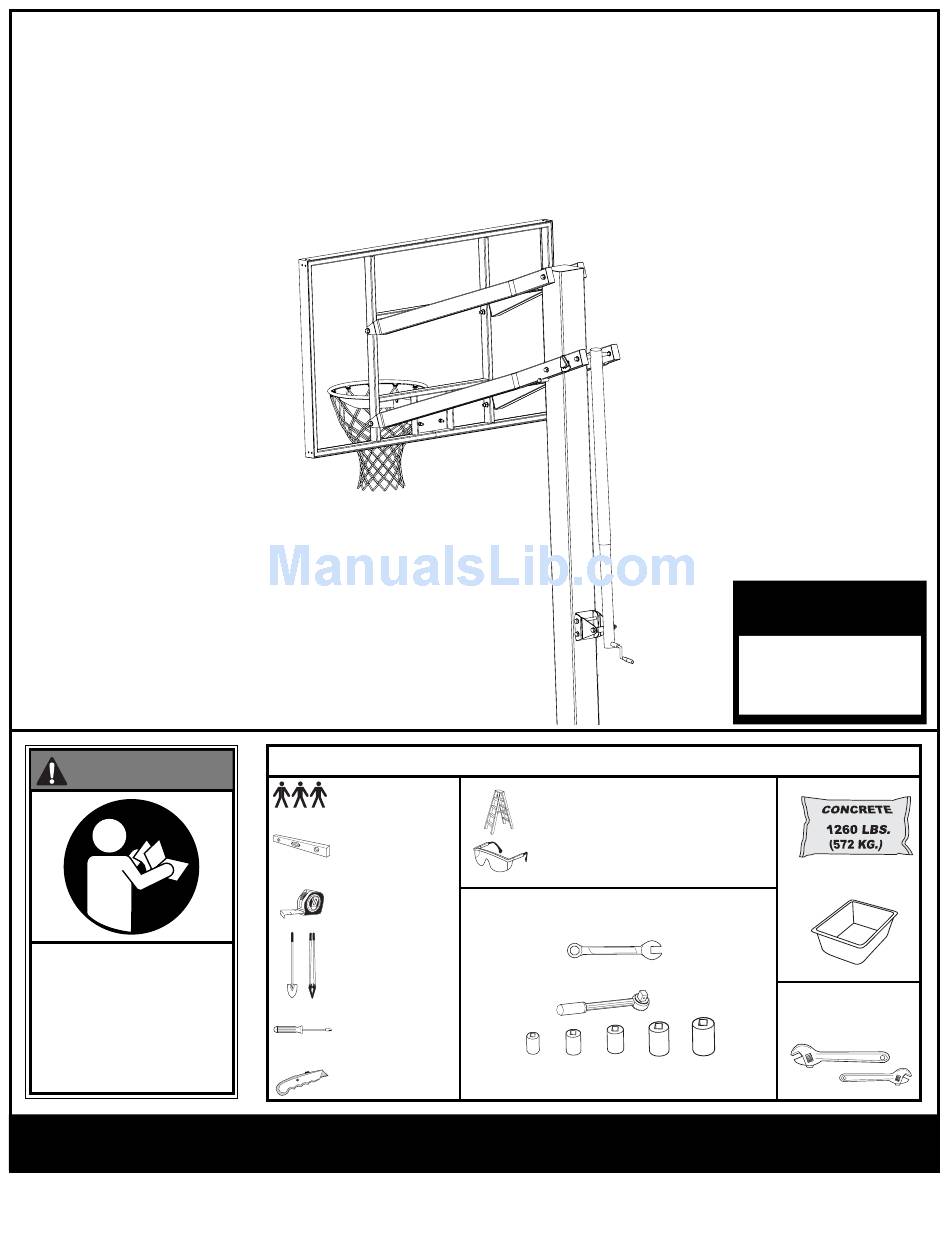

WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234 Canada Only: 1-800-284-8339
© COPYRIGHT 2006 by SPALDING
In-Ground Basketball System

Owners Manual

Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
• 3 Capable Adults
• Carpenter's Level
• 15' Tape Measure
• Sh ovel & Post Hole
Digger
• Phillips Screwdriver
• (1) Utility Knife
Internet Address: http://www.hydra-rib.com

REQUIRED TOOLS AND MATERIALS:

• (2) Stepladders 8 ft. (2.4 m)
• Safety Goggles
• (2 each) Wrenches and/or Socket Wrenches and
Sockets (Deep-Well Sockets are Recommended).
3/8"
1/2"
3/8"
1/2"
1
Write Model Number
From Box Here:
9/16"
3/4"
15/16"
9/16"
3/4"
15/16"
07/06
•
• Container to Mix
• Optional: Large &
Small Adjustable
Wrenches
ID# M8809511
