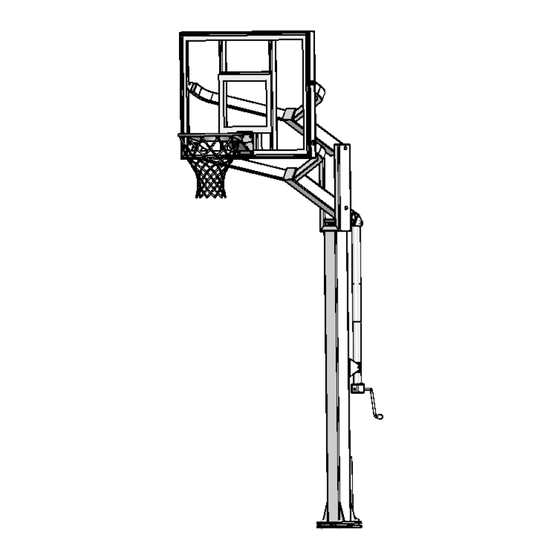

In-Ground Basketball System

Owners Manual

Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
Write Model Number
WARNING!
From Box Here:
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-334-9111
Internet Address: http://www.hydra-rib.com
1
05/05
ID# M866041

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M866041 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HYDRA-RIB M866041

Summary of Contents for HYDRA-RIB M866041

  • Page 1: Owners Manual

    Write Model Number WARNING! From Box Here: READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE USING THIS UNIT. FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY. Toll-Free Customer Service Number for U.S: 1-800-334-9111 Internet Address: http://www.hydra-rib.com 05/05 ID# M866041...

  • Page 2: Safety Instructions

    • Shovel & Post Hole Digger • Wood Board (scrap) • Masking Tape • Marker ID# M866041 05/05 REQUIRED TOOLS AND MATERIALS: • (2) Stepladders 8 ft. (2.4 m) • Safety Goggles • (2 each) Wrenches and/or Socket Wrenches and Sockets (Deep-Well Sockets are Recommended).

  • Page 3: Parts List

    Bolt, Hex, 1/2-13 x 2.5, Zinc 204921 Washer, Barrel 204922 Pin, Hitch 204923 Pin, Cotter, #8 202666 Name Plate 216279 Bolt, Hex, 1/2-13 x 6.5, Black Oxide * You May Have Extra Parts With This Model. PARTS LIST 05/05 ID# M866041...
  • Page 4 HARDWARE IDENTIFIER (NUTS, WASHERS & SPACERS) Item #28 (3) Item #22 (10) Item #33 (4) Item #21 (16) Item #24 (9) Item #25 (13) Item #26 (1) Item #5 (4) HARDWARE IDENTIFIER (OTHER) Item #37 (1) Item #35 (1) Item #36 (1) ID# M866041 05/05...
  • Page 5 Make sure J-bolts (19) are in the illustrated position. Nuts on the top of plate are used for leveling the pole after system is fully assembled. 24" (61 cm) GROUND SURFACE 48" (121.9 cm) 2.75” (7 cm) 24" (61 cm) 48" (121.9 cm) PLAYING SURFACE 05/05 ID# M866041...

  • Page 6: Side View

    (2) must be parallel with playing surface. IMPORTANT!: TO NEXT STEP. CONCRETE MUST CURE. ALLOW ADDITIONAL TIME FOR COLD, WET OR HUMID WEATHER. ID# M866041 05/05 PLAYING SURFACE WAIT A MINIMUM OF 72 HOURS BEFORE GOING ON DRAINAGE HILL 1" (2.54 cm)
  • Page 7 Insert bushings (27) into areas shown. 05/05 ID# M866041...
  • Page 8 REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. Insert bolt (15) through holes in plate and pole and secure with nut (22). ID# M866041 05/05 PLAYING SURFACE PLAYING SURFACE SCRAP WOOD (NOT INCLUDED)

  • Page 9: Completed Assembly

    (14) and secure with washer (24) and nut (25). Tighten until locked into completed assembly position WARNING! THREE PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. Completed Assembly 05/05 ID# M866041...
  • Page 10 While still in forward position, attach both upper and lower yokes (17 & 18) to pole as shown. WARNING! THREE PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. ID# M866041 05/05...
  • Page 11 Attach elevator adjustment (12) to lower yoke (18). WARNING! THREE PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. 05/05 ID# M866041...
  • Page 12 Attach elevator adjustment (12) to pole bracket. WARNING! THREE PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. ID# M866041 05/05...
  • Page 13 (18), FIG. C, and secure with hardware as shown in FIG. D. WARNING! THREE PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. FIG. C FIG. D 05/05 ID# M866041...
  • Page 14 Remove rim cover (16), attach rim assembly (3) to backboard (10) and reattach rim cover (16). ** For rim assembly see instructions included with rim. Rim Assembly ID# M866041 05/05 Refer To Instructions Included With Rim Hardware For Rim Assembly.
  • Page 15 (29) into place with a rubber mallet. Install net (4) to rim as shown. Set-up For Left Side Set-up For Right Side 7 8 9 10 7 8 9 10 IMPORTANT!: NOTE ORIENTATION OF HEIGHT INDICATORS: 10’ MARK SHOULD FACE AWAY FROM BACKBOARD. 05/05 ID# M866041...
  • Page 16 (24) and pole is vertical. Once pole is in its final position, install washers (24) and nuts (25) onto J-bolts (19) and fully tighten to secure pole to base plate ID# M866041 05/05 WARNING! N IN G W A R...
  • Page 17 WARNING: ONLY AFTER NUTS (24) HAVE BEEN FULLY TIGHTENED: Remove cotter pin (37) and pin (36) to remove assembly bolt (14) from bottom plate (2). 05/05 ID# M866041...
  • Page 18 (30). WARNING! READ AND UNDERSTAND WARNING & HEIGHT ADJUSTMENT LABELS BEFORE USING THIS UNIT. FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY. ID# M866041 05/05 10 feet (3.05 m)

  • Page 19: What Is Not Covered By This Warranty

    RIms are not warranted for any defects other than workmanship. Torn back plates, damaged springs, bent rings, damaged eye bolts, and torn or distorted rim supports result from hanging on the rim and are not warranted. ® ® ® system 05/05 ID# M866041...
