Huffy M581704 Owner's Manual

Portable system
Hide thumbs Also See for M581704:

Advertisement

Quick Links

Download this manual
REQUIRED
MATERIALS:
• 2 People
• Wood Board
(scrap)
• Sawhorse or
Support Table
• Garden Hose or Sand
• (2 each) Wrenches
and/or Socket
Wrenches and Sockets.
1/2"
9/16"
AND/OR
1/2"
9/16"
OPTIONAL TOOLS
AND MATERIALS:
• Large and Small
Adjustable Wrenches
© COPYRIGHT 2005 by HUFFY SPORTS
A DIVISION OF RUSSELL CORPORATION
Portable System

Owners Manual

Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 7921
Internet Address: http://www.huffysports.com
1
Write Model Number
From Box Here:
05/05
ID# M581704

Advertisement

loading
Need help?

Need help?

Do you have a question about the M581704 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huffy M581704

Summary of Contents for Huffy M581704

  • Page 1: Owners Manual

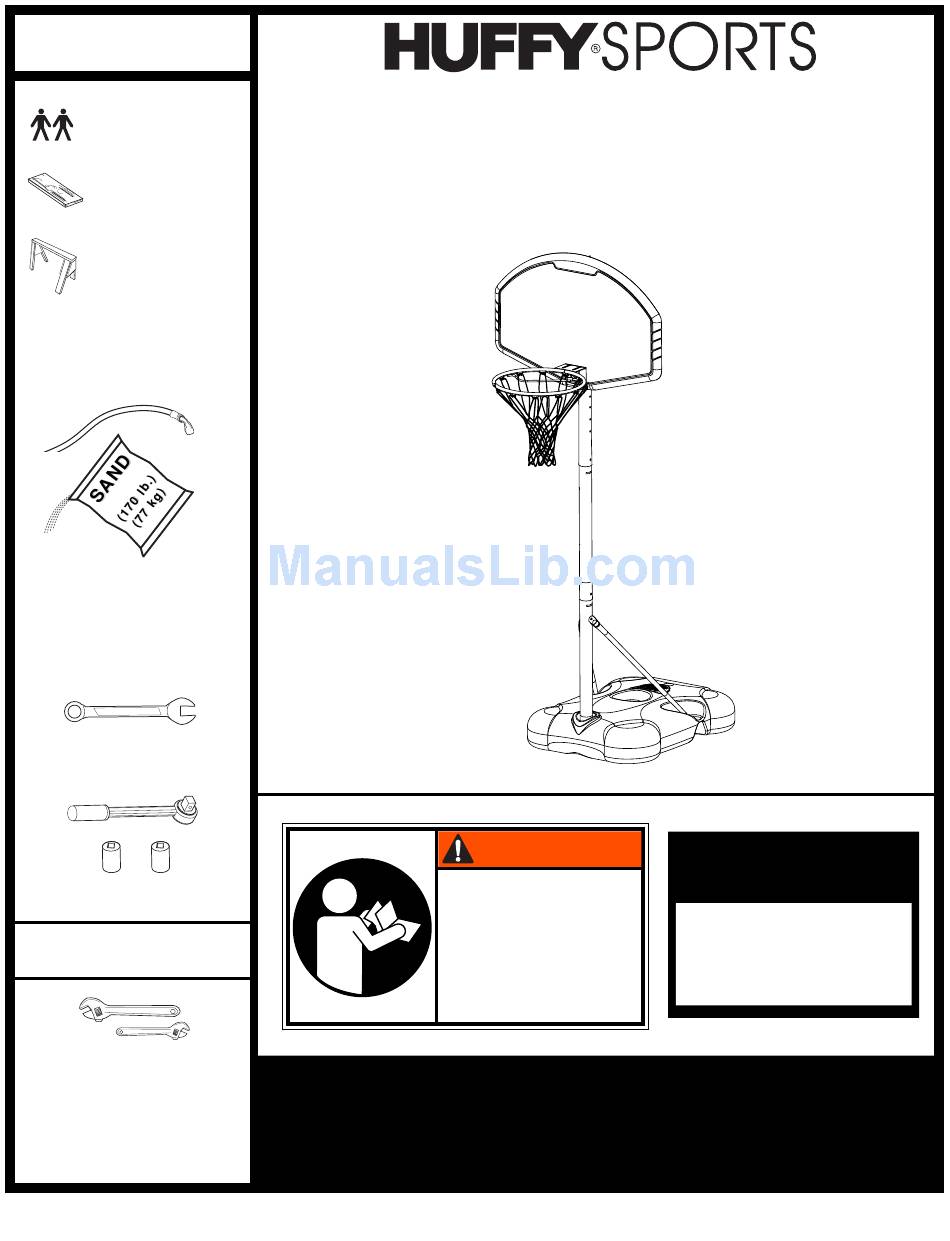

    OPTIONAL TOOLS AND MATERIALS: • Large and Small Adjustable Wrenches © COPYRIGHT 2005 by HUFFY SPORTS A DIVISION OF RUSSELL CORPORATION Portable System Owners Manual Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

  • Page 2: Height Adjustment

    Do not adjust height of system in upright position. System must be in down position to adjust ID# M581704 05/05 FAILURE TO FOLLOW THESE WARNINGS MAY RESULT • DO NOT HANG on the rim or any part of the system including backboard, support braces or net.

  • Page 3: Safety Instructions

    PROPERTY DAMAGE AND WILL VOID WARRANTY. Use caution when using this unit. NOTICE TO ASSEMBLERS IMPORTANT! Remove all contents from boxes. WARRANTY CARD: Please remember to complete your product registration form either on-line at: www.huffysports.com/warrantycard or mail-in the enclosed postcard. 05/05 ID# M581704...
  • Page 4 Get to know the basic parts of your basketball system... FRONT BACK TOP POLE BACKBOARD ELEVATOR ASSEMBLY MIDDLE POLE STRUTS BOTTOM POLE BASE ID# M581704 05/05...
  • Page 5 Knob, Plastic, 3-sided Backboard Backboard Mounting Bracket Rim Bracket Bolt, Carriage 5/16-18 x 3.25" Long Washer, Flat, 5/16 Washer, Flat, 1.0" O.D. Bolt, Hex, 3/8-16 x 2" Long Nut, Flange, 5/16-18 Strut, Left Strut, Right Label, Height Adjustment 05/05 ID# M581704...
  • Page 6 #16 (2) #19 (1) #20 (3) #18 (1) #10 (1) PARTS IDENTIFIER- Not Actual Size #1 (1) #21 (1) #22 (1) #6 (1) #11 (2) #9 (1) #15 (1) #7 (1) #12 (1) #14 (1) #13 (1) ID# M581704 05/05...
  • Page 7 S S E E C C T T I I O O N N A A : : A A S S S S E E M M B B L L E E T T H H E E P P O O L L E E S S Correctly identify each pole section. Poles have an identification sticker that will be used as a reference point in the next step. Reference Stickers MIDDLE BOTTOM 05/05 ID# M581704...
  • Page 8 THE POLE. WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 2-1/2" MINIMUM OVERLAP, LEAVING 1-1/4" BETWEEN THE OVERLAPPING POLE AND THE IDENTIFICATION STICKER. FIG A. scrap wood (Not Supplied) ID# M581704 05/05 IMPORTANT! IDENTIFICATION STICKER middle pole IDENTIFICATION STICKER middle pole...
  • Page 9 NOTE: CAREFULLY TIPPING THE SYSTEM FORWARD WILL ALLOW EASIER ACCESS TO UNDERSIDE OF BASE WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. IMPORTANT!: NOTE ORIENTATION 05/05 ID# M581704...
  • Page 10 Rotate struts down and bend struts outward to line up with holes on base as shown. Secure free ends of tank struts to tank with carriage bolt (8), and Repeat for other side. ID# M581704 05/05 WARNING! TIGHTEN BOLT (10) IN...
  • Page 11 Attach rim to backboard and pole bracket (14) with nut (20), reinforcement bracket (15), and carriage bolt (8) as shown. Tighten nut completely. PRESS BRACKET (14) INTO PLACE HERE Carefully tip unit forward and slide backboard assembly onto pole as shown. SAWHORSE OR SUPPORT TABLE 05/05 ID# M581704...
  • Page 12 (approx. 170 lb./77 kg) and snap tank cap (9) in place. CAUTION! ADD ONE GALLON (3.78 LITERS) OF NON-TOXIC ANTIFREEZE IN SUB- FREEZING CLIMATES. NOTE: IF USING SAND: 2 GALLONS OF ANTI-FREEZE IS NOT REQUIRED ID# M581704 05/05...
  • Page 13 (Do not use salt.) • Use extreme caution if placing system on sloped surface. System may tip over more easily. In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339 203782 05/04 6.5 feet (1.98 m) 05/05 ID# M581704...
  • Page 14 UNE DIVISION DE LA RUSSELL CORPORATION EINE ABTEILUNG DER RUSSELL CORPORATION UNA DIVISIÓN DE RUSSELL CORPORATION Système portable - Manuel de l'utilisateur Service clientèle • N53 W24700 South Corporate Circle • Sussex, WI 53089 • É.-U. Gebrauchsanleitung für tragbare Systeme Kundendienstzentrale •...
  • Page 15 • (2 de cada una) llaves de tuercas y/o llaves de tuercas de boca tubular y casquillos (se recomiendan casquillos profundos). 1/2" 9/16" 1/2" 9/16" • Manguera de jardín o arena HERRAMIENTAS Y MATERIALES OPCIONALES: • Llaves de tuercas ajustables grandes y pequeñas 05/05 ID# M581704...
  • Page 16 ID# M581704 05/05...

  • Page 17: Réglage De La Hauteur

    El clima, la corrosión y el mal uso podrían ocasionar la falla del sistema. Si requiere asistencia técnica, comuníquese con Huffy Sports. ADVERTENCIA La mayoría de las lesiones son causadas por el uso inadecuado y/o por el incumplimiento de las instrucciones. SP204178 05/04 Tenga cuidado cuando use esta unidad. 05/05 ID# M581704...
  • Page 18 Asegúrese de revisar el interior de las secciones del poste. Ahí se han empacado herraje y piezas adicionales. Die Kartons vollständig auspacken. Den Hohlraum in den Stangenteilen inspizieren. Dort sind Befestigungs- und andere Kleinteile verpackt. ID# M581704 05/05 provisional. IMPORTANT! WICHTIG!
  • Page 19 Schlossschraube, 3/8-16 x 1 Länge Tankdeckel Sechskantkopfschraube, 5/16-18 x 2.63" Länge Plastikknopf Korbrand Korbwand Korbwand-Montagehalterung Korbrand -Montagehalterung Schlossschraube, 5/16-18 x 3.25" Länge Unterlegscheibe, 5/16 Unterlegscheibe, 1.0 Zoll AD Sechskantkopfschraube, 3/8-16 x 2" Länge Einschraubgegenmutter, 5/16-18 Tankverstrebung Tankverstrebung Höhenanzeigeaufkleber 05/05 ID# M581704...
  • Page 20 Apprenez à connaître les composants de base de votre système de basket-ball... Machen Sie sich mit den wichtigsten Teilen Ihres Basketballsystems vertraut… Conozca las piezas básicas de su sistema de baloncesto… ID# M581704 05/05 #10 (1) IDENTIFICATION DES PIÈCES - Pas à la grandeur réelle #21 (1)
  • Page 21 Identifique correctamente cada sección del poste. Los postes tienen una calcomanía de identificación que se usará como punto de referencia en el paso siguiente. Etiquettes de référence Markierungsaufkleber Calcomanías de referencia Section supérieure Section centrale Oben Mitte Parte superior Parte media Section inférieure Unten Parte inferior 05/05 ID# M581704...
  • Page 22 D'IDENTIFICATION MARKIERUNGSAUFKLEBER CALCOMANÍAS DE IDENTIFICACIÓN ID# M581704 05/05 UNE FOIS LES SECTIONS DE POTEAU ENTRECHOQUÉES ENSEMBLE, ELLES NE PEUVENT PLUS ÊTRE DÉMONTÉES. NACH DEM ZUSAMMENSTAUCHEN DER STANGENTEILE KÖNNEN DIESE NICHT MEHR VONEINANDER GETRENNT WERDEN. UNA VEZ QUE LAS SECCIONES DEL POSTE SE HAN EMBRAGADO ENTRE SÍ, YA NO SE PODRÁN SEPARAR Alignez les sections de poteau en vous basant sur les repères d'alignement.
  • Page 23 DURCH VORSICHTIGES KIPPEN DES SYSTEMS NACH VORNE WIRD DIE SOCKELUNTERSEITE LEICHTER ZUGÄNGLICH. SI SE INCLINA CUIDADOSAMENTE EL SISTEMA HACIA ADELANTE SE FACILITARÁ EL ACCESO A LA PARTE INFERIOR DE LA BASE AVERTISSEMENT ! WARNUNG! ¡ADVERTENCIA! HINWEIS: NOTA: 05/05 ID# M581704...
  • Page 24 Asegure los extremos libres de los puntales del tanque el en tanque con el perno cabeza de carro (8), arandela (17) y perilla (20) como se muestra. Repita el procedimiento en el otro lado. ID# M581704 05/05...
  • Page 25 Die Vorrichtung vorsichtig nach vorne kippen und die Korbwandbaugruppe wie gezeigt auf die Stange schieben. Incline cuidadosamente la unidad hacia adelante y deslice el conjunto del respaldo en el poste como se muestra. CHEVALET DE SCIAGE OU TABLE SÄGEBOCK ODER STÜTZTISCH CABALLETE O MESA DE APOYO 05/05 ID# M581704...
  • Page 26 Coloque la unidad montada en la ubicación deseada. Llene el tanque con agua (53 litros/14 galones) o con arena (77 kg/170 libras) y conecte a presión la tapa del tanque (9) en su lugar. ID# M581704 05/05 REMARQUE HINWEIS...
  • Page 27 (Do not use salt.) • Use extreme caution if placing system on sloped surface. System may tip over more easily. In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339 203782 05/04 6.5 pieds 1,98 m 6.5 Fuß (1,98 m) 6.5 pies (1.98 m) 05/05 ID# M581704...
