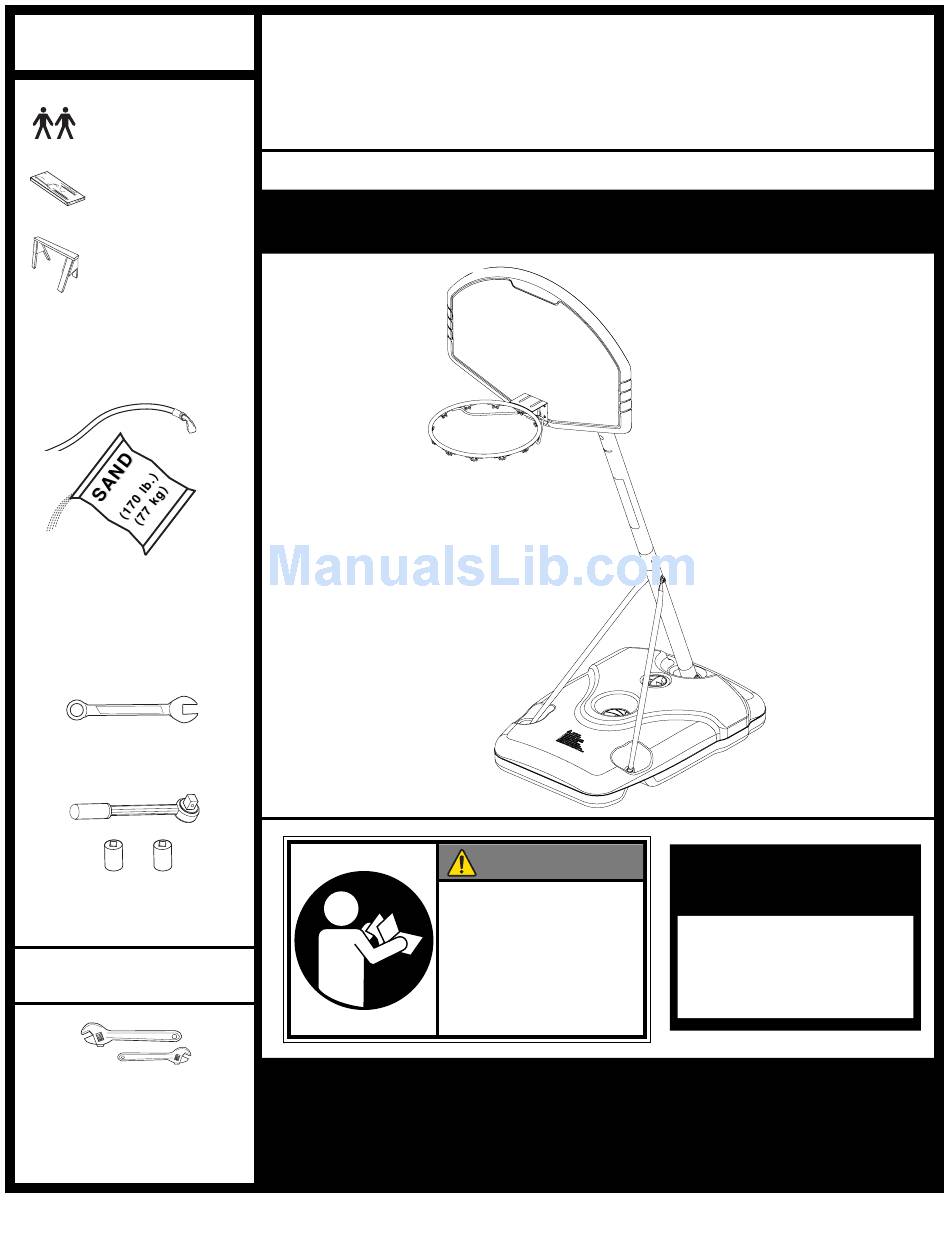

REQUIRED
MATERIALS:
• 2 People
• Wood Board
(scrap)
• Sawhorse or
Support Table
• Garden Hose or Sand
• (2 each) Wrenches
and/or Socket
Wrenches and Sockets.
1/2"
9/16"
AND/OR
1/2"
9/16"
OPTIONAL TOOLS
AND MATERIALS:
• Large and Small
Adjustable Wrenches
© COPYRIGHT 2005 by SPALDING
Portable Basketball System
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
This manual, accompanied by sales receipt, should be saved and kept on hand as a
convenient reference, as it contains important information about your model.
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
Internet Address: http://www.huffysports.com
Owner's Manual
Customer Service Center
Adult Assembly Required.
WARNING!
For Canada: 1-800-284-8339,
For Australia: 1-800-632 7921
1
Write Model Number
From Box Here:
04/06
ID# 211230
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SPALDING 211230
Summary of Contents for SPALDING 211230
- Page 1 OR DAMAGE TO PROPERTY. Toll-Free Customer Service Number for U.S: 1-800-558-5234, For Canada: 1-800-284-8339, For Europe: 00 800 555 85234 (Sweden: 009 555 85234), For Australia: 1-800-632 7921 Internet Address: http://www.huffysports.com Write Model Number From Box Here: 04/06 ID# 211230...
- Page 2 ID# 211230 04/06 WARNING Read and understand warnings listed below before using this product. Failure to follow these warnings may result in serious injury and/or property damage. Owner must ensure that all players know and follow these rules for safe operation of the system.
-
Page 3: Safety Instructions
PROPERTY DAMAGE AND WILL VOID WARRANTY. Use caution when using this unit. NOTICE TO ASSEMBLERS for loose small parts. makeshift support system. PRODUCT REGISTRATION: Please remember to complete your product registration form on- line at: www.huffysports.com/customer_support/product_registration. 04/06 ID# 211230... - Page 4 Get to know the basic parts of your basketball system... ID# 211230 04/06...
-
Page 5: Parts List
Bolt, Hex, 3/8-16 x 2" Long Nut, Flange, 5/16-18 Strut, Left Strut, Right Strut, Board Bolt, Carriage 5/16-18 x 2-1/4" Long Bushing,Snap, Plastic Screw, Phillips Pan Bolt, Carriage 5/16-18 x 2-3/4" Long Bushing,Snap, Plastic Bolt, Hex, 5/16-18 x .625” Long 04/06 ID# 211230... - Page 6 #18 (1) #24 (2)* #26 (4) #5 (4) #20 (3)* #27 (1) PARTS IDENTIFIER- Not Actual Size #21 (1) #22 (1) #6 (1) #1 (1) #11 (1) #9 (1) #15 (1) #12 (1) #14 (1) #13 (1) ID# 211230 04/06...
- Page 7 SECTION A: ASSEMBLE THE POLES Correctly identify each pole section. Poles have an identification sticker that will be used as a reference point in the next step. Reference Stickers ELBOW MIDDLE BOTTOM 04/06 ID# 211230...
- Page 8 FIG A. scrap wood (Not Supplied) IDENTIFICATION STICKER bottom pole IDENTIFICATION STICKER bottom pole ID# 211230 04/06 IMPORTANT! 3-1/2" 1-1/4" CAUTION! THE IDENTIFICATION STICKER IS LOCATED 3-3/4" FROM THE END OF THE POLE. WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 2-1/2"...
- Page 9 WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. NOTE: CAREFULLY TIPPING THE SYSTEM FORWARD WILL ALLOW EASIER ACCESS TO UNDERSIDE OF BASE IMPORTANT! NOTE ORIENTATION 04/06 ID# 211230...
- Page 10 Rotate struts down and bend struts outward to line up with holes on base as shown. Secure free ends of tank struts to tank with carriage bolt (16), washer (17), and nut (20) as shown. Repeat for other side. ID# 211230 04/06 WARNING!
- Page 11 B. Slide top pole (2) into middle pole (3). C. Secure the poles together with carriage bolt (27) and knob (11) as shown. Bushing (28) Collar (25) MUST snap into MUST snap into hole of middle hole of bottom pole (2). pole (3). 04/06 ID# 211230...
- Page 12 Attach rim (12) to backboard and pole bracket (14) with nut (20), reinforcement bracket (15), and carriage bolt (8) as shown. Tighten nut completely. PRESS BRACKET (14) INTO PLACE HERE ID# 211230 04/06 BOARD STYLE MAY VARY NOTE:...
- Page 13 Carefully tip unit forward and slide backboard assembly onto pole as shown using bolts (24) and nuts (5). SAWHORSE SUPPORT TABLE 04/06 ID# 211230...
- Page 14 Place assembled unit in desired location. Fill tank (1) completely with water (14 gallons/53 liters) or sand (approx. 170 lb./77 kg) and install tank cap (9). WARNING! DO NOT LEAVE ASSEMBLY UNATTENDED WHEN EMPTY; IT MAY TIP OVER. ID# 211230 04/06 ADD ONE GALLON (3.78 LITERS) OF NON-TOXIC ANTIFREEZE IN SUB- FREEZING CLIMATES.
- Page 15 See instruction manual for proper installation and maintenance. In the U.S.: 1-800-558-5234 In the U.S.: 1-800-334-9111 In Canada: 1-800-284-8339 In the U.S.: 1-800-558-5234 In the U.S.: 1-888-713-5488 In Canada: 1-800-284-8339 ID#: 558200 05/05 6.5 feet (1.98 m) 04/06 ID# 211230...
- Page 16 Adjusting Height. Rest unit on support table. Remove adjustment knob (11) and carriage bolt (27) to extend or retract backboard and rim. Height adjustment ranges from 4-1/2' - 6-1/2'. ID# 211230 04/06...
