REQUIRED TOOLS
AND MATERIALS:
• 2 People
• Carpenter's Level
• 15' Tape Measure
• Shovel & Post
Hole Digger
• Spade
• Wood Board
(scrap)
• Tape
• Sawhorse or
Support Table
• Wedge
• Safety Glasses
• Heavy-Duty Tape
• Container to Mix
• (2 each) Wrenches and/or
Socket Wrenches and
Sockets (Deep-Well Sockets
are Recommended).
9/16"
AND/OR
9/16"
• Extension is Recommended
OPTIONAL TOOLS
AND MATERIALS:
• Large and Small Adjustable
Wrenches
A DIVISION OF RUSSELL CORPORATION

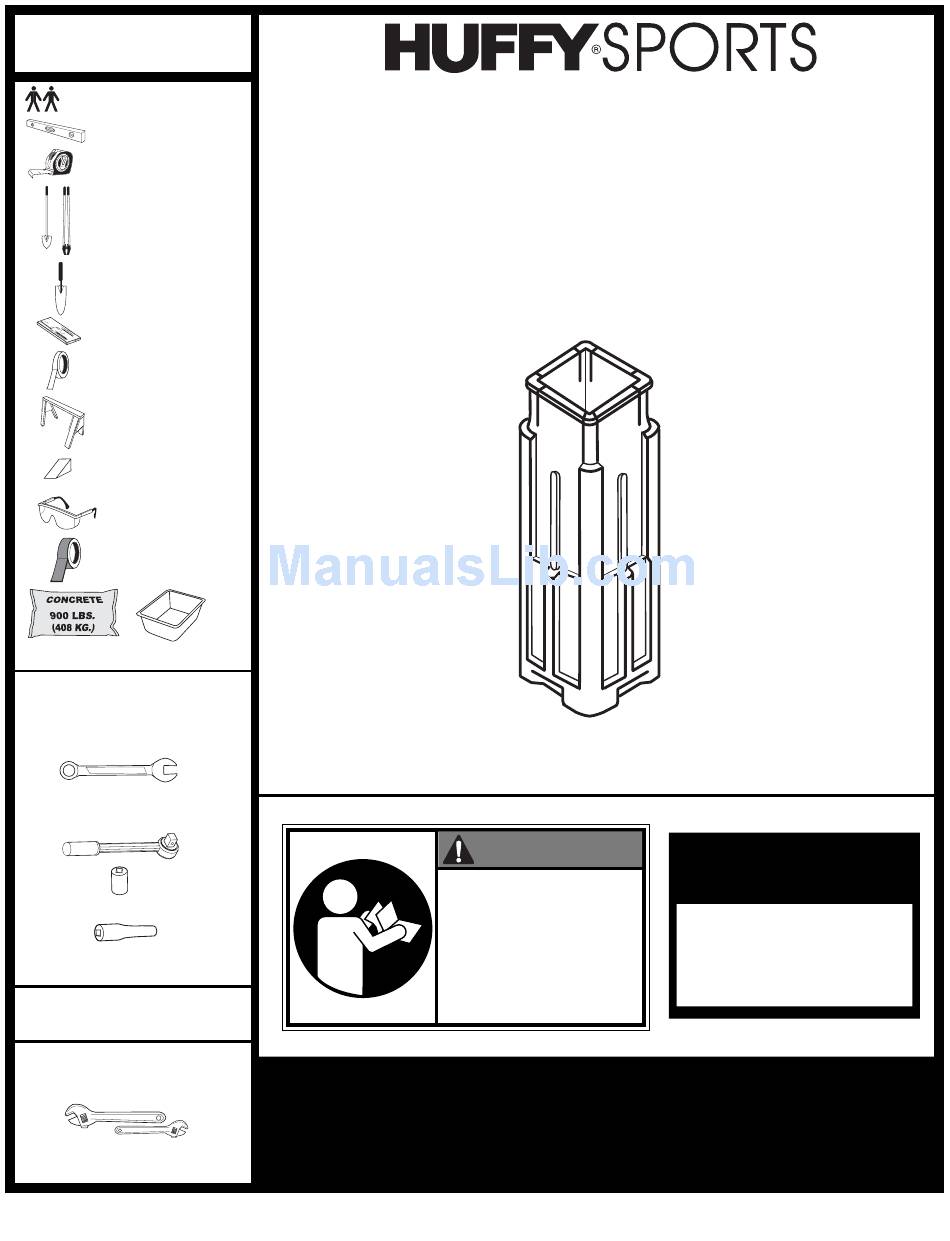

Ground Sleeve Owners Manual
for a 4" (10.2 cm) square pole
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 7921
Internet Address: http://www.huffysports.com
1
Customer Service Center
Write Model Number
From Box Here:
11/05
ID# 21112201
Advertisement
Related Manuals for Russell Corporation 21112201
Summary of Contents for Russell Corporation 21112201
- Page 1 OPTIONAL TOOLS AND MATERIALS: • Large and Small Adjustable Wrenches A DIVISION OF RUSSELL CORPORATION Ground Sleeve Owners Manual for a 4” (10.2 cm) square pole Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
- Page 2 Item Qty.Part No. #1 (1) #3 (4) #5 (2) ID# 21112201 11/05 PARTS LIST (SEE PARTS IDENTIFIER) Description 1 206500 Ground Sleeve, Square 2 201124 Locknut, Hex Head, 3/8 - 16 4 203232 Washer, Flat, 3/8 x 3/4 O.D. 2 206512...
-
Page 3: Safety Instructions
• Adult supervision is recommended when adjusting height. • Serious injury could occur if teeth/face come in contact with backboard, net, or rim. Most injuries are caused by misuse and/or not following instructions. Use caution when using this system. 11/05 ID# 21112201... - Page 4 MANUFACTURERS INSTRUCTIONS ACCORDINGLY. POLE STYLE WILL VARY Ensure ground is level with playing surface, then dig pole hole. WARNING! CONTACT UTILITIES BEFORE DIGGING. ID# 21112201 11/05 GROUND SURFACE 24" (61 cm) 24" (61 cm) BOTTOM IMPORTANT! Maximum distance from edge of hole to edge of playing surface: 6”...
- Page 5 Insert bottom pole section into ground sleeve (1). Assemble clamps (4) around bottom pole and ground sleeve (1) as shown. Fill hole approximately 1/3 full with mixed concrete. IMPORTANT! Clamp assembly MUST be positioned as shown below. 11/05 ID# 21112201...
- Page 6 FRONT OF POLE MUST BE PARALLEL WITH PLAYING SURFACE. PLAYING SURFACE SIDE VIEW IMPORTANT! NOTE POSITION OF GROUND SLEEVE PLAYING SURFACE 1" (2.54 cm) IMPORTANT!: CONTINUE ON TO NEXT STEP. DO NOT WAIT FOR CONCRETE TO CURE. ID# 21112201 11/05...
-
Page 7: Side View
DRAINAGE HILL 1" (2.54 cm) FILL TO HERE 1" (2.54 cm) PLAYING SURFACE SIDE VIEW IMPORTANT!: WAIT A MINIMUM OF 24 HOURS BEFORE GOING ON TO NEXT STEP. CONCRETE MUST CURE. 11/05 ID# 21112201... - Page 8 After concrete has cured, remove clamp assembly and lift bottom pole section from ground sleeve as shown. ID# 21112201 11/05...
- Page 9 FAILURE TO FILL YOUR POLE COMPLETELY WITH CONCRETE AS DESCRIBED IN THESE INSTRUCTIONS WILL VOID ALL WARRANTIES WRITTEN OR IMPLIED. NOTE: POLE(S) NOT INCLUDED. FOLLOW MANUFACTURERS INSTRUCTIONS ACCORDINGLY. IMPORTANT! POLES SHOULD HAVE A 4-1/2” (11.4 CM) MINIMUM OVERLAP. 11/05 ID# 21112201...
- Page 10 WARNING! REMOVE BACKBOARD AND RIM BEFORE REMOVING POLE FROM GROUND SLEEVE. REQUIRES TWO PEOPLE TO REMOVE POLE. ID# 21112201 11/05 TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. Remove pole cap from bottom pole section and insert clamp cover (6) onto bottom section.
