Runco Reflection CL-700 Owner's Operating Manual

Runco reflection cl-700 manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

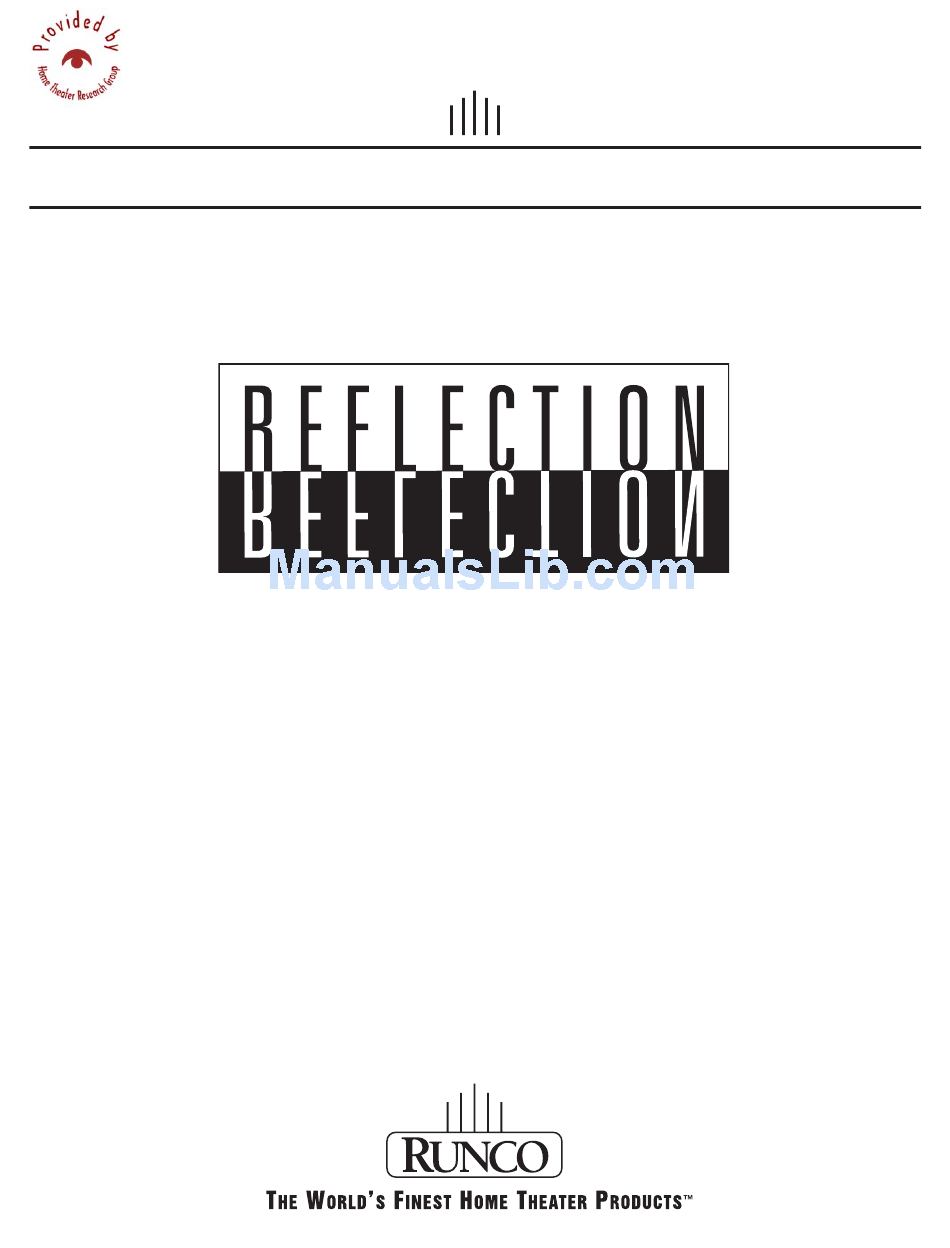

www.htrgroup.com
O
'
O
M
WNER
S
PERATING
ANUAL
CL-700

Advertisement

Table of Contents
loading

Related Manuals for Runco Reflection CL-700

Summary of Contents for Runco Reflection CL-700

  • Page 1 ’ WNER PERATING ANUAL CL-700...

  • Page 3: Limited Warranty

    PARTS: Runco will provide new or rebuilt replacement parts for the parts that fail due to defects in materials or workmanship for a period of two (2) years from the effective date of delivery to the end user.
  • Page 4 For your convenience, keep the original bill of sale as evidence of the purchase date. IMPORTANT: WARRANTY REGISTRATION: Please fill out and mail your warranty registration card. It is imperative that Runco knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified.
  • Page 5 User’s Manual Thank you for your purchase of this quality Runco video projector! It has been designed to provide you with the quality of video that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the menus and operation.
  • Page 7 480i, 480P, 1080i and 720P (576I and 576P PAL Version) formats are all compatible with this unit (via an external DTV decoder, not provided). De-interlacing with 3:2 Pull-down Using Runco's proprietary De-interlacing technology, this projector provides exceptional scaling and film to video (3:2 pulldown) conversion for the most artifact-free images possible. PIP function Picture in picture functions allow you to display two inputs on the screen at the same time.

  • Page 8: Front / Upper Side

    Location Front / Upper Side 1. Front Lamp Cover Remove this cover when replacing the lamp. 2. Projection Lens 3. Front IR Sensor 4. Ventilation Holes (exhaust) 5. Focus Ring and Zoom Ring Adjusts the focus and zoom of image. Rear / Bottom Side 1.

  • Page 9: Controls And Functions

    Flashing Green for one minute after the projector was powered off indicating that the lamp is cooling down. LAMP LED Indicates the status of lamp Red when the lamp has developed a problem. Please contact your Runco dealer for assistance. Zoom Ring Adjust the size of the image Rotate right to enlarge the image, and rotate left to make the image smaller.

  • Page 10: Connector Panel

    DTV RGB video signal input. Computer (D-Sub 15-pin) RGB Computer signal input. RS-232C (RJ-11 Jack) RS-232C control signal input. 12v Trigger (mini jack) +12V output, active when the projector is turned on. 1. Overview S-Video Video Computer ) video signal input...
  • Page 11 VIDEO Composite video signal input S-VIDEO S-Video signal input COMPONENT Component Y/C input COMPONENT HD DTV Y/P signal input RGB HD DTV RGBHV signal input Computer signal input CUSTOM Recall memory 1~3 sequentially (see "Selecting Video Memory" on page 16) PICTURE Access the Picture Setting menu (see "PICTURE Setting Page"...

  • Page 12: Installation

    Make sure that there is nothing obstructing the infrared beam between the remote control and the IR receiver on the projector. The useable range is between 3m (from the front of the projector) and 4m (from the rear of the projector) within 30 degree horizontal angle and 15 degree vertical angle.

  • Page 13: Adjust The Lens Zoom/Focus Ring

    Adjust the Lens Zoom/Focus ring Adjust the projected image size you need with the zoom ring on the lens. To focus the image, rotate the focus ring on the lens. Adjust the height There are 4 screw adjusters on the bottom of this unit.

  • Page 14: Throw Distance

    Lens to center of bracket Screen __________ (H) x __________ (W) B) THROW DISTANCE: CL-700 16 x 9 Screens (Standard Throw Lens): Minimum: (screen width x 2.00) = __________ inches Maximum: (screen width x 2.40) = __________ inches C) VERTICAL OFFSET: For Standard Throw Lens Option: 2 inches Two inches offset means that the center of the projection lens is 2"...
  • Page 15 Lens to center of bracket Screen __________ (H) x __________ (W) B) THROW DISTANCE: CL-700 16 x 9 Screens (Short Throw Lens Option): Minimum: (screen width x 1.33) = __________ inches Maximum: (screen width x 1.60) = __________ inches C) VERTICAL OFFSET: For Standard Throw Lens Option: 2.20°...
  • Page 16 Two inches offset means that the center of the projection lens is 2" above the top of the screen (inverted ceiling mount) or 2" below the bottom of the screen (upright floor mount). CL-700 @ 1280 x 720 with Short Lens Option Screen Height Screen Width Min Throw Distance Max Throw Distance Vertical Offset Position 40.5...

  • Page 17: Connecting Video Inputs

    2. Use the correct signal cables for each source. 3. Ensure the cables are firmly connected. 4. Connect all audio signals to external speakers. This projector is not equipped with speakers. Connecting Video Inputs Video / S-Video / Component (Interlaced Video)

  • Page 18: Rgbhv (Dtv Rgb)

    Progressive Component (DTV Y/P RGBHV (DTV RGB) The RGB BNC input supports two kinds of HDTV formats: Progressive component (DTV Y/P unit will auto detect the resolution automatically. S-Video RS-232C 12V Video Computer DTV Source S-Video RS-232C 12V Video Trigger Computer DTV Source Trigger...

  • Page 19: Connecting A Computer

    Connecting a Computer S-Video RS-232C 12V Trigger Video Computer PC or Notebook This unit only supports resolutions up to XGA. If the input signal is greater than XGA, the projector will display a warning message. 3. Connecting...

  • Page 20: Basic Operation

    If the horizontal frequency of the input signal exceeds the range of the projector (XGA), a " Not supportive timing " message will be displayed on the screen. This message will remain on screen until you change the input signal.

  • Page 21: Selecting Video Memory

    Selecting "ASPECT ratio" Select the proper Aspect Ratio according to the format of signal content. There are four Aspect Ratio for choice: ANAMORPHIC: 4:3 image is stretched horizontally to fit the 16: 9 screen. This is for 16:9 DVDs. 4 X 3: The input signal will be scaled to fit 4 : 3 display mode in the center of screen.

  • Page 22: Pip Function

    * Press the OFF key on the remote control to turn off the unit. * The POWER LED will blink green and the fans will operate for 1 minute to cool down the lamp. The projector will not respond to any command for 1 minute.

  • Page 23: Using The Menu

    T EMPERAT URE — FILT ERS — RED — GREEN — BLUE — YELLO W — W HIT E. RUNCO CL-700 1. BRIGHT N ESS: Adjust the picture brightness (0 ~ 60) . Higher the setting, brighter the picture. And lower the setting, darker the picture.
  • Page 24 DISPLAY Setting Page In this Menu Page, you could set the way how the projector display the picture. T here are 5 Menu Items in this page: SO URC E — ASPEC T — PC &HDT V — SAVE — LO AD.
  • Page 25 2. ASPECT: There are four aspect ratios available that can be selected for video signal inputs. 16:9 Screens: ANAMORPHIC: The image is compressed vertically, but anamorphic software will appear properly proportioned. This is best suited for use with 16:9 DVD's. Active Image Area 4 x 3: The input signal will be scaled to fit in the center of the 16:9 screen.
  • Page 26 1. LAN GUAGE: T here are 3 languages that could be selected for the menus: English, French and Spanish. 2. MIRRO R: T he projector could be installed on a ceiling or behind a screen, or with one or more mirrors. T here are...

  • Page 27: Additional Information

    (1,000) hours. The power will turn off automatically after 10 minutes. Replace the Lamp (Contact your Runco Dealer) 1. Loosen the screw of front lamp cover 4. Take off the lamp shield 5.

  • Page 28: Troubleshooting

    Check the connection. Select the correct input signal with INPUT key on the remote control. Select the correct input signal. Please contact your Runco dealer for assistance. Correctly connect the cables to the appropriate terminals. Adjust the focus of projection lens with the focus ring.

  • Page 29: Specifications

    UL, CSA, GS-TUV, CCIB, CB, FCC, CE, VCCI and C-Tick Operating Environment: Warranty: Service Labor and Parts: Runco warrants the product for (2) two years from the date of delivery to the end user. Lamp Warranty: 1000 hours or (6) six months, which ever comes first.
  • Page 30 User's Manual Dimensions 13.09 in. (332.5 mm) 6.3 in. (160 mm) 1.6 in. (4.5 mm) 5.9 in. (150 mm) 1.4 in. 7.93 in. (201.5 mm) (35.26 mm) 9.66 in. (245.43 mm) 15.75 in. (400 mm) 13.66 in. (347 mm) 4.6 in. (117.7 mm) 2.78 in.
  • Page 31 D-Sub 9-pin female Details Ground 1, 4, 6, 7, 8, 9 WARNING: During initial turn on and turn off of the projector, this unit will not accept RS-232 codes for 20 seconds. RS-232 For RJ-11 (not included) 4-pin RJ-11 Details...
  • Page 33 RUMA-009600 rev 9-02 Runco International 2900 Faber Street Union City, CA 94587 ph (510) 324-7777 fax (510) 324-9300 www.runco.com...
