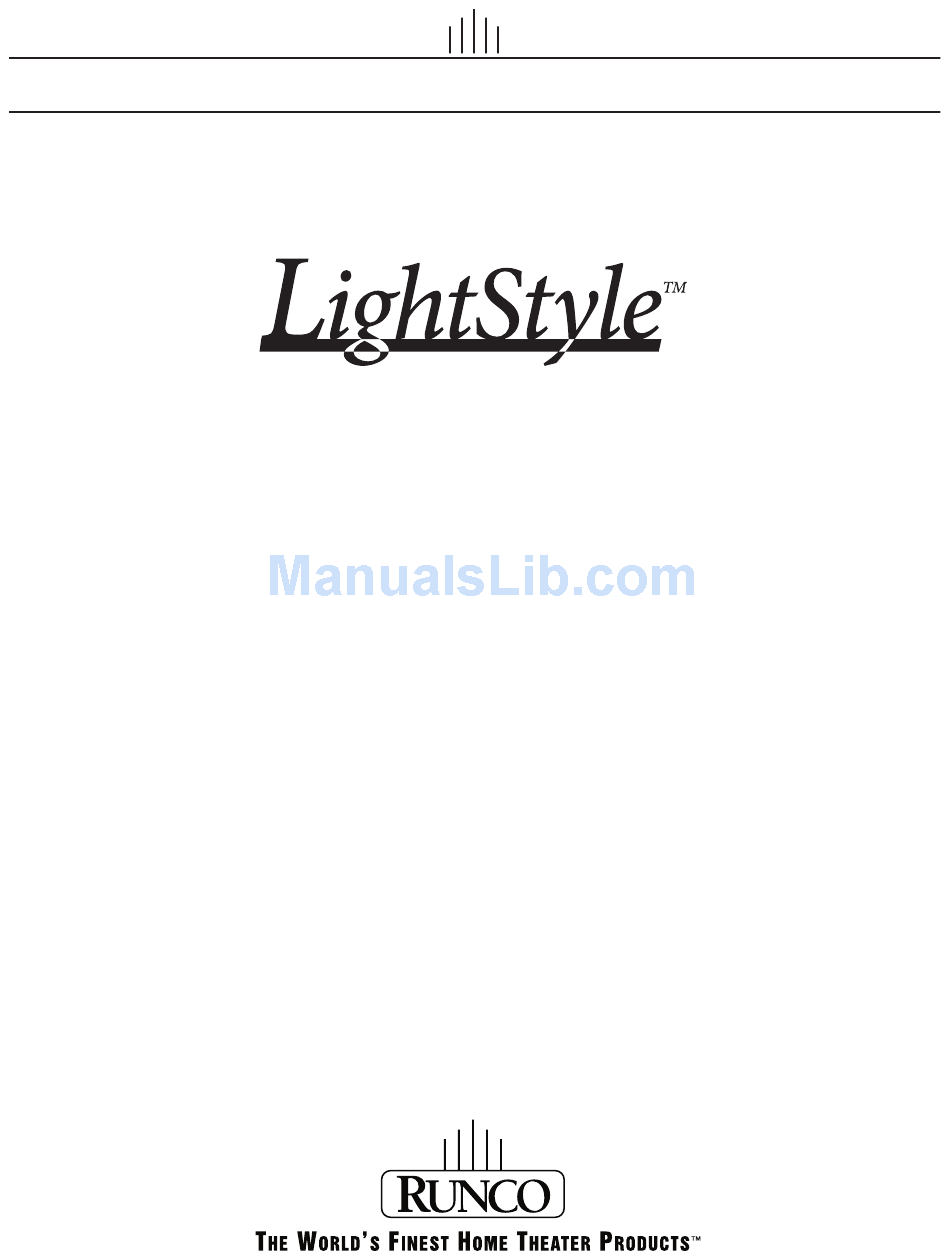

Runco LIGHTSTYLE LS-10I Installation & Operation Manual

Runco LIGHTSTYLE LS-10I Installation & Operation Manual

Dlp home theater projector
Table of Contents

Advertisement

Quick Links

I
/ O
M
N S T A L L A T I O N
P E R A T I O N
A N U A L
LS-10i
DLP
Home Theater Projector
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIGHTSTYLE LS-10I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Runco LIGHTSTYLE LS-10I

  • Page 1 N S T A L L A T I O N P E R A T I O N A N U A L LS-10i Home Theater Projector...
  • Page 3: Runcocare™ Standard Two Year Limited Warranty

    1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates to the list of covered products will not apply on a retroactive basis.
  • Page 4 3. Runco Technical Support staff will attempt to correct any minor issues that may be causing the problem. If Runco is unable to resolve the problem through troubleshooting, a Return Material Authorization (RMA) number will be issued for the exchange of the defective product if it is determined that the claim was made within the coverage period of the Standard Limited Warranty.
  • Page 5 Runco model size. If sub pixels have been identified as unacceptable by Runco the LCD will be deemed faulty and will be replaced if reported within the warranty period.
  • Page 6 Runco. The trademarks reporduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.
  • Page 7: Important Safety Instructions

    Important Safety Instructions Thank you for your purchase of this quality Runco video product! It has been designed to provide you with the quality of video that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the menus and operation.
  • Page 8: Compliance Information

    Council Directive 2006/95/EC and amended by M1 and C1 on Low Voltage Equipment Safety; EN 60950 “Safety of information technology equipment, including electrical business equipment” The Technical Construction file required by this Directive is maintained at the corporate headquarters of Runco International, LLC, located at 1195 NW Compton Drive, Beaverton, OR 97006-1992.
  • Page 9 The recycling of materials will help to conserve natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Runco LS-10i Installation/Operation Manual...
  • Page 10 Notes: Runco LS-10i Installation/Operation Manual...
  • Page 11: Table Of Contents

    Important Safety Instructions ... vii Compliance Information ... viii 1. Introduction ...1 2. Controls and Functions ...5 3. Installation ...13 Runco LS-10i Installation/Operation Manual About This Manual ...1 Target Audience ...1 If You Have Comments About This Manual..1 Textual and Graphic Conventions ...1 Using This Manual ...2...
  • Page 12 Anamorphic Lens Installation and Adjustment ...40 Selecting An Input Source ...43 Selecting An Aspect Ratio ...43 Selecting Video Memory ...43 Using Picture-In-Picture (PIP) ...44 Using the On-Screen Menus ...45 Main ...46 Advanced ...55 System ...62 Control ...66 Language ...67 Service ...68 Runco LS-10i Installation/Operation Manual...
  • Page 13 5. Maintenance and Troubleshooting ...71 6. External Control ...75 7. Specifications ...89 Runco LS-10i Installation/Operation Manual Lamp Replacement ...71 Troubleshooting Tips ...72 Serial Communications ...75 RS-232 Connection and Port Configuration ...75 Serial Command Syntax ...75 RS-232 Error Codes ...86 Using HDMI CEC Messages ...87 CEC Command List...87...
  • Page 14 Table of Contents Notes: Runco LS-10i Installation/Operation Manual...
  • Page 15 4-9. RGB Adjust Sub-Menu ...58 4-10. Fine Sync Sub-Menu ...59 4-11. PCE Sub-Menu ...60 4-12. CIE 1931 Chromaticity Diagram ...61 4-13. LS-10i System Menu ...62 4-14. Input Enable Sub-Menu...63 4-15. PIP and PBP areas for 1080p Display...64 Runco LS-10i Installation/Operation Manual...
  • Page 16 List of Figures 4-16. PIP Split-Screen Mode ...65 4-17. LS-10i Control Menu ...66 4-18. LS-10i Service Menu ...68 7-1. LS-10i Dimensions ...92 Runco LS-10i Installation/Operation Manual...
  • Page 17: Introduction

    Runco has prepared this manual to help home theater installers and end users get the most out of the LS-10i. Runco has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time.
  • Page 18: Using This Manual

    Information about obtaining service General information about the LightStyle™ Series LS-10i Home Theater Projector Installation instructions First-time configuration instructions Advanced configuration instructions Troubleshooting tips Specifications for the LightStyle™ Series LS-10i Home Theater Projector ... Turn to page: Runco LS-10i Installation/Operation Manual...
  • Page 19: Description, Features And Benefits

    In addition to Runco's proprietary Personal Color Equalizer, the LS-10i can also be paired with Runco’s new CineGlide™ lens solution. Through an ingenious combination of software, electronics and precision anamorphic optics, CineGlide provides uncompromised widescreen reproduction of movies originally filmed in the “scope”...
  • Page 20: Key Features And Benefits

    • CinOptx™ Proteus lens options for stunning sharpness and throw distance flexibility Your LS-10i is shipped with the following items. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23RUNCO. • LightStyle™ Series LS-10i Home Theater Projector •...
  • Page 21: Controls And Functions

    Use these buttons to select items or settings, adjust settings or switch display patterns. ENTER ( Press to select a highlighted menu item or confirm a changed setting. MENU Press this button to show or hide the OSD menus. Runco LS-10i Installation/Operation Manual 2. Controls and Functions Top IR Sensor System Keypad Exhaust...
  • Page 22 (Use it only when the vertical offset is 50% of the screen height or greater.) The light shield attaches to the end of the lens. • FRONT IR SENSOR Receives infrared signals from the remote control unit. Runco LS-10i Installation/Operation Manual...
  • Page 23 Badge Lamp Module Cover Ceiling Mount Holes Figure 2-2. LS-10i Rear/Bottom/Top View • RUNCO LOGO BADGE • REAR COVER Remove to access connectors. • LAMP MODULE COVER Remove this cover to access the lamp compartment. • CABLE OPENING Pass cables through this opening.
  • Page 24: Ls-10I Rear Panel

    Also provides composite sync input for RGBS sources. 7. S-VIDEO A standard S-Video input for connecting a DVD player, satellite receiver or Super VHS (S-VHS) VCR. 8. IR INPUT Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system. Runco LS-10i Installation/Operation Manual...
  • Page 25: Ls-10I Remote Control

    You can also assign these buttons to the Picture-in-Picture (PIP) function. For more information, refer to HD 1 Key / HD 2 Key / HD 3 Key on page 66. Runco LS-10i Installation/Operation Manual LIGHT SOURCE...
  • Page 26 Press to recall settings for the current input from the “ISF Night” memory preset. ISF DAY Press to recall settings for the current input from the “ISF Day” memory preset. CUST2 Press to recall settings for the current input from the “Custom 2” memory preset. Runco LS-10i Installation/Operation Manual...
  • Page 27 LENS (Lens Shift) To adjust the lens position, press LENS. Then, press and hold the right ( ), left ( ), up ( ) or down ( ) button. When finished, press MENU or EXIT. Runco LS-10i Installation/Operation Manual ➤ ➤...
  • Page 28 Controls and Functions Notes: Runco LS-10i Installation/Operation Manual...
  • Page 29: Installation

    • If the effective range of the remote control decreases, or it stops working, replace the batteries with new ones. • The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting. Runco LS-10i Installation/Operation Manual 3. Installation Remote Control Installation...
  • Page 30 • The projector’s front IR receiver has a range of approximately 40 feet (12.19 meters); the top IR receiver has a range of approximately 20 feet (6.10 meters). Figure 3-1 shows the reception angles of the front and top IR receivers. 90.0° 135.0° Figure 3-1. IR Reception Angles 90.0° Runco LS-10i Installation/Operation Manual...
  • Page 31: Quick Setup

    Projector calibration: adjust the following for each input; save settings when finished: • Aspect ratio • Brightness • Contrast • Color level • Tint • Sharpness • White Balance Runco LS-10i Installation/Operation Manual Procedure Quick Setup For Details, Refer to page... 19, 38 Installation...
  • Page 32: Installation Considerations

    • Projector access is more difficult • Requires separate room • Installation cost is usually higher • Requires separate room • Installation cost is usually higher • Requires separate room • Installation cost is usually higher Runco LS-10i Installation/Operation Manual...
  • Page 33: Ambient Light

    Estimating Throw Distance Throw Distance (TD) = Screen Width (w) x Lens Throw Ratio Figure 3-2. Estimating Throw Distance Runco LS-10i Installation/Operation Manual Installation Ambient Light Throw Distance...
  • Page 34 Minimum Not Applicable (Note 2) 167.04 208.32 1.30 - 1.63 278.40 1.63 - 2.17 416.64 2.17 - 3.26 648.96 3.26 - 5.07 Runco LS-10i Installation/Operation Manual Throw Range in inches, with Screen Maximum 164.97 206.85 206.85 275.37 275.37 413.69 413.69...
  • Page 35: Vertical And Horizontal Position

    Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example. Figure 3-4. Vertical Lens Shift (Example Only) Runco LS-10i Installation/Operation Manual Ceiling Lens Center Screen...
  • Page 36 28.80 inches (73.15 cm) left or right of the screen center. (Horizontal lens shift is not possible with the Proteus 1 lens.) 50% Width Lens Shift (0.5 x W) Screen Center Screen Width (W) Runco LS-10i Installation/Operation Manual...
  • Page 37: Folded Optics

    The LS-10i Anamorphic lens mount kit consists of the following items. Some components shipped with your projector may differ slightly from what is shown in these instructions. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23RUNCO.
  • Page 38 • Lens bracket mounting hardware • Power supply • Remote control unit and batteries • Anamorphic lens and mounting bracket Attaching the Transport Assembly Attachment Plate: 1. Place the projector upside down on a blanket or other soft surface. Runco LS-10i Installation/Operation Manual...
  • Page 39 Mount Plate (included with the projector ceiling mount kit) with those on the bottom of the projector and attachment plate. 4. Secure the Transport Assembly Attachment Plate and Ceiling Mount Plate to the projector using the hardware provided with the attachment plate, as shown. Runco LS-10i Installation/Operation Manual Installation...
  • Page 40 2. DO NOT OVER-TIGHTEN THE SCREWS. Attachment Points for Security Hooks Hardware for Attachment Plate and Ceiling Mount Plate (4 Places): Screw, Phillips PH, M4 x 30mm Lock Washer Flat Washer 5/8" Nylon Spacer Ceiling Mount Plate Attachment Plate Projector (bottom) Runco LS-10i Installation/Operation Manual...
  • Page 41 Observe the sticker on the plate showing the correct sequence for installing and tightening the screws. Runco LS-10i Installation/Operation Manual Hardware for Lens Transport Assembly: Pivot Screw, Pivot Screw, Phillips PH, as assembled #10-32 x 5/8"...
  • Page 42 2. Use pliers to bend the closed hooks apart just enough to install a Chain End at a later time. 3. Attach the plate hooks to the ceiling as described in the section entitled Ceiling Mounting (Inverted), on the next page. Runco LS-10i Installation/Operation Manual...
  • Page 43: Mounting The Ls-10I

    For fixed installations, and for those that want the projector out of sight or have a limited space for projector and audience, you can invert the LS-10i and suspend it from the ceiling using a specially-designed ceiling mount fixture. Use only the Runco-approved ceiling mount kit designed for your Note projector.
  • Page 44: Adjusting The Projection Angle

    ± 360º ± 20º Figure 3-7. Mounting Angle Ranges (Front-to-Back and Side-to-Side) If you do this, you may need to vertically shift the image to compensate. For detailed instructions, refer to Primary Lens Adjustments on page 38. Runco LS-10i Installation/Operation Manual...
  • Page 45: Connections To The Ls-10I

    Using a flat-blade screwdriver, loosen the two screws holding the rear compartment cover in place. Then, remove the rear compartment cover by tilting it upward. Runco LS-10i Installation/Operation Manual Connections to the LS-10i Installation Connector Panel Access...
  • Page 46: Connecting Source Components To The Ls-10I

    HDMI AV OUT HDMI/DVI sources (BD, DVD, DTV Set-Top Box, Game Console etc.) Figure 3-8. HDMI/DVI Source Connections HDMI AV OUT Runco LS-10i Installation/Operation Manual...
  • Page 47 Installation RGBHV Connections: Connect your personal computer or other RGB source to the RGB input. See Figure 3-9. RGB Camcorder Computer Figure 3-9. RGBHV Connections Runco LS-10i Installation/Operation Manual...
  • Page 48 Y, Pb and Pr terminals on the COMPONENT 1/SCART input and the sync output to the VIDEO input. See Figure 3-10. SCART-to-RGBS adapter DVD/DTV STB Gaming Console Figure 3-10. SCART Source Connections Sync Green Blue Runco LS-10i Installation/Operation Manual...
  • Page 49 Component Video Connections: Connect your component video sources to the COMPONENT 1/SCART, COMPONENT 2 or RGB inputs as shown in Figure 3-11. COMPONEN T VIDEO OUT BD/DVD Figure 3-11. Component Video Connections Runco LS-10i Installation/Operation Manual RCA-to-BNC adapter DTV-Set-Top Box (DTV-STB) Installation...
  • Page 50 Installation Composite/S-Video Connections: Connect your Composite and S-Video sources to the LS-10i as shown in Figure 3-12. Camcorder Gaming Console Figure 3-12. Composite and S-Video Connections S-Video Composite Runco LS-10i Installation/Operation Manual...
  • Page 51: Controller Connection

    For more information about using this connection, refer to External Control on page 75. to Automation/ Control System or PC Figure 3-13. RS-232 Control System Connection Runco LS-10i Installation/Operation Manual 2 Transmit Data 3 Receive Data 5 Ground (none of the other pins are used)
  • Page 52: Connecting 12-Volt Trigger Output To External Theater Equipment

    (Cinema or Virtual Cinema) is chosen. +12V Trigger Input 3.5-mm mini plug Retractable Screen or other 12-volt trigger-activated device Figure 3-14. 12-Volt Trigger Output Connection Sleeve = Ground Tip = +12V Runco LS-10i Installation/Operation Manual...
  • Page 53: Connecting An External Ir Receiver

    Connect the power adapter to the +9V DC In jack on the rear of the lens transport assembly. Connect the other end to an AC power source. Runco LS-10i Installation/Operation Manual IR Sensor Remote Control Installation Connecting an External IR...
  • Page 54: Turning On The Power

    Do not use the stray light shield unless the amount of vertical lens Caution shift exceeds 50 per cent of the screen height. to highlight Focus and press button to to highlight Zoom and press button to to highlight Lens Shift and press Runco LS-10i Installation/Operation Manual...
  • Page 55: Changing The Osd Language

    If the projector is ceiling-mounted, the LS-10i automatically inverts the image. If this automatic inversion is not desired, select Ceiling Mode from the System Menu and set it to Off. Runco LS-10i Installation/Operation Manual repeatedly to set it to On.
  • Page 56: Installing And Adjusting The Anamorphic Lens

    4. If the +12V trigger output to which the lens transport is connected is set to AutoScope, skip to Step 7. Otherwise, continue with Step 5. 5. Press to highlight Trigger 1 or Trigger 2. 6. Press to select AutoScope. Runco LS-10i Installation/Operation Manual...
  • Page 57 Note properly adjusted, especially at shorter throw distances. If this is the case, Runco recommends that you slightly over-scan the image into the screen frame area to mask the distortion. 3. Adjust the rotation of the Lens Transport Assembly so that the left and right sides of the image are an equal distance from their respective screen borders.
  • Page 58 Installation Notes: Runco LS-10i Installation/Operation Manual...
  • Page 59: Operation

    Press CUST1, ISF NIGHT, ISF DAY or CUST2 to recall settings from a memory preset. Then, press ENTER to confirm your selection. Or, to cancel the operation, press to select Cancel and press ENTER. Runco LS-10i Installation/Operation Manual 4. Operation Selecting An Input Source...
  • Page 60: Using Picture-In-Picture (Pip)

    – – √ – – – √ – – – √ √ √ √ √ √ √ √ Runco LS-10i Installation/Operation Manual HDMI HDMI √ √ √ √ √ √ √ √ √ √ √ √ – – – –...
  • Page 61: Using The On-Screen Menus

    Yellow x, y / Cyan x, y / Magenta x, y White x, y Note: Default settings appear in bold type. Figure 4-1. LS-10i OSD Menu Structure Runco LS-10i Installation/Operation Manual to select a sub-menu. to choose a setting for that item, or press Using the On-Screen...
  • Page 62: Main

    Main The LS-10i Main Menu, shown in Figure 4-2, provides access to the most commonly-used projector functions. 1. For best results, Runco recommends that you set Note ConstantContrast to Off before adjusting Brightness, Contrast and other image quality settings in this menu (refer to ConstantContrast on page 57).
  • Page 63 It scales (zooms in on) a 4:3 image linearly (by the same amount on all sides) to fill a 16:9 display. Runco LS-10i Installation/Operation Manual buttons to select the appropriate Aspect Geometry of Projected Image Ratio of With Standard Lens Source (1.78:1 Screen)
  • Page 64 NON-linear fashion (more on the sides than in the center) to fit a 16:9 screen. Aspect Geometry of Projected Image Ratio of With Standard Lens Source (1.78:1 Screen) Signal 16:9 16:9 With Anamorphic Lens (2.35:1 Screen) Runco LS-10i Installation/Operation Manual...
  • Page 65 A 16:9 image is scaled NON-linearly (more on the sides than in the center) to fit a 2.35:1 Virtual screen. Cinema Runco LS-10i Installation/Operation Manual Aspect Geometry of Projected Image Ratio of With Standard Lens Source (1.78:1 Screen) Signal 2.35:1...
  • Page 66 ISF Day or ISF Night memory location. You must enter a passcode to access the Save ISF Note sub-menu. The settings that are saved are the same as those saved with the Save Settings command (see above). Runco LS-10i Installation/Operation Manual...
  • Page 67 Select Contrast from the Main menu. Use the buttons to adjust the contrast up until the top two bars become almost the same brightness, then down just until the brightness change between these bars is consistent with the other bars. Runco LS-10i Installation/Operation Manual...
  • Page 68 Main menu and press ENTER. Noise Reduction is useful for clearing up noisy images from interlaced SD sources. Use the button to adjust as desired, keeping in mind that reducing noise (which reduces high frequencies) may also soften the image. Runco LS-10i Installation/Operation Manual...
  • Page 69 ENTER. This displays the Input Select sub-menu, shown in Figure 4-7. The default source selection is HDMI 1. All sources that are not available per the source enable function (refer to Input Enable on page 63) are grayed out. Runco LS-10i Installation/Operation Manual Crop Zoom...
  • Page 70 Resync, then press ENTER. This causes a re-acquisition of the active source and the PIP source, if present. It also changes any Fine Sync settings (described on page page 59) for this timing to the default setting. Runco LS-10i Installation/Operation Manual...
  • Page 71: Advanced

    255,255,255 RGB, assuming an 8-bit image. • RGB-Video uses RGB color space and sets black at 16,16,16 RGB and white at 235,235,235, assuming an 8-bit image, to correspond to the luminance values defined in digital component standards. Runco LS-10i Installation/Operation Manual Operation Advanced...
  • Page 72 • Select 48Hz to force the output frame rate to 48Hz. Use this setting to eliminate 2:3 pull-down judder with 60Hz film-based sources. • 50Hz and 60Hz force the output frame rate to 50Hz and 60Hz respectively. Runco LS-10i Installation/Operation Manual...
  • Page 73 (Off) the ConstantContrast actuator in the optical engine. ConstantContrast uses a dynamic iris that modulates light to the DMD based on the actual content of the video material. Runco recommends that you disable ConstantContrast before adjusting Brightness, Contrast or other image settings.
  • Page 74 The Gain controls increase or decrease the full-scale input range; the Offset controls shift the entire range, resulting in a change in brightness. Generally, higher Gain settings reduce the image contrast; higher Note Offset settings reduce the image brightness. Runco LS-10i Installation/Operation Manual...
  • Page 75 “half on, half off” graphic image. Adjust the slidebar until the image stabilizes and each pixel is clearly defined. You may notice that you can stabilize the image at more than one point. Use either setting in such cases. Runco LS-10i Installation/Operation Manual Operation...
  • Page 76 PCE: To use the Personal Color Equalizer to define a custom color gamut, choose the “PCE” Color Gamut setting (refer to Color Gamut on page 57). Then, choose PCE from the Advanced menu and press ENTER. This displays the PCE sub-menu, shown in Figure 4-11. Figure 4-11. PCE Sub-Menu Runco LS-10i Installation/Operation Manual...
  • Page 77 • White Balance: To precisely adjust the white point associated with the custom color gamut, choose White Balance from the PCE sub-menu. These controls operate identically to the color point controls. Runco LS-10i Installation/Operation Manual Yellow Operation...
  • Page 78: System

    Operation ➤ System Use the controls in the System menu, shown in Figure 4-13, to adjust the lamp, change the display orientation and perform other, common installation tasks. Figure 4-13. LS-10i System Menu Runco LS-10i Installation/Operation Manual...
  • Page 79 If either Component 1 or Video is enabled, SCART must be disabled. Note • S-Video: Enables or disables the S-Video source. • SCART: Enables or disables the SCART RGBS source. If SCART is enabled, both Component 1 and Video must be disabled. Note Runco LS-10i Installation/Operation Manual Operation...
  • Page 80 Split-screen mode is useful for viewing “before” and “after” settings for Sharpness, Noise Reduction and other advanced image parameters. See Figure 4-16. DMD Area 1920x1080 921x518 PBP1 Figure 4-15. PIP and PBP areas for 1080p Display 644x362 (top right) 921x518 PBP2 Screen-Safe Area 1842x1036 Runco LS-10i Installation/Operation Manual...
  • Page 81 The default setting, Auto, automatically determines the orientation using an internal sensor. Logo Display: This controls whether or not the Runco logo appears during startup. Power On Chime: This controls the audible chime at startup. Runco LS-10i Installation/Operation Manual...
  • Page 82: Control

    • For a standard LS-10i (no anamorphic lens), choose Off. • For an LS-10i with a fixed anamorphic lens, choose CineWide. • For an LS-10i with a motorized anamorphic lens, choose AutoScope. Runco LS-10i Installation/Operation Manual...
  • Page 83: Language

    Select Language from the Main Menu to change the OSD Language. The LS-10i can display the menus in English, French, German, Italian, Spanish, Swedish, Portuguese or Russian. Press to select a language. Then, press ENTER to confirm your selection. Runco LS-10i Installation/Operation Manual Operation Language...
  • Page 84: Service

    • H/V Refresh Rate • Lamp Hours (number of lamp hours elapsed since the last reset) Should you ever need to contact Runco Technical Support, this information will help them answer your questions and/or resolve product performance issues. Figure 4-18. LS-10i Service Menu You can also perform various maintenance tasks, such as resetting the lamp hour counter, from this menu.
  • Page 85 Press on the remote control unit or built-in keypad to cycle through the test patterns. The OSD menus are not available when in “test pattern” mode. Note Runco LS-10i Installation/Operation Manual on the remote to highlight No, then press Operation...
  • Page 86 In most cases, the default setting (Auto) will maintain the correct operating temperature. If the lamp frequently turns off due to overheating, or in certain high-altitude operating environments, you may need to change this setting to High. Runco LS-10i Installation/Operation Manual...
  • Page 87: Maintenance And Troubleshooting

    The lamp should be replaced when it reaches the end of its life (typically between 2000 and 4000 hours depending on the Lamp Power setting), or sooner if a noticeable degradation in brightness occurs. Contact your Runco dealer to obtain a replacement lamp.
  • Page 88: Troubleshooting Tips

    Table 5-1 provides some general guidelines for troubleshooting problems you may encounter with the LS-10i. If the suggested solutions fail to resolve the problem or if you encounter an issue not described here, please contact Runco Technical Support. Table 5-1. Troubleshooting Chart...
  • Page 89 • Fans are not working Note: You can obtain more detailed information about the cause of the error condition using RS-232 commands. Refer to RS-232 Error Codes on page 86 for more information. Runco LS-10i Installation/Operation Manual Possible Cause(s) • Lower the brightness setting.
  • Page 90 Maintenance and Troubleshooting Notes: Runco LS-10i Installation/Operation Manual...
  • Page 91: External Control

    Key commands mimic pressing a button on the remote control. Operation commands tell the projector exactly what to do. All commands start with 2 letters: ky for key commands. op for operations commands. Runco LS-10i Installation/Operation Manual 6. External Control Serial Communications External Control RS-232 Connection and...
  • Page 92 Bring up an information box with the first seven (7) items in the Service menu. Bring up or cancel menu display. Exit all menus. Keypad enter. If PIP is active and no menu is present then this executes the PIP swap function. Runco LS-10i Installation/Operation Manual...
  • Page 93 VWIDE 0x01 asp.cin CINE MA 0x47 asp.vcin VCINE Runco LS-10i Installation/Operation Manual Description Keypad down arrow. Keypad up arrow. Keypad left arrow. Keypad right arrow. Bring up or cancel brightness slider. Bring up or cancel contrast slider. Bring up or cancel color slider.
  • Page 94 0x13 shift LENS (none) (none) LIGHT Description Used to enter numeric characters. Bring up or cancel focus menu. Bring up or cancel zoom menu. Bring up or cancel lens shift menu. Activates remote backlighting when pressed. Runco LS-10i Installation/Operation Manual...
  • Page 95 Input: op sharp.simple = 50 [CR] Response: OP SHARP.SIMPLE = NA [CR] Input: op sharp.simple ? [CR] Response: OP SHARP.SIMPLE = NA [CR] Runco LS-10i Installation/Operation Manual Action on unit Makes the unit take that value. Asks what the current value is.
  • Page 96 6 = Video 7 = SCART 0 = Off 1 = HDMI 1 2 = HDMI 2 3 = RGB 4 = YPrPb 1 5 = YPrPb 2 6 = S-Video 7 = Video 8 = SCART Runco LS-10i Installation/Operation Manual Notes...
  • Page 97 = ? + - green.off blue.off red.gain = ? + - green.gain blue.gain Runco LS-10i Installation/Operation Manual Values 0 = Auto 1 = REC709 2 = REC601 3 = RGB-PC 4 = RGB-Video 0 = Auto 1 = NTSC...
  • Page 98 1 = On 0 = Off 1 = On 0 = Off 1 = On 0 = Off 1 = On 2 = Auto 0 = Off 1 = On 0 = Off 1 = On Runco LS-10i Installation/Operation Manual Notes...
  • Page 99 (execute) fact.reset (execute) blue.only Runco LS-10i Installation/Operation Manual Values 0 = HDMI 1 HD 1/HD 2/HD 3 key 1 = HDMI 2 source assignments. 2 = RGB 3 = YPrPb 1 4 = YPrPb 2...
  • Page 100 1 = high 0-200 Personal Color Equalizer (PCE) color point and white point settings. 0 = Standby 1 = Powering Up 2 = Displaying 3 = Cooling Down 4 = Error Refer to RS-232 Error Codes, below. Runco LS-10i Installation/Operation Manual Notes...
  • Page 101 Table 6-2. Serial Commands (continued) Operation Commands msgbox cal.text1 cal.text2 cal.text3 Runco LS-10i Installation/Operation Manual Values 0 = On This control enables or 1 = Off disables the display of power off, source and adjustment message boxes (brightness, contrast etc.). Default value is ON.
  • Page 102: Rs-232 Error Codes

    Ballast UART communication failure. PCF8575 external GPIO communication failure. Lamp door is open. Gennum SPI communication failure upon system power-up. System hardware I2C communication failure. System software I2C communication failure. EEPROM checksum error. EDID checksum error. Runco LS-10i Installation/Operation Manual...
  • Page 103: Using Hdmi Cec Messages

    Set Stream Path Device Vendor ID Vendor Command Give Device Vendor ID Menu Request Menu Status Give Device Power Status Report Power Status Get Menu Language Runco LS-10i Installation/Operation Manual Using HDMI CEC Messages Value 0x00 0x04 0x32 0x36 0x44...
  • Page 104 External Control Table 6-4. CEC Commands Supported by the LS-10i (continued) Opcode Inactive Source CEC Version Get CEC Version Vendor Command With ID Abort Message Polling Message Value 0x9D 0x9E 0x9F 0xA0 0xFF Runco LS-10i Installation/Operation Manual...
  • Page 105: Specifications

    Color Gamut: Runco LS-10i Installation/Operation Manual Digital Light Processing™ (DLP), 3-chip, 16:9 SuperOnyx™ DMD™ Runco advanced ViVix processing with 10 bit independent dual channel image processing, true 1080i deinterlacing, latest motion adaptive processing, 3D noise reduction, detail enhancement, rich color...
  • Page 106 100 to 240 VAC (auto-sensing), 50/60 Hz, 400 Watts (1365.2 BTUs/hour) 50°F to 104°F (10°C to 40°C) Sea Level - 10,000 feet (3,048m) 0% to 85% non-condensing 25.3" (643mm) L x 20.4" (519mm) W x 8.9" (225mm) H (see Figure 7-1) Runco LS-10i Installation/Operation Manual...
  • Page 107 Light Output: 2100 ANSI Lumens Contrast Ratio: 10,000:1 full-on, full-off (dynamic) These are typical projector brightness and contrast specifications found in most companies’ sales literature. Runco includes these measurements in its literature to allow for direct comparison with other manufacturers’ projectors. These...
  • Page 108: Ls-10I Dimensions

    10.23 99.9 3.93 139.6 5.50 Figure 7-1. LS-10i Dimensions 642.6 25.30 132.0 5.20 4X MOUNTING HOLES 150.0 5.91 M4-.7 (MAX 10mm WITHOUT FIX PLATE) 15.0 327.4 12.89 Runco LS-10i Installation/Operation Manual REMOVABLE REAR COVER 160.0 99.2 6.30 3.91 179.9 7.08...
  • Page 109: Supported Timings

    576/50p 720x576 50.00 720/50p 1280x720 50.00 720/60p 1280x720 60.00 1080/50i 1920x1080 50.00 1080/60i 1920x1080 59.94/60.00 33.716/33.750 1080/24p 1920x1080 23.98/24.00 26.978/27.000 Runco LS-10i Installation/Operation Manual Horizontal Pixel Frequency Frequency (MHz) (kHz) 31.469 25.175 35.892 29.862 37.500 31.500 43.269 36.000 37.879 40.000 46.875...
  • Page 110 √ √ √ √ – – – – – – – – – – – – – – – – – – – – – Runco LS-10i Installation/Operation Manual Composite S-Video – – √ √ √ √ √ √ √...
  • Page 112 020-1075-00 Rev. A September 2010 Runco International • (800) 23RUNCO • Fax (503) 748-8161 • www.runco.com...
