Runco PLASMAWALL XP-50DHD Installation And Operation Manual
  1. Manuals
  2. Brands
  3. Runco Manuals
  4. Monitor
  5. PlasmaWall XP-50DHD
  6. Installation and operation manual

Runco PLASMAWALL XP-50DHD Installation And Operation Manual

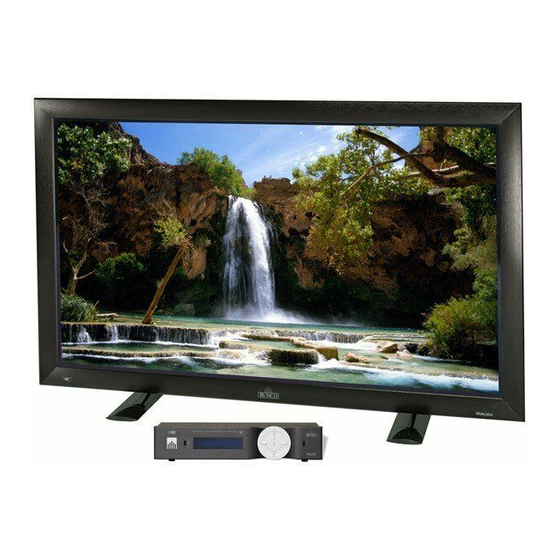

High definition, 1080p flat panel plasma display with widevision and digital high definition controller/scaler/processor with vivix iiitm technology
Hide thumbs Also See for PLASMAWALL XP-50DHD:
Table of Contents

Advertisement

Quick Links

See also: Owner's Operation Manual
I
N S T A L L A T I O N
XP-OPAL50DHD
XP-OPAL65DHD
XP-103DHD
High Definition, 1080p Flat Panel Plasma Display
Digital High Definition
with Vivix III
/ O
P E R A T I O N
XP-50DHD
XP-65DHD
with
and
TM
Controller/Scaler/Processor
TM
Technology
M
A N U A L
TM

Advertisement

Table of Contents
loading

Related Manuals for Runco PLASMAWALL XP-50DHD

Summary of Contents for Runco PLASMAWALL XP-50DHD

  • Page 1 N S T A L L A T I O N XP-50DHD XP-OPAL50DHD XP-65DHD XP-OPAL65DHD XP-103DHD High Definition, 1080p Flat Panel Plasma Display Digital High Definition with Vivix III P E R A T I O N A N U A L with Controller/Scaler/Processor Technology...

  • Page 3: Runcocare™ Standard Two Year Limited Warranty

    1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates to the list of covered products will not apply on a retroactive basis.
  • Page 4 3. Runco Technical Support staff will attempt to correct any minor issues that may be causing the problem. If Runco is unable to fix the problem to the customer’s satisfaction, Runco will issue a Return Material Authorization (RMA) if it is determined that the claim was made within the coverage period of the Standard Limited Warranty.
  • Page 5 6. Runco’s warranty does not cover black uniformity issues or other LCD issues associated with usage outside the Runco recommended guidelines and specifications for the product 7. Second day shipment delivery time and availability may vary based on origin and destination and Runco is unable to deliver to PO Box and FPO Box addresses Extended Service Options Runco offers extended and expanded service plans.
  • Page 6 Runco. The trademarks reproduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.

  • Page 7: Important Safety Instructions

    Important Safety Instructions Thank you for your purchase of this quality Runco product! For best performance, please read this manual carefully as it is your guide through the menus and operation. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:...

  • Page 8: Compliance Information

    Compliance Information DECLARATION OF CONFORMITY: Manufacturer’s Name: Runco International, LLC Manufacturer’s Address: 1195 NW Compton Drive, Beaverton, OR 97006-1992 hereby declares that the products Model Numbers: XP-50DHD, XP-OPAL50DHD, XP-65DHD, XP-OPAL65DHD and XP-103DHD conform with the provisions of: Council Directive 2004/108/EC on Electromagnetic Compatibility;...
  • Page 9 FCC PART 15: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 10 Notes: PlasmaWall XP Series Installation/Operation Manual...

  • Page 11: Table Of Contents

    RuncoCare™ Standard Two Year Limited Warranty ... iii Important Safety Instructions ... vii Compliance Information ... viii 1. Introduction ...1 2. Controls and Functions ...5 3. Installation ...15 PlasmaWall XP Series Installation/Operation Manual About This Manual ...1 Target Audience ...1 If You Have Comments About This Manual...
  • Page 12 Table of Contents 4. Operation ...33 5. Maintenance and Troubleshooting ...59 Installation Considerations ...17 Special Requirements for the XP-103DHD ...17 High-Altitude Operation ...17 Mounting the PlasmaWall on a Wall or Table Stand/Floor Pedestal ...17 Ambient Light ...18 Ventilation ...18 Audio/Video Synchronization Issues...20 Other Considerations ...21 Connections to the PlasmaWall and DHD Controller ...22 Connecting the PlasmaWall to the DHD Controller ...22...
  • Page 13 6. External Control ...63 7. Specifications ...71 PlasmaWall XP Series Installation/Operation Manual Serial Communications ...63 RS-232 Connection and Port Configuration ...63 Serial Command Syntax ...63 Using Discrete IR Codes ...68 IR Command Protocol ...68 IR Command List...69 PlasmaWall Specifications ...71 DHD Controller Specifications ...72 PlasmaWall Dimensions ...73 Supported Timings ...76...
  • Page 14 Table of Contents Notes: PlasmaWall XP Series Installation/Operation Manual...
  • Page 15 2-1. PlasmaWall XP-50DHD and XP-OPAL50DHD Front-Panel Controls and Indicators ...5 2-2. PlasmaWall XP-65DHD and XP-OPAL65DHD Front-Panel Controls and Indicators ...5 2-3. PlasmaWall XP-103DHD Front-Panel Controls and Indicators ...6 2-4. PlasmaWall Rear Panel...7 2-5. DHD Controller Front Panel ...8 2-6. DHD Controller Rear Panel ...10 2-7.
  • Page 16 List of Figures 7-2. PlasmaWall Model XP-65DHD and XP-OPAL65DHD Dimensions (with Optional Table Stand) ...74 7-3. PlasmaWall Model XP-103DHD Dimensions (with Floor Stand) ...75 PlasmaWall XP Series Installation/Operation Manual...

  • Page 17: Introduction

    Runco has prepared this manual to help home theater installers and end users get the most out of the PlasmaWall. Runco has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time.

  • Page 18: Using This Manual

    Specifications for the PlasmaWall XP Series Flat-Panel Plasma Display Monitor and DHD Con- troller The following are related Runco documents available from your Runco dealer or representative, or from www.Runco.com: • 42"/50" Plasma Display Wall-Mount Kit Installation Instructions • 65" Flat-Panel Plasma Display Wall-Mount Kit Installation Instructions •...

  • Page 19: Description, Features And Benefits

    "solarization" and "stair stepping" characteristics previously plaguing digital flat panel displays. The PlasmaWall features all of the Runco technologies you have come to expect from the World's Finest Home Theater Products. Discrete, multiple aspect ratio control includes VirtualWide™...

  • Page 20: Parts List

    Parts List Your PlasmaWall is shipped with the following items. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23-RUNCO. • PlasmaWall XP Series Flat-Panel Plasma Display Monitor and DHD Controller •...

  • Page 21: Controls And Functions

    Figure 2-1, Figure 2-2 and Figure 2-3 show the PlasmaWall front-panel controls and indicators. (behind front bezel) Figure 2-1. PlasmaWall XP-50DHD and XP-OPAL50DHD Front-Panel Controls and Indicators (behind front bezel) Figure 2-2. PlasmaWall XP-65DHD and XP-OPAL65DHD Front-Panel Controls and Indicators PlasmaWall XP Series Installation/Operation Manual 2.
  • Page 22 Controls and Functions Figure 2-3. PlasmaWall XP-103DHD Front-Panel Controls and Indicators 1. DISPLAY STAND Optional accessory for table-top installations. 2. POWER BUTTON Connects or disconnects the display panel from the AC power source. 3. STANDBY/ON INDICATOR - Lights green to indicate normal operation; - Lights red to indicate that the PlasmaWall is in standby mode.

  • Page 23: Connectors

    Figure 2-4 shows the rear-panel connector locations on the PlasmaWall. XP-50DHD / XP-OPAL50DHD XP-65DHD / XP-OPAL65DHD XP-103DHD SLOT1 Figure 2-4. PlasmaWall Rear Panel PlasmaWall XP Series Installation/Operation Manual AUDIO COMPONENT/RGB IN AV IN SLOT2 SLOT3 Connectors AUDIO SERIAL Controls and Functions...

  • Page 24: Dhd Controller Front Panel

    Figure 2-5 shows the controls and indicators on the DHD Controller front panel; the paragraphs that follow describe them. HDMI 1 1080i/60 1. RUNCO ICON Lights blue to indicate that the controller is on or powering up. 2. IR SENSOR Receives IR commands from the remote control.
  • Page 25 5. LEFT BUTTON Used to direct-select inputs or move the menu cursor left in the OSD. When no menu is present on-screen, the LEFT button toggles through the different sources, in this order: HDMI 2 - HDMI 1 - SCART - HD 2 - HD 1 - Component - S-Video 2 - S-Video 1 - Composite Video 6.

  • Page 26: Dhd Controller Rear Panel

    Controls and Functions DHD Controller Rear Panel Figure 2-6. DHD Controller Rear Panel ➤ Outputs Figure 2-6 shows the rear connector panel on the DHD Controller. 1. HDMI Out Connect this to the SLOT 2/INPUT A connector on the PlasmaWall (see Figure 2-4). 2.

  • Page 27: Inputs

    4. USB A standard, USB Series “B” connection to a personal computer. (For future use.) 5. HDMI 1 / HDMI 2 (Digital) HDCP-compliant digital video inputs for connecting an HDMI or DVI source. 6. HD1 / HD2 (5 x Analog BNCs) Two inputs (five BNCs per input) for connecting standard-definition (SD = 480i/576i), enhanced-definition (ED = 480p/576p) or high-definition (HD = 720p/1080i/1080p) component video sources, or RGBHV sources such as personal computers.

  • Page 28: Plasmawall Remote Control Unit

    Controls and Functions PlasmaWall Remote Control Unit Figure 2-7 shows the PlasmaWall remote control, and the paragraphs that follow describe its functionality. (not available on RETURN some models) EXIT HDMI HDMI CUST (“CUST 2” on some models) Figure 2-7. DHD Controller/PlasmaWall Remote Control 16 : 9 4 : 3 PlasmaWall XP Series Installation/Operation Manual...
  • Page 29 1. IR OUTPUT INDICATOR Lights when a button is pressed to indicate that an IR signal is being transmitted. 2. ON / OFF Press to turn the display on or off. 3. ENTER Press to select a highlighted menu item or confirm a changed setting. 4.
  • Page 30 Controls and Functions 10. Aspect Ratio Selection Buttons Use the red buttons to select an aspect ratio directly or to enter numeric characters, as follows: 16:9 (3) For viewing 16:9 DVDs or HDTV programs in their native aspect ratio. 4:3 (6) Scales the input signal to fit 4:3 display mode in the center of the screen.

  • Page 31: Installation

    To install batteries in the remote control: 1. Press down the tab on the cover and pull the cover in the direction of the arrow. 2. Insert the included batteries. Ensure that the polarities correctly match the markings inside the battery compartment.

  • Page 32: Quick Setup

    Installation Quick Setup • Do not drop the remote control or expose it to moisture or high temperature. • The remote control may malfunction under a fluorescent lamp. If that occurs, move the plasma display away from the fluorescent lamp. •...

  • Page 33: Installation Considerations

    Runco has found all PlasmaWall models to operate reliably at altitudes of up to 9,000 feet MSL (mean sea level). At higher elevations, each panel may react differently, depending upon the altitude, air pressure, humidity and other meteorological factors.

  • Page 34: Ambient Light

    Installation ➤ Ambient Light ➤ Ventilation You can attach your optional mounts or stand to the PlasmaWall in either of two ways: • While it is upright. • As it lies flat with the screen face down. Place the protective sheet, which was wrapped around the plasma monitor when it was packaged, between the screen and...

  • Page 35: Ventilation Requirements For Enclosure Mounting (Xp-50Dhd, Xp-Opal50Dhd, Xp-65Dhd And Xp-Opal65Dhd)

    Wall (2") Figure 3-2. Ventilation Requirements for Enclosure Mounting (XP-50DHD, XP-OPAL50DHD, XP-65DHD and XP-OPAL65DHD) Wall 300mm 300mm (11.8") (11.8") Figure 3-3. Ventilation Requirements for Enclosure Mounting (XP-103DHD) PlasmaWall XP Series Installation/Operation Manual (2") Wall (2") Wall 200mm (7.87") Installation...

  • Page 36: Audio/Video Synchronization Issues

    In order to easily solve this issue, Runco recommends using the DHD Controller with a high-quality audio receiver that has the ability to effectively synchronize audio and video signals.

  • Page 37: Other Considerations

    Here are some other considerations and tips that can help improve your installation, avoid damage and prolong operating life: • Keep the ambient temperature constant and below 35°C (95°F). Keep the display away from heating and/or air conditioning vents. Changes in temperature may cause drifts in the display circuitry, which may affect performance.

  • Page 38: Connections To The Plasmawall And Dhd Controller

    Installation Connections to the PlasmaWall and DHD Controller ➤ Connecting the PlasmaWall to the DHD Controller Proceed as follows to connect the PlasmaWall to the DHD Controller, your video sources, external controller(s) – if present – and AC power. When connecting your equipment: •...

  • Page 39: Rs-232 Connection From The Dhd Controller To The Plasmawall

    Digital Video Connection: The PlasmaWall has a dual HDMI input board, labeled HDMI (SLOT 2). Connect the HDMI output from the DHD Controller to input “A” on this board, using an HDMI-to-HDMI cable. RS-232 Connection: Connect the Display Control (RS-232) output from the DHD Controller to the SERIAL input on the PlasmaWall.

  • Page 40: Connecting Source Components To The Dhd Controller

    Installation ➤ Connecting Source Components to the DHD Controller Connect your video sources to the DHD Controller as shown and described in the sections that follow. HDMI Source Connections: See Figure 3-6. Use the HDMI inputs whenever possible. This ensures the highest video quality because the signal is carried in the digital domain throughout the entire signal path, from source component output into the display.

  • Page 41: Component Video Source Connections

    Component Video Source Connections: Connect your component video sources to the HD1, HD2 and/or Component/SCART inputs as shown in Figure 3-7. RCA-to-BNC adapter COMPONEN T VIDEO OUT BD/DVD Figure 3-7. Component Video Source Connections PlasmaWall XP Series Installation/Operation Manual DTV-Set-Top Box (DTV-STB) Installation...

  • Page 42: Rgbhv Source Connections

    Installation RGBHV Source Connections: Connect personal computers and/or other RGB sources to the HD1, HD2 and/or Component/SCART inputs as shown in Figure 3-8. Computer Figure 3-8. RGBHV Source Connections BNC-to-RCA adapter RGB Camcorder PlasmaWall XP Series Installation/Operation Manual...

  • Page 43: Scart Rgbs Source Connections

    SCART RGBS Source Connections: Connect the green, blue and red outputs from your SCART source to the Component/SCART input on the DHD Controller. Connect the sync output from your SCART source to the Video input on the DHD Controller. See Figure 3-9.
  • Page 44 Installation Composite and S-Video Source Connections: See Figure 3-10. Camcorder Gaming Console Figure 3-10. S-Video and Composite Video Source Connections Composite S-Video S-Video PlasmaWall XP Series Installation/Operation Manual...

  • Page 45: Rs-232 Controller Connection

    Use a straight-through, 9-pin RS-232 cable to connect a PC or control/automation system (if present) to the RS-232 port on the DHD Controller; see Figure 3-11. For more information about using this connection, refer to External Control on page 63. to Automation/ Control System or PC...

  • Page 46: Connecting 12-Volt Trigger Outputs To External Equipment

    Installation ➤ Connecting 12-volt Trigger Outputs to External Equipment If your installation includes equipment that responds to 12-volt triggers, connect it to the 12-volt trigger outputs as shown in Figure 3-12. Sleeve = Ground To 12-volt trigger-activated Tip = +12V device Figure 3-12.

  • Page 47: Connecting An External Ir Receiver To The Dhd Controller

    If infrared signals from the remote control cannot reach the DHD Controller due to excessive distance or obstructions such as walls or cabinet doors, you can connect an external IR receiver to the DHD Controller to extend the range of the remote control. See Figure 3-13.

  • Page 48: Connecting Ac Power

    Installation ➤ Connecting AC Power Plug the female end of the power cord into the AC receptacle on the rear of the PlasmaWall. Connect the other end to your AC power source. (The XP-103DHD requires 200-240 VAC.) XP-50DHD / XP-OPAL50DHD XP-65DHD / XP-OPAL65DHD XP-103DHD (NOTE: The XP-103DHD requires 200 - 240 VAC) Figure 3-14.

  • Page 49: Operation

    1. Turn on your source components. 2. Press the main power switch on the PlasmaWall (see Figure 2-1, Figure 2-2 or Figure 2-3). Its standby/on indicator lights red. 3. Set the main power switch at the rear of the DHD Controller (see Figure 2-6) to the “on” position.
  • Page 50 Operation 2. Double click on the Display icon. 3. Click the Settings tab on the display dialog box. 4. Set the Screen area to 1024x768 pixels. 5. Click the Advanced button and click the Monitor tab on the dialog box. Set the Refresh Frequency to 60Hz and click 1.

  • Page 51: Using The On-Screen Menus

    To display the Main Menu, press the MENU button on the remote control (Figure 2-5) or DHD Controller front panel (Figure 2-3). To select a menu item, use the front panel to highlight it. Then, to confirm your selection, press ENTER on the remote control or DHD Controller front panel.

  • Page 52: Main Menu

    Triggers Service Miscellaneous Sync Threshold HDMI EDID Extension Front Panel Brightness System Reset Figure 4-1. PlasmaWall OSD Menu Structure (continued) ➤ Main Menu Runco Video Input Source Aspect Ratio Picture Input Position Memory Presets Information Calibration Service Color Bars 1...

  • Page 53: Input Source

    From the Main Menu, select Input Source to choose a video signal source. The active source is indicated by an arrow ( active source. To change the aspect ratio (size and shape) of the projected image, select Aspect Ratio from the Main Menu and press ENTER. Select the appropriate aspect ratio for your screen size and the type of program material being viewed;...
  • Page 54 Operation Table 4-1. Aspect Ratio Settings Remote Aspect Ratio Control Button 16:9 16:9 4:3 Image, stretched to fill 16:9 Screen (Display) Letterbox LBOX (Letterbox aspect ratio) VirtualWide VWIDE Description Select 16:9 to view 16:9 DVDs and HDTV programs in their native aspect ratio.
  • Page 55 Table 4-1. Aspect Ratio Settings (continued) Remote Aspect Ratio Control Button Cinema CINEMA Virtual Cinema Native (none) PlasmaWall XP Series Installation/Operation Manual Description Select Cinema to view 2.35:1 source material on a 16:9 screen. The upper and lower 2.35:1 Image on portions of the screen are 16:9 Screen masked, but the geometry of the...

  • Page 56: Picture

    Runco video display devices. Accordingly, Runco recommends that setup and calibration be performed by an ISF certified installation technician.
  • Page 57 PLUGE patterns vary but generally consist of some combination of black, white and gray areas against a black background. The example above includes two vertical bars and four shaded boxes. Select Brightness from the Picture menu and press ENTER. Adjust the brightness so that: •...
  • Page 58 Operation Color Saturation: On your external test pattern source, select a color bar pattern like the one shown in Figure 4-4. Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint 1. Press the MENU button on the remote control or DHD Controller front panel. 2.
  • Page 59 11.Adjust the color saturation level until the outermost (gray and blue) color bars appear to be a single shade of blue: Tint: Tint or “hue” is essentially the ratio of red to green in the color portion of the image. When tint is decreased, the image appears redder;...
  • Page 60 Operation Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust sharpness, select Sharpness from the Picture menu and press ENTER. On your external test pattern source, select a pattern like the one shown in Figure 4-5. Adjust as needed, looking for white edges around the transitions from black to gray and differently-sized lines in the “sweep”...

  • Page 61: Input Position

    Use the controls in the Input Position Menu to fine-tune the aspect ratio and image position for the current source. The input position settings are automatically saved for each input Note and resolution. Left/Right: Select Left/Right from the Input Position menu to shift the projected image horizontally.

  • Page 62: Overscan Modes

    Operation No Overscan Crop Zoom 16 :9 = Source Image Area = Mask (Crop) Area = Screen (16:9) Figure 4-6. Overscan Modes Phase (RGB, Component or SCART sources): This control adjusts the phase of the pixel sampling clock relative to the incoming signal. Adjust the phase when an RGB, Component or SCART image still shows shimmer or “noise”...

  • Page 63: Memory Presets

    For each input, the PlasmaWall lets you save image quality settings as presets that you can recall at a later time. You can create up to four presets per input and display mode (resolution and frame rate). The DHD Controller stores the following display modes in each memory preset: •...

  • Page 64: Information

    DHD Controller and display device. Should you ever need to contact Runco Technical Support, this information will help them answer your questions or resolve product performance issues.

  • Page 65: Calibration

    Use the Calibration menu to perform advanced picture quality adjustments. This menu should be used by ISF-certified technicians only. You must enter a passcode to access the Calibration menu. Note To recall the ISF Night or ISF Day settings, select “ISF Night” or “ISF Day” from the Memory Presets menu (see page 47) or use the corresponding remote control buttons.
  • Page 66 Operation • Color Temp: Select Color Temp from the Display Color menu to adjust the color temperature. Color temperature establishes the “color of gray” by adjusting the 75% white point to various color points. What are “color points?” A “color point” is an x/y coordinate pair that defines a color’s location on the standard CIE chromaticity graph, shown in Figure 4-7.
  • Page 67 • Black Level: Select Black Level from the Display Color menu to adjust the black level “floor” (lower limit). If blacks appear too gray, set Black Level to a higher value. • Input Level: Select Input Level from the Display Color menu to adjust the overall, apparent brightness of the displayed image.
  • Page 68 • Splash Timer: When you turn on the PlasmaWall, it projects a welcome screen with the Runco and ISF logos, along with the personalized information you enter as described above. Select Splash Timer from the Splash Configure menu to set the amount of time for which this screen appears.

  • Page 69: Service

    OSD Position: To adjust the position of the OSD, select OSD Position from the Calibration menu and press ENTER. Press to select “Hor.” or “Ver.” Then, press Use the Service menu to access advanced display configuration settings. This menu should be used by ISF-certified technicians only. You must enter a passcode to access the Service menu.
  • Page 70 Operation Remote Control: Select Remote Control from the Service menu to change the following settings related to remote control operation. • Remote Code: Select Remote Code from the Remote Control menu to set the infrared (IR) code set to which the PlasmaWall will respond. By default, it is set to 17. You can change this setting if either: •...
  • Page 71 Color Space: Select Color Space from the Service menu to choose the color space of the source signal for HDMI, RGB, and component connections. • The default setting, Auto, functions as follows: • HDMI: If the Auxiliary Video Information (AVI) infoframe contains color space and/or range data, the PlasmaWall uses that information.
  • Page 72 Operation • CUE (Chroma Upsampling Error) Correction: Some DVD players use MPEG decoders that do not correctly “upsample” the 4:2:0 format chroma information on the DVD to the 4:2:2 or 4:4:4 format required by the video encoder of the display device. This so-called “chroma bug”...
  • Page 73 System Reset: To reset ALL controller settings (including image settings) back to their factory defaults, choose System Reset from the Service menu. A confirmation message appears. Select Yes to continue with the reset or select No to cancel. This action is not undoable. Proceed with caution! Before you Caution perform a System Reset, save your “Custom”...
  • Page 74 Operation Notes: PlasmaWall XP Series Installation/Operation Manual...

  • Page 75: Maintenance And Troubleshooting

    5. Maintenance and Troubleshooting Regular cleaning will extend the life and performance of the PlasmaWall. Before cleaning, be sure to unplug the power cord from the power outlet. Do not under any circumstances use solvents such as benzene or thinner to clean the PlasmaWall.

  • Page 76: Troubleshooting Tips

    Table 5-1 provides some general guidelines for troubleshooting problems you may encounter with the PlasmaWall. If the suggested solutions fail to resolve the problem or if you encounter an issue not described here, please contact your Runco dealer or Runco Technical Support.
  • Page 77 Table 5-1. Troubleshooting Chart (continued) Symptom RGB-HD images appear • Clock and Phase settings “noisy.” Computer images do not dis- • The resolution and play correctly. The image is too large or too • Image size needs small. PlasmaWall XP Series Installation/Operation Manual Possible Cause(s) •...
  • Page 78 Maintenance and Troubleshooting Notes: PlasmaWall XP Series Installation/Operation Manual...

  • Page 79: External Control

    In addition to using the DHD Controller front-panel keypad or remote control unit, there are two methods of controlling the PlasmaWall and DHD Controller externally: • Using a serial (RS-232) link to send ASCII commands and receive responses to those commands.
  • Page 80 External Control Table 6-1 lists the RS-232 command set. The “Parameter (min/max)” column shows the valid parameter ranges, or “NA” for commands that take no parameters. When you enter a valid command, the DHD Controller executes it and acknowledges it with a plus sign on the command line (+ >).
  • Page 81 Table 6-1. Serial Commands (continued) Parameter Command (min/max) Aspect Ratio Commands 16:9 ASPECT? CINEMA LETTERBOX NATIVE VIRTUALWIDE VIRTUALCINEMA Picture Adjust Commands BRIGHTNESS -50/50 BRIGHTNESS? CHROMADELAY -7/7 CHROMADELAY? COLOR -50/50 COLOR? CONTRAST -50/50 CONTRAST? FILMMODE FILMMODE? FILTER 0/10 FILTER? PHASE 0/31 PHASE? SHARPNESS -50/50...
  • Page 82 External Control Table 6-1. Serial Commands (continued) Parameter Command (min/max) Image Preset Commands CUSTOM1 CUSTOM2 NIGHT PRESET? Input Position Commands IHEIGHT 0/20 IHEIGHT? IHPOS -50/50 IHPOS? IVPOS -50/50 IVPOS? IWIDTH 0/50 IWIDTH? OVERSCAN 0/20 OVERSCAN? OVERSCANMODE OVERSCANMODE? Output Shift Commands OHEIGHT -50/50 OHEIGHT?
  • Page 83 Table 6-1. Serial Commands (continued) Parameter Command (min/max) Miscellaneous Commands DISPLAY? INRES? MODEL? OUTRES? SERNUM? SWVER? SYSSTATE? TRIGGER The following serial commands are meant to emulate buttons on the remote control or DHD Con- troller front panel. Each button has its own serial command, so effectively it is as if you were using the IR remote only you’ll be doing so via serial commands.

  • Page 84: Using Discrete Ir Codes

    External Control Using Discrete IR Codes ➤ IR Command Protocol The DHD Controller accepts commands in the form of IR signals that conform to the Phillips RC5 protocol. Each DHD Controller remote control button has an RC5 control code associated with it. You can use these codes to program a third-party, “universal”...

  • Page 85: Ir Command List

    Figure 6-1 shows the pulse train for this command (with the toggle bit set to zero). Data Word Start Bits Toggle Bit Encoded Data Word 1.78 ms Modulated Carrier Zoom In of Carrier 27.8 µs First Packet RC5 Packet Transmission 14 cycles, 24.9 ms 64 cycles, 113.8 ms Figure 6-1.
  • Page 86 External Control Table 6-2. RC5 Control Codes for the DHD Controller (continued) RC5 Data from Remote Control Remote Button Name Control (Note) CUST 1 0x3472 CUST 2 0x3473 DOWN 0x3446 ENTER 0x3444 EXIT 0x3474 HD 1 0x3451 HD 2 0x3452 HDMI 1 0x3453 HDMI 2...

  • Page 87: Specifications

    Table 7-1 lists the PlasmaWall specifications. Table 7-1. PlasmaWall Specifications Native Resolution: Screen Size: Screen Aspect Ratio: Available Aspect Ratios: DTV Compatibility: Contrast Ratio: Data/Graphics Compatibility: Inputs (from DHD Controller): Power Requirements: Power Consumption: Operating Environment: Dimensions: Weight (panel only, without stand): Regulatory Approvals: Specifications are subject to change without notice.

  • Page 88: Dhd Controller Specifications

    Specifications DHD Controller Specifications Table 7-2 lists the DHD Controller specifications. Table 7-2. DHD Controller Specifications Aspect Ratios: Video Standards: Inputs: Outputs: Control Options: RS-232 Communication Parameters: Trigger Outputs: Bandwidth: Power Requirements: Operating Environment: Dimensions: Weight: Regulatory Approvals: Limited Warranty: Specifications are subject to change without notice.

  • Page 89: Plasmawall Dimensions

    Figure 7-1, Figure 7-2 and Figure 7-3 show the PlasmaWall dimensions (all dimensions are in inches). Figure 7-1. PlasmaWall Model XP-50DHD and XP-OPAL50DHD Dimensions (with Optional Table Stand) PlasmaWall XP Series Installation/Operation Manual PlasmaWall Dimensions Specifications...
  • Page 90 Specifications 1.98 2.35 3.69 7.87 12.37 50.10 54.60 62.45 Figure 7-2. PlasmaWall Model XP-65DHD and XP-OPAL65DHD Dimensions (with Optional Table Stand) 4.34 8.27 54.19 58.12 61.90 62.45 PlasmaWall XP Series Installation/Operation Manual...
  • Page 91 Specifications 6.50 34.30 16.00 69.40 42.30 Figure 7-3. PlasmaWall Model XP-103DHD Dimensions (with Floor Stand) PlasmaWall XP Series Installation/Operation Manual...

  • Page 92: Supported Timings

    Specifications Supported Timings Table 7-3. Supported Signal Timings by Input Refresh Format Resolution Rate (Hz) 60.00 66.59 640x480 640x480 72.00 75.00 85.00 60.00 72.00 800x600 800x600 75.00 85.00 832x624 832x624 74.54 47.95 848x480 848x480 60.00 60.00 70.00 1024x768 1024x768 75.00 85.00 1152x864 1152x864...
  • Page 93 Table 7-3. Supported Signal Timings by Input (continued) Refresh Format Resolution Rate (Hz) 60.00 1280x1024 1280x1024 75.00 85.00 1360x768 1360x768 60.00 60.00 1400x1050 1400x1050 60.00 75.00 1600x1200 1600x1200 60.00 1680x1050 1680x1050 60.00 1920x1080 1920x1080 47.95 1920x1200 1920x1200 60.00 SCART – 50.00 RGBS 480/60i...
  • Page 94 Specifications Table 7-3. Supported Signal Timings by Input (continued) Refresh Format Resolution Rate (Hz) PAL-M – 59.94/60.00 15.734/15.750 PAL-N – 50.00 SECAM – 50.00 Horizontal Pixel Frequency Frequency (MHz) (kHz) 3.580 – 15.625 3.580 – 15.625 13.500 – Supported? (√ = Yes, – = No) √...
  • Page 96 020-0726-03 rev. A September 2009 Runco International • (800) 23RUNCO • Fax (503) 748-8161 • www.runco.com...
