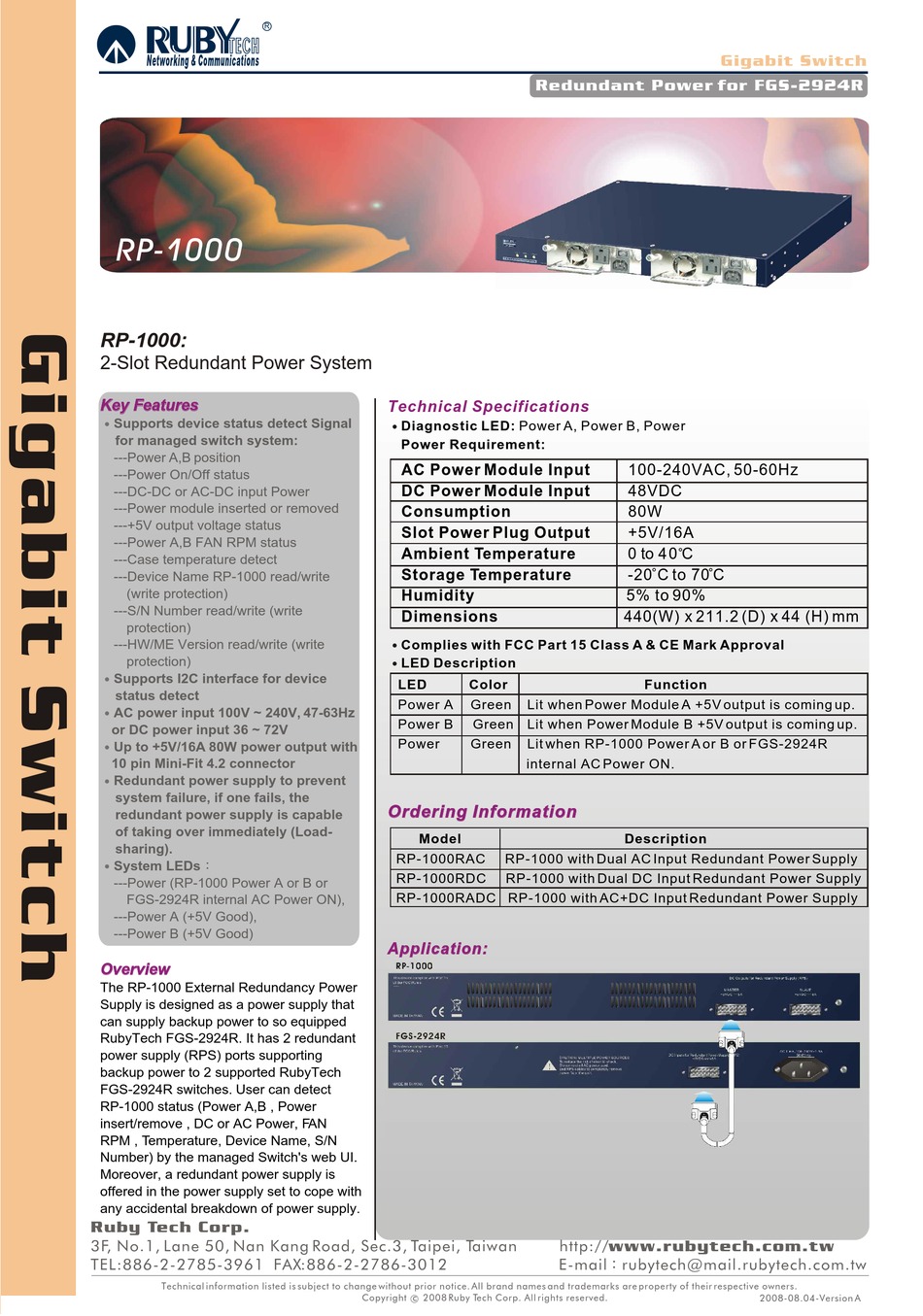

Ruby Tech RP-1000 Technical Specifications

RUB
R
TECH
Networking & Communications
RP-1000
RP-1000:
2-Slot Redundant Power System
Key Features Key Features
Supports device status detect Signal
for managed switch system:
---Power A,B position
---Power On/Off status
---DC-DC or AC-DC input Power
---Power module inserted or removed
---+5V output voltage status
---Power A,B FAN RPM status
---Case temperature detect
---Device Name RP-1000 read/write
(write protection)
---S/N Number read/write (write
protection)
---HW/ME Version read/write (write
protection)
Supports I2C interface for device
status detect
AC power input 100V ~ 240V, 47-63Hz
or DC power input 36 ~ 72V
Up to +5V/16A 80W power output with
10 pin Mini-Fit 4.2 connector
Redundant power supply to prevent
system failure, if one fails, the
redundant power supply is capable
of taking over immediately (Load-
sharing).
System LEDs
---Power (RP-1000 Power A or B or
FGS-2924R internal AC Power ON),
---Power A (+5V Good),
---Power B (+5V Good)
Overview Overview
The RP-1000 External Redundancy Power
Supply is designed as a power supply that
can supply backup power to so equipped
RubyTech FGS-2924R. It has 2 redundant
power supply (RPS) ports supporting
backup power to 2 supported RubyTech
FGS-2924R switches. User can detect
RP-1000 status (Power A,B , Power
insert/remove , DC or AC Power, FAN
RPM , Temperature, Device Name, S/N
Number) by the managed Switch's web UI.
Moreover, a redundant power supply is
offered in the power supply set to cope with
any accidental breakdown of power supply.
Ruby Tech Corp.
3F, No.1, Lane 50, Nan Kang Road, Sec.3, Taipei, Taiwan
TEL:886-2-2785-3961 FAX:886-2-2786-3012
Technical information listed is subject to change without prior notice. All brand names and trademarks are property of their respective owners.
Redundant Power for FGS-2924R
Technical Specifications
Diagnostic LED: Power A, Power B, Power
Power Requirement:
AC Power Module Input
DC Power Module Input
Consumption
Slot Power Plug Output
Ambient Temperature
Storage Temperature
Humidity
Dimensions
Complies with FCC Part 15 Class A & CE Mark Approval
LED Description
LED Color
Power A Green Lit when Power Module A +5V output is coming up.
Power B Green Lit when Power Module B +5V output is coming up.
Power Green Lit when RP-1000 Power A or B or FGS-2924R
internal AC Power ON.
Ordering Information Ordering Information
Model
RP-1000RAC RP-1000 with Dual AC Input Redundant Power Supply
RP-1000RDC RP-1000 with Dual DC Input Redundant Power Supply
RP-1000RADC RP-1000 with AC+DC Input Redundant Power Supply
Application: Application:
Copyright c 2008 Ruby Tech Corp. All rights reserved.
Gigabit Switch
100-240VAC, 50-60Hz
48VDC
80W
+5V/16A
0 to 4 0 C
-20 C to 70 C
5% to 90%
440(W) x 211.2 (D) x 44 (H) mm
Function
Description
http://www.rubytech.com.tw
E-mail rubytech@mail.rubytech.com.tw
2008-08.04-Version A
