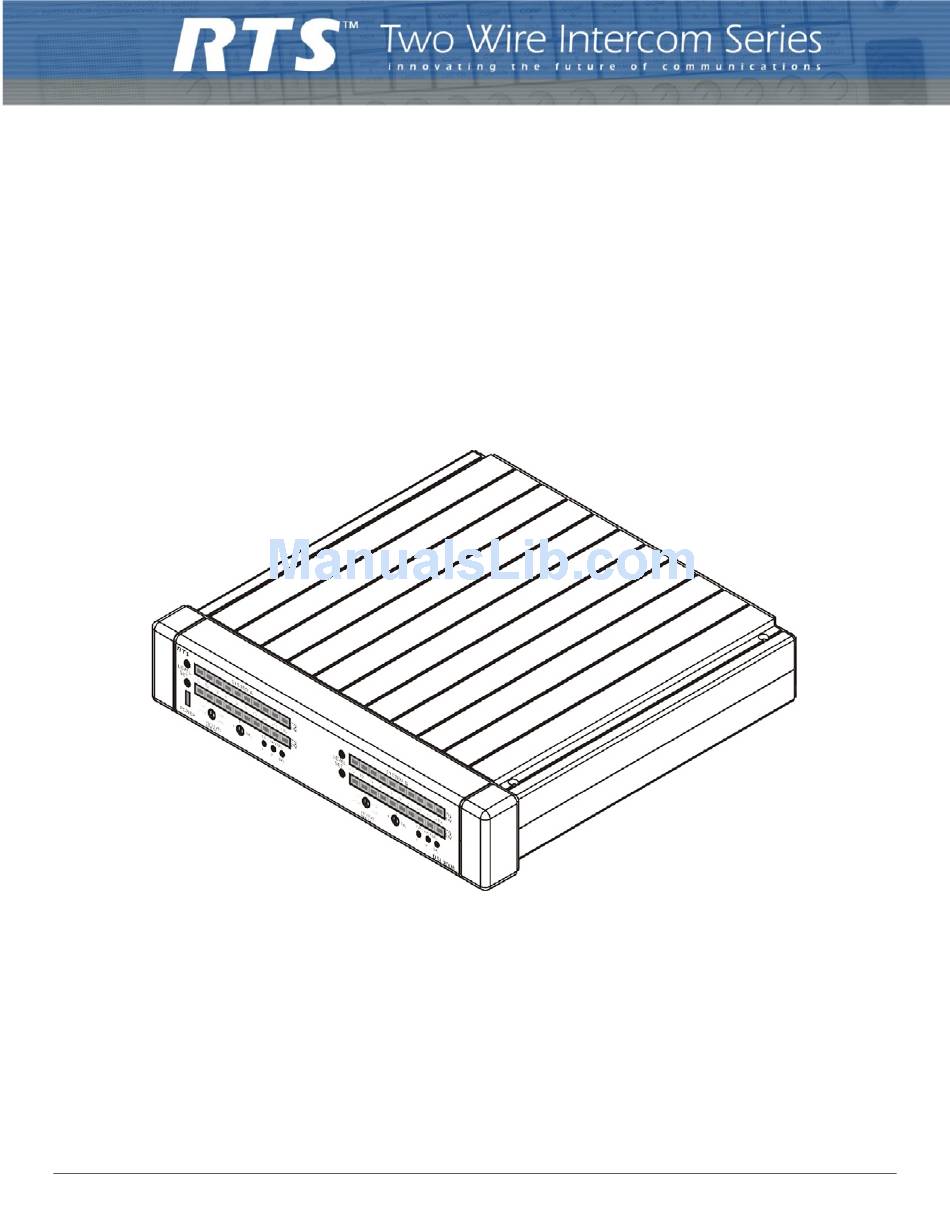

- Page 1 User Instructions DSI 2008 Digital System Interface ADAM, ADAM CS, and Zeus Intercoms 9350-7870-000 Rev C 11/2008...
- Page 2 Telex is prohibited. ARRANTY OTICE See the enclosed warranty card for further details. USTOMER UPPORT Technical questions should be directed to: Customer Service Department RTS/Telex Communications, Inc. 12000 Portland Avenue South Burnsville, MN 55337 USA Telephone: 800-392-3497 Fax: 800-323-0498 ETURN HIPPING NSTRUCTIONS Customer Service Department Telex Communications, Inc.
-
Page 3: Table Of Contents
ANEL Specifications ... 4 INSTALLATION ...5 Mounting ... 5 4-Wire Audio Connections ... 5 ADAM, ADAM-CS, UDIO UDIO ONNECTIONS FOR THE 2-Wire Audio Connections ... 7 RTS TW A ... 7 UDIO ONNECTIONS UDIOCOM UDIO ONNECTION LEAR UDIO ONNECTION THER... -
Page 5: Description And Specifications
The result is easy and accurate setup. With the DSI 2008, all need for test tones, nulling adjustments and ducking adjustments have been eliminated. -
Page 6: Front And Back Panel Descriptions
Front Panel There is a power ON/OFF and call indicator at the left of the front panel. This indicator lights continuously when the DSI 2008 is turned ON and flashes when an incoming call signal is detected, if the call signal option board is installed.. The remainder of the front panel is divided into controls and indicators for the two separate hybrids, labeled SYSTEM A and SYSTEM B. -
Page 7: Back Panel
Back Panel The power pack connector is located at the right end of the back panel. This is a locking DIN connector. The remainder of the back panel is divided into connectors for the two separate hybrids. Connectors are labeled with “J” numbers followed by “A” or “B”... -
Page 8: Specifications
Specifications 2-Wire Ports Input / Output Impedance 5,000 ohms, nominal Operating Level Audiocom: 1 V , nominal RTSTW/ClearCom: 775 mV , nominal 4-Wire Ports Input Impedance 10k ohms, nominal Output Impedance 200 ohms Operating Levels -10 dBu, 0 dBu, +4 dBu, +8 dBu, +12 dBu System to System Frequency Response 200 Hz to 3.5 kHz, ±4 dB... -
Page 9: Installation
Mounting Place the DSI 2008 on a desktop, or install it in an equipment rack using an RTS MCP Rack Mount Kit. Several rack mount options are available. There are no special ventilation requirements for the DSI 2008, but allow for ventilation around the power pack. -
Page 10: Audio Connections For The Other 4-Wire Communications Systems
Audio Connections for the Other 4-wire Communications Systems Construct 9-pin or RJ-11 cables to connect from the 4-wire system to the DSI 2008. To connect to the System A hybrid, use either J2A or J3A; for the System B hybrid, use either J2B or J3B. Pin connections are as follows:... -
Page 11: 2-Wire Audio Connections
Use standard TW intercom cables. Standard TW system cables can carry either one or two channels, while each hybrid in the DSI 2008 can only interface one TW channel to one 4-wire channel, which channel is determined by the front panel 2W CHAN SEL switch. If your TW system cable is only carrying one channel, or if you only need to connect one of two channels, connect directly to J1A (System A) or J1B (System B). -
Page 12: Audiocom Audio Connection
TW system. On the DSI 2008 front panel: For System A and System B, set the 2W CHAN SEL switch to the appropriate position. To interface to TW channel 1 select position 1; for TW channel 2, select position 2. -
Page 13: Clear-Com Audio Connection
Other 2-wire Audio Connection Use the J1A connector on the back of the DSI 2008 to connect one 2-wire line to the System A hybrid. Use the J1B connector to connect a second 2-wire line to the System B hybrid. The pin configuration for the J1A and J1B... -
Page 14: 4-Wire Call Signal Connections
By default, these output are set to duplicate the action of the RTS FR9528 Relay Frame accessory. This is the correct setting for use with the DSI 2008. To check the AZedit setting, select Intercom Configuration in the Options menu. Click on the Options tab, then verify that Configure... - Page 15 Call signal connections for ADAM, ADAM CS, and Zeus Intercom Systems. This example uses GPI FIGURE 5. outputs #1 and #2 and GPI Input #1; however, you may use any other available GPI inputs and outputs. The Call Enable/Inhibit connection is optional. It gives you the ability to disable call signalling using a GPI output. However, when connecting to a Clear-Com intercom system, if an enable/inhibit switch is not connected, a jumper must be installed for any other application.
- Page 16 UIO-256 GPI Input Connector (J7) TABLE 2. GPI INPUT NUMBERS UIO-256 Frame UIO-256 Frame a. Dependent on UIO-256 DIP Switch SW1 Settings for Input/Output Range as summarized in the UIO-256 Manual. UIO-256 Frame UIO-256 Frame GPI INPUT PIN NUMBERS Input Height Common (5-18 VDC)
-
Page 17: Call Signal Connections For Other 4-Wire Communications Systems
4-wire Call Send and Call Enable/Inhibit The DSI 2008 accepts a switch-contact input from the 4-wire system and then generates a call signal output to the 2-wire system. The DSI 2008 also accepts an optional switch contact input to enable or inhibit call signaling between the 4-wire and 2-wire systems. -
Page 18: 4-Wire Call Receive
4-wire Call Receive The DSI 2008 receives call signals from the 2-wire system, then converts this to relay contact closure for use as a 4-wire call receive indication. The DSI 2008 also provides +5 VDC which can be connected to the relay contacts to generate a DC output signal instead of a contact closure. -
Page 19: Call Signal Connections For Other 2-Wire Communication Systems
Balanced 20 kHz + Input/Output Pin 3 Balanced 20 kHz - Input/Output DSI 2008 Signal Specifications for balanced configuration: DSI 2008 Receive: 20 kHz ±100 Hz, 100 mV DSI 2008 Send: 20 kHz ±800 Hz, 500 mV Unbalanced Configuration 1 Pin 1... -
Page 21: Operation
The power indicator flashes when a call signal is received from a 2-wire line, if the call signal option board is attached. The DSI 2008 level displays should help to confirm which line is calling. Use the level adjust trimmers (Figure 8) to fine tune the listen levels. -
Page 22: Operating Notes For Adam, Adam Cs And Zeus Intercom Systems
Another way to generate a call signal is by assigning the GPI output as a level 2 talk key assignment for any key that is assigned to talk to the DSI 2008. However, this will cause the call lights to flash on the 2-wire line during the entire conversation. -
Page 23: Access And Configuration
Internal Access Remove six screws from the back cover (see Figure 9). Remove the top cover. This provides access to all internal adjustments. For option card installation, slide the circuit board out toward the back to remove it from the bottom cover. Location of screws for disassembly. -
Page 24: Mode Dip Switch Settings U301
Mode Dip Switch Settings U301 S301 controls the operating mode for System B and S302 controls the operating mode for System A. Settings are summarized as follows: Mode DIP Switch Settings for Programmed Chip P/N 90157640500 (version 1.0) TABLE 3. Switch Settings Open Open... -
Page 25: Call Signal Option Card Installation
Assemble the standoffs to the circuit board using the supplied screws and lock-washers. Connect the supplied power cable from J8 on the option card to J303 on the main board of the DSI 2008. Insert the connectors on the option card into the connectors on the main board.
