RSA Lighting Indoor Furnishings Specifications

DESCRIPTION

An adjustable Multi-lamp Recessed fixture for trimless installation suitable for
downlighting and accent applications. Utilizes SIX (6) PAR20 120V lamps.
For remodel applications. Insulation must be kept 3" from all sides and at least
1" above the housing.

SPECIFICATION FEATURES

A ... Housing
Housing and junction box are aluminum,
trimless meshplate is steel with powder
coated finish. Perforated meshplate
allows for trimless installation in drywall/
plaster ceilings by allowing the ceiling's
mudding compound to be applied right
up to the edge of the fixture opening.
Includes a beveled "knife-edge" lips to
ensure a clean edge. Can accommodate
various ceiling thickness.
B ... System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.
C ... Junction Box
Junction Box is UL listed for through
branch wiring, 6 #12 90º C supply con-
ductors or 60º C for end of run. The fixture
is also UL listed as 'access above ceiling
not required'.
Double
Gimbal
45º x 45º
Thermal
Adjust
Protector
Compartment
For use with 20W or 39W PAR20 120V lamps.

ORDERING INFORMATION

C6 R
Configuration
C6
= COMBOLIGHT
Recessed Six (6) Light
Housing
R Remodel
=
www.cooperlighting.com
D ... Electrical
Electrical accessible through ceiling
opening. J-Box located on the side
wall of the housing behind removable
access doors. Electrical components on
individually removable "trays" for easy
maintenance.
E ... Lamps
Six (6) PAR20 120V lamps mounted in
adjustable double gimbal. Lamp holders
are removable and may be regressed 1"
for additional cut-off. Lamps can accept
up to three optical accessories (i.e. lens
+ hex louver + snoot). 45º x 45º locking
lamp adjustment. Beveled-edge lamp
ring is secured with threadless, bayonet
action. Optional retractable arm is avail-
able for lamp pulldown and extreme aim-
ing. Includes Med. Base sockets.

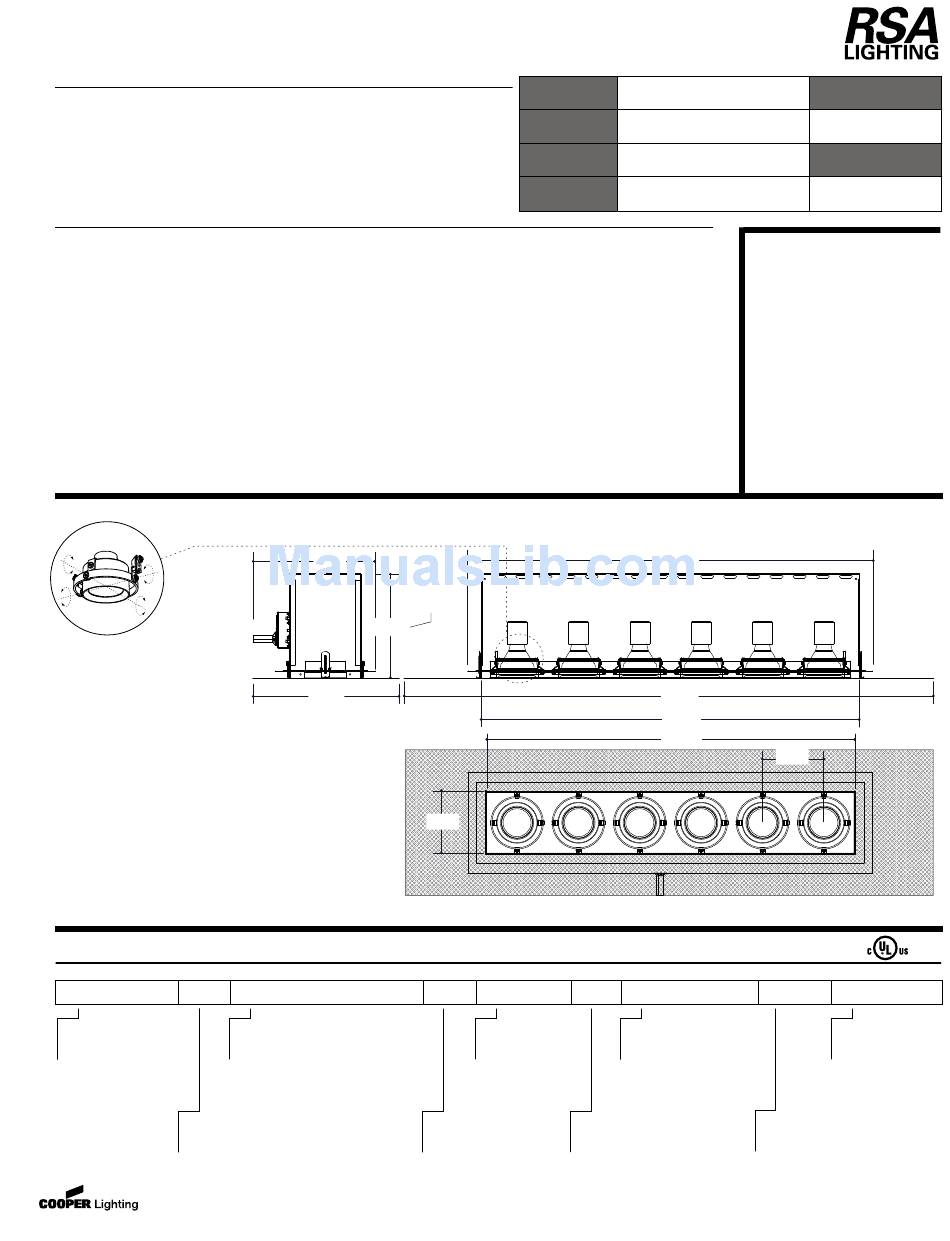

9.27"
Required
7.95"
Wiring
10.96"
Lamp Type / Wattage Label
050P20 = 50 Watt max. PAR20 120V
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Project
Comments
Prepared by
F ... Mounting
A mounting frame is provided which
inserts into the ceiling opening. The
housing is then pushed through the
mounting frame and secured with
screws through the meshplate.
G ... Labels
cULus listed for non-type IC
applications, suitable for use in damp
locations.
Ceiling Cut-Out: 5.90" x 28.96"
7.45"
above
ceiling
4.65"
N 120 N
Primary Voltage
1 = 120V
Power Supply
Trim Insert
N None - Line Voltage Lamp
= N = Trimless
COMBOLIGHT
Multi-Lamp Fixture
Remodel Housing
30.67"
40.46"
28.70"
27.87"
4.65"
Lamp Mechanism
G Double Gimbal
=
R
= Retractable Double Gimbal
Housing Interior/Electrical Door/Sleeve
Finish
W
= White
B Black
=
S = Industrial Silver
Type
Date
®
Next Generation
Recessed
Six (6) Light
PAR20 120V
Trimless
N
Trim Insert Finish
N
= Trimless
rev 022408
