- Page 1 RoyalTek BT GPS Speed Camera Warning Device RCD-3000 (Utility Offline version) Users Manual Version 0.1 English...
-
Page 2: Table Of Contents
1.Product Introduction ...3 1.1 Overview...3 1.2 Check the Package Content...3 1.3 Install RCD-3000 in your vehicle ...4 1.4 Product Notification- Using Tips ...4 1.5 Navigation Function via BT...5 2.Specification...6 2.1 Specification...6 2.2 LED Display & Audio Alarm ...7 3.Installazione e utilizzo del software...錯誤! 尚未定義書籤。... -
Page 3: Product Introduction

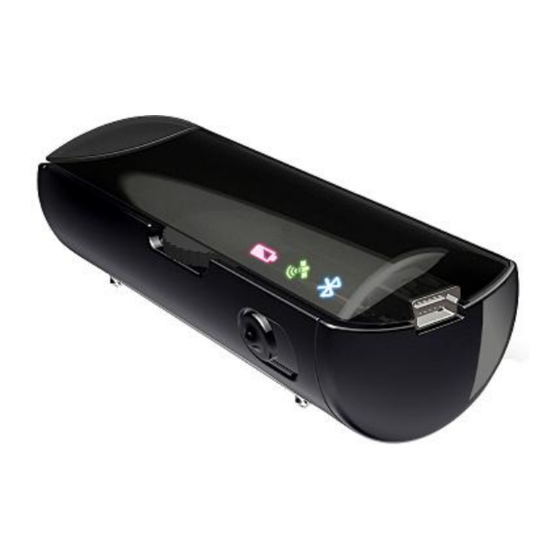

The Device is equipped with the latest generation SiRF Star III digital processor specially designed for fast and accurate fix on GPS signals. The RCD-3000 will help you to drive safely, when the database has been downloaded, the device will compare your position using its built-in GPS antenna with the position of every known danger locations and give you an audible and visual warning as you approach them. -
Page 4: Install Rcd-3000 In Your Vehicle
Place your RCD-3000 device on the dashboard pad, which is designed to hold it firmly in place. The RCD-3000 has build in Li-ion battery; user also can connect the USB cable to the cigar lighter adapter provided and insert the other end to s USB port. Once you turn on the. -
Page 5: Navigation Function Via Bt
Once RCD-3000 is properly set up and connected to your PDA or PC, please refer to your navigation software guidebook for instruction on navigation operation. RCD-3000 works with all NMEA enabled navigation software. -
Page 6: Specification
2.1 Specification - Sirf Star III GPS Chipset Frequency - L1, 1,575.42 MHz Channel - 20 parallel C/A Code - 1,023 MHz Fix time - Reacquisition: less than 1s (Open SKY,typical) - Hot start: less than 1s - Warm start: less than 35s - Cold start: less than 35s Accuracy - Position: within 10m for 90%... -
Page 7: Led Display & Audio Alarm
2.2 LED Display & Audio Alarm Front View Event GPS outage GPS fixed Approach Certified Fix Not exceed Camera Zone and pre-alert speed (distance less than* 1500 meter- Notification range) Over speed Approach Certified Fix Not exceed Camera Zone and pre-alert speed (distance less than *500 Over speed... - Page 8 “Hardware” tab and then the “Device Manager” button. Expand the “Ports (COM & LPT)” item, and the “Prolific USB-to-Serial Comm Port” is the COM port of your RCD-3000. The user should connect the device first. (Connect device with PC via USB Cable) Please select comm.
- Page 9 Figure 4 is shown System will download the POI points from device automatically. POI data will be erased from device after POI load process done. English Figure2 Figure3...
- Page 10 Figure 4 If the figure 5 dialog is shown, it means there is no POI data in the device. Figure 5 3.2 POI Management Procedure When proceed the POI Management, system will auto create the POI folder for POI data download.
- Page 11 ◆Load POI: User can edit the POI points by click the button ”Load POIs”. There are 5 types of status will show on the Utility screen after loading POI action is done. *Duplicated with No. X: means the distance between the current POI point and No. X *Out of SCDB range: means the current POI point is not in the SCDB coverage range.
- Page 12 Figure 8 shows the Delete POIs process. 3.2.1 POI Management and shown on Map To display the POIs on Google Map, the Internet connection is needed. Move the mouse cursor to the required “Latitude” or “Longitude“ point column then press the English Figure 7 Figure 8...
- Page 13 mouse right key, the message “Go to Google Map” showed as Figure 9 3.2.2 POI data modification User can modify the speed, latitude, and longitude and add comments. 1) Modification of the latitude and longitude: When user clicks the “Go to Google Map” pop up menu, user can modify latitude and longitude, the utility will show as Figure 10.
- Page 14 2) Modification of the comments and speed: Check the “comments” or “speed” column of POI then user can add the comments or speed on it, shows as Figure 10 After the modification is complete, please press the button “Save POIs” Note:Users can add comments for the POI and only 255 words can be added..
- Page 15 3.3 SCDB and POI import setting ◆SCDB Setting : There is one type Camera database data. Fixed Speed Camera database data User can download the Speed Camera database from his computer (local file). For the Speed camera database file format, please reference the example: File name: *.csv Latitude, Longitude, direction, vmax, Type 46.55886,2.2,35.40,2...
- Page 16 Press the button “Go to Connection Page” and the AP will go to the “connection” page. System will show the notification message. Shows as Figure 13 and 14 Figure 15 shows that the upload proceed. English Figure12 Figure13 Figure14...
- Page 17 Note: (1) Saved POIs: User press the POI button, then the device will record a POI point, This POI point is called Saved POI. (2) If user want to use the RCD-3000 device in another PC, please copy the original PC’s POI data (stored in the subfolder /POI/ POI.csv) to the new PC.
- Page 18 Figure 18 shows: select Folder or set a new folder for saving NMEAData. Figure 19 Show: Change page to “Data Log Download” menu bar and the AP will go to the page “Data Log Download”. 3.5 Get and Set RCD-3000 Data Log Status User can review the RCD-3000 default setting configuration. English...
- Page 19 1sec ~ 60secs, user adjustable ◆Data Type (user adjustable) There are 3 options for user to choose these data items to be saved in the RCD-3000. 1: UTC Time, Longitude, Latitude, will be saved. 2: UTC Time, Longitude, Latitude, Altitude, will be saved.
- Page 20 LED to see if the flash is full. ◆Set Log Config. When user finished the configuration setup, press the “Set Log Config.” button to save the setting to the receiver. ◆Memory Erase User can erase all the log data from the device. 3.6 SCDB Setting Change to “SCDB Setting”...
- Page 21 3.7 Utility Revision information Change to “About” menu bar User can get the RoyalTek SCDB Utility version. English Figure21 Figure22...
