Summary of Contents for Tvone MG-CT-612

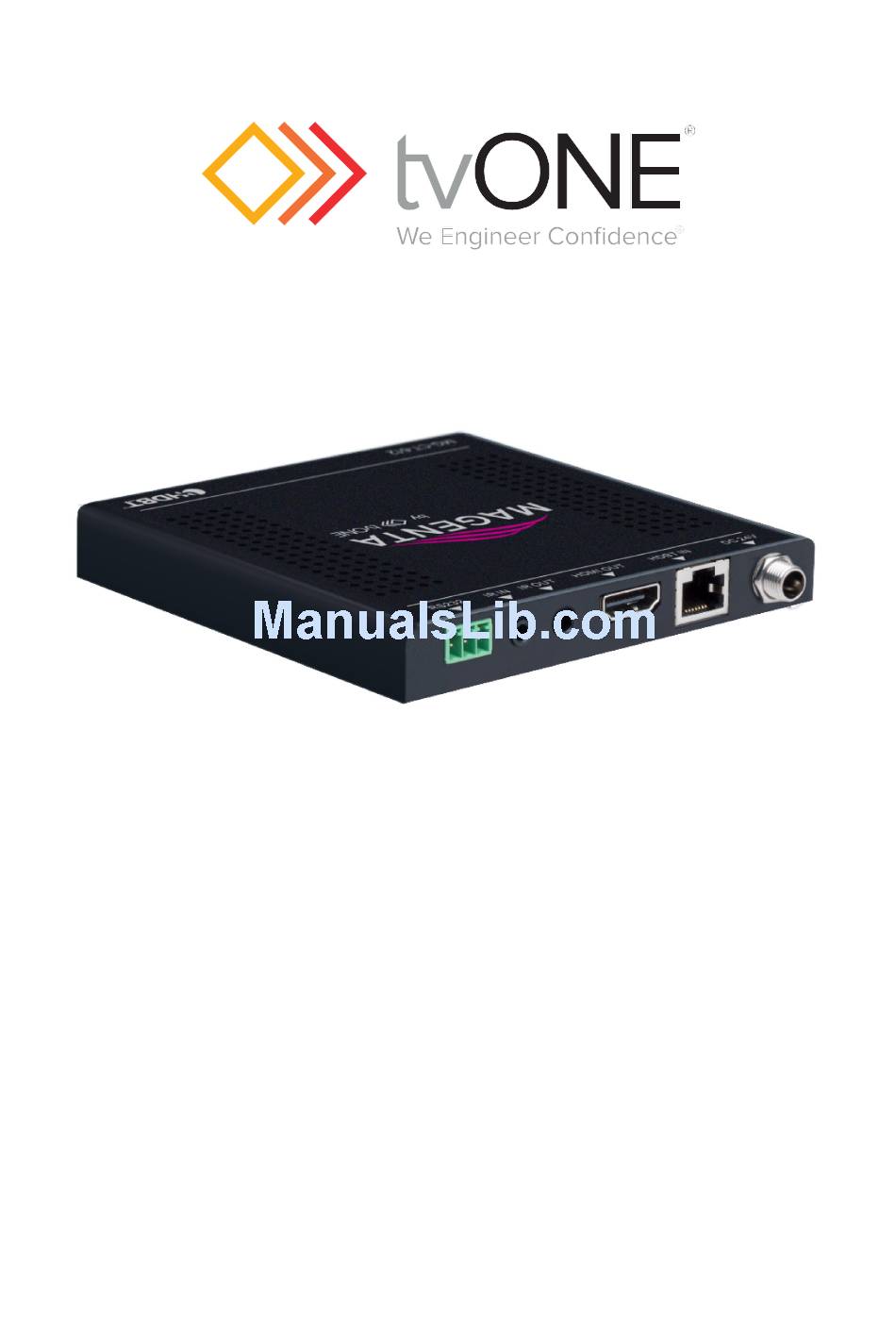

- Page 1 Instruction Manual MG-CT-612 HD-One Ultra-thin PoH Receiver...
-
Page 3: Table Of Contents
Table of Contents Safety precautions Introduction Features Operation Controls and Functions Front and Rear Panels Specifications Technical Specifications Ordering information Limited Warranty Regulatory Compliance Liability statement 10.0 Contact Information tvONE NCSA tvONE EMEA... -
Page 4: Safety Precautions
• Unplug the power cord when left unused for a long period of time. • Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. MG-CT-612... -
Page 5: Introduction
The HD-One ultra-thin Receiver provides extension for HDMI (up to 4k) signals, while providing HD extension up to 70 meters (230ft) and 4K extension up to 40 meters (130ft). The MG-CT-612 Receiver offers a seamless PoH installation with the MG-WP-611 series wall plates and its ultra- thin form factor allows the unit to be mounted easily behind any monitor. -
Page 6: Operation Controls And Functions
Connect with 5V IR receiver (with carrier) to collect IR OUT infrared signal, work with far-end IR OUT port. HDMI OUT Connect with HDMI display. Connect to the HDBT OUT socket on the transmitter via HDBT OUT CAT5e/ CAT6a cable. DC 24v Connect with power supply MG-CT-612... -
Page 7: Specifications
FCC, CE * Capable of powering the MG-WP-611 series wall plates Specifications subject to change without notice 6.0 ORDERING INFORMATION MG-CT-612 Ultra Slim HDBT Receiver with POH for MG-WP-611 wall plates, HDMI 1.4, RS232, and IR MG-WP-611-US HDBT wall plate TX with VGA and HDMI 1.4 input, extend... -
Page 8: Limited Warranty
The liability of tvONE with respect to any defective products will be limited to the repair or replacement of such products. In no event shall tvONE be responsible or liable for any damage arising from the use of such MG-CT-612... -
Page 9: Regulatory Compliance
desirable. -
Page 10: Contact Information
Fax: +44-1843-873312 Sales: sales.europe@tvone.com Support: tech.europe@tvone.com Copyright 2018 tvONE. All rights reserved. Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of those agreements.
