TERMINAL CONNECTION
TERMINAL CONNECTION
Use ring terminals (not provided) for secure connection.

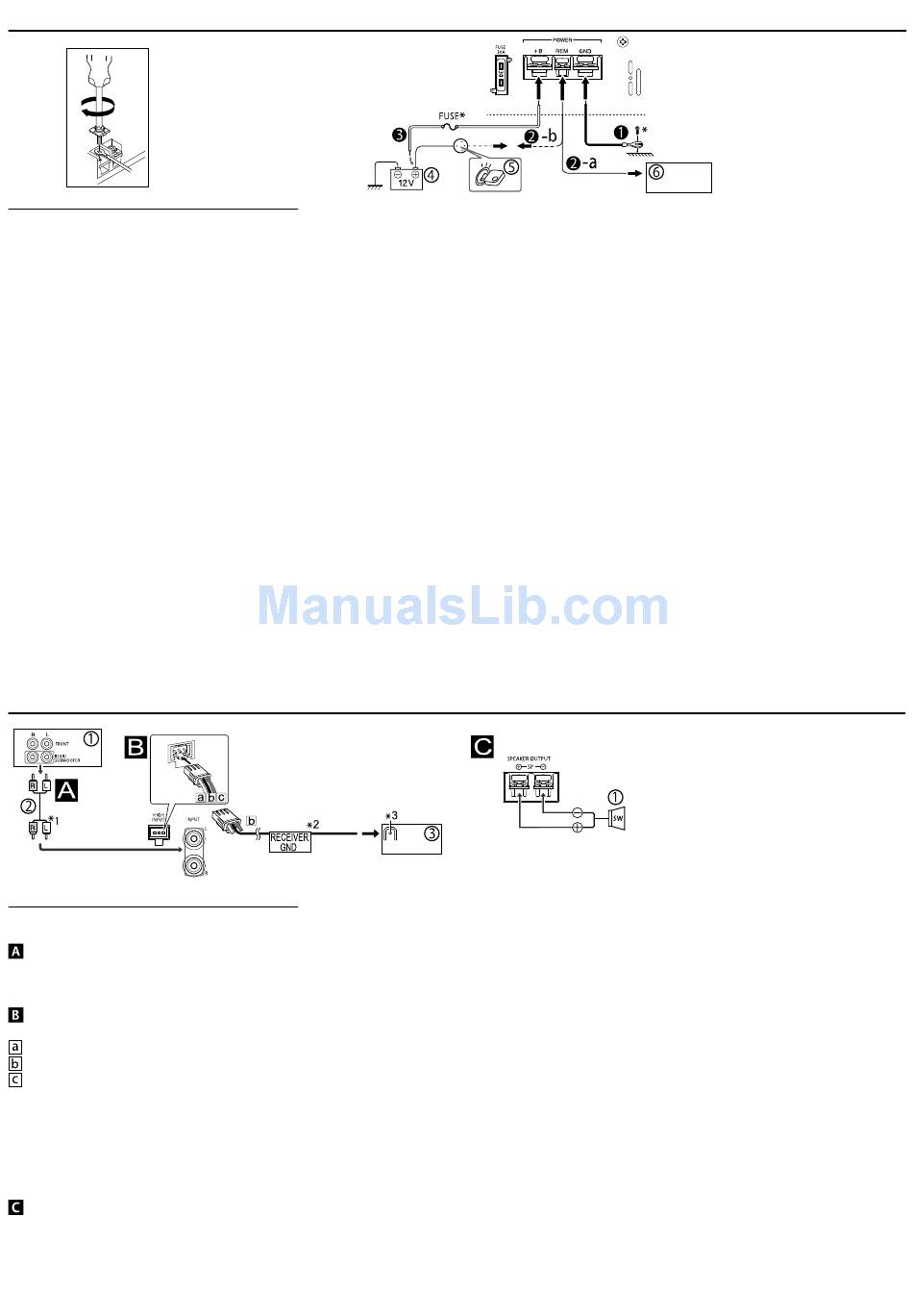

POWER SUPPLY CONNECTION
The proper lead wire connected to each POWER terminal is as follows.
•
+ B and GND: AWG 8 to AWG 4
2
(The cross section is about 8 mm
to 21 mm
•
REM: AWG 18 to AWG 8
(The cross section is about 0.8 mm
2
to 8 mm
¡
Connect to metallic body or chassis.
™-a
When you use JVC car receiver with REMOTE OUTPUT, connect to
REMOTE OUTPUT.
™-b
When you use a unit without REMOTE OUTPUT, connect to the
accessory circuit of the car which is activated by the ignition
switch. In this case, noise may occur when the car receiver is
turned on or off. To avoid this noise, do not turn on or off the car
receiver itself. You can turn on or off the car receiver along with
the on/off operation of the ignition switch.
£
After all connections have been made, connect to the battery 12 V.
–
Be sure to place the fuse near the battery as shown.
4
Car battery
5
Ignition switch
6
JVC car receiver, etc.
*
Not supplied
AUDIO INPUT CONNECTION
AUDIO INPUT CONNECTION
When your receiver is equipped with line output.
1
JVC car receiver, etc.
2
Line out
*1
Not supplied
When your receiver is NOT equipped with line
output.
White "LEFT (+)"
Black "RECEIVER GND"
Gray "RIGHT (+)"
3
JVC car receiver, etc.
*2
Example: connecting to the ground
*3
Rear ground terminal
SPEAKER CONNECTIONS
The proper lead connected to each SPEAKER OUTPUT terminal is
AWG 18 to AWG 12. (The cross section is about 0.8 mm
System subwoofer
•
Use the subwoofer with an impedance of 2 Ω to 8 Ω.
1 Subwoofer
2
.)
2
.)
2
to 3.3 mm
2
.)
POWER SUPPLY CONNECTION
SPEAKER CONNECTIONS
