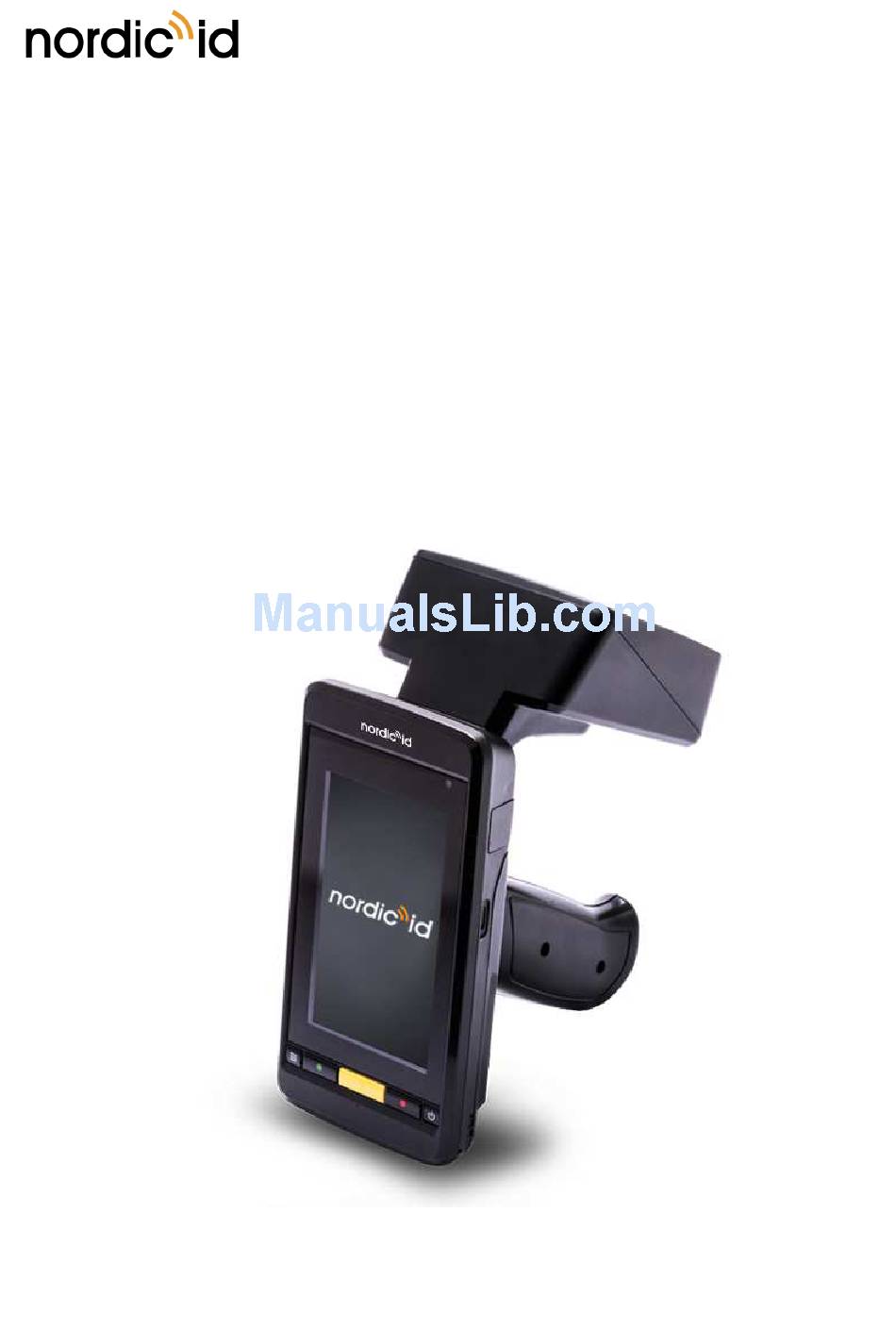

  • Page 1 2018-06-25 Nordic ID HH53 User Guide Version 1.0 NORDIC ID HH53 USER GUIDE...

  • Page 2: Table Of Contents

    GREEN KEY ....................................9 1.8.1.5. RED KEY ..................................... 9 SCANNING DIRECTIONS ................................. 10 NORDIC ID HH53 UHF RFID VARIANT ..........................11 NORDIC ID HH53 UHF RFID ACD VARIANT ........................11 2D IMAGER ....................................12 1.8.3.1. USING CONFIGURATION BARCODES..........................12 1.8.3.2.

  • Page 3: Getting Started

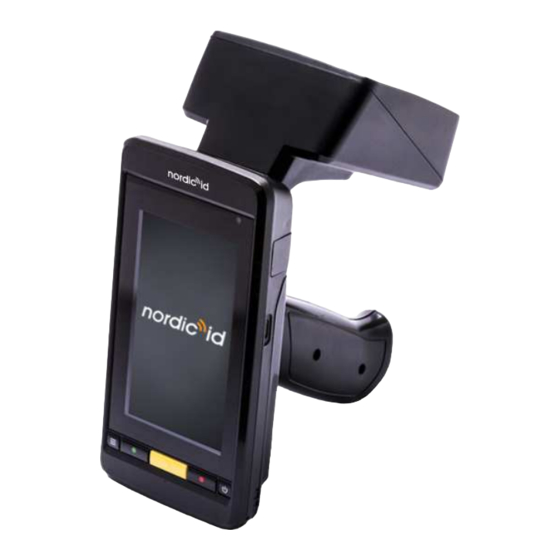

    GETTING STARTED 1.1. GENERAL Nordic ID HH53 is an ideal contemporary data collection tool. It consists of a mobile computer equipped with Android OS, a Gorilla Glass 2 touchscreen, and a high-performance RAIN RFID reader to perform quick, accurate and reliable inventories. Nordic ID HH53 integrates the new Nordic ID NUR2-1W module which provides state-of-the-art UHF RFID reading performance.

  • Page 4: Available Accessories

    Nordic ID Medea Micro-USB cable for device and desktop charger BAR00017 Nordic ID Medea and HH53 Standard lithium polymer battery >3500 mAh (NOTE: Not suitable for Nordic ID Medea ACD and Nordic ID HH53 ACD) BAR00020 Nordic ID Medea, EXA51e and HH53 Double capacity lithium polymer battery...

  • Page 5: Installing Battery

    2018-06-25 Nordic ID HH53 User Guide Version 1.0 1.5. INSTALLING BATTERY Picture 2 Installing battery Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland 5 / 19 Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com...

  • Page 6: Charging

    10W (5V @ 2A). Charging time from 0 – 100% via the desktop and 10W USB charger is about 3h for Nordic ID HH53 and 6h for Nordic ID HH53 UHF RFID ACD. Picture 3 Charging of the Nordic ID HH53 via desktop charger Picture 4 Charging of the Nordic ID HH53 via USB charger NOTE! The desktop charger is sold separately by Nordic ID.

  • Page 7: Battery Charging

    Version 1.0 BATTERY CHARGING Battery or spare battery of the Nordic ID HH53 can be charged in the desktop charger. Please note that when USB charging from the desktop charger is used, spare battery charging of the desktop charger is disabled.

  • Page 8: Features Overview

    2018-06-25 Nordic ID HH53 User Guide Version 1.0 1.7. FEATURES OVERVIEW Picture 6 Key features of Nordic ID HH53 Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland 8 / 19 Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com...

  • Page 9: Using The Reader

    1.8. USING THE READER BUTTONS The Nordic ID HH53 includes five physical keys for user interactions. Location of the keys can be seen in the . Nordic ID HH53 UHF RFID variant includes also two side keys for triggering UHF RFID and/or barcode reading whereas Nordic ID HH53 UHF RFID ACD variant contains a pistol grip which includes a trigger button instead of the side buttons.

  • Page 10: Scanning Directions

    Version 1.0 SCANNING DIRECTIONS Two variants of Nordic ID HH53 are available with different UHF RFID antennas: ACD and linear antenna variants. To get maximum reading performance, Nordic ID HH53 reader have to be handled by following these pictures showing ergonomic and easy way to hold and use the reader:...

  • Page 11: Nordic Id Hh53 Uhf Rfid Variant

    Version 1.0 NORDIC ID HH53 UHF RFID VARIANT Nordic ID HH53 UHF RFID includes linear antenna which nominal reading distance is about 1m / 3.3ft. NOTE! The reading range depends on used tag and environment NORDIC ID HH53 UHF RFID ACD VARIANT...

  • Page 12: Imager

    Opticon’s configuration tools (see link above) for creating configuration barcode and print it onto paper. Read the configuration code with the 2D imager of Nordic ID HH53 and new settings will be set and saved automatically. Please note barcode configuration codes can be read only when there is no active Bluetooth connection with the host device.

  • Page 13: Configuring Via Nur Accessory Extension Api

    After sending configuration file to the reader, Nordic ID RFID demo will send “save settings” command automatically to the 2D imager. Source code of Nordic ID RFID demo is public, so one can study how 2D imager configuration using the specific files has been implemented on Android. See section 2.2.2 for more information.

  • Page 14: Rf Profiles

    NOTE! Read rates will depend from the environment, reader settings, tag population and tag type. SOFTWARE Nordic ID has taken an open source SW development approach in use with the Nordic ID HH53. Nordic ID provides the SDK along with the examples through the GitHub. The Nordic ID HH53 supports powerful NUR API so developers can use familiar NUR API for application development.

  • Page 15: Nordic Id Keyboard And Wedge Service

    2.2. APPLICATION DEVELOPMENT NUR API IN GENERAL NUR API is an application programming interface for Nordic ID UHF RFID module. It provides control for all Nordic ID UHF RFID readers. The NUR API provides compatibility between Nordic ID UHF RFID reader from RFID functions perspective.

  • Page 16: Application Development

    UHF RFID readers to comply local regional requirements. Nordic ID has created set of regional settings in order to fulfill local regulations. Nordic ID is required to ensure compliance of Nordic ID products will remain after production. Solution for this is products including UHF RFID functionality will be set and locked in production based on customer order e.g.

  • Page 17: Warranty

    Version 1.0 WARRANTY Nordic ID warrants that the Products are at the time of delivery free from defects in materials and workmanship, provided the Products remain unmodified and are operated under normal and proper conditions. Warranty period is the longer of twenty-four (24) months from the date of delivery in case the Customer is end-customer or twenty-seven (27) months from the date of manufacture in case the Customer is reseller.

  • Page 18: Version History

    2018-06-25 Nordic ID HH53 User Guide Version 1.0 VERSION HISTORY Version Date Modifications 25.6.2018 The first version Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland 18 / 19 Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com...

  • Page 19: Appendices

    2018-06-25 Nordic ID HH53 User Guide Version 1.0 APPENDICES 9.1. APPENDIX 1 SAMPLE 2D IMAGER CONFIGURATION BARCODES NOTE! Barcode configuration codes can be read only when there is no active Bluetooth connection with the host device Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland 19 / 19 Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com...
