Summary of Contents for Hyster H360-36HD

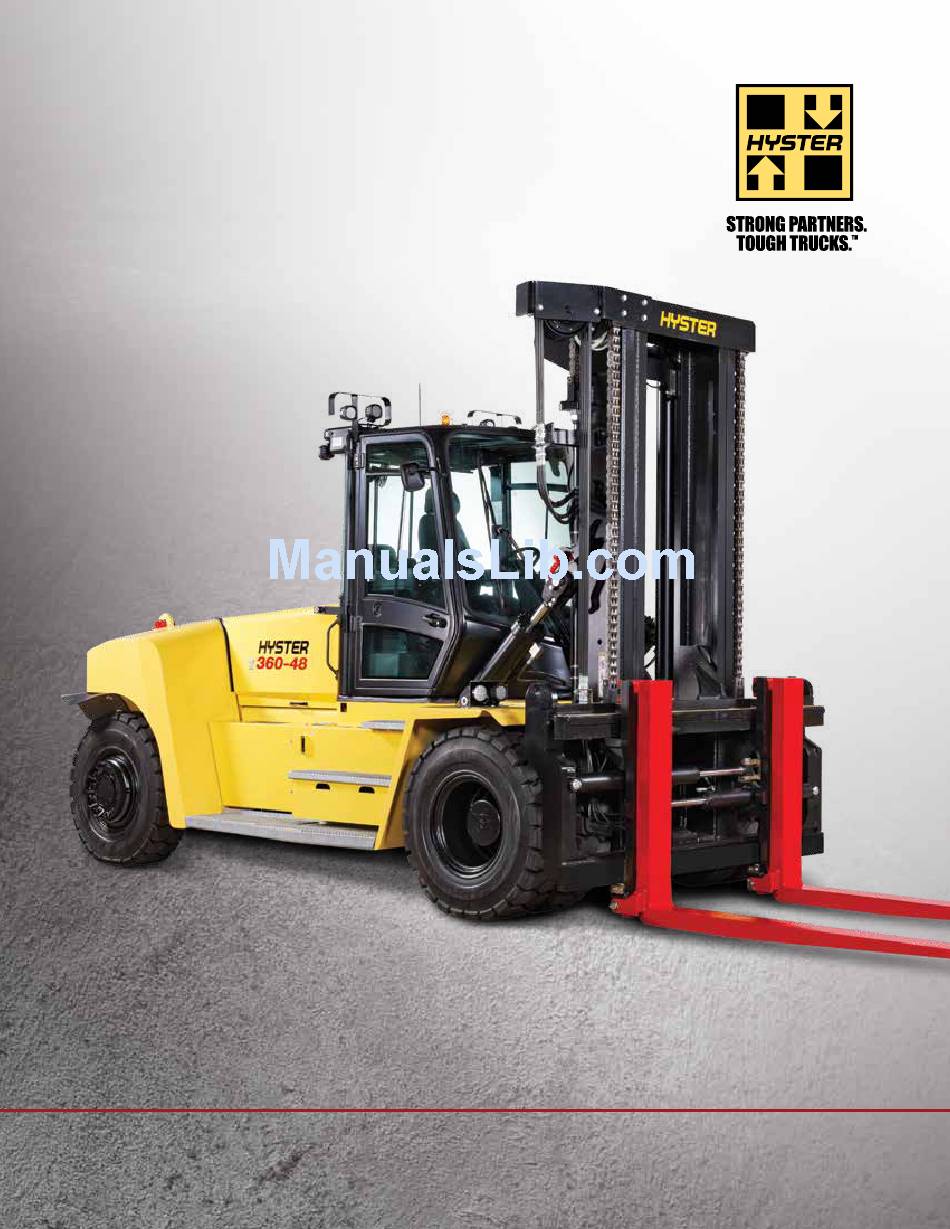

- Page 1 H360-36/48HD SERIES TECHNICAL GUIDE WWW.HYSTER.COM...
- Page 2 H360-36/48HD DIMENSIONS 4-21 4-35 4-32 4-31 4-20 4-19 Circled dimensions correspond to the line numbers on the tabulated chart inside the Technical Guide. Dimensions are in inches (millimeters).
- Page 3 33/26 33/26 CERTIFICATION: These Hyster ® lift trucks meet design specifications of Part II ANSI B56.1-1969, as required by OSHA Section 1910.178(a)(2) and also comply with Part III ANSI B56.1-revision in effect at time of manufacture. Certification of compliance with the applicable ANSI standards appears on the lift truck.
- Page 4 LOAD CENTER (in) LOAD CENTER (in) LOAD CENTER (in) Model H360-36HD: 36,000 lbs. at 36” (16,329 kg at 914 mm) load center Rated capacities are for trucks equipped with: Model H360-48HD: 36,000 lbs. at 48” (16,329 kg at 1220 mm) load center •...
- Page 5 HYDRAULIC SYSTEM MASTS Masts with nested channels provide maximum visibility of the Hyster on-demand load sensing hydraulic system introduces an attachment and load. Mast channels, rollers, stub shafts and chain efficient way to meet truck’s hydraulic load demands: • Based on Variable Displacement Pump (VDP) technology anchors are reinforced to provide good torsional rigidity.
- Page 6 Cummins, ZF, Kessler and Sy-Klone are registered trademarks of their 27835-7006 respective companies. Hyster products are subject to change without notice. Part No. H360-36/48HD/TG 11/2017 Litho in U.S.A. Trucks may be shown with optional equipment. © 2017 Hyster Company. All rights reserved.
