CONNECTIONS

2. CONNECTIONS

2.1. MIDI-connections

On its rear panel, SEQ12 offers connectors for MIDI-units. There are three outputs and one
input. To ensure optimal timing, SEQ12 offers three MIDI-outputs. If possible use these outputs
in parallel and avoid serial chaining of MIDI-units. Connect a suitable MIDI-unit to the MIDI-
input, such as a master-keyboard.

2.2. Power supply

2
In addition, you will also find the connector for the supplied power adapter (12 volts DC,
1000mA). It is labeled DC IN 12V.
IMPORTANT! Always and exclusively use the provided power supply! Using a power
supply with wrong performance data may result in damage of the SEQ12. Mode
Machines is not liable for damages resulting from wrong power supplies.

2.3. Prog-Ports

The connectors PROG 1 and PROG 2 will allow the connection of programming units to carry
out firmware updates.

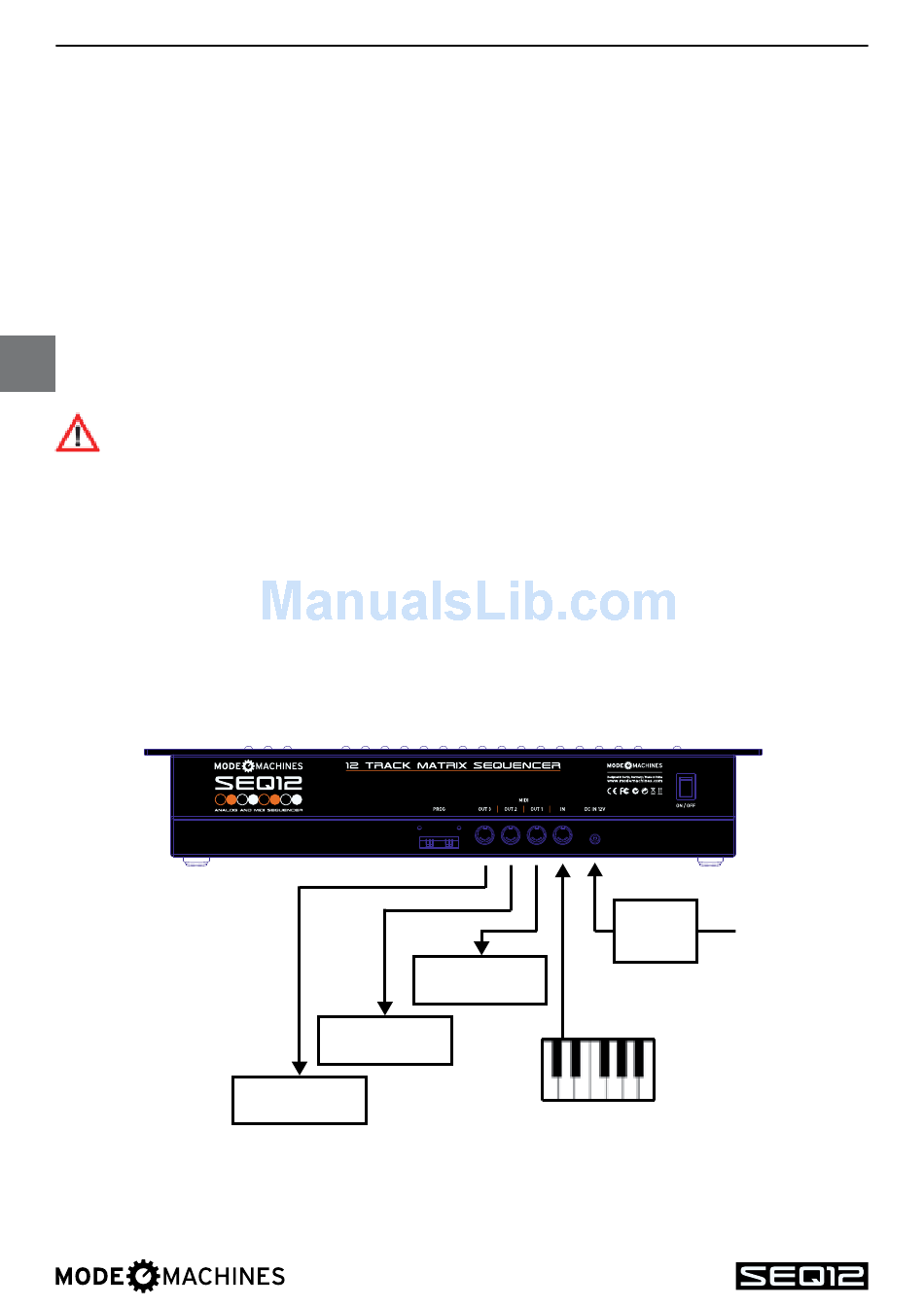

MIDI Synth 2
MIDI Synth 3
MIDI Synth 1
MIDI-Keyboard
6
Power
Supply
