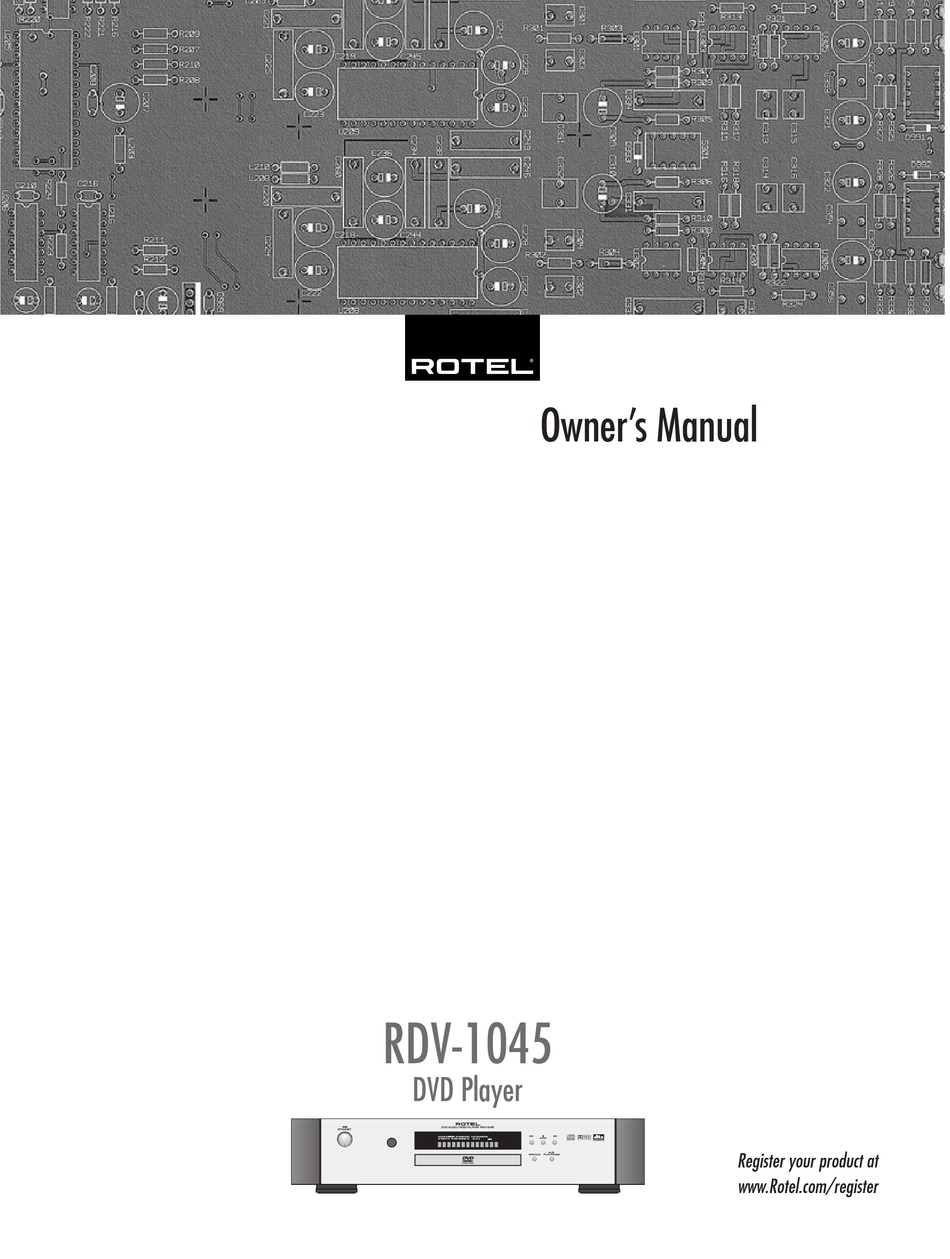

RDV-1045
DVD Player
��������������������������������
�������
V CD
DVD
VR
WMA
MP3 3D PHONIC BONUS B.S.P PROGRESSIVE
GR
TITLE
PG PL TR
CHAP PRGM RND GR
ALL
A - B
TIMER
Owner's Manual
����
�������
����������
Register your product at
www.Rotel.com/register

Advertisement

Table of Contents
loading

Related Manuals for Rotel RDV-1045

Summary of Contents for Rotel RDV-1045

  • Page 1 Owner’s Manual RDV-1045 DVD Player �������������������������������� ������� V CD MP3 3D PHONIC BONUS B.S.P PROGRESSIVE ���� TITLE PG PL TR CHAP PRGM RND GR A - B TIMER ������� ���������� Register your product at www.Rotel.com/register...

  • Page 2: Important Safety Instructions

    ������ ������� ���������� Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives.

  • Page 3: Figure 1: Rr-Dv99 Remote Control

    Figure 1: RR-DV99 Remote Control POWER button Press to turn the RDV-1045 on or off (standby). DISPLAY button Press to change the information shown in the display window. VSS button Turn on/off the simulated Virtual Surround Sound system. Repeat button Switches the RDV-1045 among the various repeat modes.

  • Page 4: Figure 2: Front Panel Controls

    A - B Disc tray Used to load discs. Display Window Shows various indicators and information about the operation of the RDV-1045. OPN/CLS (OPEN/CLOSE) button Opens and closes the disc tray. (STOP) button Stops playback. Also used to erase tracks from a programmed play list.

  • Page 5: Table Of Contents

    Their comments keep the company true to its goal - the pursuit of equipment that is musical, reliable and affordable. All of us at Rotel, thank you for buying this product and hope it will bring you many hours of enjoyment.

  • Page 6: Figure 4: Rear Panel Connections

    Thank you for purchasing the Rotel RDV-1045. It will provide years of enjoyment when used in a high-quality audio/video system. The RDV-1045 is one of the most flexible compo- nents you can add to your audio/video system. In addition to DVD Video discs, the RDV-1045 can play Video and audio CD discs recorded in a variey of formats.

  • Page 7: Component Input Tv Connection

    “Y” cable adapter to connect the two output channels of the RDV-1045 to the single input. You can improve the sound quality of the system by connecting the audio outputs to a separate hi-fi...

  • Page 8: Connecting To Audio Equipment With A Digital Input

    The Digital Audio Output setting in the Audio Preferences on-screen display must be set so the digital output of the RDV-1045 is compatible with the digital input of the component it is connected to. If this preference setting is not done correctly, loud noise may be generat- ed which can damage the speakers.

  • Page 9: Connecting The Power Cord

    Connecting the Power Cord AC Input It is best to plug the RDV-1045 directly into a 2-pin polarized wall outlet. Avoid the use of extension cords. Your RDV-1045 will automatically configure itself for the proper AC line voltage ranging from 110 volts to 240 volts at 50/60Hz. No setting is required to match the unit to your local voltage.

  • Page 10: Playable Discs

    • Only sounds can be played back from the following discs: MIX-MODE CD, CD-G CD-EXTRA and CD TEXT • The RDV-1045 can play NTSC and PAL system discs. If an NTSC disc is played when the Video Signal Type is set to PAL, the NTSC visdeo signal is converted to a PAL60 signal and output.

  • Page 11: Disc Care And Handling

    CANNOT PLAY THIS DISC – Appears when you try to play an unplayable disc. Setting the Output Signal Type With the RDV-1045 and the TV turned on, press the P.SCAN button on the remote. The The current video signal type will flash.

  • Page 12: Playing A Dvd Or Cd

    You can also use the numeric buttons to select an item. Key in the number of the item and press ENTER. The RDV-1045 starts playback of the selected item. Selecting a Track/Chapter with the Numeric Buttons –(PBC Off)

  • Page 13: Mp3/Wma/Asf/Mpeg1/Mpeg2 Disc

    • Specify the track number using the number buttons when the disc is stopped. Refer to the “Remote Control Numeric Buttons” section of this manual. • Specify the track number using PREVIOUS or NEXT when the disc is stopped, and then press (PLAY) •...

  • Page 14: Skip To Beginning Or End

    • The position where playback starts again may be slightly different from the stopped position. • The location where playback was stopped is remembered even if the RDV-1045 is turned off. • This function does not work in program playback or random playback.

  • Page 15: Programmed Playback

    Programmed Playback You can program up to 99 track or chapters to be played in a specific order. The same track or chapter can be prgrammed more than once. While the disc is stopped press P. MODE “PROGRAM” will appear in the display and an on-screen menu will appear.

  • Page 16: Repeat Playback

    RDV-1045 DVD Player Repeat Playback –(PBC off) Press REPEAT . Each time you press the button the repeat mode changes. Display on the Display in the Usage for the TV screen display window repeat mode Repeats the TITLE current title...

  • Page 17: Magnifying The Picture (Zoom)

    Each time you press the button, the angle will be changed. The angle can also be changed by pressing pq . Then press ENTER . The subtitle language setting will change automatically in a few seconds even if ENTER is not pressed. The viewing angle can also be controlled us- ing the Menu Bar.

  • Page 18: Menu And Status Bar

    RDV-1045 DVD Player Menu and Status Bar While a disc is playing press ON SCREEN twice. “ON SCREEN” will appear in the display window. The status and menu bars will appear on the TV screen. DVD Video Status/Menu Bar Example:...

  • Page 19: Preference Setup

    Preference Setup The initial settings of the DVD player can be changed with the Preference screen. NOTE: The top and bottom of the preference screen may not be displayed on a wide TV. If necessary adjust the picture size on the TV.

  • Page 20: Caring For The Rdv-1045

    • When the RDV-1045 is suddenly moved from a cold place to a warmer place. • When the RDV-1045 is in a cool room and a heating system is turned on. • When the RDV-1045 is installed in a steamy or damp space.
  • Page 21 Notes on MP3/WMA/JPEG/ASF discs and files • A disc may not be played back, or reading it may take a long time depending on its recording conditions or properties. • The time needed for reading varies with the number of groups or tracks (files) recorded on the disc.

  • Page 22: Troubleshooting

    RDV-1045 DVD Player Troubleshooting Power source Power does not come on. • The power cord of the RDV-1045 is not connected to an AC outlet. Connect the power cord correctly. Operation Controls and button do not work. • Some specific operations may be restricted for some discs.

  • Page 23: Language Codes

    Language Codes Afar Macedonian Abkhazian Malayalam Afrikaans Mongolian Ameharic Moldavian Arabic Marathi Assamese Malay (MAY) Aymara Maltese Azerbaijani Burmese Bashkir Nauru Byelorussian Nepali Bulgarian Dutch Bihari Norwegian Bislama Occitan Bengali, Bangla (Afan) Oromo Tibetan Oriya Breton Panjabi Catalan Polish Corsican Pashto, Pushto Czech Portuguese...

  • Page 24: Specifications

    RDV-1045 DVD Player Specifications Video Characteristics Readable discs: Video format: Video output: COMPONENT (pin jack): PB/PR Output: VIDEO OUT (pin jack): S-VIDEO OUT (S jack): C Output (NTSC): 286 mVp-p C Output (PAL): 300 mVp-p Horizontal resolution: Signal to noise ratio:...
  • Page 26 RDV-1045 082 OM 110806 English The Rotel Co. Ltd. 10-10 Shinsen-Cho Shibuya-Ku Tokyo 150-0045 Japan Phone: +81 3-5458-5325 Fax: +81 3-5458-5310 Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Dale Road...
