Artesyn ATCA-8330 Quick Start Manual

ATCA-8330

Quick Start Guide

P/N:6806800S67B (August 2014)
1
What's in the box?
Make sure you receive all items of your
shipment:

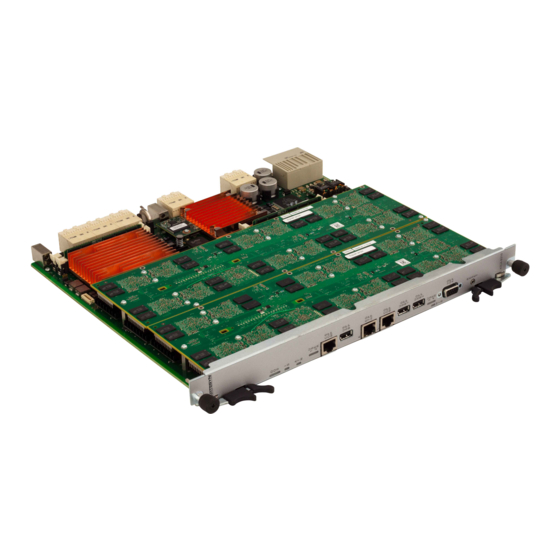

• One ATCA-8330 blade
• One printed copy of Quick Start Guide
(this document)
• One printed Safety Notes Summary
• Any optional items ordered
When installing or servicing the mod-
ule or accessories, strictly observe the
safety precautions in the Safety Notes
Summary. Otherwise, personal injury
or property damage may occur.
2
Observe ESD-safe
measures
• Use either a properly grounded ESD wrist
strap or make sure that you are working in
an ESD-safe environment.
• Connect to the ESD connector at the front
or the rear of the system.
3
Prepare the installation
site
• For information on the environmental and
power requirements, see the ATCA-8330
Installation and Use manual.
• Operating temperatures refer to the tem-
perature of the air circulating around the
blade and not to the actual component
temperature.
4
Install the DIMM
Notes:
• Some blade variants come with the DIMM
already installed.
• For thermal safety concerns, no 4-rank
DIMMs and stacked DIMMS are allowed.
1. If necessary, remove the blade from the sys-
tem.
2. Open the locks of the memory module
socket.
3. Press the memory module carefully into the
socket. As soon as the memory module is
fully inserted, the locks automatically close.
4. If necessary, repeat steps 2–3 to install addi-
tional memory modules.
5
Install the MO-297 SSD
module
1. Remove the blade from the system.
2. Plug the MO297 SSD module into the
MO297 connector. When inserting the
MO297 module to the on-board connec-
tor, hold the on-board connector with two
fingers to prevent damage to the connec-
tor.
3. Fasten the MO297 SSD module to the
blade using the screws supplied with the
ACC kit. The two screws M1.6x4mm with
Nylon Patch come with the module.
4. Reinstall the blade into the system.
