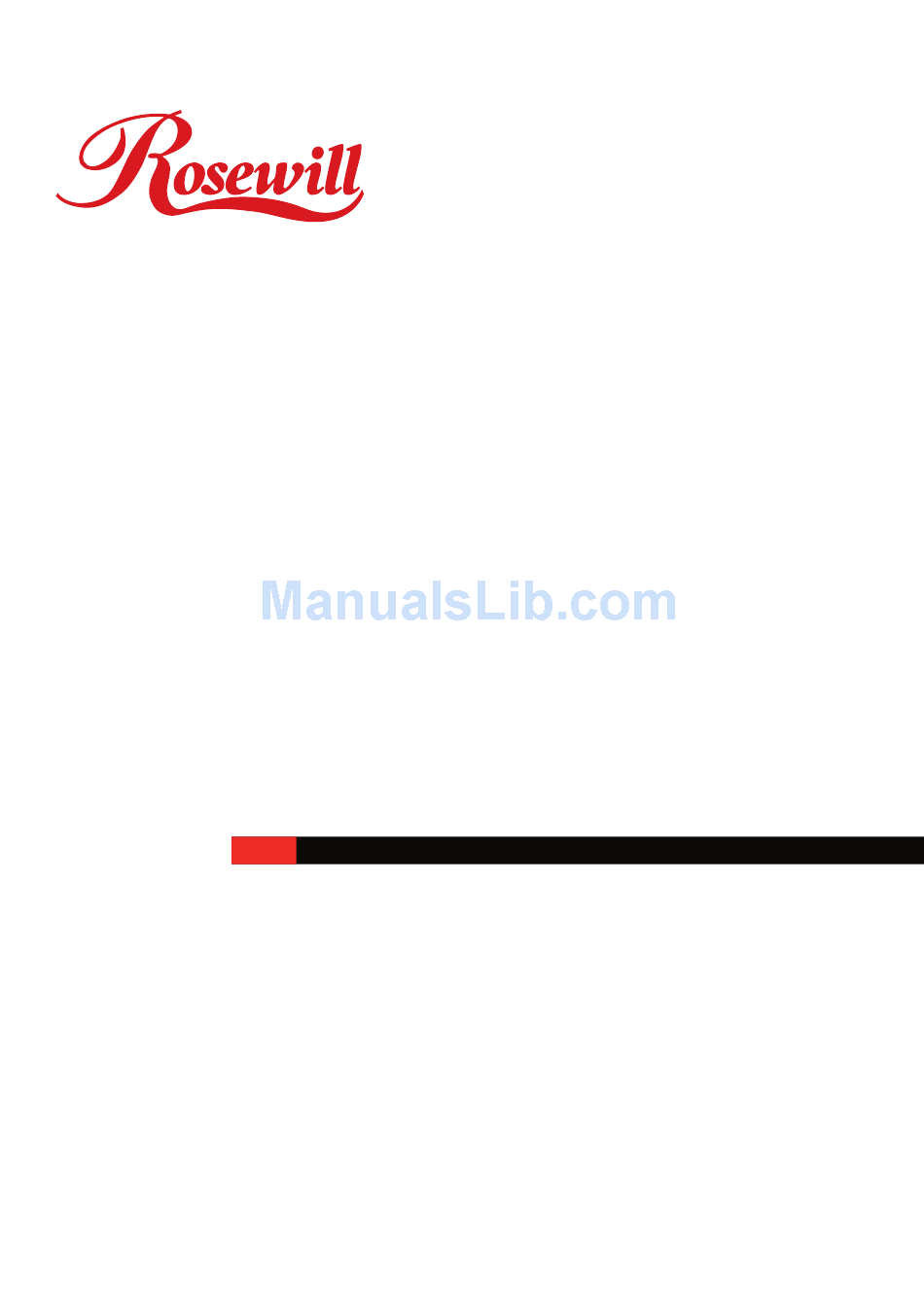

  • Page 1 LCD TV R908TV R918TV User Manual...

  • Page 2: Chapter 1 Introduction

    LCD TV R908TV R918TV Chapter 1 Introduction This chapter provides basic information about your LCD TV. Read this chapter to learn about: • Features • Warnings and safeguards • Package contents • Controls and connections Features • Bright, flick-free image •...

  • Page 3: Warnings And Precautions

    LCD TV R908TV R918TV Warnings and precautions • Do not place your hands, face, or objects close to the ventilation openings of you LCD TV. The top of your LCD TV gets very hot from exhaust air that is released through the ventilation openings.
  • Page 4 LCD TV R908TV R918TV A. Function Keys Instruction for TV Up: Scroll up the menu bar, hot key to adjust channel up Down: Scroll down the menu bar, hot key to adjust channel down Menu: Activate OSD menu Right : Increase setting the menu bar, hot key to adjust volume up...
  • Page 5 LCD TV R908TV R918TV User Manual B. I/O Connection:...
  • Page 6 LCD TV R908TV R918TV C. OSD (On Screen Display) menu enables user to manipulate the image and settings OSD Main menu consists of source: 1. COLOUR 2. PICTURE 3. OSD MENU 4. MISCELLANEOUS 5. EXIT COLOUR Contrast Press “+” or “-“ to adjust image get distinct or vague Brightness Press “+”...
  • Page 7 LCD TV R908TV R918TV PICTURE H. Position Press “+” or “-“ to move to left or right side of image V. Position Press “+” or “-“ to move to up or down side of image Phase Press “+” or “-“ to adjust remove noise and sharpen the image Clock Press “+”...

  • Page 8: Osd Menu

    LCD TV R908TV R918TV OSD MENU Language Press “MENU“ to set 8 languages OSD H. Position Press “+” or “-“ to move to left or right side of OSD OSD V. Position Press “+” or “-“ to move to up or down side of OSD OSD Time Press “+”...
  • Page 9 LCD TV R908TV R918TV EXIT Exit Press “MENU“ to go back MENU VIDEO OSD Contrast Press “+” “-“ or IR Brightness Press “+” “-“ or IR Press “+” “-“ or IR Saturation Press “+” “-“ or IR Exit Press “MENU“ to go back MENU...
  • Page 10 LCD TV R908TV R918TV TV OSD TV Signal Press “+” “-“ or IR TV System Press “MENU” into TV system to select NTSC,NTSC-J or PAL system Press “+” “-“ or IR Auto Scan Press “+” “-“ or IR CH Edit Press “MENU”...
  • Page 11 LCD TV R908TV R918TV User Manual TV System Press “MENU” into TV system Press “UP “DOWN“ or IR to change the TV system (NTSC, PAL) Select “Exit” and press “Menu” to exit TV Sstem CH Edit Press “MENU” into CH Edit...
  • Page 12 LCD TV R908TV R918TV CUR CHANNEL: Press remote control number key, enter channel number. Then press IR MENU key jump to NEW CHANNEL. Press IR NEW CHANNEL: Press remote control number key and you want change channel number. Then press IR MENU key.

  • Page 13: Remote Control

    LCD TV R908TV R918TV User Manual D. Remote Control...
  • Page 14 LCD TV R908TV R918TV User Manual...
  • Page 15 LCD TV R908TV R918TV User Manual...
  • Page 16 LCD TV R908TV R918TV User Manual...
  • Page 17 LCD TV R908TV R918TV User Manual...
  • Page 18 LCD TV R908TV R918TV User Manual E. Applicable Timing This A/D board supports the video timing listed above. In some cases, TFT LCD manufacturers guarantee within specific pixel frequency (dot clock) Range based on the application range. As example, TFT LCD hardly displays the Image properly over 60Hz refresh rate.

  • Page 19: Power Supply

    LCD TV R908TV R918TV PC RGB Input Input Signal Input Impedance Polarity Amplitude Multi-mode Supported Power Supply Input Voltage Output Voltage Power Management Environment Operation Condition Storage Condition Analog RGB 0.7Vp-p 75 Ohm ± 2% Positive, Negative 0 ~0.7 ± 0.05Vp...

  • Page 20: Chapter 6 Safety, Regulatory And Legal Information

    This LCD TV does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada. Thank you for purchasing Rosewill Product. Please register your product at www.rosewill.com for complete warranty information and future support for your product. User Manual...
