Summary of Contents for Rosewill R700N

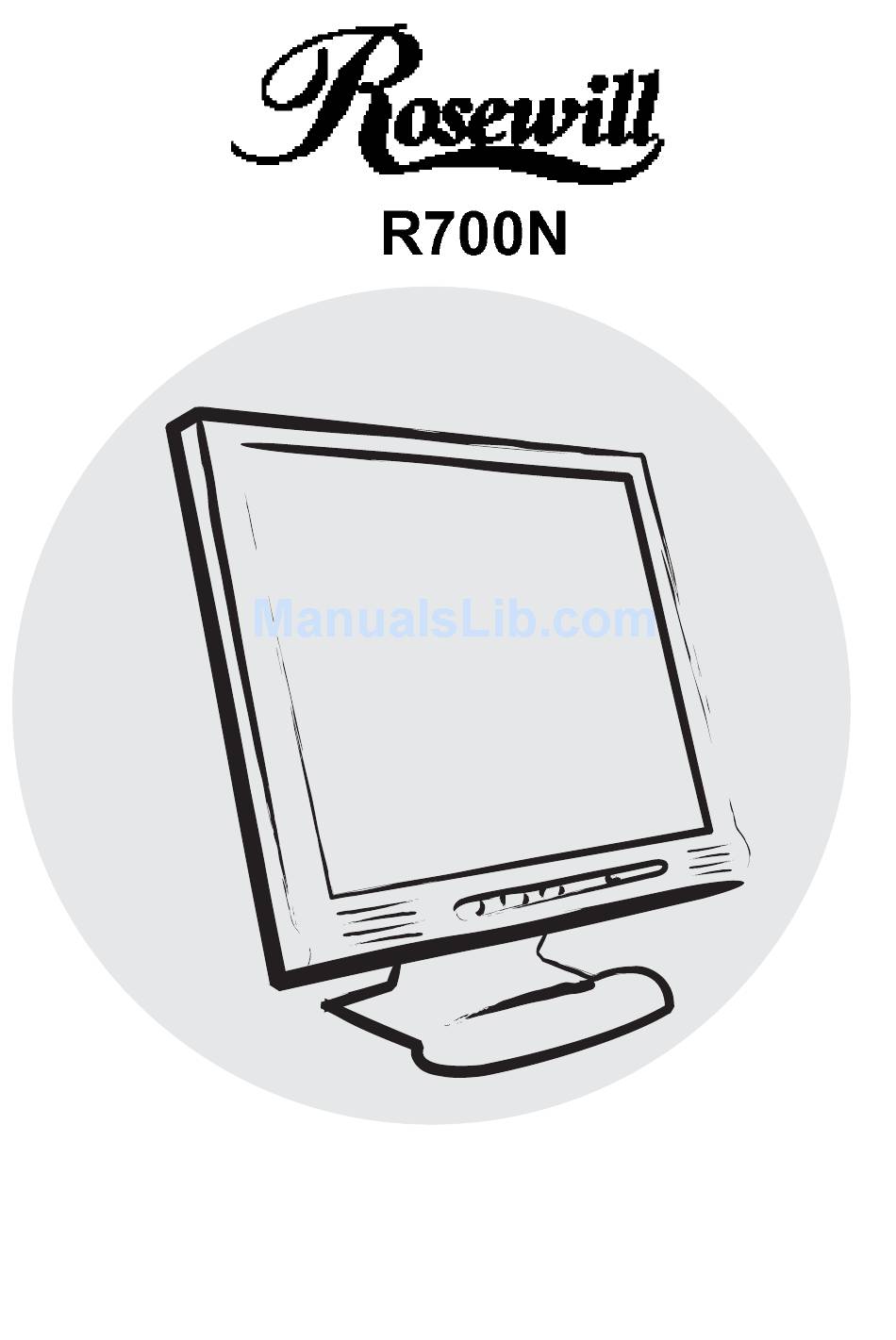

- Page 1 User Manual...
-
Page 2: Table Of Contents
contents Section 1 : Introductions Section 2 : Ports and function introduction Section 3 : Installation Guide Section 4 : OSD Function Operation Section 5 : Monitor Specification Section 6 : Pre-Set Display Mode Section 7 : Tr oubleshooting... -
Page 3: Section 1 : Introductions
Section 1 : Introductions Product Specification Power Management The computer controls the Power Management Function of the monitor. Please choose the computer which supports this function. Status LED light Green Stand by Orange Suspend Orange OFF Mode Yellow Screen Power Consumption Bright Normal Dark... -
Page 4: Section 2 : Ports And Function Introduction
Section 2 : Ports and function introduction AUTO BUTTON AUTO & Enter. Button For OSD function. Button For OSD function. Menu Button For OSD function. Power Switch. Power Inductor... - Page 5 Audio in. DC Power in. VGA in.
-
Page 6: Section 3 : Installation Guide
Section 3 : Installation Guide Check parts before installing Each monitor should enclose the following parts. Any assistance please contact the shop where you bought. 1. Monitor 2. AC/DC Power Adapter 3. AC Power Cable 4. Audio Cable 5. VGA Cable 6. -
Page 7: Section 4 : Osd Function Operation
Section 4 : OSD Function Operation Key Function instruction AUTO : If the screen image is not in the best status. Press AUTO key for better image or use MENU key to adjust by yourself. MENU : Press MENU button. Then you will see main menu screen. Press again. - Page 8 MENU : Press MENU button. Then you will see main menu screen. Press again. Then choose the item and adjust by + and H . Position Adjust Horizontal Position. V . Position Adjust Vertical Position. Sharpness Adjusts background black level of screen image. Phase Adjust DOT CLOCK level of screen image.
- Page 9 MENU : Press MENU button. Then you will see main menu screen. Press again. Then choose the item and adjust by + and Auto Adjust Auto adjust function. Yes or No. Auto Color Color auto adjust function. Yes or No. Exit Exit the current menu page or made.
- Page 10 MENU : Press MENU button. Then you will see main menu screen. Press again. Then choose the item and adjust by + and Language Language selection. OSD H . Position OSD window horizontal position adjustment. OSD V . Position OSD window vertical position adjustment. OSD Timer OSD screen standby time.
- Page 11 MENU : Press MENU button. Then you will see main menu screen. Press again. Then choose the item and adjust by + and Signal Source Select signal sources. Mode Select Resolution select. Reset Recall factory setting. Volume Volume adjust. Exit Exit the current menu page or made.
-
Page 12: Section 5 : Monitor Specification
Section 5 : Monitor Specification... -
Page 13: Section 6 : Pre-Set Display Mode
Section 6 : Pre-Set Display Mode Mode Resolution 640*350 720*400 720*400 640*480 640*480 640*480 640*480 640*480 800*600 800*600 800*600 800*600 800*600 832-624 1024*768 1024*768 1024*768 1024*768 1152*900 1152*900 1280*1024 1280*1024 1280*1024 1280*1024 Horizontal Frequency (KHz) 31.5 KHz / 70.1 Hz 31.5 KHz / 70.1 Hz 37.9 KHz / 85.1 Hz (note2) 31.5 KHz / 60.0 Hz... -
Page 14: Section 7 : Troubleshooting
Section 7 : Troubleshooting No Picture 1. Check if the video signal cable is properly connected with the output of the monitor. 2. Check POWER SWITCH. 3. Adjust the brightness and contrast. 4. Check if the LCD monitor is no data status. if it is the LED will appear orange. - Page 15 whether the display signal cable is properly connected.the loseness of the pin within the plug of cable will lead to connective failure. 2. Connect the monitor to another PC. SYNC. Problem With The Monitor 1. Check if the display input signal is within the specified range (56~75Hz).
