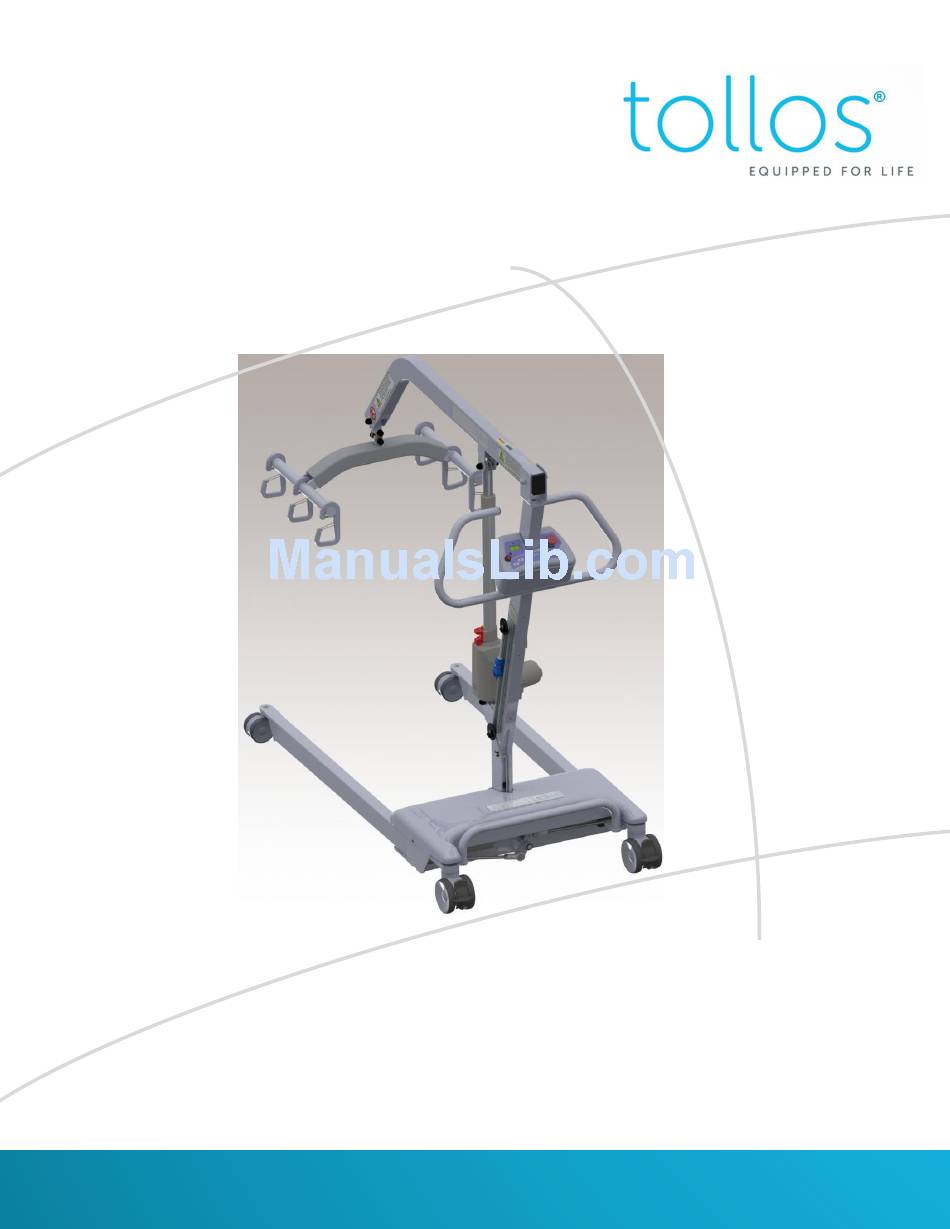

- Page 1 Ultralift™ 3510/7510 Series Owner’s Manual Phone: 1-888-363-7224 Fax: 410-363-7708 customerservice@tollos.com www.tollos.com...
-
Page 2: Table Of Contents
Table of Contents General Information ............................. 4 About the product ............................ 4 Safety Information ............................ 5 Parts Designation ............................6 Product Description ............................8 Functions ..............................8 On/Off Switch (Emergency Stop) ......................8 Battery Level / LED Display ........................9 Legs Opened or Closed (iQ Models Only) ................... - Page 3 Limited Warranty ............................ 23 Exclusions ..............................23 Warranty Process ............................ 24 Technical Specifications ..........................26 Product Information ..........................26 Battery Performance ..........................26 Lift Dimensions............................27 Order Template ............................29 Parts & Service ............................30 TUL-01-OM-REV.1 P a g e | 3 ©...
-
Page 4: General Information
Ultralift™ is designed to perform all types of lifts. It can also be used as a bath lift in many situations. When used as a bath lift, we recommend using a Tollos® mesh bath sling. Ensure your model does not exceed weight capacity: 3510X is 600 lbs. and 7510X is 750 lbs. -
Page 5: Safety Information
At same time, visibly cause injury and void of inspect spreader bar to ensure all bolts are tight. Never leave a warranty. Use only Tollos® Medical parts and Tollos® patient unattended in a lift. Medical approved items on the... - Page 6 General Information Safety Information WARNING: Improper use can cause the lift to tip when transporting a resident if the lift makes a sudden stop during forward motion. This can cause injury if the resident falls. --------------------------------------------------------------------------------------------- To ensure that the lift will not incur this situation, ensure that when transporting the lift’s path is free from obstruction (bed legs, furniture, other medical equipment, etc) TUL-01-OM-REV.1...
-
Page 7: Parts Designation
Parts Designation Legend 1. Boom 2. Spreader Bar 3. Handle Bar 4. Control Box 5. Rear Casters 6. Front Casters TUL-01-OM-REV.1 P a g e | 7 © Copyright 2017. All rights reserved. -
Page 8: Product Description
Product Description Functions On/Off Switch (Emergency Stop) To turn power on, rotate the red button to the right (clockwise) a quarter of a turn. This will allow the button to pop upward. Then press any function button. Simply push the red button down to turn power off. -
Page 9: Battery Level / Led Display
Product Description Battery Level / LED Display The 5 LED display on the Mast Control Box provides two types of information to the caregiver. When the lift is on but not in operation, it displays battery capacity. The reading should always be in the “green zone”. -
Page 10: Legs Opened Or Closed (Iq Models Only)
Product Description Legs Opened or Closed (iQ Models Only) Using the base widening controls to the left of the battery indicator, press the Open button to widen the base. Press the Close button to close the base. Base widening is to navigate objects like a wheelchair, rather than for stability “Close”... -
Page 11: Weigh Scale (Iq Models And Internal Scale Option Only)
Product Description Weigh Scale (iQ Models and Internal Scale Option only) To enter weigh scale mode, press and then release the red button. (Page 14 for details) Weigh Scale Hand Control Press the upper left button on the pendant to raise the boom. To lower the boom, press the upper right button. -
Page 12: Iq Technology(Option)
Product Description iQ Technology(Option) The Ultralift™ is equipped with iQ Technology® that provides very useful data to assist with maintenance, training and compliance. An explanation of these is set forth below: Explanation of LCD Display Message Three sets of messages are displayed depending upon the lift being in normal operation, when a specific button is pushed or when being charged. - Page 13 Product Description 3. Charging Message: CHARGE PERC: % Display the current level of charge in the battery. This is displayed as a percentage in increments of 10%. 4. Service Requirements LCD will show a number of cycles until service is needed. TUL-01-OM-REV.1 P a g e | 1 3 ©...
-
Page 14: Scale Operation
Product Description Scale Operation Internal Scale Option WARNING: The integrated scale is not approved to determine mass in medical practice, including the weighing of patients in connection with health monitoring. ENTER WEIGH MODE 1. Press the RED button once and release 2. -
Page 15: Safety Features
Product Description Safety Features In the event the actuator will not retract and the resident is suspended, raise a bed or chair high enough to safely support the resident to allow you to detach the sling. If this is impossible, then position the resident over a bed or chair and gently lift upward on the red emergency down lever until the actuator starts to retract. -
Page 16: Battery
Product Description Battery Battery Charging 1. Choose a suitable, safe location to place the lift near an AC power outlet. 2. Lock the rear casters. 3. Extend the power cord and plug into a 110V AC power outlet. 4. Ensure battery level indicator green lights are flashing sequentially. 5. -
Page 17: Lifting A Patient
Lifting a Patient Raising a patient 1. If the patient is being lifted from a wheelchair or transfer chair or be, make sure brakes on the chair or bed are locked. 2. Turn the ON/OFF switch to the “ON” position (Large red button “up”). 3. -
Page 18: Lowering A Patient To A Bed
Lifting a Patient Lowering a Patient to a Bed 1. Roll the legs under the bed, and position the resident over the bed. Ensure bed wheels are locked. 2. Raise the bed rail on opposite side of bed (if applicable) 3. -
Page 19: Lift Legs Position
Lifting a Patient Lift Legs Position Legs SHOULD be opened at the following times: • To allow access around chairs, toilets or other impediments. • To increase stability particularly with heavier patients. • So it is recommended to have legs open when lifting or lowering if possible though not required except as set forth below;... -
Page 20: Maintenance & Care
All inspection records should be saved for future reference. WARNING: MAINTENANCE AND SERVICE MUST BE DONE BY A QUALIFIED TECHNICIAN, FULLY TRAINED IN SERVICING PROCEDURES BY Tollos® Service Warning The Ultralift™ with its iQ Technology® will display service requirements. -
Page 21: Safety/Maintenance Inspection Checklist
Maintenance & Care Safety/Maintenance Inspection Checklist Component OK - N/A Reason - Comments Replace - Fix ACTUATOR Inspect lift actuator collar (SKF actuators only) Inspect actuator mounting points for cracks or defects Inspect actuator inner and outer tube for any damage Inspect actuator housing for any damage Inspect actuator for excessive noise Inspect actuator for convulsive movement... -
Page 22: Trouble Shootings
Trouble Shootings Problem Solutions Make sure the lift is not plugged in The lift does not operate Check the On/Off button. Twist E-Stop button to turn on Test Hand Control. If no functions, replace Charge the battery ... -
Page 23: Warranty
This limited warranty applies only to the Tollos products sold in the United States and Canada, and does not apply to equipment that has been damaged or rendered defective because of: ... -
Page 24: Warranty Process
Examples of misuse include, but are not limited to cracked hand controls, cracked shrouds, electrical wires pulled from the unit and others. Warranty Process Customers can be in contact with Tollos via phone or Email to inquire whether a product is under warranty. Phone: 1-888-363-7224 ... - Page 25 Replacement products or components will be invoiced as a replacement product or component, including freight. Upon receipt of parts by Tollos, authorized to be returned, the replacement product or component will be fully credited if it is determined that the component is under warranty.
-
Page 26: Technical Specifications
Technical Specifications Product Information Operation: Electric Actuator Safe Working Load: Model 3510XH: 600lbs (272kgs) Model 7510XH: 750lbs (340kgs) Front Casters: 100mm or 4” (Optional 3” Low Clearance) (Optional flat base) Power Source: Two 12V, 2.6Ah batteries Charger: 24V CSA/UL Approved Overall Weight: Model 3510XH: 144 lbs or 66kg Model 7510XH: 146lbs or 67 kg... -
Page 27: Lift Dimensions
Technical Specifications Lift Dimensions Legs Closed Legs Opened Boom Retracted Ultralift 3510, 6 points Spreader Bar Ultralift 7510, 6 points Spreader Bar TUL-01-OM-REV.1 P a g e | 2 7 © Copyright 2017. All rights reserved. - Page 28 Technical Specifications Boom Extracted Ultralift 3510, 6 points Spreader Bar Ultralift 7510, 6 points Spreader Bar TUL-01-OM-REV.1 P a g e | 2 8 © Copyright 2017. All rights reserved.
-
Page 29: Order Template
Order Template TUL-01-OM-REV.1 P a g e | 2 9 © Copyright 2017. All rights reserved. -
Page 30: Parts & Service
Customer service and product support are important aspects of each Tollos® product. For assistance with the lift, contact Tollos® Customer Service. Please have the serial number of your Tollos® product available when calling Customer Service, and include it in all written communications.
