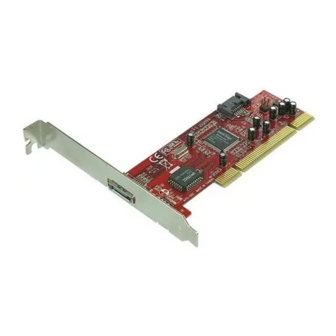

Rosewill RC205 User Manual

Sata-150 1-int/1-ext port pci adapter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
SATA-150 1-Int/1-Ext Port PCI Adapter RC205
User Manual

Advertisement

loading

Related Manuals for Rosewill RC205

Summary of Contents for Rosewill RC205

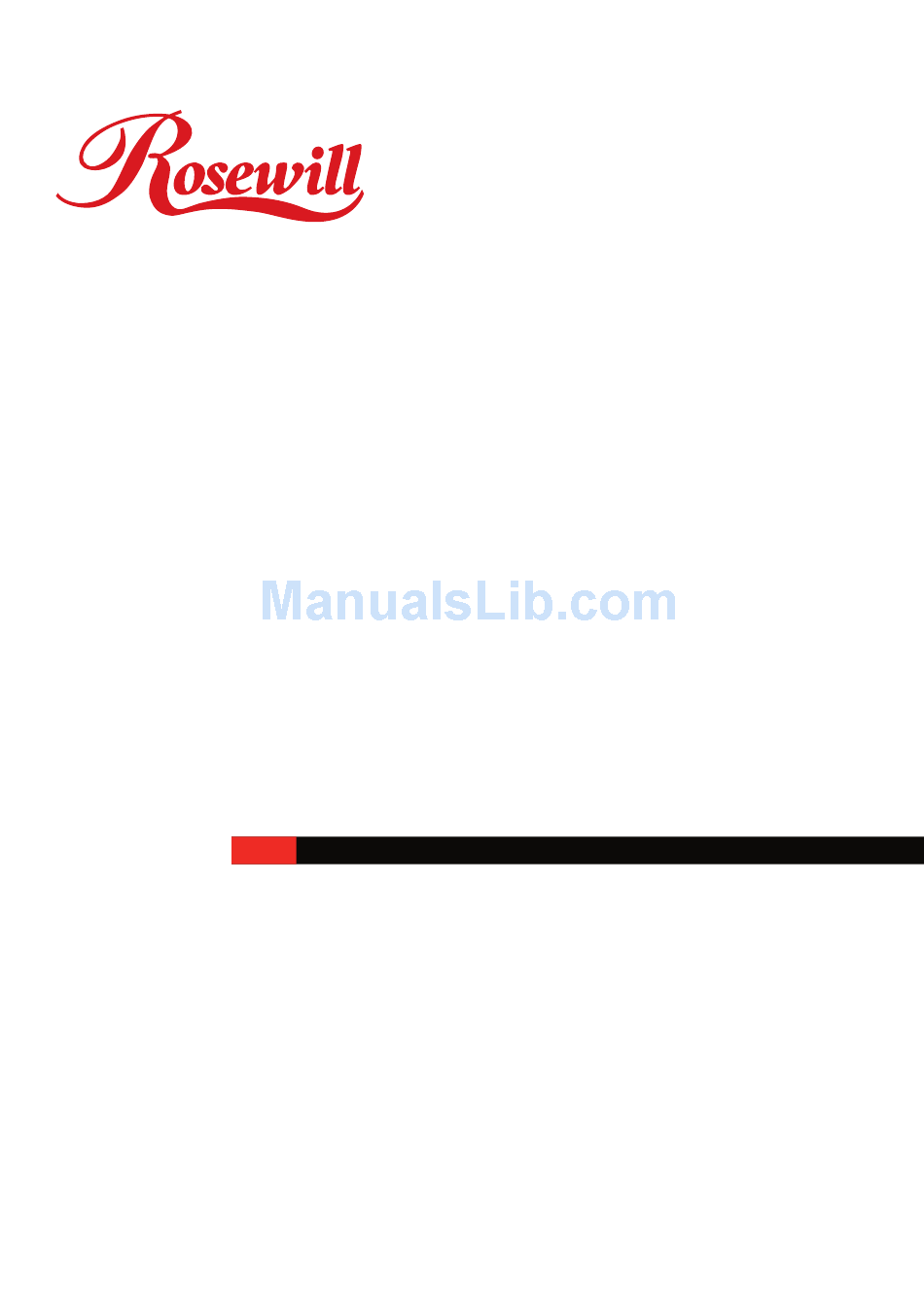

  • Page 1 SATA-150 1-Int/1-Ext Port PCI Adapter RC205 User Manual...

  • Page 2: Pci Interface

    SATA-150 1-Int/1-Ext Port PCI Adapter RC205 This Manual for the Models of 2 Channels SATA HBA: Model A: Low Profile Serial ATA Internal 2 Ports Model B: Low Profile External 1 Port + Internal 1 Port Model C: Low Profile Internal 1 Port + External 1 Port + Bracket Power Model D: External 2 Ports + Bracket Power 1.

  • Page 3: Software Installation

    SATA-150 1-Int/1-Ext Port PCI Adapter RC205 1st generation Serial ATA data rates. (1.5Gb/s) • Fully compliant with Serial ATA 1.0 specifications. • Supports Spread Spectrum in receiver. • Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes.
  • Page 4 SATA-150 1-Int/1-Ext Port PCI Adapter RC205 User Manual PCI Host Adapter for the operating systems: New & Existing Windows 98/98 SE New & Existing Windows ME New & Existing Windows NT 4.0 New & Existing Windows 2000 New & Existing Windows XP 2.1.
  • Page 5 SATA-150 1-Int/1-Ext Port PCI Adapter RC205 User Manual Manager tab. 3. Double click Other Devices then PCI RAID Controller. 4. Click Driver tab, then Update Driver. 5. Insert the Driver diskette, check Specify the location of the driver (advanced) and click Next.
  • Page 6 SATA-150 1-Int/1-Ext Port PCI Adapter RC205 User Manual Double click My Computer/Control Panel/SCSI Adapters, then click the Drivers tab. 2. Click Add… then Have Disk... 3. Insert the Driver diskette into the floppy drive and type in A:\, then click OK.
  • Page 7 4. A message This device is working properly is displayed in the dialog box, the driver has been correctly installed. Thank you for purchasing Rosewill Product. Please register your product at www.rosewill.com for complete warranty information and future support for your product.
