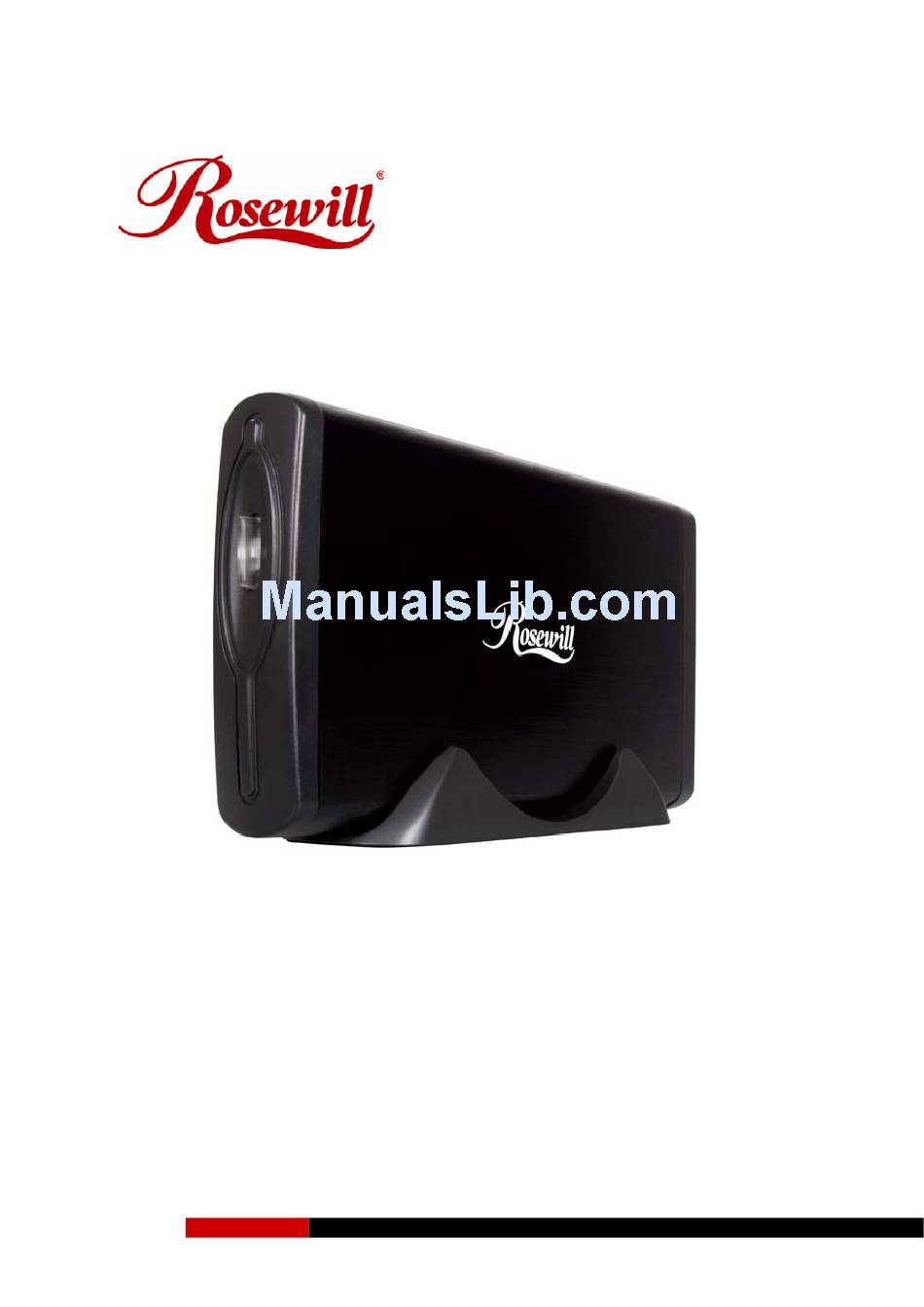

- Page 1 [ RX353 Series ] 3.5" SATA HDD to USB & eSATA Ext. Enclosure w/Int.50mm fan User Manual...
- Page 2 Motherboard supports HOT-SWAP function. Otherwise, the hot swappable Function won't be work as well. (Please refer back to motherboard user guide) Please register your product at www.rosewill.com for complete warranty information and future support. If you have any question while using our products, please feel free to contact us at feedback@rosewill.com .
- Page 3 3.5" SATA HDD to USB & eSATA Ext. Enclosure w/Int.50mm fan [ RX353 Series ] User Manual STEP1 Take out the enclosure from Aluminum cover. STEP2 You will see the internal structure of the Enclosure.
- Page 4 3.5" SATA HDD to USB & eSATA Ext. Enclosure w/Int.50mm fan STEP3 Fit the 3.5” HDD SATA connector into PCB’s SATA connector. Push the HDD toward the PCB and make sure the connector is well connected. [ RX353 Series ] User Manual...
- Page 5 3.5" SATA HDD to USB & eSATA Ext. Enclosure w/Int.50mm fan [ RX353 Series ] User Manual STEP4 Screw the HDD on the enclosure tightly. STEP5 Push the HDD prop into the Aluminum Cover.
- Page 6 3.5" SATA HDD to USB & eSATA Ext. Enclosure w/Int.50mm fan [ RX353 Series ] User Manual STEP6 Please install both screws STEP7 Press the LED switch for power on/off.
- Page 7 Please make sure your external HDD is turned on and well connected to the PC before formatting the HDD. STEP1: Right-click “My Computer” icon and select the “Manage” column. STEP2: Select “Disk Management” and you will see your External HDD showed “Unallocated”. [ RX353 Series ] User Manual...
- Page 8 3.5" SATA HDD to USB & eSATA Ext. Enclosure w/Int.50mm fan [ RX353 Series ] User Manual STEP3: Right-click on the “Unallocated” blocks and selects “New Partition”. STEP4: The “New Partition Wizard” will appear. Please follow the instruction of the wizard to complete.
- Page 9 3.5" SATA HDD to USB & eSATA Ext. Enclosure w/Int.50mm fan [ RX353 Series ] User Manual STEP5: When new partition is completed, the external HDD will be recognized as a “New Volume”. STEP6: Double-click “My Computer”. You will see the new...
- Page 10 The computer will recognize the enclosure during the booting sequences and you should be able to see the drive after MS Windows boot up. [ RX353 Series ] User Manual...
