- Page 1 Case R7329 ATX Computer User Manual...
-
Page 2: Table Of Contents
ATX Computer Case R7329 Chapter 1 Chapter 2 Product Introduction Drawing …………………………………...……….. 2 Specification……………………………...…….……. 2 Installation Removing and installing side panels...3 Installing the Motherboard...4 Installing Add-on card ...4 Installing Drives (CD/DVD ROM, FDD and HDD)...5 Replacing the Power Device ……………...…...….5 Replacing/ Installing the Case Fan ……….…...6... -
Page 3: Product Introduction Drawing

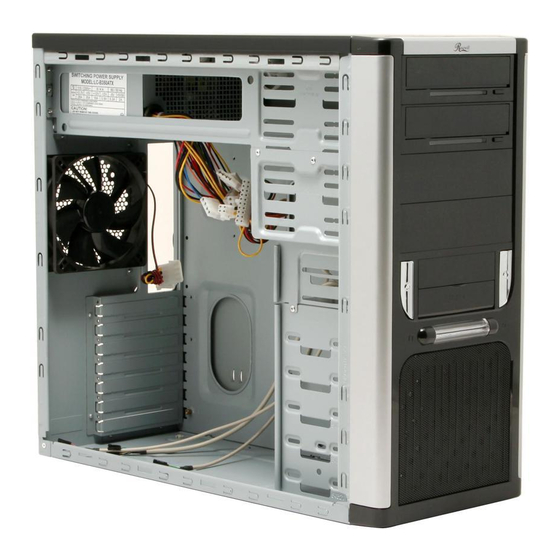

ATX Computer Case R7329 Chapter 1: Introduction Mechanical Drawing: Specifications: Dimensions M/B Type Material 5.25” Drive Bay 3.5” Drive Bay I/O Panel Cooling System Power Supply Expansion slot 200mm(W) x 430mm(H) x 480mm(D) ATX 12” x 9.6” (30.5cm x 24.5 cm); Micro-ATX SECC Metal 0.8cm... -
Page 4: Chapter 2: Installation
ATX Computer Case R7329 Chapter 2: Installation Removing and installing side panels Loosen the thumb screws from the back and pull the side panel backward to remove it. Fit the hooks of the panel to the elongated holes on the edges of casing, and slide the panel toward and secure with screws to install the panel. -
Page 5: Installing The Motherboard
ATX Computer Case R7329 Installing the Motherboard Installing the IO panel that comes with Motherboard package. Aiming at the holes on the Motherboard, and secure the copper posts (stand off) on Motherboard plate. Align the holes of PCB and Motherboard plate, and secure them by fastening screws to the cooper posts. -
Page 6: Installing Drives (Cd/Dvd Rom, Fdd And Hdd)
ATX Computer Case R7329 Installing Drives (CD/DVD ROM, FDD and HDD) Detach the front panel from the casing by pressing the clips that on the rear side of front panel. Remove the metal cover of the bay. Insert the device in place; and secure with screws. -
Page 7: Replacing/Installing The Case Fan
ATX Computer Case R7329 Replacing/Installing the Case Fan Change the Front Fan Loosen the fan screws from the rear casing, and remove the fan. Install the new fan and secure it with screws. I/O Function Panel Installation Guide Please refer to the illustration on the section of USB2.0 and Audio connector from the motherboard user’s manual. - Page 8 ATX Computer Case R7329 User Manual Thank you for purchasing Rosewill Product. Please register your product at www.rosewill.com for complete warranty information and future support for your product.
