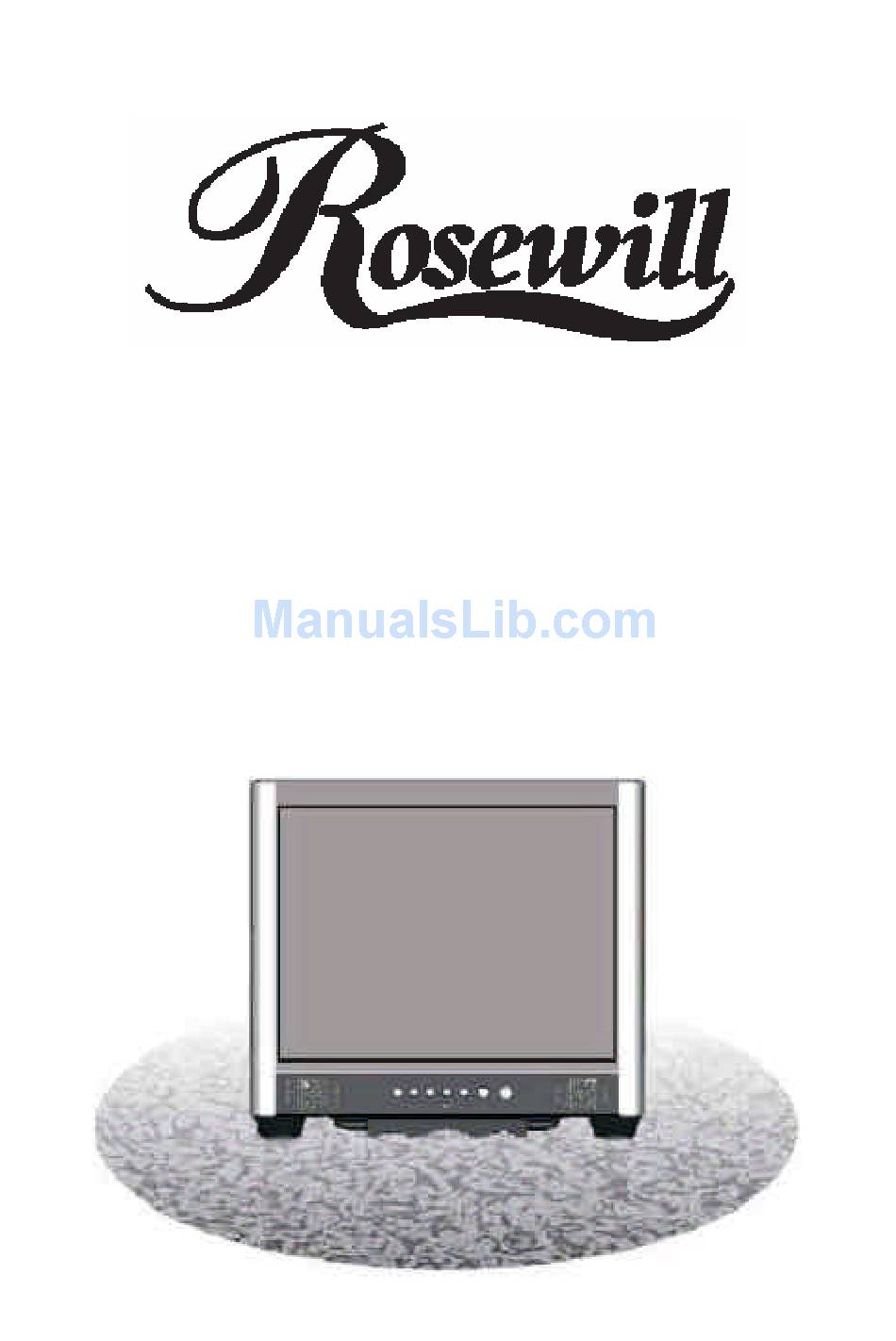

- Page 1 TFT-LCD COLOR MONITOR USER’ s MANUAL R500N...
- Page 2 7.service Information English Pa g e . Pa g e . Pa g e . Pa g e . Pa g e . Pa g e . Pa g e . Pa g e . Pa g e . Pa g e . Pa g e .
-
Page 3: Product Description
Introduction Product Description Congratulations on your purchasing this new generation of monitor. Your LCD monitor incorporates high quality display into a small light weighted module. It has power-saving capabilities and emits no X-ray radiation. You will certainly benefit from this monitor in lots of way to name some of them, comfort safety and environmental protection. - Page 4 Gently wipe screen with a clean camel hair lens brush, or a soft, clean lint-free cloth. This removes dust and other articies that can scratch the screen. Do not apply pressure to the screen surface when wiping it clean. Do not pour or spray and liquid directly onto the screen or case of the LCD monitor.
- Page 5 Read all these instruction and save them for later use. Follow all warning and instructions on the product. Product Do not block the vent holes in the case. Do not insert sharp objects or spill liquid into the LCD monitor through cabinet slots.
- Page 6 Do not overload wall outlets or power cords. Ensure that the total of all units plugged into the wall outlet does not exceed 10 amperes. Ensure that the total ampere ratings on all units plugged into the extension cord is not above the cord s rating.
- Page 7 1. Infred receiver: Remote control to select the OSD of LCD Monitor and TV function. 2. PowerLED: This power LED indicates different status when this unit operates in different modes. 3. Power switch: pressing this button turns the display system power on or off. 4.
- Page 8 5. Decrease:This button is used to adjust the decreasing Value of selected OSD control option and VOLUME adjust function quickly when have Audio function. 6. OSD Menu/select: Pressing this button pops up the OSD menus on the screen and used to select the OSD control options on the screen. 7.
- Page 9 MAIN MEUN VGA IN : 1024x768 H.SYNC: -48.3KHz V.SYNC: -60.8Hz BRIGHTNESS CONTRAST DISPLAY ADJUST COLOR TEMPERATURE LANGUAGE OSD ADJUST AUDIO CONTROL RECALL EXIT DISPLAY ADJUST V-POSITION H-POSITION PITCH PHASE SHARPNESS AUTO BRIGHTNESS AUTO TUNING RECALL RETURN VIDEO ADJUST CONTRAST BRIGHTNESS COLOR SHARPNESS INPUT TYPE...
-
Page 10: Hot Key Control
BRIGHTNESS: Adjusts background black level of the screen image. CONTRAST: Adjusts fore ground white level of the screen image. H.POSITION: Moves the screen image left or right. V.POSITION: Moves the screen up and down. PITCH: Adjusts image distortion appearing as vertical bars or noise on the screen. - Page 11 1. AC POWER INPUT : AC inlet for 12V power system 2. EARPHONE: This input would offer users another better choice in using a monitor without disturbing others 3. PC IN: This can be connected with the D-Sub15 pin signal connector 4.
-
Page 12: Display Angle
Display Angle Tilting For viewing clarity can tile the LCD forward (up to5 degrees) or backward (up to5 degrees). Down:5 Left:40 Right:40 Up:15... - Page 13 Power input DC Input:12V/4.0A...
-
Page 14: Display Modes
Display Modes Modelo Resolucion 720*350 640*480 640*480 640*480 640*480 720*400 800*600 800*600 800*600 800*600 832*624 1024*768 1024*768 1024*768 1024*768 H Frec.(KHz) V Frec.(Hz) 31.469 70.087 31.469 59.940 35.000 66.667 72.809 37.861 37.500 75.000 70.087 31.469 56.250 35.156 60.317 37.879 72.188 48.077 75.000 46.875... -
Page 15: Service Information
Service Information Service When you buy this excellent LCD Monitor, you are entitle to the warranty provide by us, please contact us you need for any information or helps of our product. Thank you for buying our products again...
