Summary of Contents for Rosewill RX355-U

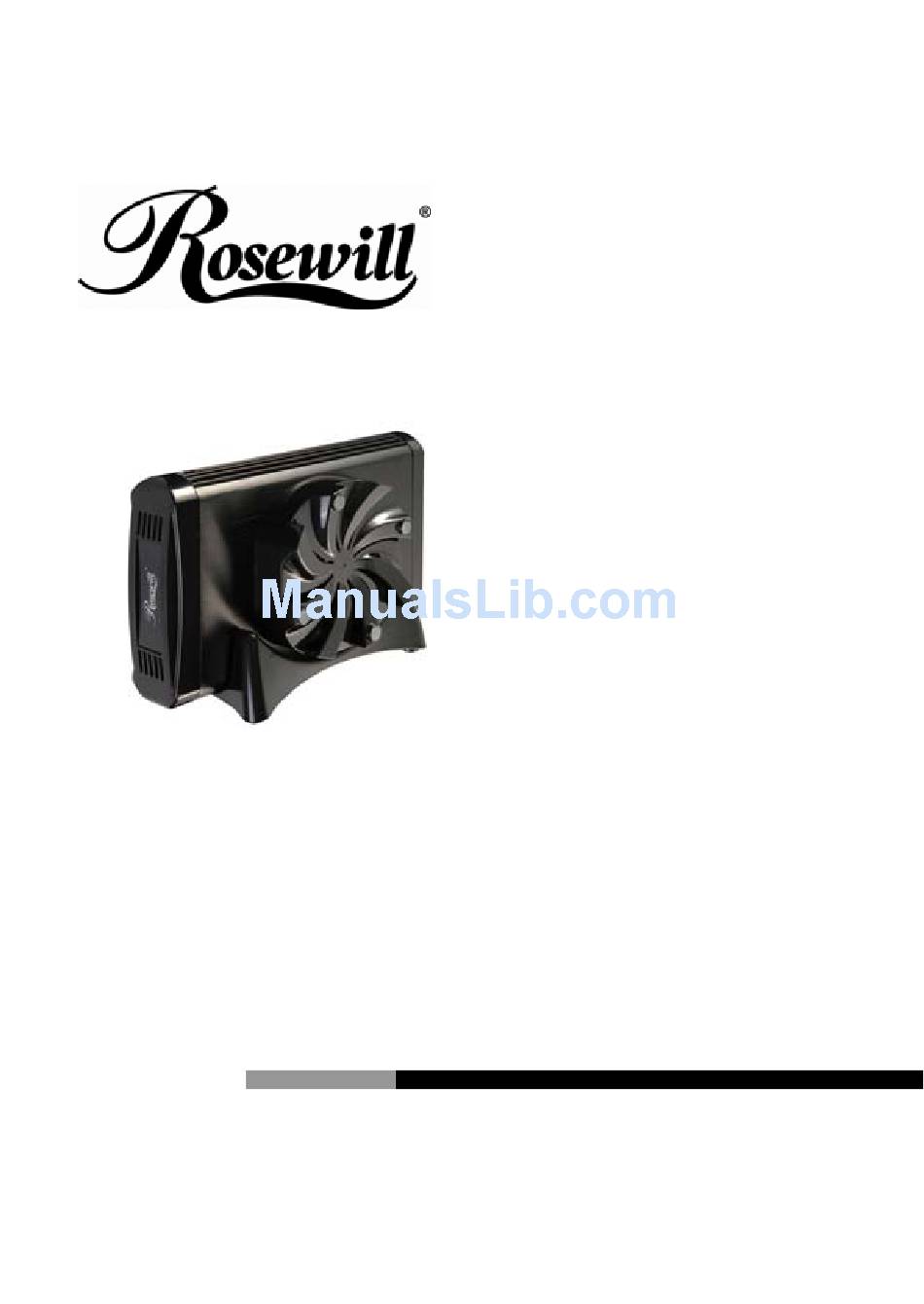

- Page 1 [RX355-U] 3.5" IDE to USB Ext. Enclosure With Removable 80mm fan User Manual...
-
Page 2: System Requirement
3.5" IDE to USB Ext. Enclosure With Removable 80mm fan Please read this installation carefully before you use the product. Precaution: If it is a new HDD, needs to processing the disk partition Win98SE and WinME do not recognize NTFS formatted drives, so if you want to use your drive on those platforms, we recommend you to use FAT32 instead. - Page 3 3.5" IDE to USB Ext. Enclosure With Removable 80mm fan Protection of DC adapter: 1. Primary (Input) Protection The input power line will be fused with a fuse 2.0A, 250 VAC. 2. Secondary (Output) protection 2.1.Over Current (OC) Protection When an internal fault occurs, or an external fault is applied to the power, such that an overload or short circuit is applied to the output, the power will be shutdown.
-
Page 4: Package Contents
3.5" IDE to USB Ext. Enclosure With Removable 80mm fan Package Contents USB 2.0 interface Item 3.5” External Enclosure Driver Disk Installation Guide AC adapter USB cable Foot stand Screw Kit Fan kit Quantity 1 pcs 1 pcs 1 pcs 1 pcs 1 pcs 1 pcs... - Page 5 3.5" IDE to USB Ext. Enclosure With Removable 80mm fan User Manual FEATURE 1. Standard USB 2.0 high speed transfer rate. 2. Aluminum HDD framer for easy installation. 3. Removable 80 mm fan kit. 4. Suitable for all 3.5" IDE HDD. 5.
-
Page 6: Technical Specifications
3.5" IDE to USB Ext. Enclosure With Removable 80mm fan Technical Specifications External Interface Internal Interface Connectors Operating System IDE Standard HDD Space Power Supply AC Input Dimensions Weight Certification USB 2.0 ( Speed up to 480 Mbps) 3.5” IDE HDD USB B receptacle Win 98SE/ME/2000/XP/Vista Mac OS 9.x and above. - Page 7 3.5" IDE to USB Ext. Enclosure With Removable 80mm fan User Manual Installation Guide: 1. Release the screws to pull out the HDD frame. 2. Fix the HDD by screws (after HDD located with the connecter). 3. Pull in the frame into external box. 4.
- Page 8 3.5" IDE to USB Ext. Enclosure With Removable 80mm fan 5. After connect transfer cable and Power cord, the external HDD will appear the relativity 6.Cooling fan cable installation: Plug to DC fan cable into rear panel & cooling fan’s DC jack, and the fan will be operating after the power on.
-
Page 9: Driver Installation
3.5" IDE to USB Ext. Enclosure With Removable 80mm fan Driver Installation: Windows 98SE After plug the external box into, the system will remind you there is a new hardware of USB Storage Adapter adds into. Design the driver of the safe path (in the driver), the system will active the installation automatically. - Page 10 3.5" IDE to USB Ext. Enclosure With Removable 80mm fan User Manual Windows 2000/XP/Vista Plug the HDD into your system it will appear the hot plug a play. Just click “Control Panel”/ “manage tool” / “computer management” / “Disk management”. All the disk connects to the PC will appear on the chart, as well as the state of the HDD.
- Page 11 3.5" IDE to USB Ext. Enclosure With Removable 80mm fan User Manual To remove the device: For Windows 98SE Users Before you remove your device please wait for “Access LED” on reader stops blinking to prevent data loss. For Windows ME/2000/XP/Vista Users Please double-click the icon on the system tray.
- Page 12 If you can not see the drive, make sure the jumper settings of your hard drive is “master”. Thank you for purchasing a quality Rosewill Product. Please register your product at: www.rosewill.com for complete warranty information and future support for your product. Removable 80mm fan...
