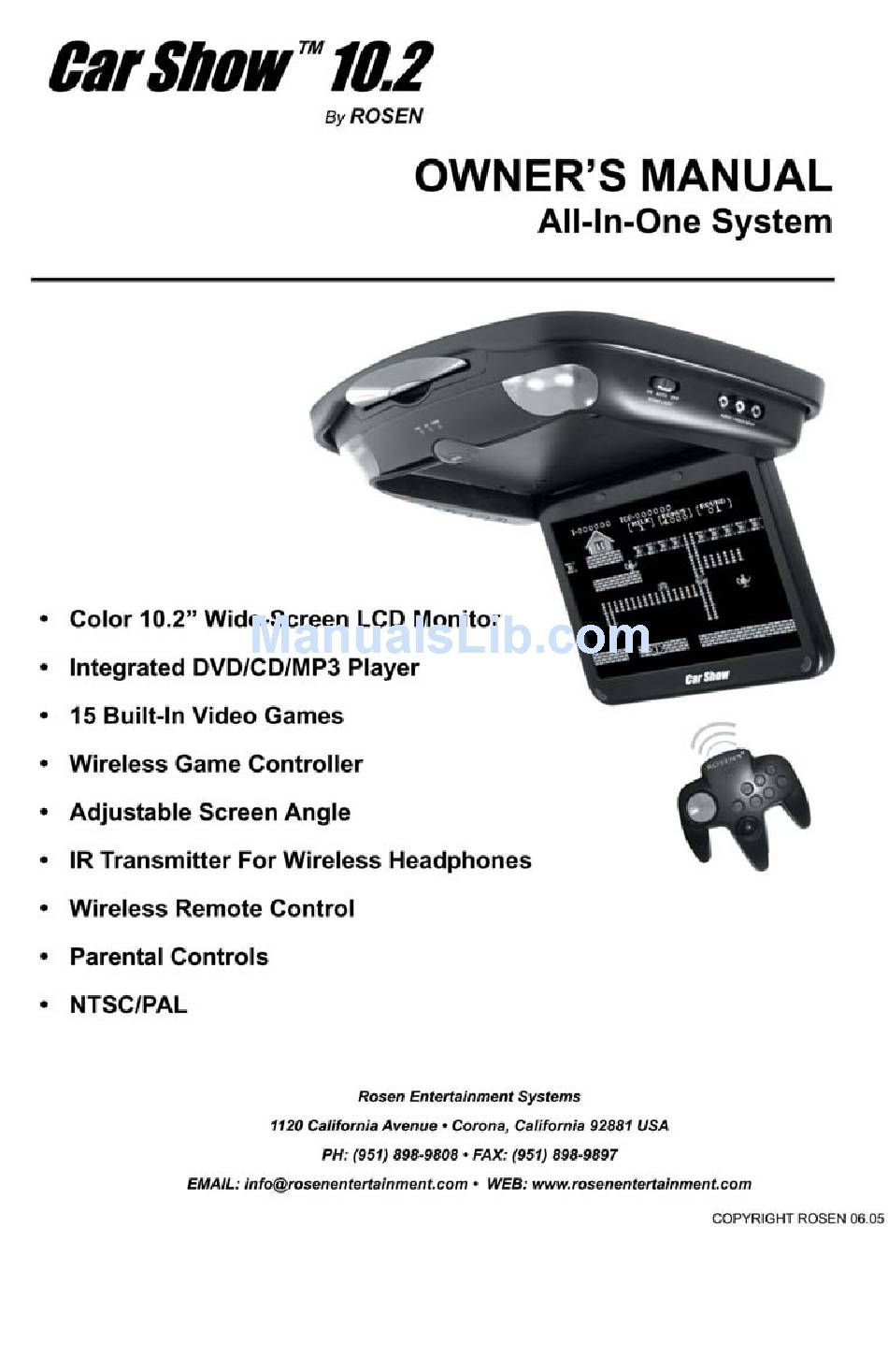

Rosen 10.2 Owner's Manual
  1. Manuals
  2. Brands
  3. Rosen Manuals
  4. Car Video System
  5. 10.2
  6. Owner's manual

Rosen 10.2 Owner's Manual

All-in-one system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosen 10.2

Summary of Contents for Rosen 10.2

  • Page 2: Table Of Contents

    CONTENTS Safety Information ...4 Disc Notes ...5 The Player ...6 Remote Control...7 Location and Function of Keys...7 Preparing the Remote Control ...9 Loading/Ejecting a disc...9 Loading a Disc ...9 Ejecting a Disc ...9 Operation ...10 Basic Play ...10 Display Adjust Function ...11 On-Screen Display Function...11 Multi-Subtitle Language Function ...12 MP3 Disc Play...13...
  • Page 3 NOTICES Use the Proper Power Supply This product is designed to operate with a 12 volt DC, negative ground battery system (the regular system in a North American car). Protect the Disc Mechanism Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction to the DVD mechanism in this unit.

  • Page 4: Safety Information

    ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES. NOTICE OF INTENDED USE Rosen Entertainment Systems are designed to enable viewing of video ONLY for rear-seat occupants, and are not intended for viewing by driver when the vehicle is in motion. Such use might distract the driver or interfere with the driver’s safe operation of the vehicle, and...

  • Page 5: Disc Notes

    DISC NOTES Disc formats supported by this player 12 cm disc Video CD 12 cm disc 12 cm disc 12 cm disc Handling and Cleaning • Dirt, dust, scratches and warping disc will cause misoperation. • Do not place stickers or make scratches on discs.

  • Page 6: The Player

    THE PLAYER 1. Dome Lamp Switch 2. EJECT ( 3. MODE 4. PLAY/PAUSE ( Chapter Back Chapter Forward 7. Disc slot 8. Speaker Enable Switch 9. AV IN Interface 10. Monitor release botton: Push the botton to eject the screen display from the base.

  • Page 7: Remote Control

    REMOTE CONTROL LOCATION AND FUNCTION KEYS DISPALY MODE MODE INFO ENTER DISC SETUP MENU DISC ZOOM EJECT TITLE RANDOM REPEAT DISPLAY ADJUST...
  • Page 8 REMOTE CONTROL Press it to pause playback. Press it to turn the unit ON or OFF. Press Press it to enable or disable sound through the car radio. Press to mute the sound. MODE Changing between DVD mode, GAME mode and AUX mode. Cursor buttons.

  • Page 9: Preparing The Remote Control

    REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new batteries. Make sure that the positive and negative terminals of the batteries are oriented as indicated. 3. Close the cover Battery: one button cell lithium battery, CR2025.

  • Page 10: Operation

    OPERATION BASIC PLAY STOPPING PLAY - Briefly press the (Stop) button to stop the unit playback, when the button is pressed, normal playback will continue. - Press (Stop) button twice to stop the playback and go back to initial Track/Chapter. RAPID FORWARD/RAPID REVERSE Press during play.

  • Page 11: Turning The Unit On/Off

    OPERATION when car doors are opened. State 2: To turn on the lamp. TURNING THE UNIT ON/OFF Press OPEN button on the front panel to release and turn on the monitor. FM TRANSMITTER FUNCTION Press button on the front panel or on the remote control to turn the FM TRANSMITTER ON or OFF.

  • Page 12: Multi-Subtitle Language Function

    OPERATION (2) Press INFO for the second time: SINGLE REMAIN 00:03:15 (3) Press INFO for the third time: TOTAL ELAPSED 00:00:25 (4) Press INFO for the fourth time: TOTAL REMAIN 00:40:35 (5) Press INFO for the fifth time: The message on the screen will be cleared. (1)Press INFO for the first time: SINGLE ELASPED 00:00:25...

  • Page 13: Mp3 Disc Play

    OPERATION MP3 DISC PLAY MP3 disc is playing as the format of FOLDER. For example: SMART NAVI ROOT CD01 MP3 001 PLUMT CD02 MP3 002 RZID CD03 MP3 003 ASCIS CD04 MP3 004 DCYI CD05 MP3 005 BFZ DISC PLAY MODE In stop mode, use remote control to select the item or folder (such as CD01, CD02...), and press...

  • Page 14: Setup

    SETUP INITIAL SETUP SETUP MENU --- MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP 1. Press SETUP in the stop mode. (Press the stop button twice to ensure the player is in STOP mode.) 2. The initial SETUP menu is displayed. 3.
  • Page 15 SETUP --- GENERAL PAGE --- TV DISPLAY PIC MODE AUTO ANGLE MARK HI-RES OSD LANG N-FLICKER CAPTIONS SCR SAVER MAIN PAGE PIC mode setup Select AUTO, the player PIC mode will depend on DVD disc. Select HI-RES format for best image resolution.

  • Page 16: Speaker Setup

    SETUP --- GENERAL PAGE --- TV DISPLAY PIC MODE ANGLE MARK OSD LANG CAPTIONS SCR SAVER MAIN PAGE SCREER SAVER setup Select the SCR SAVER ON/OFF. SPEAKER SETUP --- SPEAKER SETUP PAGE --- DOWNMIX LT/RT STEREO MAIN PAGE This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode.

  • Page 17: Preferences Setup

    SETUP --- AUDIO SETUP --- OP MODE LPCM OUTPUT DYNAMIC MAIN PAGE DYNAMIC Range Control Select DYNAMIC and adjust the dynamic range of a Dobly Digital encoded program. There are 8 steps between full compression and off compression. PREFERENCES SETUP --- PREFERENCES PAGE --- TV TYPE AUTO...
  • Page 18 SETUP --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU ENGLISH PARENTAL FRENCH PASSWORD SPANISH DEFAULTS CHINESE SMART NAV JAPANESE LOGO GERMAN MAIN PAGE ITALIAN DISC MENU language setup Select the preferred DISC MENU language by using the cursor buttons. --- PREFERENCES PAGE --- TV TYPE AUDIO...

  • Page 19: Smart Nav

    SETUP --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS NO MENU SMART NAV WITH MENU LOGO MAIN PAGE SMART NAV If selected WITH MENU mode, when playing an MP3 disc, the smart navigation menu will appear on the screen, then the user can select a track to play according to the menu hint.

  • Page 20: Installation

    INSTALLATION Bracket Base DVD Deck Mounting Boltch (M4.0 x 20) 1. Determine the mounting location and drill four mounting holes on the ceiling (See Fig.1). 2. Attach the mounting bracket (A) to the mounting holes on the ceiling with screws matching with the screw holes on the bracket (A).

  • Page 21: Electrical Connection

    ELECTRICAL CONNECTION POWER CONNECTION DOME LIGHTS AUDIO OUTPUT (R) (RED) AUDIO OUTPUT (L) (WHITE) (25CM) VIDEO OUTPUT (YELLOW) AV OUTPUT CABLE (BLACK) AUDIO IN (R) (RED) AUDIO IN (L) (WHITE) VIDEO IN (YELLOW) (25CM) AV IN (2) CABLE (BLACK)

  • Page 22: Replacing The Car Dome Lamp

    REPLACING THE CAR DOME LAMP There are two car dome lamps on the DVD unit. Follow the directions shown below for a new lamp changing. 1. Be sure the lamp is off. Push back the lamp cover and open it. 2.

  • Page 23: Trouble Shooting

    TROUBLE SHOOTING If it appears that your DVD unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Under no circumstances should you try to repair the player yourself, as this will void the warranty. Only qualified service personnel can remove the cover or service this player.

  • Page 24: Specifications

    SPECIFICATIONS Supply Voltage Current Consumption Signal System Discs Played Operating temp Note: Specifications and design are subject to modification, without notice, due to improvements in technology. : 12V DC (11V-15V), test voltage 14.4V, negative ground : Less than 2A : Compositive video 1.0Vp-p 75Ω : (1) 5”...

This manual is also suitable for:

Car show 10.2
