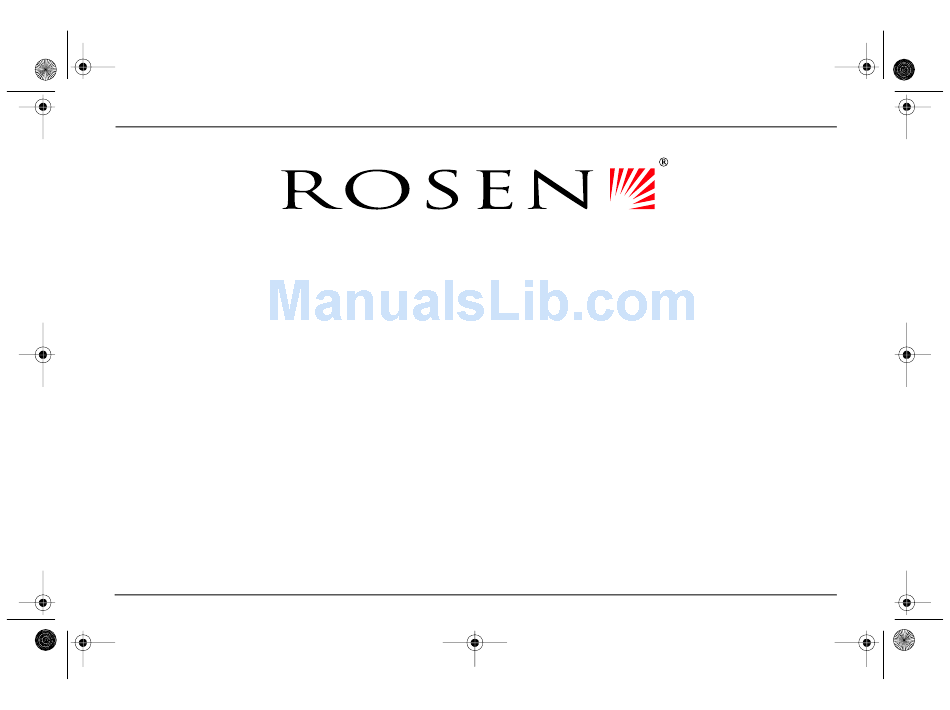

ClearVUe Ultra_final.fm Page -5 Sunday, February 10, 2002 7:10 PM
ClearVue Ultra Owner's Manual
PN 9000260
© Rosen Products 2002
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Rosen.
Advertisement
Table of Contents
Related Manuals for Rosen ClearVue Ultra
Summary of Contents for Rosen ClearVue Ultra
- Page 1 ClearVUe Ultra_final.fm Page -5 Sunday, February 10, 2002 7:10 PM ClearVue Ultra Owner’s Manual PN 9000260 © Rosen Products 2002 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Rosen.
- Page 2 ClearVUe Ultra_final.fm Page -4 Sunday, February 10, 2002 7:10 PM...
- Page 3 ClearVUe Ultra_final.fm Page -3 Sunday, February 10, 2002 7:10 PM INTRODUCING THE CLEARVUE ULTRA SYSTEM 1 DISPLAY RELEASE LATCH 2 STOP/EJECT BUTTON 3 PLAY/PAUSE BUTTON 4 SPEAKER ON/OFF BUTTON 5 HEADPHONE JACK 6 HEADPHONE JACK 7 INFRARED TRANSMITTER LENS FOR IR WIRELESS...
- Page 4 ClearVUe Ultra_final.fm Page -2 Sunday, February 10, 2002 7:10 PM...
-
Page 5: Table Of Contents
ClearVUe Ultra_final.fm Page -1 Sunday, February 10, 2002 7:10 PM Table of Contents ... 1 NTRODUCTION ... 1 WITCHING ... 1 ISPLAY ... 2 SING THE EADPHONES ... 3 SING THE PEAKERS WITCHING THE PEAKERS ETWEEN ... 4 LTRA ONSOLE ONTROLS ... - Page 6 ClearVUe Ultra_final.fm Page 0 Sunday, February 10, 2002 7:10 PM...
-
Page 7: Introduction
ClearVUe Ultra_final.fm Page 1 Sunday, February 10, 2002 7:10 PM INTRODUCTION The Rosen ClearVue Ultra system installed in your vehicle has been chosen to give the occupants a more enjoyable journey. Ensure that you and your passengers take time to read these instructions. -
Page 8: Using The Headphones
ClearVUe Ultra_final.fm Page 2 Sunday, February 10, 2002 7:10 PM Rosen Products USING THE HEADPHONES Using the headphones with your Ultra system allows rear-seat passengers to listen to their DVD, CD, or video game without disturbing front-seat passengers. When headphones are in use with the Ultra system, front-seat passengers can use the vehicle’s audio system as usual through the car speakers. -
Page 9: Using The Car Speakers
If DVD audio is not clear because of interference from a local radio signal at or near 88.7, have your Rosen dealer adjust the FM frequency used by the Ultra system. The ClearVue Ultra can use either 88.7 or 89.1. Switching the Car Speakers Between DVD and Radio... -
Page 10: Ultra Console Controls
ClearVUe Ultra_final.fm Page 4 Sunday, February 10, 2002 7:10 PM Rosen Products ULTRA CONSOLE CONTROLS STOP/EJECT Press to stop playback. Stop appears on the monitor. Press again to eject the DVD from the console. Eject appears on the monitor. PLAY/PAUSE Press to begin playback of the DVD. -
Page 11: Ultra Remote Control
Left Arrow Enter Return 10 FM Modulator Frequency Adjust (+) 11 Speaker 12 Subtitle 13 Number Keys 14 Random ClearVue Ultra Owner’s Manual 15 Normal 16 Pan/Scan 17 Menu Language 18 Audio Language 19 Play 20 Stop 21 Pause 22 Next Track... -
Page 12: Replacing The Remote Batteries
ClearVUe Ultra_final.fm Page 6 Sunday, February 10, 2002 7:10 PM Rosen Products REPLACING THE REMOTE BATTERIES Battery life is approximately six months depending on how often the remote is used. Use two size AAA batteries. Replace both batteries at the same time. -
Page 13: Viewing Advd
The monitor will go blank if it is pushed too far toward the front of the car. Video returns when you adjust the angle for normal viewing. ClearVue Ultra Owner’s Manual 4 Insert a DVD or CD label side up into the slot on the side of unit. -
Page 14: Basic Functions
ClearVUe Ultra_final.fm Page 8 Sunday, February 10, 2002 7:10 PM Rosen Products BASIC FUNCTIONS POWER While the Rosen Ultra system monitor is open in the viewing position, press to turn on and off the system. The Ultra system automatically turns on and off when the monitor is opened and closed. -
Page 15: Previous Track
ClearVUe Ultra_final.fm Page 9 Sunday, February 10, 2002 7:10 PM ClearVue Ultra Owner’s Manual BASIC FUNCTIONS, CONTINUED PREVIOUS TRACK Press to jump to the previous title or chapter, if available on the DVD, or to the previous track on a CD. Prev Track appears on the monitor. -
Page 16: Using Audio Buttons
ClearVUe Ultra_final.fm Page 10 Sunday, February 10, 2002 7:10 PM Rosen Products USING AUDIO BUTTONS 30 MUTE Press once to mute the audio. Mute appears on the monitor. Press again to return to normal audio. 11 SPEAKER While your car radio is on, press once to hear DVD audio through the car speakers. - Page 17 Press to scroll through tracks, parental control ratings, or menu languages. 25 UP ARROW Press to move the highlight up. ClearVue Ultra Owner’s Manual 26 RIGHT ARROW Press to move the highlight to the right. 27 MENU Press to see the main DVD menu, if available.
-
Page 18: Dvd Language Support
ClearVUe Ultra_final.fm Page 12 Sunday, February 10, 2002 7:10 PM Rosen Products DVD LANGUAGE SUPPORT Some DVDs offer a variety of language options for DVD audio, DVD menu text, and DVD subtitles. Features vary depending on the DVD you are viewing. 12 SUBTITLE Press to view subtitles, if available. -
Page 19: Playing Acd
ClearVUe Ultra_final.fm Page 13 Sunday, February 10, 2002 7:10 PM ClearVue Ultra Owner’s Manual PLAYING A CD When playing CDs in the Rosen ClearVue Ultra system, the following features are available in addition to basic functions (refer to “Basic Functions” on page 8). -
Page 20: Using Parental Control
ClearVUe Ultra_final.fm Page 14 Sunday, February 10, 2002 7:10 PM Rosen Products USING PARENTAL CONTROL Some DVDs include a rating system that indicates appropriate viewer age. The Parental Control feature interacts with the DVD rating, if available, to enable parents to limit DVD playback. The Rating button is password protected. -
Page 21: View Options
ClearVUe Ultra_final.fm Page 15 Sunday, February 10, 2002 7:10 PM ClearVue Ultra Owner’s Manual VIEW OPTIONS Some DVDs include options that enable you to view them in the same resolution as you would at a cinema, or to pan in to enlarge the image. -
Page 22: Using Games And Camcorders
ClearVUe Ultra_final.fm Page 16 Sunday, February 10, 2002 7:10 PM Rosen Products USING GAMES AND CAMCORDERS You may use video games, camcorders, and other portable video units by connecting the unit to the color-coded auxiliary inputs located on the Ultra system. Right channel audio input - Red Left channel audio input - White Video input - Yellow... -
Page 23: Troubleshooting
Replace the dome light with a 5 watt or less bulb. LOW VOLTAGE The Ultra system has a low-voltage protection circuit. Should the vehicle’s voltage drop below the minimum level, the system automatically shuts off. on the remote ClearVue Ultra Owner’s Manual on the remote SPEAKER... - Page 24 ClearVUe Ultra_final.fm Page 18 Sunday, February 10, 2002 7:10 PM ClearVue Ultra Owner’s Manual...
