Electric Range
Thank
you for choosing
a
Roper appliance.
This Use and Care Guide will help you
operate and maintain your new, quality-
built Roper range. Keep this Use and
Care Guide in a safe place for future
reference.
Complete
and mail the
Product
Registration
Card.
This card enters your warranty into our
warranty system that ensures efficient
claim processing, can be used as a proof
of purchase for insurance claims and
helps Roper to contact you immediately
in the unlikely event of a product-safety
recall.
Useand
CareGuide
Home Appliances
SEP340X
SEC350X
You are responsible
for
It is your responsibility
to be sure that
your range:
. Has been properly installed where it
is protected from the elements, and
on a floor strong enough to
support
its weight. (See the Installation
Instructions.)
. Is not used by anyone unable to
operate it properly.
. Is properly maintained.
. Is used only for jobs expected of a
home range.
. Is secured by properly installed anti-
tip bracket. The bracket must
overlap the range base.
Contents
Page
Using Your Range
Using the surface units
;
5
Using the Minute Timer
Using the oven controls
:
i
8
Caring For Your Range
The control knobs
:
10
10
The standard-cleaning
oven
The continuous-cleaning
::
12
14
15
Warranty
Advertisement
Table of Contents
Related Manuals for Roper SEC350X
Summary of Contents for Roper SEC350X
-

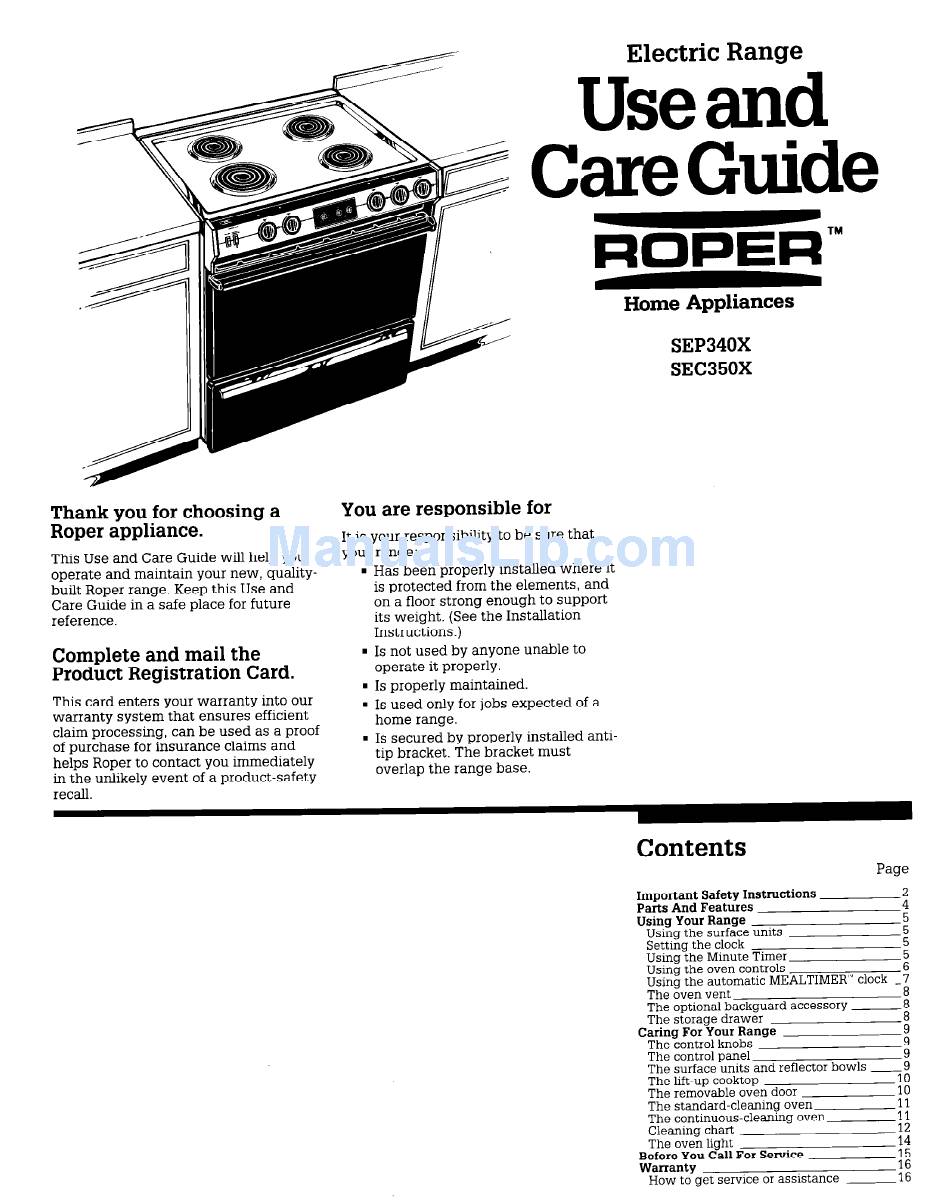

Page 1: Table Of Contents
Thank you for choosing Roper appliance. This Use and Care Guide will help you operate and maintain your new, quality- built Roper range. Keep this Use and Care Guide in a safe place for future reference. Complete and mail the... -
Page 2: Important Safety Instructions
(see page 8) and verify that the anti-tip bracket is engaged. 4. DO NOT operate the range if it is not working properly, or if it has been damaged. 5. DO NOT use the range for warming or heating the room. - Page 3 THE FUMES CAN CREATE HAZARD OR EXPLOSION. . SAVE THESE INSTRUCTIONS 31. DO NOT repair or replace any part of the range unless specifically recommended in this manual. All other servicing should be referred to a qualified technician. 32. Disconnect the electrical supply before servicing the range.
-
Page 4: Parts And Features I
Parts & Features Models SEC350X (shown) & SEP340X Plug-in surface unit Chrome reflector bowl Control panel Broil element Anti-tip bracket Continuous- cleamn (Model Standa (Model Heat seal ’ Model SEC350X Surface unit marker Timed bake Timed Left front indicator bake... -
Page 5: Using Your Range
Using Your Range Using the surface units Control knobs must be pushed in before turning them to a setting. They can be set anywhere between HI and OFF. Surface unit markers The solid dot in the surface unit marker shows which surface unit is turned on by that knob. -
Page 6: Using The Oven Controls
Using the oven controls Baking 1. Position the rack(s) properly before turning on the oven. To change rack position, pull rack out to stop, raise front edge and lift out. The rack(s) should be placed so the top of the food will be centered in the oven. -
Page 7: Using The Automatic Mealtimer'" Clock -7
Using the automatic MEALTIMER’” clock The automatic MEALTIMER clock is designed to turn the oven on and off at times you set, even when you are not around. Automatic baking is ideal for foods which do not require a preheated oven such as meats and casseroles. -
Page 8: The Oven Vent
The optional backguard accessory An optional backguard accessory can be added to the back of the cooktop. This accessory (Part No. 4315465) is available from your Roper Appliance dealer. Page 8 The storage drawer Oven vent The storage drawer is for storing pots and pans. -
Page 9: Caring For Your Range
Caring For Your Range Bum And Electrical Shock Hazard Make sure all controls are OFF and the range is cool before cleaning. Failure to do so can result in burns or electrical shock. The control knobs 1. Turn control knobs to the OFF position. -
Page 10: The Lift-Up Cooktop
The lift-up cooktop 1. Lift front of cooktop at center 2. Swing up the support rod. 3. Carefully lower the cooktop onto the support rod. 4. Wipe surface under cooktop with warm, soapy water. Use a soap- filled plastic scouring pad on heavily-soiled areas. -
Page 11: Oven
It must be used properly. Cut foil from a roll of heavy-duty 18-inch (45 cm) aluminum foil, or buy a foil kit (Part No. 241430) from your Roper Appliance dealer. Bum, Electrical Shock And Product Damage Hazard . -
Page 12: Cleaning Chart
Cleaning chart Make sure all controls are OFF and the range is cool before cleaning. Failure to do so can result in burns or electrical shock. PART Exterior surfaces Surface units Chrome reflector bowls Control knobs Control panel and trim... - Page 13 Heavy-duty aluminum foil. . Do not use commercial oven cleaners. . Most fat splatters on oven walls and floor will HOW TO CLEAN Make sure oven is cool. Remove door for easier access. Clean heavily-soiled areas or stains. Rinse well with water.
-
Page 14: The Oven Light
The oven light (Model SEC350X) To turn the oven light on, push the Oven Light Switch on the control panel. Push the switch again to turn off the light. replace: Electrical Shock And Personal Injury Hazard . Make sure oven and light bulb are... -
Page 15: Before You Call For Service
OPERATING PROBLEM Nothing operates. . Range is properly connected to a live circuit with the proper voltage. . Your home’s main fuse has blown or circuit breaker has tripped. -
Page 16: How To Get Service Or Assistance
E. Any labor costs during the limited warranties, This Roper appliance is warranted by Whirlpool Corporation. Under no circumstances shall it be liable under this warranty for incidental or consequential damages and all implied warranties are limited to the same time periods stated in the express warranties for Roper Brand Appliances.
