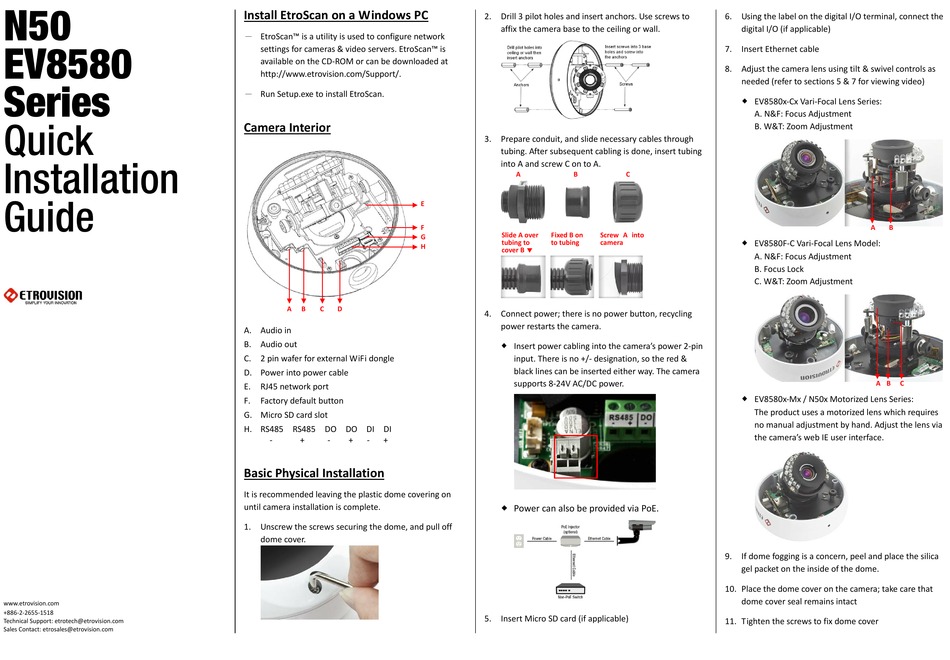

EtroVISION N50 Quick Installation Manual

N50
EV8580
Series
Quick
Installation
Guide
www.etrovision.com
+886-2-2655-1518
Technical Support: etrotech@etrovision.com
Sales Contact: etrosales@etrovision.com

Install EtroScan on a Windows PC

－ EtroScan™ is a utility is used to configure network
settings for cameras & video servers. EtroScan™ is
available on the CD-ROM or can be downloaded at
http://www.etrovision.com/Support/.
－ Run Setup.exe to install EtroScan.

Camera Interior

E
F
G
H
A B C D
A. Audio in
B. Audio out
C. 2 pin wafer for external WiFi dongle
D. Power into power cable
E. RJ45 network port
F. Factory default button
G. Micro SD card slot
H. RS485 RS485 DO DO DI DI
- + - + - +

Basic Physical Installation

It is recommended leaving the plastic dome covering on
until camera installation is complete.
1. Unscrew the screws securing the dome, and pull off
dome cover.
2. Drill 3 pilot holes and insert anchors. Use screws to
affix the camera base to the ceiling or wall.
3. Prepare conduit, and slide necessary cables through
tubing. After subsequent cabling is done, insert tubing
into A and screw C on to A.
A B C
Slide A over Fixed B on Screw A into
tubing to to tubing camera
cover B 
4. Connect power; there is no power button, recycling
power restarts the camera.
 Insert power cabling into the camera's power 2-pin
input. There is no +/- designation, so the red &
black lines can be inserted either way. The camera
supports 8-24V AC/DC power.
 Power can also be provided via PoE.
5. Insert Micro SD card (if applicable)
6. Using the label on the digital I/O terminal, connect the
digital I/O (if applicable)
7. Insert Ethernet cable
8. Adjust the camera lens using tilt & swivel controls as
needed (refer to sections 5 & 7 for viewing video)
 EV8580x-Cx Vari-Focal Lens Series:
A. N&F: Focus Adjustment
B. W&T: Zoom Adjustment
A B
 EV8580F-C Vari-Focal Lens Model:
A. N&F: Focus Adjustment
B. Focus Lock
C. W&T: Zoom Adjustment
A B C
 EV8580x-Mx / N50x Motorized Lens Series:
The product uses a motorized lens which requires
no manual adjustment by hand. Adjust the lens via
the camera's web IE user interface.
9. If dome fogging is a concern, peel and place the silica
gel packet on the inside of the dome.
10. Place the dome cover on the camera; take care that
dome cover seal remains intact
11. Tighten the screws to fix dome cover
